In gas analysis, the sample line matters as much as the analyzer. If the gas cools during sampling, moisture may condense, particles may attach to the hose wall, and the final test result may become unstable.
Our heated gas sampling hose is designed to keep gas samples at a controlled temperature during transfer. It helps reduce condensation risk, maintain sample integrity, and support more reliable detection results for flue gas monitoring, online emission monitoring, infrared analyzers, ultraviolet analyzers, and laboratory testing systems.
For gas detection equipment manufacturers and environmental monitoring projects, a stable heated sampling hose is not just a connection part — it is part of the measurement system.

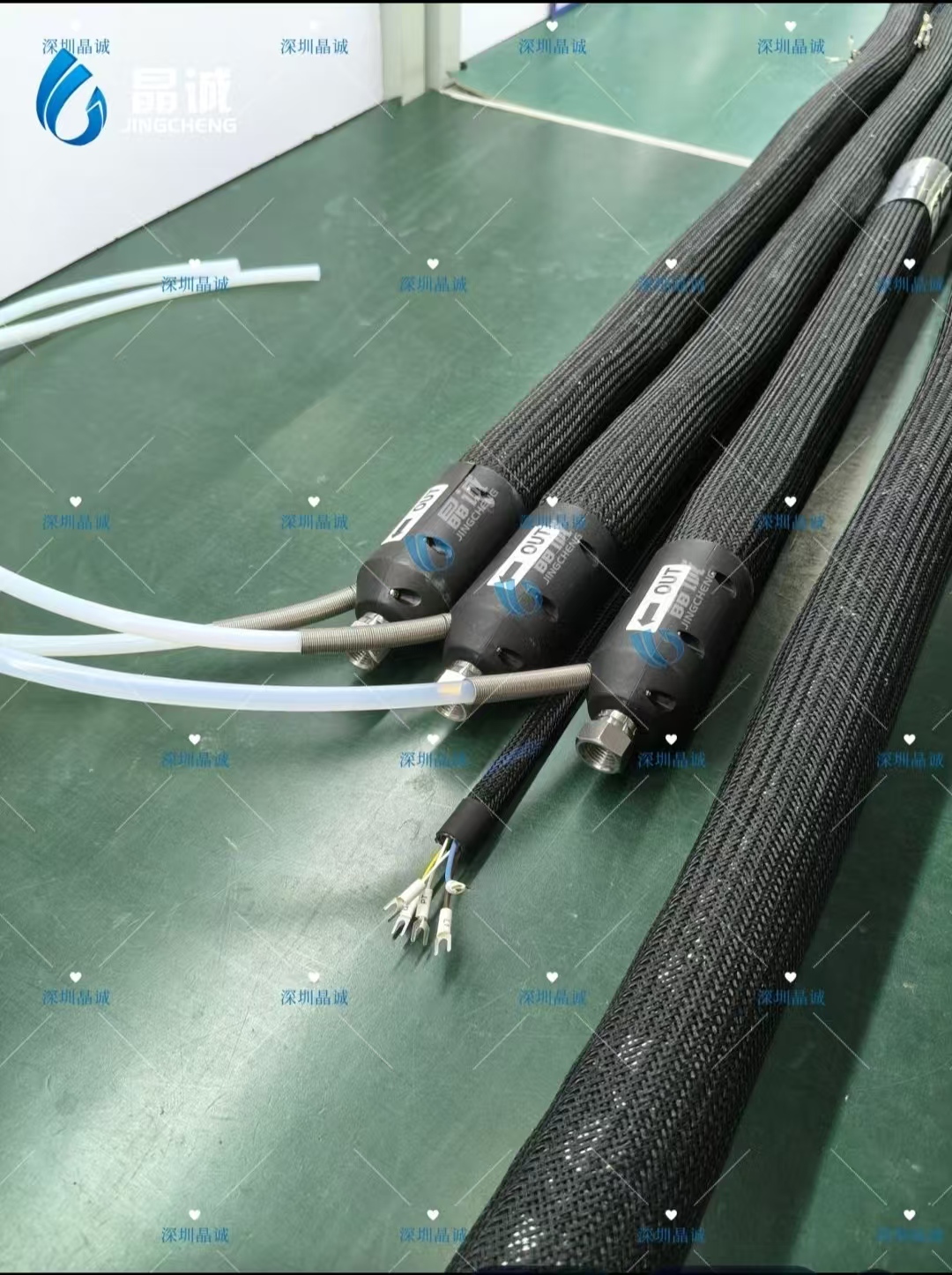

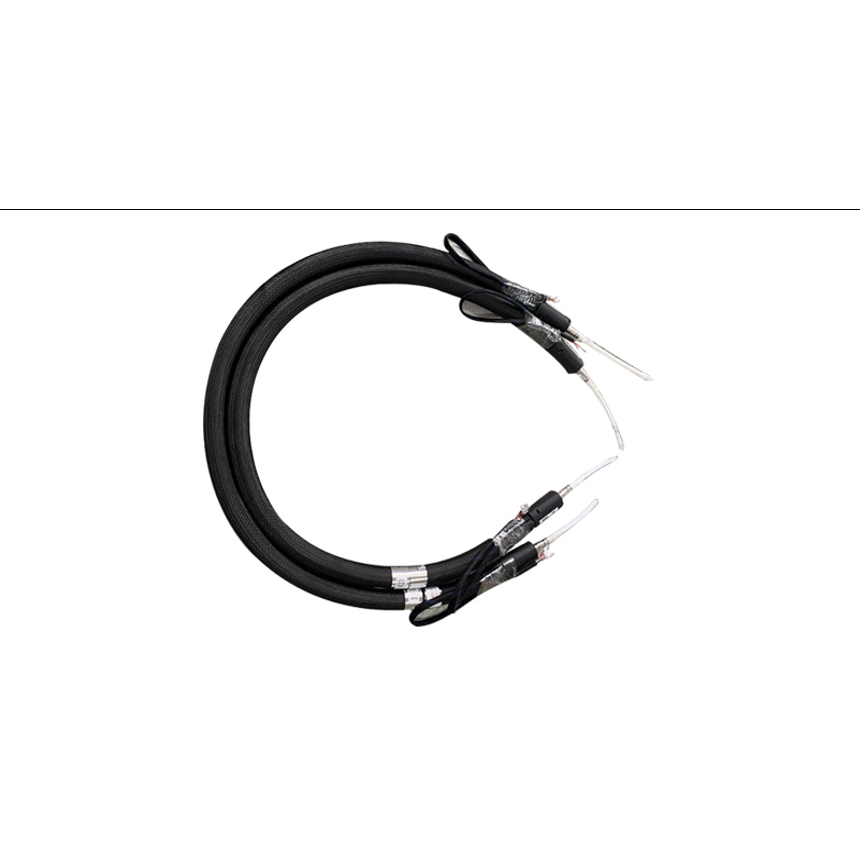

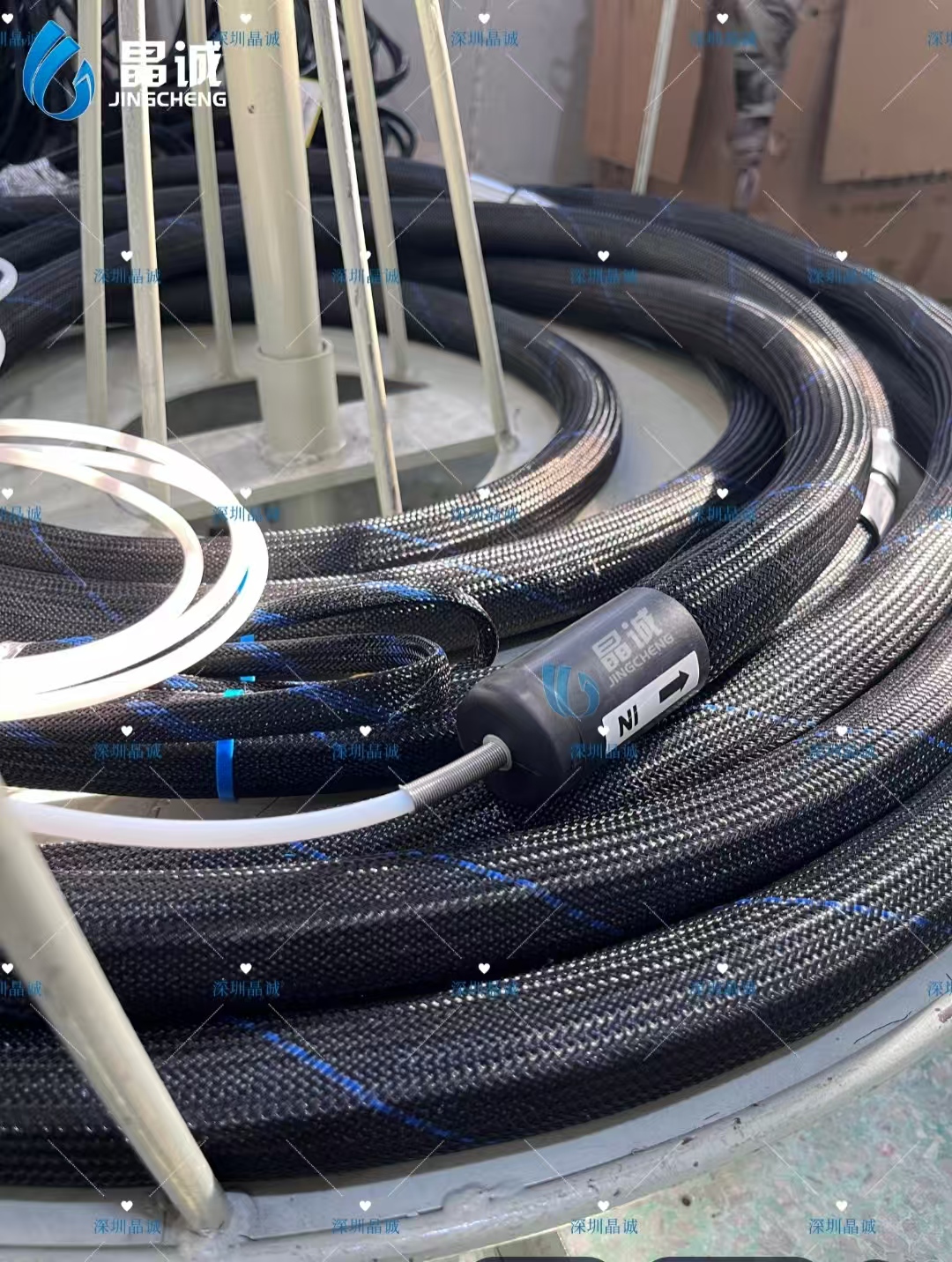

The heated gas sampling hose for gas detection equipment is part of Jingcheng’s high temperature and low pressure electric heated hose series.
According to the Jingcheng heated hose catalog, this product is widely used in flue gas pretreatment equipment, online monitoring equipment, infrared and ultraviolet sampling analyzers, and laboratory testing equipment. It is designed with good bending resistance, folding resistance, and stable insulation performance.
The hose can support heat resistance up to 230°C, helping gas samples stay above the condensation point during transfer.
In flue gas and emission monitoring, temperature loss can directly affect sample quality. When the gas temperature drops, water vapor may condense inside the hose. This can absorb target components, block the sampling path, and reduce measurement accuracy.
A heated sampling hose keeps the sample line warm and stable. It helps protect the gas composition before the sample reaches the analyzer.
For continuous monitoring systems, this means fewer interruptions, lower maintenance frequency, and more consistent detection performance.
The hose uses a uniformly distributed heating layer to reduce temperature variation along the hose. This helps maintain a stable sample temperature during transfer and lowers the risk of condensation.
This hose is suitable for flue gas pretreatment systems, online monitoring systems, infrared sampling analyzers, ultraviolet sampling analyzers, and laboratory detection equipment.
The catalog indicates that the hose can reach heat resistance up to 230°C. This makes it suitable for many heated gas sampling and emission monitoring applications.
Gas sampling systems often require hose routing through equipment cabinets, sampling probes, and installation sites. This product is designed to resist bending and folding, making installation easier and more reliable.
Jingcheng can customize hose length, inner diameter, voltage, power, sensor type, connector, and temperature requirements according to different gas detection equipment.
Item | Product Information |
|---|---|
Source Product | 高温低压电加热软管 — 气体检测设备用管 / 气体采样管 |
English Product Name | Heated Gas Sampling Hose for Gas Detection Equipment |
Product Category | High Temperature & Low Pressure Electric Heated Hose |
Main Application | Gas detection and gas sampling systems |
Suitable Equipment | Flue gas pretreatment equipment, online monitoring equipment, IR/UV analyzers, laboratory testing equipment |
Maximum Heat Resistance | Up to 230°C |
Heating Structure | Uniformly distributed heating layer |
Main Feature | Bend-resistant, folding-resistant, stable insulation |
Main Benefit | Reduces condensation risk and supports stable sample transfer |
Custom Options | Length, diameter, voltage, sensor, connector, temperature, power |
Suitable Media | Flue gas, sample gas, industrial exhaust gas, laboratory gas samples |
Used to transfer gas samples from the sampling point to the pretreatment unit while maintaining temperature stability.
Suitable for continuous gas monitoring systems where stable sample transfer is required.
Helps protect sample quality before the gas enters IR or UV analysis equipment.
Can be used for laboratory gas sampling systems that require heated sample transfer.
Ideal for industrial plants, emission testing stations, stack monitoring systems, and environmental inspection equipment.
Jingcheng manufactures heated hoses based on real equipment requirements, including temperature, length, voltage, sensor, connector, and installation conditions.
Uniform heating and efficient insulation help reduce temperature fluctuation and improve sample transfer stability.
For equipment manufacturers, replacement needs, and project installation, fast delivery matters. Jingcheng supports short production lead time and sample availability.
As a China-based heated hose manufacturer, Jingcheng provides customized products with competitive pricing, helping customers reduce procurement cost and long-term operating cost.
