In solventless lamination, stable fluid temperature and smooth material transfer are critical to coating quality, bonding consistency, and line efficiency. A well-matched heated hose helps maintain media temperature during transfer, reduce viscosity fluctuation, and minimize production interruptions.

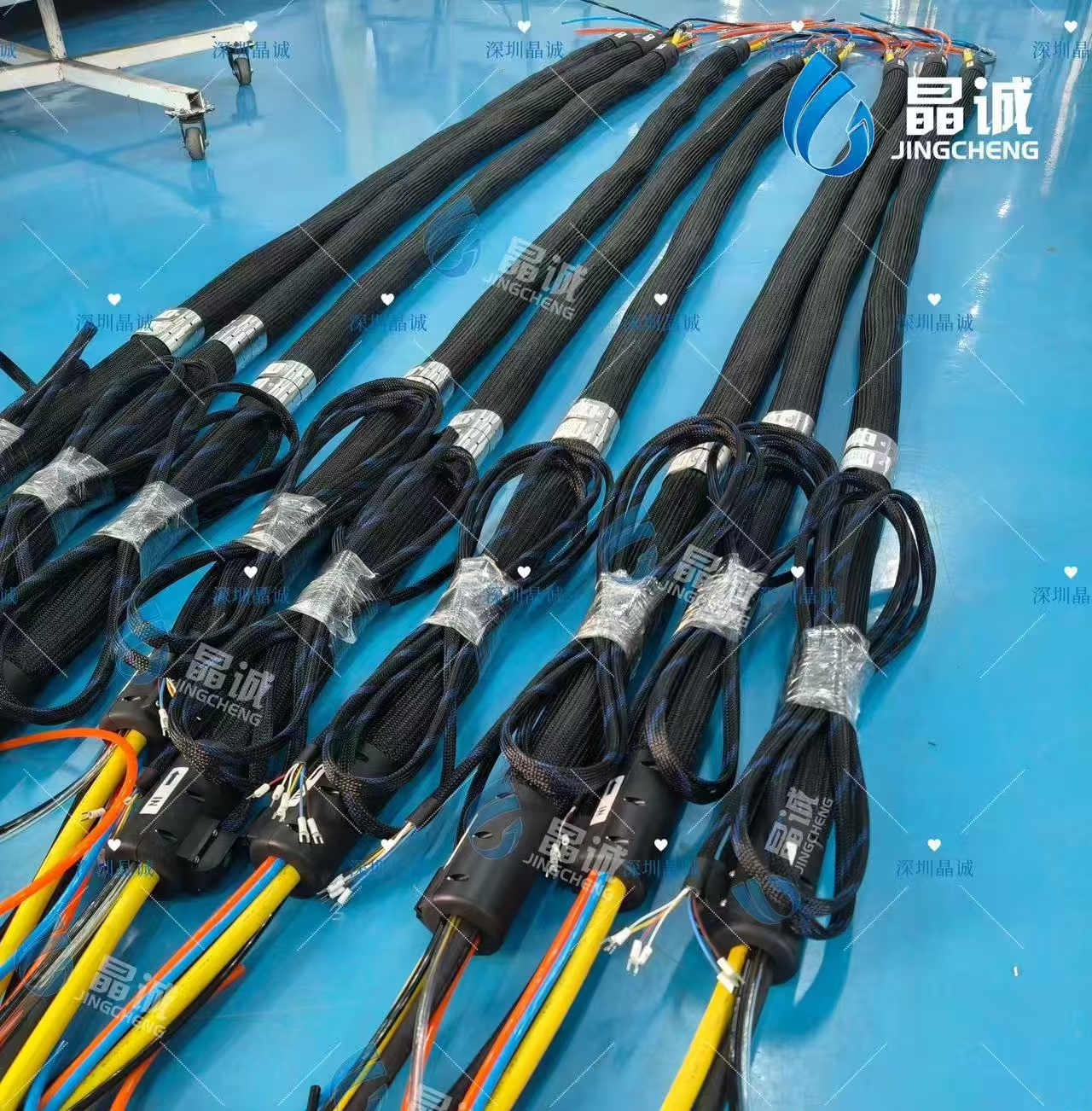

Our heated hose for solventless laminating machines is designed for use on various imported and domestic solventless laminators. According to our product catalog, this hose series is already used for different types of solventless composite equipment and has supported long-term cooperation with multiple industry brands. It is built for reliable heated transfer, flexible installation, and consistent operation in demanding lamination environments.
Designed for solventless laminating machines and related heated transfer applications.
Maximum heat resistance up to 230°C for high-temperature process requirements.
Uniform heating structure helps reduce inner-wall temperature deviation during media transfer.
High-efficiency insulation materials help balance heating performance and outer-surface temperature control.
Multiple hose sizes available, with working pressure and bend radius varying by design.
Custom configurations available for voltage, sensor type, length, hose diameter, power, and fitting standards.
Solventless lamination systems often process temperature-sensitive adhesive or coating media. If the transfer line cannot maintain a stable temperature, the material may become too viscous, the flow may become unstable, and the coating result may suffer.
A purpose-built heated hose helps:
keep the medium within a controlled temperature range
improve transfer stability between machine components
reduce material cooling during line operation
support cleaner coating performance and better production continuity
improve hose matching for both domestic and imported solventless laminators
This hose is specifically intended for solventless laminating machines and other solventless composite equipment. It is suitable for both imported and domestic machine platforms.

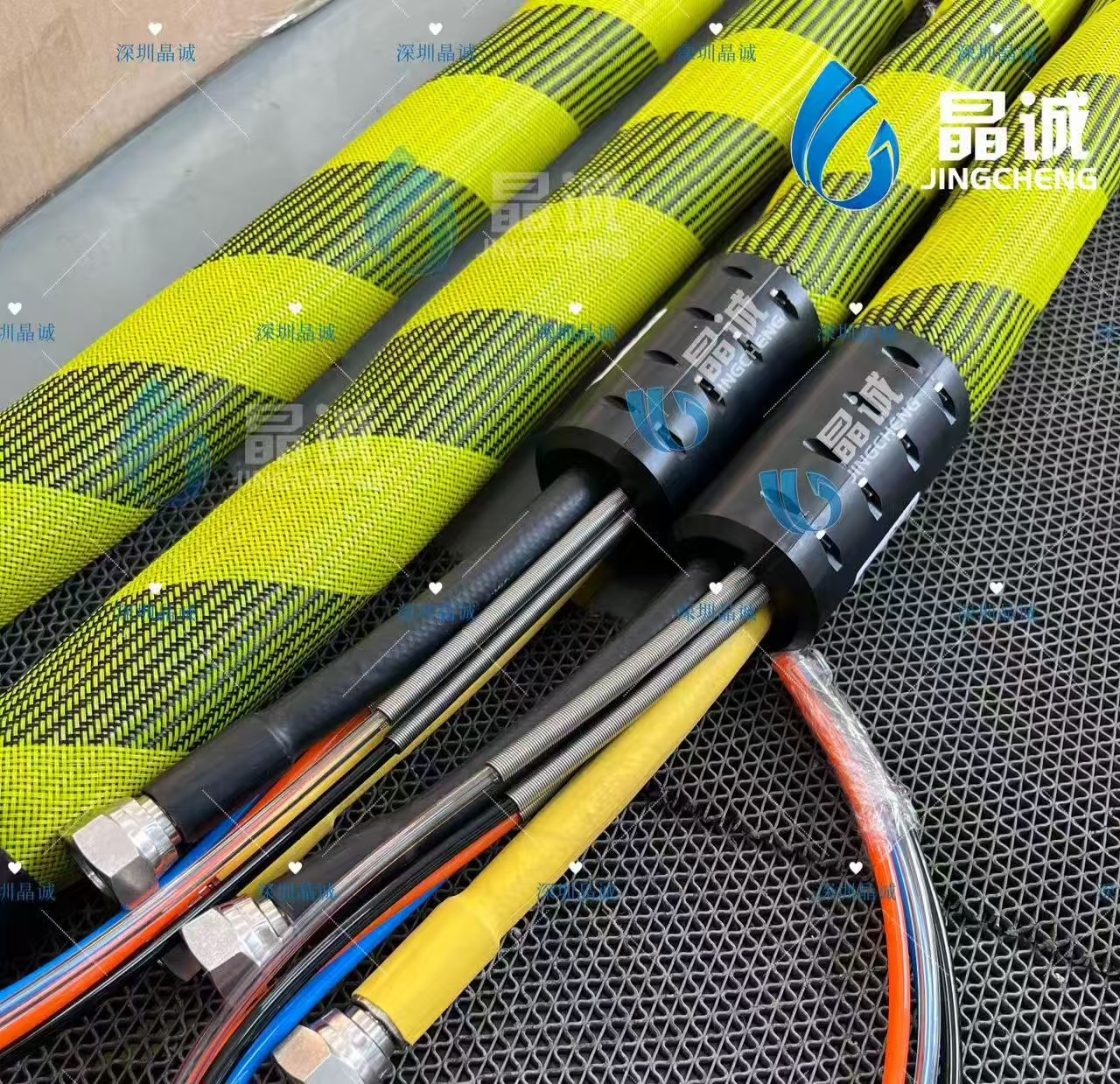

The heating layer is formed by evenly arranged heating elements, helping minimize temperature distribution differences along the hose wall during operation. This is especially valuable for heated media transfer where process consistency matters.
The catalog specifies a maximum heat resistance of 230°C for this hose type, with higher-temperature customization available on request.
The broader selection page in the catalog shows customization options covering voltage, sensor type, hose length, hose diameter, maximum operating temperature, working pressure, watt density, and fitting specification. That makes the hose easier to match to actual laminating machine layouts and control systems.
The catalog provides a standard size table including inner diameter, outer diameter, working pressure, burst pressure, and minimum bend radius. This gives buyers a practical reference for initial selection before final customization.
Inner Diameter | Outer Diameter (mm ±0.2) | Working Pressure (bar) | Working Pressure (psi) | Burst Pressure (bar) | Burst Pressure (psi) | Min. Bend Radius (mm) |
|---|---|---|---|---|---|---|
1/4" | 9 | 173 | 2501 | 690 | 10005 | 30 |
5/16" | 11 | 158 | 2284 | 630 | 3915 | 40 |
3/8" | 12.4 | 135 | 1958 | 540 | 7830 | 60 |
1/2" | 15.9 | 118 | 1704 | 470 | 6815 | 150 |
The specification table above is taken from the product page for the solventless laminating machine hose in your catalog.
Item | Data |
|---|---|
Product Name | Heated Hose for Solventless Laminating Machines |
Main Application | Solventless laminators, solventless composite equipment |
Max Heat Resistance | Up to 230°C |
Heating Structure | Evenly arranged heating element layer |
Key Advantage | Stable heated transfer for temperature-sensitive media |
Customization | Voltage, sensor, length, diameter, pressure, power, fittings |
Available ID Reference | 1/4", 5/16", 3/8", 1/2" |
OEM/ODM | Supported |
We can customize the hose based on your machine structure and process requirements, including:
voltage: 12Vdc, 110Vac, 220Vac, 380Vac, or others
sensor type: J, K, NI120, PT100, PT1000, or others
hose length: custom length according to installation route
hose diameter: standard or custom sizes
maximum operating temperature
working pressure requirement
watt density
fitting type and thread standard
special media-contact inner tube requirements
These options are consistent with the selection parameters shown in the catalog.
Your catalog states that Shenzhen Jingcheng specializes in the R&D and production of PTFE hoses, PA hoses, PTFE high-pressure hoses, and PTFE electrically heated hoses, while also providing complete thermal fluid insulation and transfer solutions. The company also highlights its ability to customize different heated hose types according to industry needs and the temperature, viscosity, and flow characteristics of the medium. That capability is highly relevant for crack sealing applications, where heated materials and field conditions can vary significantly.
