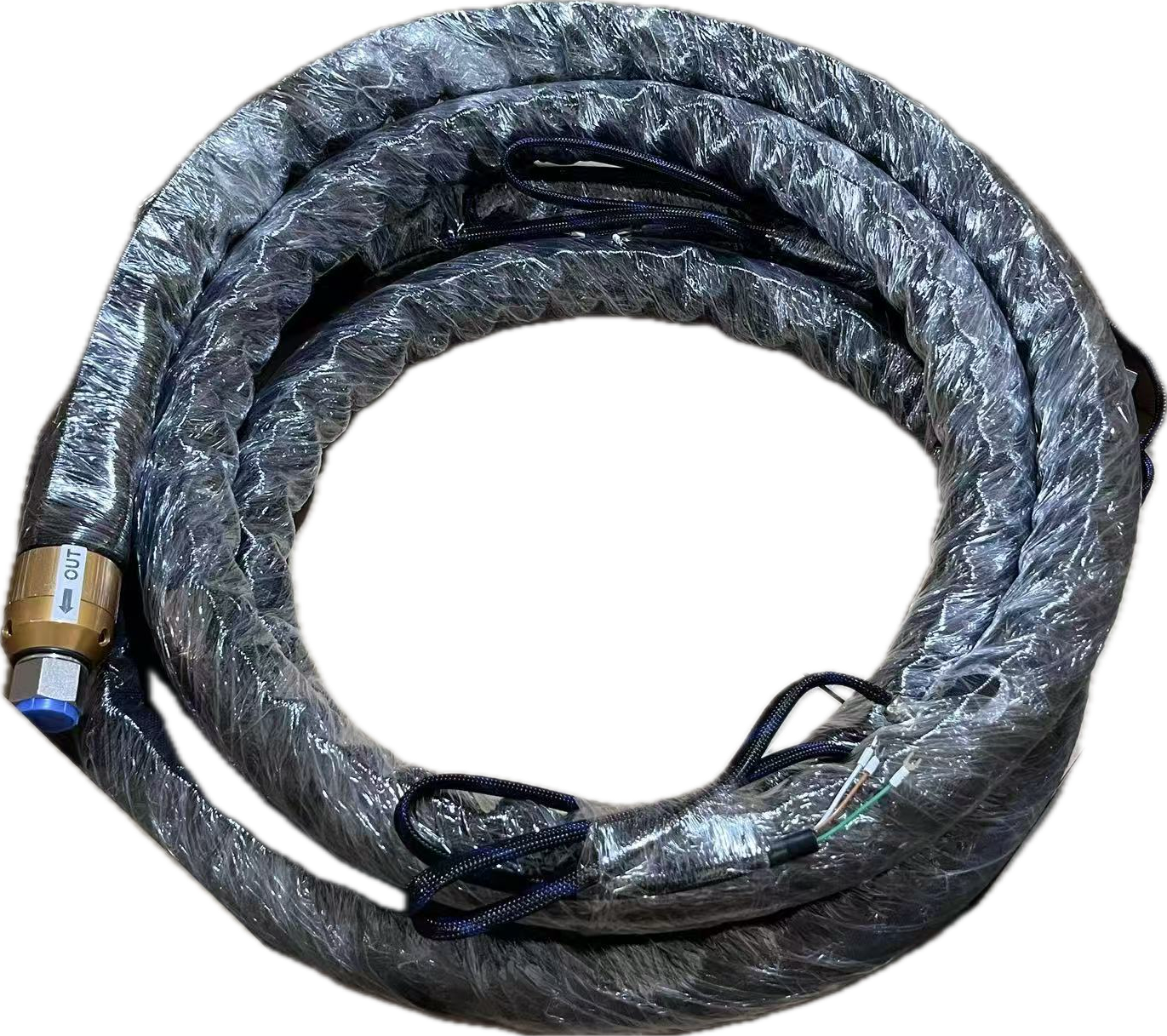

Heated Waterproofing Hose for Stable Material Transfer in Outdoor Construction

Waterproofing equipment must operate in conditions that can change from hour to hour.

A machine may begin work in a relatively warm environment and later face strong wind, lower temperature, dust or moisture.

At the same time, the waterproofing material still needs to reach the spray gun in a stable, workable condition.

This is particularly challenging with non-curing waterproofing materials and other high-viscosity coatings.

A heated waterproofing hose creates a controlled thermal transfer path between the material unit and application point, helping reduce the effect of outdoor temperature changes on material flow.

Outdoor Construction Is Very Different from Factory Production

Inside a factory, ambient conditions are relatively stable.

On a waterproofing job site, the hose may be exposed to:

• Cold air

• Strong wind

• High humidity

• Dust

• Long transfer distances

• Repeated movement

• Uneven ground

• Changing weather conditions

These external factors can accelerate heat loss.

If the transported material becomes colder during transfer, its viscosity may increase before reaching the spray gun.

This can directly affect application quality.

Why Material Temperature Matters

Non-curing waterproofing compounds and similar materials often need to remain within a suitable viscosity range for pumping and spraying.

When temperature drops, operators may experience:

• Higher pump pressure

• Reduced material output

• Uneven spraying

• Poor atomization

• Slow gun response

• Material accumulation

• More difficult restart

A heated hose helps maintain a more consistent thermal condition throughout the flexible transfer section.

The Hose Is Part of the Waterproofing Process

A typical system may include:

Heating Unit → Pump → Heated Hose → Spray Gun

If every component except the hose maintains temperature, the flexible line can become the weakest section of the process.

This is particularly important when the machine is located far from the working surface.

A long hose provides more time and surface area for heat loss.

Active heating and insulation help reduce this problem.

Uniform Heating for More Predictable Flow

The product uses a heating layer designed to distribute heat along the hose.

This helps minimize large temperature differences between different sections.

A more stable hose temperature can support:

• More consistent viscosity

• Stable material flow

• Predictable spray output

• Reduced pressure fluctuations

• Easier startup

• Reduced cold-material accumulation

The correct temperature should always be selected according to the waterproofing material.

Designed for Harsh Job-Site Conditions

Waterproofing hoses may be dragged or moved frequently around:

• Roofs

• Bridges

• Tunnels

• Basements

• Foundations

• Construction sites

For this reason, mechanical protection is also important.

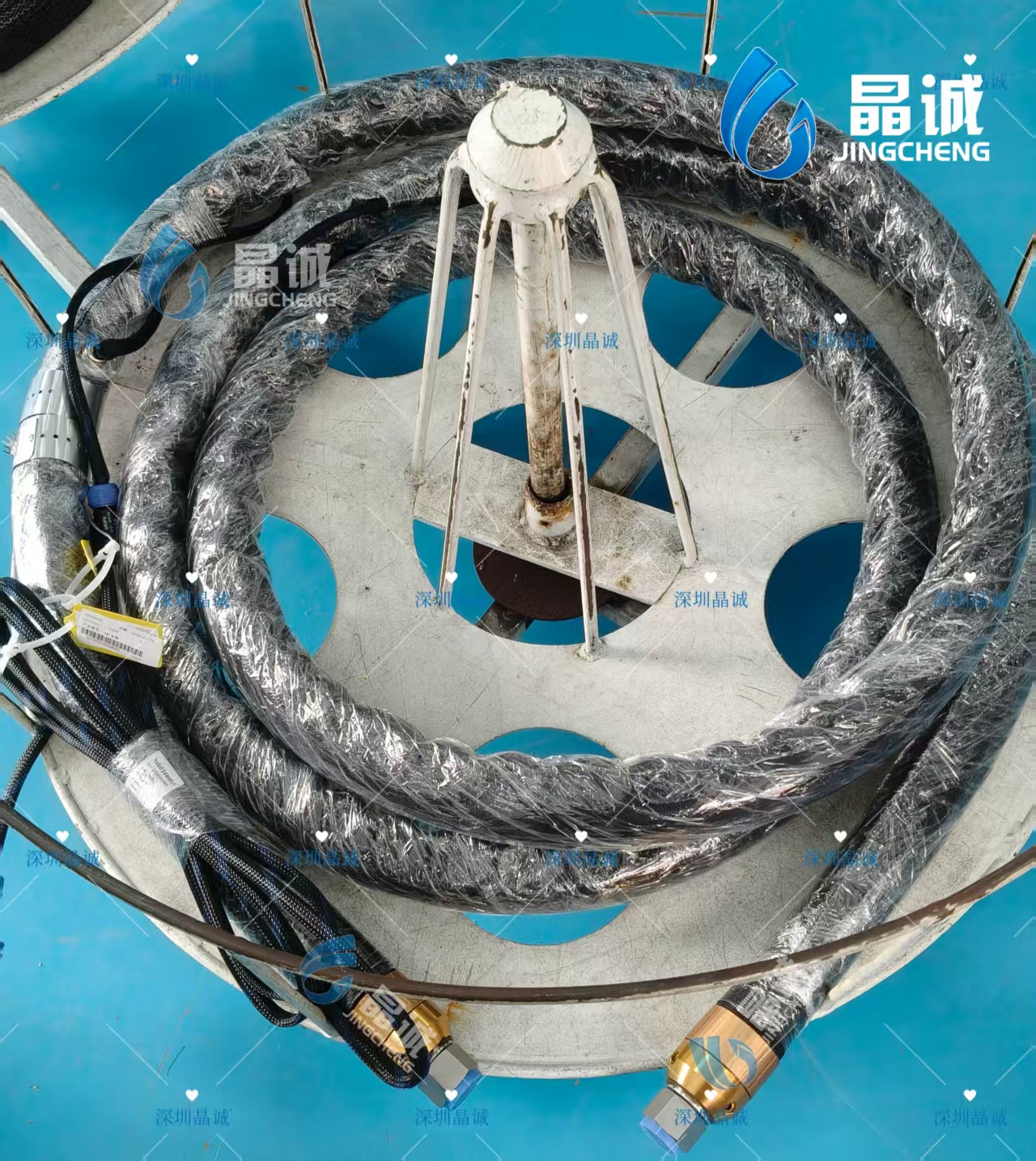

The hose shown is intended for long-term use in waterproofing construction equipment and has been used in demanding outdoor applications.

Its design is focused on maintaining stable performance even under harsh construction conditions.

Typical Applications

The hose can be used for:

• Non-curing waterproofing spray equipment

• Roof waterproofing machines

• Bridge waterproofing systems

• Tunnel waterproofing equipment

• Basement waterproofing machinery

• Foundation coating systems

• Heated construction coatings

• Infrastructure maintenance equipment

• Mobile spray machines

• High-viscosity construction-material transfer

Standard Temperature Capability

The catalog specifies heat resistance up to approximately:

230°C

The actual process temperature depends on:

• Material formulation

• Viscosity

• Hose length

• Outdoor temperature

• Required flow

• Pump pressure

Operating at a higher temperature than necessary should be avoided.

The objective is stable material transfer.

Long Hose Runs Need Special Attention

Construction equipment often requires a long distance between the machine and application point.

As hose length increases, several factors become more important:

• Heat loss

• Pressure drop

• Required heating power

• Voltage selection

• Insulation

• Material viscosity

A custom hose should therefore be engineered according to both the material and the actual working distance.

Customization for Waterproofing Equipment Manufacturers

Jingcheng can customize the hose according to equipment requirements, including:

• Hose length

• Inner diameter

• Voltage

• Heating power

• Temperature sensor

• Pump-side fitting

• Spray-gun fitting

• Electrical connector

• Cable configuration

• Outer protective structure

OEM development is available for waterproofing machinery manufacturers and system integrators.

Information Required Before Production

For accurate hose selection, customers should provide:

• Waterproofing material type

• Material viscosity

• Recommended working temperature

• Normal pressure

• Maximum pressure

• Required flow

• Hose length

• Inner diameter

• Voltage

• Sensor type

• Machine connection

• Gun connection

• Outdoor working conditions

This information helps determine an appropriate hose configuration.

Why a Better Heated Hose Can Improve Job-Site Productivity

If material delivery becomes unstable, the entire spraying process can slow down.

Operators may need to:

• Increase machine temperature

• Increase pump pressure

• Stop and reheat

• Clean blocked material

• Replace damaged hoses

A correctly designed heated hose can help reduce these interruptions and provide more predictable material delivery during long construction shifts.

Conclusion

Outdoor waterproofing places very different demands on a heated hose compared with controlled factory production.

The hose must maintain material temperature while facing wind, cold, movement and long transfer distances.

For non-curing waterproofing and other viscous construction materials, a properly engineered heated hose can help maintain stable flow from the machine to the spray gun and improve overall job-site efficiency.
