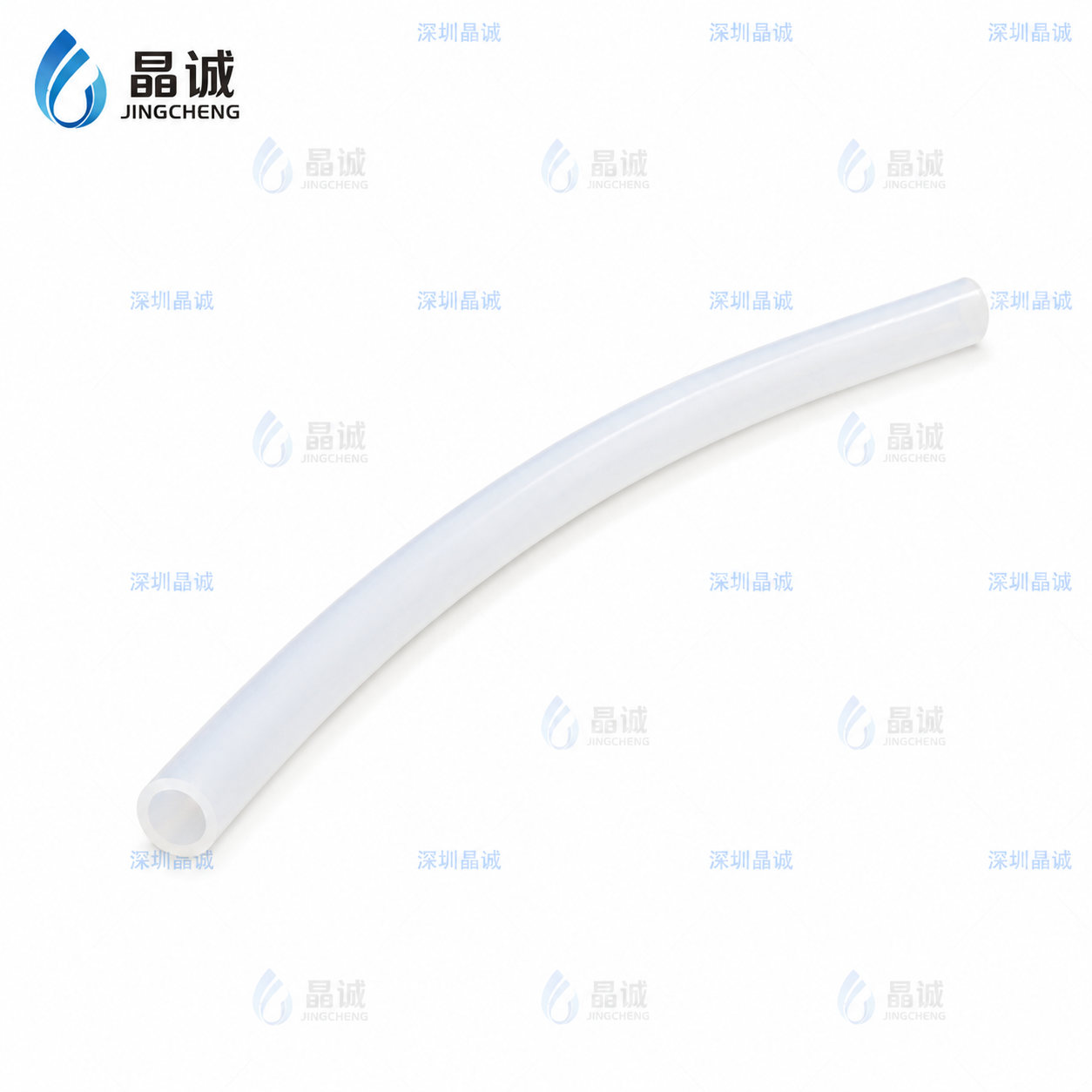

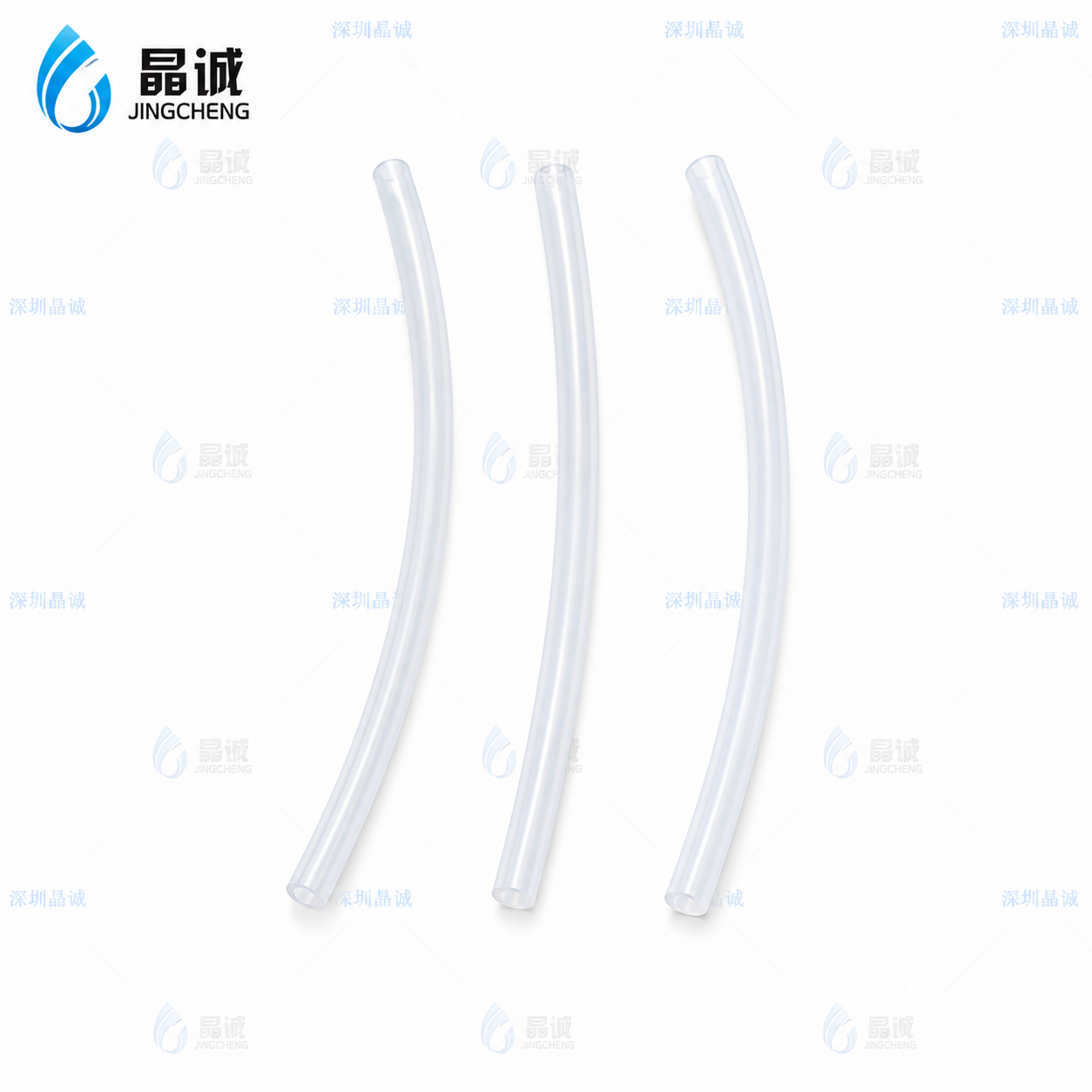

Smooth bore PTFE tubing is designed for applications that require strong chemical resistance, low contamination risk and reliable performance across a wide temperature range.
The tubing is manufactured from PTFE material through extrusion, drying, high-temperature sintering and forming processes. Its smooth internal surface helps reduce friction, material retention and pressure loss during fluid transfer.
Shenzhen Jingcheng High-tech manufactures customized smooth bore PTFE hoses and tubing for chemical processing, pharmaceutical equipment, laboratory systems, food processing and high-purity fluid transfer.
Many industrial fluids can attack conventional rubber or plastic hoses. Strong acids, alkalis, oxidizing agents and organic solvents may cause ordinary tubing to swell, crack or lose mechanical performance.
PTFE offers excellent resistance to a broad range of aggressive media.
The smooth bore structure also helps provide:
Stable fluid flow
Reduced internal residue
Lower friction
Easier cleaning
Low material adhesion
Good chemical compatibility
Reliable high- and low-temperature performance
PTFE is suitable for many strong acids, strong alkalis, oxidizing agents, reducing agents and organic solvents.
The tubing can be used in both low-temperature and high-temperature transfer systems.
The smooth bore helps reduce material buildup and improves flow efficiency.
The low-reactivity PTFE surface makes the tubing suitable for applications where contamination control and chemical stability are important.
Inner diameters from 5/32 inch to 2 inches are available in the catalog range.
Length, diameter, wall thickness, fittings and hose assembly structure can be customized according to application requirements.
Strong acid transfer
Strong alkali transfer
Organic solvent delivery
High-purity chemical transfer
Chemical dosing equipment
Pharmaceutical processing
Laboratory fluid systems
Food processing equipment
Semiconductor chemical systems
Industrial process pipelines
Analytical equipment
Corrosive media transfer
Item | Specification |
|---|---|
Product Name | Smooth Bore PTFE Tubing |
Model Series | JCC-00000-PTFE |
Material | PTFE |
Structure | Smooth inner and outer surface |
Temperature Range | -70°C to +260°C |
Inner Diameter Range | 5/32” to 2” |
Main Advantages | Chemical resistance, low friction, clean transfer |
Customization | Diameter, length, wall thickness and fittings |
Catalog Standard Reference | ISO9001:2015 / US FDA 21 CFR 177.1550 / SGS |
Model | Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | Minimum Bending Radius | Wall Thickness |
JCC-00004-PTFE | 5/32” / 4.5 mm | 6.5 mm | 203 psi / 1.40 MPa | 812 psi / 5.6 MPa | 60 mm | 1.0 mm |
JCC-00006-PTFE | 1/4” / 6.8 mm | 8.8 mm | 251.33 psi / 1.73 MPa | 754 psi / 5.2 MPa | 130 mm | 1.0 mm |
JCC-00008-PTFE | 5/16” / 8.2 mm | 10.5 mm | 203 psi / 1.40 MPa | 609 psi / 4.2 MPa | 160 mm | 1.2 mm |
JCC-00010-PTFE | 3/8” / 10.3 mm | 12.7 mm | 169.17 psi / 1.17 MPa | 507.5 psi / 3.5 MPa | 220 mm | 1.2 mm |
JCC-00013-PTFE | 1/2” / 13.3 mm | 15.7 mm | 135.33 psi / 0.93 MPa | 406 psi / 2.8 MPa | 270 mm | 1.2 mm |
JCC-00016-PTFE | 5/8” / 15.9 mm | 18.3 mm | 106.33 psi / 0.73 MPa | 319 psi / 2.2 MPa | 400 mm | 1.2 mm |
JCC-00019-PTFE | 3/4” / 19.8 mm | 22.3 mm | 116 psi / 0.80 MPa | 348 psi / 2.4 MPa | 500 mm | 1.5 mm |
JCC-00025-PTFE | 1” / 25.7 mm | 29.7 mm | 101.5 psi / 0.70 MPa | 304.5 psi / 2.1 MPa | 600 mm | 2.0 mm |
JCC-00032-PTFE | 1-1/4” / 31.7 mm | 35.7 mm | 91.83 psi / 0.63 MPa | 275.5 psi / 1.9 MPa | 800 mm | 2.0 mm |
JCC-00038-PTFE | 1-1/2” / 38.5 mm | 42.5 mm | 72.5 psi / 0.50 MPa | 217.5 psi / 1.5 MPa | 900 mm | 2.0 mm |
JCC-00050-PTFE | 2” / 51 mm | 55 mm | 58 psi / 0.40 MPa | 174 psi / 1.2 MPa | 1200 mm | 2.0 mm |
Final operating pressure depends on temperature, dimensions, fittings and complete assembly design.
Please provide:
Transferred medium
Concentration of the chemical
Working temperature
Working pressure
Required inner diameter
Tube length
Minimum bending radius
Required wall thickness
Connection method
Cleanliness requirements
Equipment model or drawing
