Soren20060612
JINGCHENG
3917290000 3904610000 3917390000

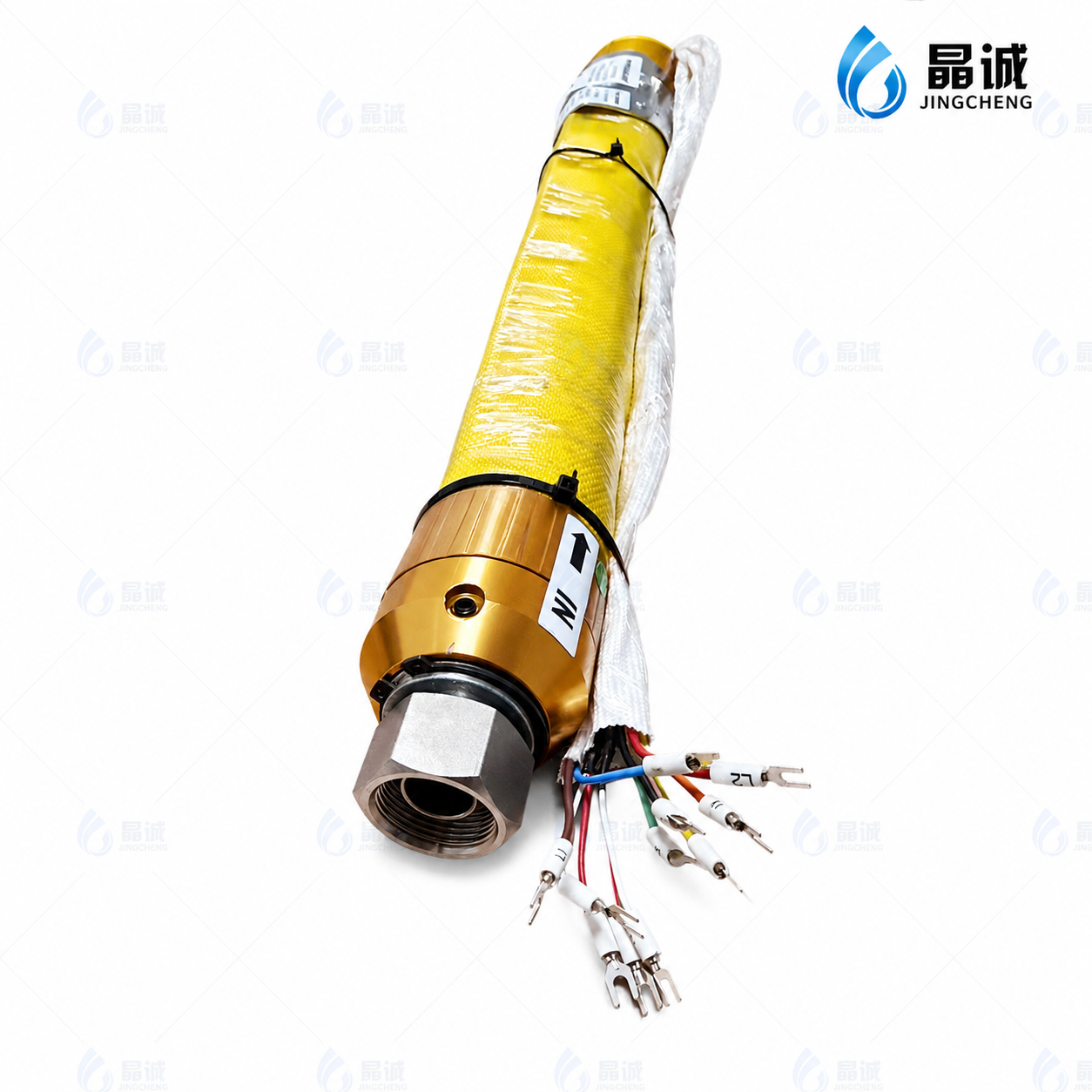

The Joint Sealing Hose from Jingcheng is a specialized high-temperature, low-pressure heated hose engineered specifically for pavement maintenance equipment and crack sealing machinery. With our proprietary inner tube reinforcement technology, this product delivers exceptional durability under harsh field conditions, significantly extending service life and reducing operational costs.
Our sealing hoses maintain optimal heating performance even in demanding environments—whether under intense summer sun or cold, wet winter conditions. The heating element is uniformly woven to ensure consistent temperature distribution, allowing sealant materials to flow smoothly and maintain quality throughout the entire application process.
The common failure point in standard sealing hoses is inner tube collapse under repeated high-temperature, high-pressure cycles. Jingcheng's exclusive reinforcement technique eliminates this industry-wide problem by maintaining inner tube integrity even at 230°C, dramatically extending hose lifespan and reducing downtime on job sites.
Since 2013, Jingcheng has partnered with leading pavement maintenance contractors. Our sealing hoses are proven to outperform competitors in:
Extreme temperature fluctuations
High-dust construction sites
Continuous high-temperature operation
Heavy vibration from equipment
Customer feedback consistently highlights exceptional stability and durability.
The heating element is uniformly woven throughout, minimizing temperature variation across the inner wall. This ensures sealant reaches the application point at the correct viscosity, improving joint quality and reducing material waste.
We utilize premium insulation materials with superior heat retention efficiency, reducing thermal loss and lowering electricity consumption during operation.
Inner Diameter | Outer Diameter (mm) | Working Pressure (bar) | Working Pressure (psi) | Burst Pressure (bar) | Burst Pressure (psi) | Min. Bending Radius (mm) |
|---|---|---|---|---|---|---|
1/2" | 15.9 | 118 | 1,704 | 470 | 6,815 | 150 |
5/8" | 19 | 88 | 1,269 | 350 | 5,075 | 180 |
3/4" | 22.6 | 85 | 1,234 | 340 | 4,930 | 260 |
1" | 29.5 | 75 | 1,088 | 300 | 4,350 | 300 |
Maximum Operating Temperature: 230°C
(Higher temperatures available upon request)
Jingcheng supports full parameter customization to match your specific jobsite requirements:
Voltage: 12 Vdc, 110 Vac, 220 Vac, 380 Vac, or other specifications
Temperature Sensors: J-type, K-type, PT100 (2-wire/3-wire), PT1000, or none
Connector Types: SAE (US), NPT (English), ISO (Metric)—mix and match as needed
Hose Length: Standard lengths from 0.1 m to 10 m; custom lengths available
Power Output: 110 W/m, 150 W/m, 170 W/m, 200 W/m, or custom density
Our joint sealing hoses are trusted by contractors for:
Road surface crack sealing and repair
Asphalt crack filling equipment
Pavement maintenance vehicles
Municipal road repair machinery
Airport runway maintenance
Bridge expansion joint repair
Parking lot surface rehabilitation
Highway maintenance equipment
No Lateral Twisting: Avoid any twisting motion during and after installation. Lateral stress can cause fluid leakage, reduced flow, pipe damage, or fire hazards.
Minimum Bending Radius: Respect the specified minimum bending radius (150–300 mm depending on size). Radius violations may result in damage, short circuits, leakage, or fire.
Professional Installation: Recommend having trained, authorized personnel handle installation and operation.
No Unauthorized Modifications: Jingcheng assumes no warranty responsibility for unauthorized alterations or adjustments.
Ambient Temperature: −40°C to +55°C
Relative Humidity: ≤85%
Atmospheric Pressure: 86–106 kPa
Voltage Range: 12 Vac–380 Vac
Fluid Environment: No corrosive metals, hazardous gases, or conductive media
Every Jingcheng heating hose undergoes triple quality verification:
Third-party testing laboratory (routine inspection)
In-house quality control
Supplier verification
We maintain full traceability for every production batch, ensuring consistency and reliability on your jobsite.
Q: Why does sealing equipment require heated hoses?
A: Sealant materials (modified asphalt, polyurethane) are extremely viscous at room temperature. Continuous heating maintains the material at optimal viscosity from the storage tank through the application nozzle, ensuring quality joints and minimizing material loss.
Q: How does inner tube reinforcement extend hose life?
A: Standard sealing hoses suffer inner tube collapse under repeated high-temperature cycles, leading to reduced flow or blockage. Jingcheng's reinforcement technology maintains inner tube geometry even at 230°C, preventing collapse and dramatically extending service intervals.
Q: Can I upgrade the maximum temperature beyond 230°C?
A: Our standard specification is 230°C. For higher-temperature applications, contact our engineering team for a custom solution.
Q: Will it fit my existing equipment?
A: Our hoses support SAE, NPT, and ISO connector standards, compatible with virtually all major sealing equipment brands. Provide your equipment model or connector images, and our team will confirm compatibility before production.
Q: What if I need a different hose length or configuration?
A: We customize every dimension—length, connector type, voltage, sensor type, and power output. Our standard lead time for custom orders is 7–14 business days.
Ready to upgrade your sealing equipment with professional-grade heating hoses?
Contact Jingcheng High-Tech:
Phone: +86-760-85593720
Fax: +86-760-85593712
Factory Address: No. 5, Daling Industrial Zone, Torch High-Tech Zone, Zhongshan, Guangdong
Sales Center: Building 2, No. 15, Daling Industrial Zone, Jianglingxi Road, Torch High-Tech Zone, Zhongshan
Website: https://www.shenzhenjingcheng.com
Our technical team will provide a custom quotation within 24 hours of your inquiry.
