Highly Flexible Convoluted PTFE Hose for Compact Process Equipment

Not every industrial hose needs to carry extremely high pressure.

In many pieces of process equipment, the greater engineering challenge is completely different:

how to route a chemically compatible fluid line through a very limited amount of space.

Pumps, valves, filters, dosing modules and instrument components are often installed close together. A relatively stiff hose may force the machine designer to increase cabinet size or change the position of other components simply to achieve a workable bend.

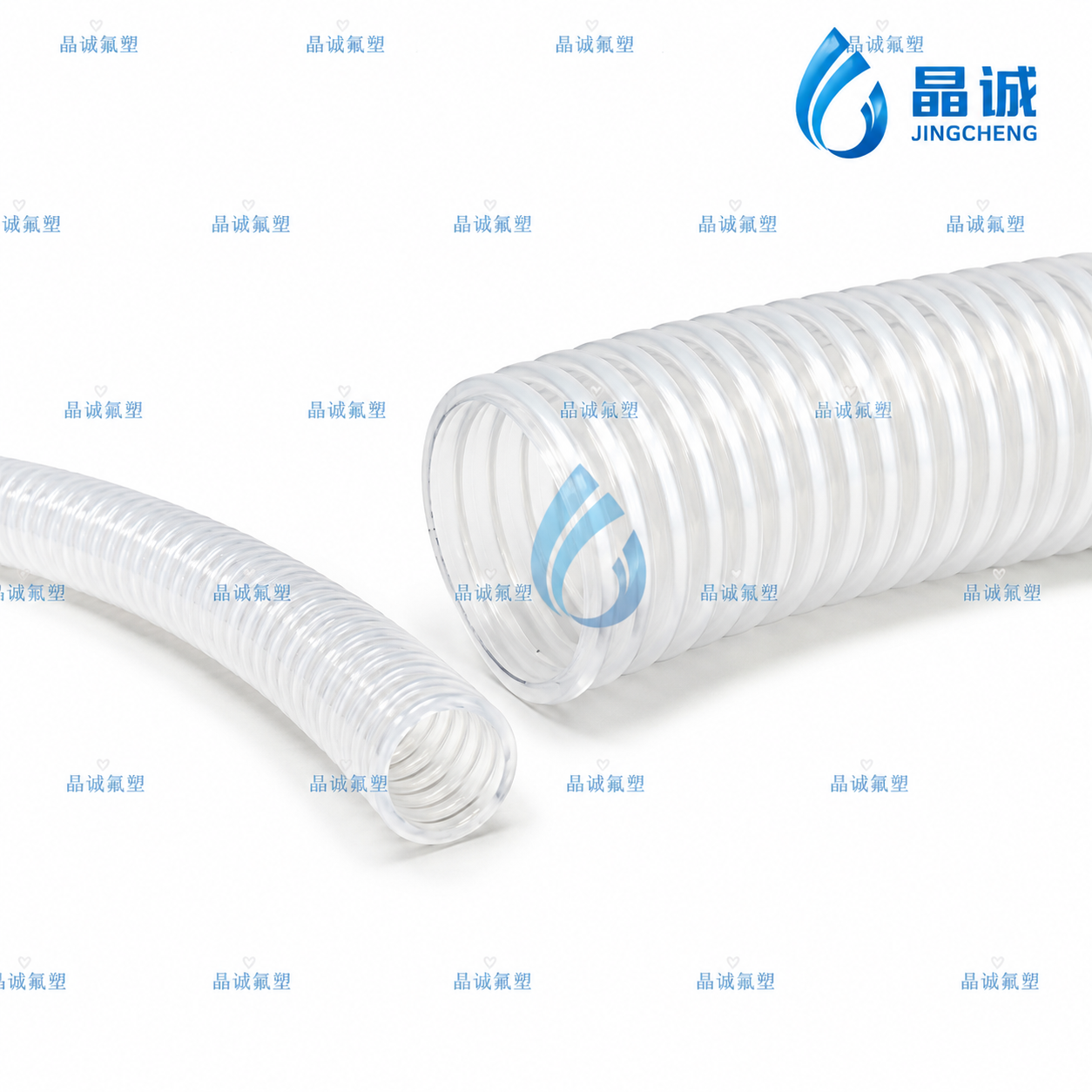

The JCC-10000-PTFE convoluted hose is designed for applications where flexibility is more important than high-pressure reinforcement.

Its corrugated PTFE construction provides a highly flexible material path for pharmaceutical, food and chemical processing equipment operating at relatively low pressure.

Why Some Equipment Needs Flexibility More Than Pressure

A common mistake in hose selection is to automatically choose the strongest available construction.

But additional reinforcement usually brings trade-offs.

It can increase:

• Outer diameter

• Weight

• Minimum bending radius

• Installation stiffness

• Cost

If the system only operates at low pressure, excessive reinforcement may make the hose more difficult to integrate without providing a meaningful process advantage.

The JCC-10000-PTFE series takes the opposite approach.

Its design prioritizes:

• Compact bending

• Easy routing

• Lightweight construction

• Flexible equipment connection

This makes it particularly useful in process systems where pressure requirements are modest but installation space is limited.

Corrugated Geometry Changes How the Hose Bends

A straight PTFE tube resists bending because the tube wall must deform across the entire bend.

A convoluted hose distributes that movement through repeated corrugations.

This allows the hose to change direction more easily.

According to the catalog, selected sizes offer very small minimum bending radii, beginning at approximately:

20 mm for the 1/4-inch size.

This creates useful possibilities inside:

• Compact process skids

• Laboratory equipment

• Dosing systems

• Small filling machines

• Chemical cabinets

• Pharmaceutical machinery

Useful When Components Are Installed Close Together

Imagine a pump outlet located only a short distance from a valve or processing chamber.

A rigid tube may require:

• Additional elbows

• More fittings

• Larger installation space

A flexible convoluted PTFE hose can often create the connection more directly.

Reducing unnecessary fittings may also simplify:

• Assembly

• Maintenance

• Replacement

• Equipment modification

For OEM designers, this can help keep the machine layout compact.

Excellent for Short Flexible Connections

The hose is especially useful for short connections between neighboring machine modules.

Potential connection points include:

• Pump to valve

• Filter to dosing unit

• Tank outlet to pump

• Process module to instrument

• Filling system to product manifold

These applications do not necessarily require a long hose.

They require a hose that can bend quickly within a short distance.

That is one of the strongest advantages of a fully convoluted PTFE structure.

Low-Pressure Performance Should Be Understood Correctly

The JCC-10000-PTFE series is designed around flexibility rather than extreme pressure.

Depending on size, the catalog lists working pressures approximately in the range of:

30–60 psi / 0.2–0.4 MPa.

This makes the hose more suitable for low-pressure transfer applications than hydraulic or high-pressure dispensing systems.

Correct hose selection should therefore begin with the actual system pressure.

If the application requires substantially higher pressure, a braided PTFE structure may be more appropriate.

Wide Temperature Capability

Despite its flexible construction, the catalog specifies a temperature range of:

-70°C to +260°C

This allows the hose to be considered for both cold and heated process environments.

Actual operating conditions should still be evaluated according to:

• Fluid

• Pressure

• Hose size

• Installation geometry

• Temperature

Suitable Process Industries

The source material identifies applications in:

• Pharmaceutical processing

• Food processing

• Chemical processing

Within these industries, possible equipment uses include:

• Liquid dosing

• Process transfer

• Laboratory systems

• Sampling equipment

• Filling machinery

• Chemical preparation units

• Compact processing skids

A Useful Choice for Equipment That Is Frequently Reconfigured

Pilot systems and laboratory-scale equipment often change configuration.

Pumps may be replaced.

Filters may be relocated.

A different test module may be installed.

Rigid piping makes these modifications more difficult.

A highly flexible PTFE hose can provide more tolerance when equipment is:

• Reconfigured

• Serviced

• Upgraded

• Temporarily connected

This gives the hose value beyond basic fluid transport.

Customization Options

Jingcheng can customize the hose according to the equipment requirements, including:

• Hose length

• Inner diameter

• Connection fittings

• Assembly configuration

• End orientation

• Special OEM requirements

A drawing, sample or equipment layout can be used to confirm the appropriate hose size.

What Information Is Needed?

For correct selection, please provide:

• Transferred medium

• Working temperature

• Working pressure

• Hose length

• Required inner diameter

• Minimum available installation radius

• Connection type

• Equipment application

• Static or moving installation

Conclusion

The best hose is not always the strongest hose.

For low-pressure process systems, excessive reinforcement can make installation unnecessarily difficult.

The JCC-10000-PTFE convoluted hose focuses on a different engineering priority: maximum flexibility in limited equipment space.

For pharmaceutical, food and chemical machinery requiring short, compact and chemically resistant connections, this structure provides a practical alternative to rigid tubing and heavily reinforced hose assemblies.
