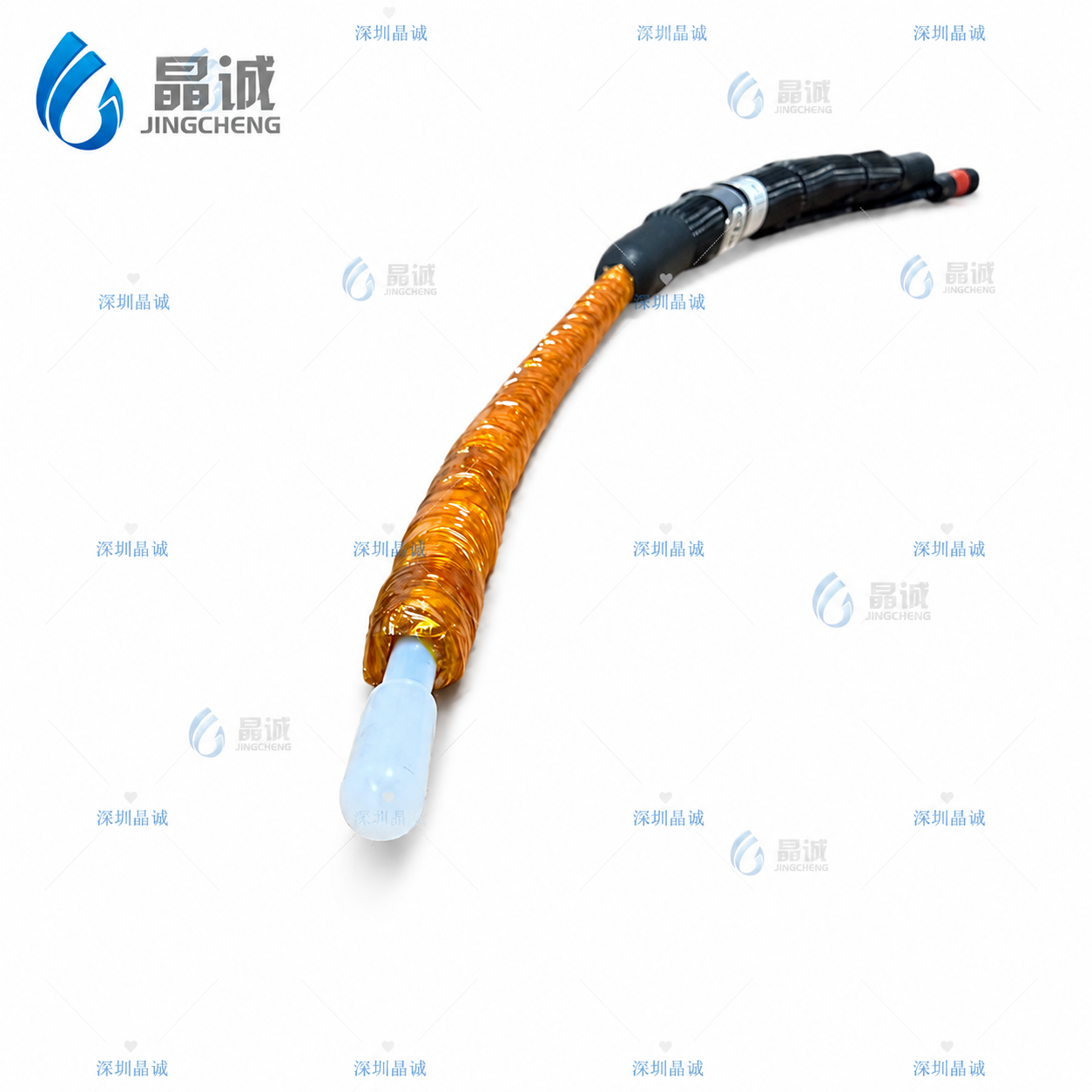

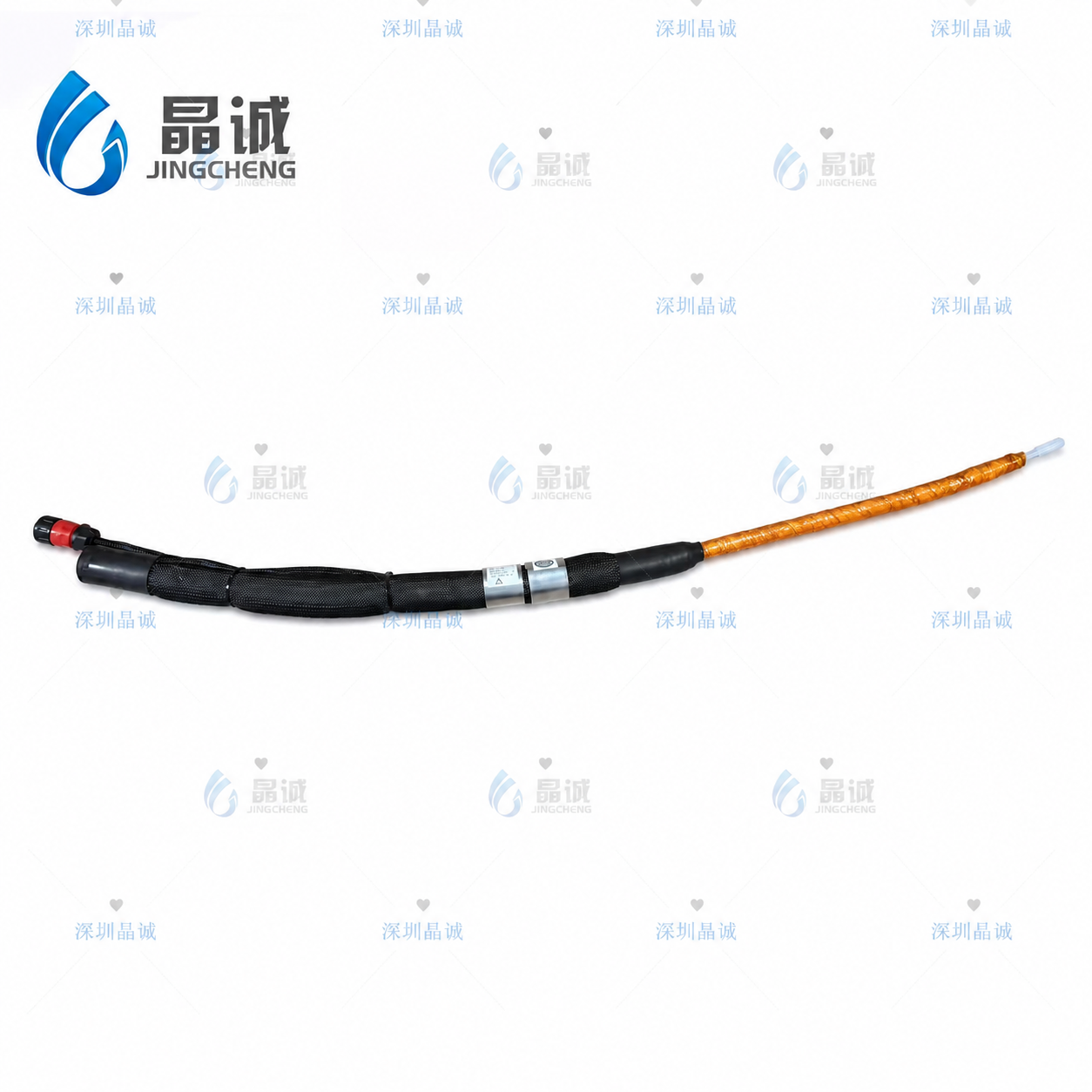

An inert gas heated hose for glass production lines is designed to transfer inert gases under elevated-temperature process conditions. It is used where the gas temperature must be maintained between equipment sections or where a flexible heated connection is required near high-temperature glass manufacturing machinery.
This product is referred to as a “Xianqu hose” or “Pioneer hose” in some internal product classifications, but the more accurate international SEO description is glass production line inert gas heated hose.
Shenzhen Jingcheng High-tech manufactures customized heated gas hoses with uniformly arranged heating elements, thermal insulation and fittings designed for specific equipment.
An inert gas heated hose is a flexible electrically heated pipeline used to transport gases such as nitrogen, argon or other process gases while minimizing temperature loss.
The hose may include:
Gas-compatible inner tube
Pressure reinforcement
Electrical heating layer
Thermal insulation
Protective outer cover
Temperature sensor
Gas fittings
Electrical plug or aviation connector
The final structure is selected according to gas type, temperature, pressure, purity and installation conditions.
Glass manufacturing processes may require controlled delivery of inert or process gases near high-temperature equipment. A standard unheated hose may allow the gas temperature to drop before it reaches the required point.
This can create:
Process temperature fluctuation
Unstable gas delivery conditions
Condensation in certain gas mixtures
Reduced equipment consistency
Difficult rigid-pipe routing
Heat loss between equipment sections
A flexible heated gas hose provides both temperature maintenance and installation adaptability.
The hose is intended for high-temperature glass production lines and related process gas systems.
The inner tube and fittings can be selected according to nitrogen, argon and other industrial gas requirements.
The standard product supports temperatures up to 230°C. Other temperatures can be evaluated according to the application.
The heating structure helps reduce temperature differences along the gas transfer path.
Thermal insulation reduces heat loss and helps maintain more stable outlet temperature.
The hose provides a flexible alternative to rigid piping where equipment movement, vibration or complex routing is present.
Fittings, tube material, hose length, voltage, power and sensors can be customized.
Glass production lines
Glass forming machinery
High-temperature inert gas transfer
Nitrogen transfer systems
Argon transfer systems
Furnace gas connections
Heated process gas delivery
Laboratory glass equipment
Industrial thermal treatment equipment
Flexible high-temperature gas pipelines
Item | Available Options |
|---|---|
Product Name | Inert Gas Heated Hose |
Primary Application | Glass production lines |
Medium | Nitrogen / Argon / Process gas / Custom |
Maximum Temperature | Up to 230°C |
Inner Tube | Selected according to gas and purity |
Heating Structure | Uniformly arranged heating elements |
Voltage | 110V / 220V / 380V / Custom |
Sensor | PT100 / PT1000 / J type / K type / Custom |
Hose Length | Customized |
Gas Fittings | Metric / BSP / NPT / Compression / Custom |
Outer Protection | Customized |
Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | Minimum Bending Radius |
1/4” | 9 mm | 173 bar / 2501 psi | 690 bar / 10005 psi | 30 mm |
5/16” | 11 mm | 158 bar / 2284 psi | 630 bar / 3915 psi | 40 mm |
3/8” | 12.4 mm | 135 bar / 1958 psi | 540 bar / 7830 psi | 60 mm |
1/2” | 15.9 mm | 118 bar / 1704 psi | 470 bar / 6815 psi | 150 mm |
5/8” | 19 mm | 88 bar / 1269 psi | 350 bar / 5075 psi | 180 mm |
3/4” | 22.6 mm | 85 bar / 1234 psi | 340 bar / 4930 psi | 260 mm |
1” | 29.5 mm | 75 bar / 1088 psi | 300 bar / 4350 psi | 300 mm |
Final pressure capability depends on temperature, inner-tube selection, fittings and complete hose assembly.
A customized heated gas hose can provide:
Stable gas temperature during transfer
Flexible routing around machinery
Reduced heat loss
Compatibility with equipment vibration
Customized gas fittings
Sensor integration
Easier replacement compared with non-standard rigid piping
Factory-direct support for original equipment manufacturers
Please provide:
Gas type
Gas purity requirement
Working temperature
Working pressure
Flow rate
Hose length
Inner diameter
Voltage and power
Sensor type
Inlet fitting
Outlet fitting
Electrical connector
Equipment model
Installation drawing
Ambient temperature
We design hose assemblies based on actual gas, temperature and equipment requirements.
Non-standard lengths, fittings and electrical configurations are supported.
Technical details can be confirmed directly with production and engineering personnel.
We support original equipment projects and replacement hose requirements.
Samples can be produced for equipment testing before batch procurement.
