Multi-Reinforced PTFE Hose for High-Pressure Systems with Repeated Pressure Pulsation

High-pressure hose selection is not only about the maximum pressure printed on a specification sheet.

Industrial equipment rarely operates at one perfectly constant pressure.

Pumps start and stop.

Valves open and close.

Dispensing guns cycle repeatedly.

Pressure rises rapidly and then falls again.

These repeated changes create pressure pulsation, which can place continuous mechanical stress on a hose assembly.

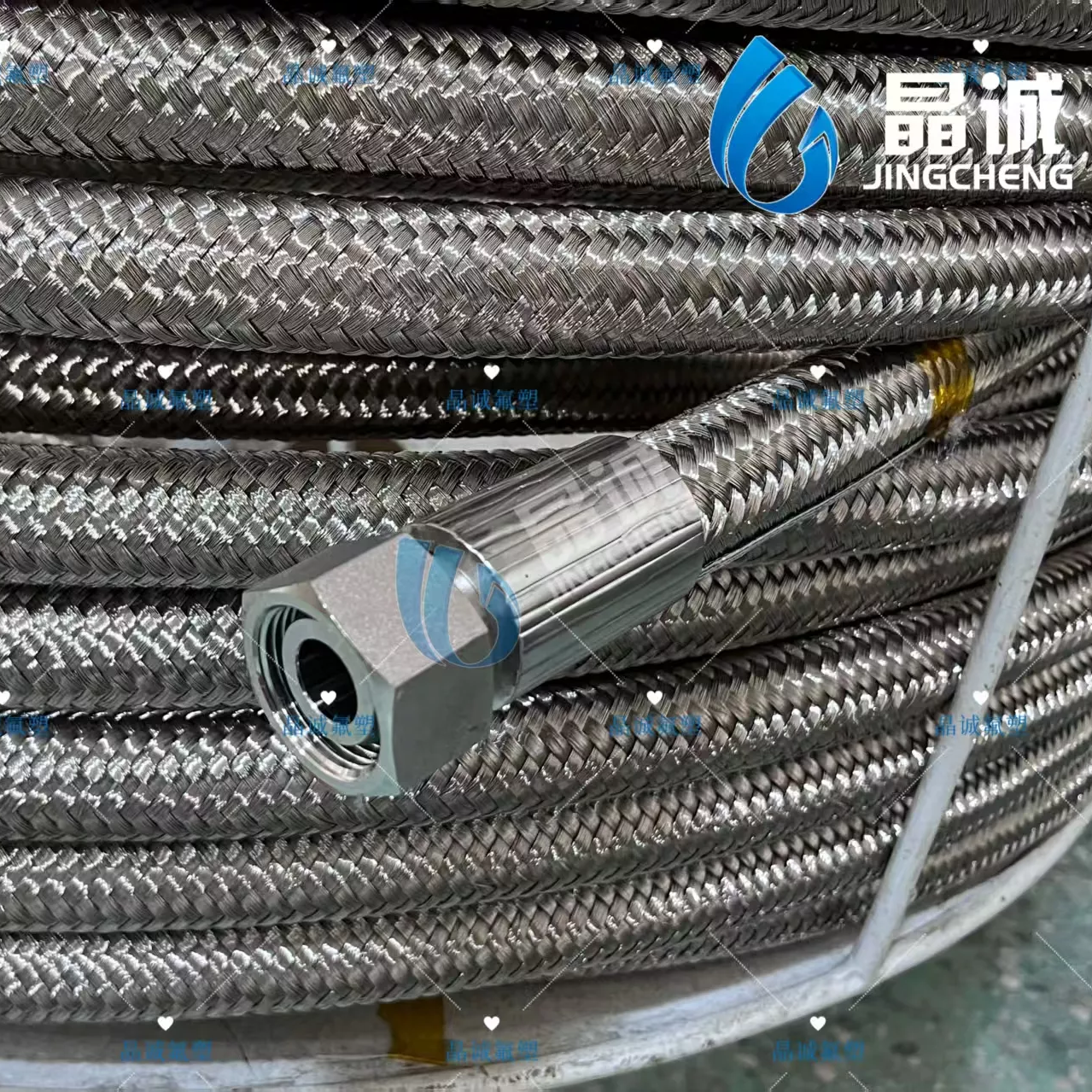

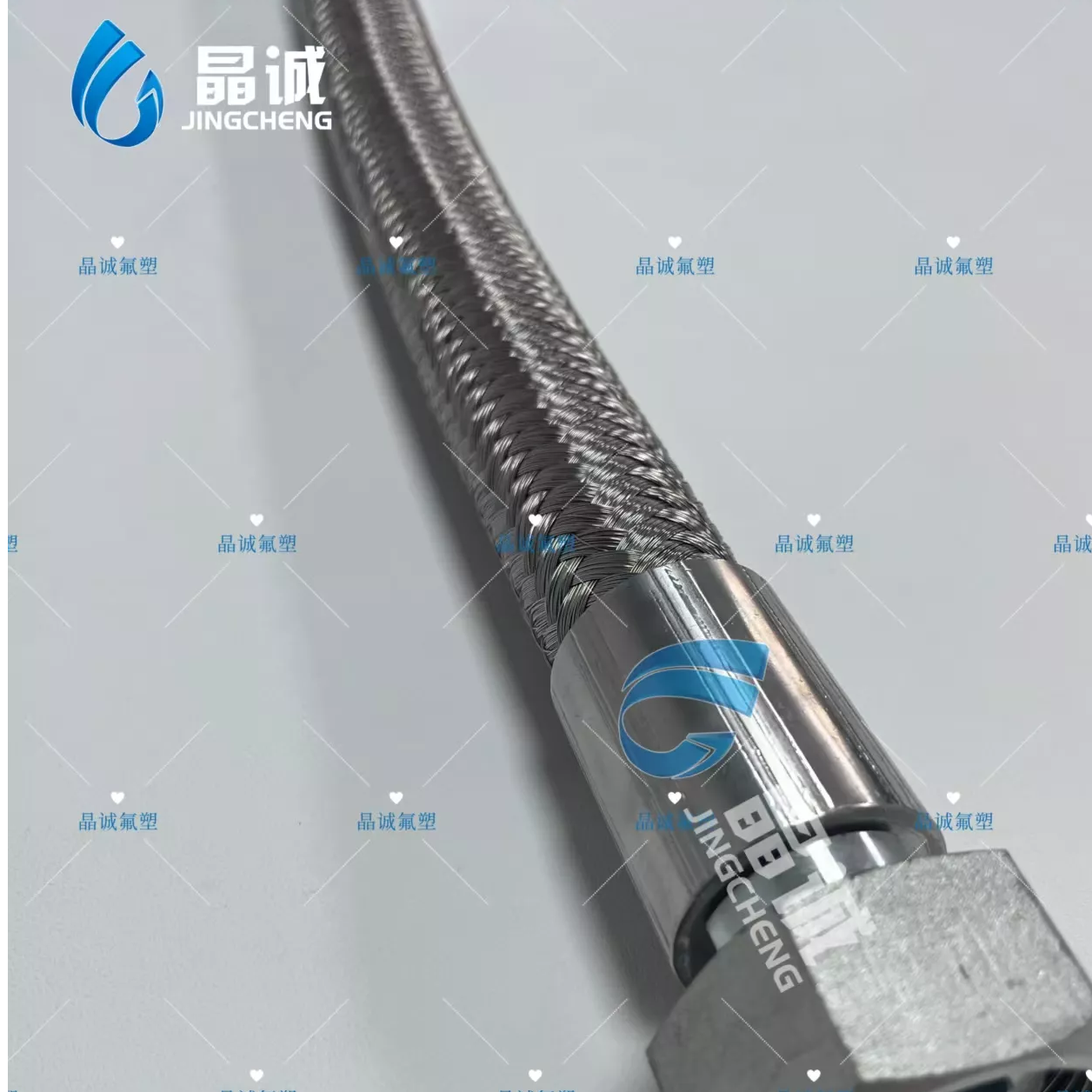

The JCC-02100-PTFE steel wire bundle braided hose uses a multi-layer reinforcement structure designed for demanding mechanical and high-pressure applications.

Its construction includes:

• Smooth PTFE inner hose

• 304 stainless steel braided intermediate layer

• High-strength 304 stainless steel wire bundle braided outer reinforcement

This structure gives the hose greater mechanical strength for applications such as:

• High-pressure chemical spraying

• High-pressure adhesive delivery

• High-pressure fluid conveying

• Steam transfer

• Oil transfer

• Brake hose applications

Why Pressure Pulsation Can Be More Demanding Than Static Pressure

A hose operating continuously at one stable pressure experiences a relatively predictable mechanical load.

Real industrial equipment may be different.

Consider an automatic dispensing system:

1. Pump builds pressure

2. Valve opens

3. Material flows

4. Valve closes

5. Pressure changes again

6. The cycle repeats

This can happen thousands of times.

Repeated pressure cycling can create fatigue in:

• Hose reinforcement

• Fittings

• Crimp zones

• Connection points

A stronger reinforcement architecture becomes valuable when the equipment experiences frequent pressure variation.

Multi-Layer Reinforcement Provides Greater Structural Support

The JCC-02100-PTFE is not simply a conventional single-braid hose.

The source describes:

1. A smooth PTFE inner tube

2. A 304 stainless steel wire braided middle layer

3. An additional high-strength 304 stainless steel wire bundle braided reinforcement layer

This multi-stage structure increases the mechanical support around the PTFE tube.

The purpose is to create a hose suitable for much more demanding pressure conditions.

High Working Pressure for Industrial Applications

The catalog shows significant working pressure capability.

Several smaller and medium sizes are listed around:

39–41 MPa

which corresponds to approximately:

5,700–5,950 psi

depending on hose size.

The smaller 3/8-inch configuration, for example, is listed at approximately:

5,945 psi / 41 MPa working pressure

with a burst pressure of approximately:

17,719 psi / 122.2 MPa

These values demonstrate why the hose is positioned for heavy-duty high-pressure applications.

Particularly Relevant to High-Pressure Adhesive Systems

Industrial adhesive equipment may handle:

• High-viscosity adhesive

• Sealant

• Resin

• Structural bonding materials

These materials can require substantial pressure to move through long hoses and small application nozzles.

A reinforced PTFE hose can provide the flexible connection between:

• High-pressure pump

• Metering unit

• Dispensing head

• Application gun

The PTFE inner surface also provides compatibility with many demanding chemical materials.

High-Pressure Spraying Creates Similar Requirements

Chemical spraying and coating equipment can also generate demanding pressure conditions.

The hose may need to support:

• Continuous pump pressure

• Rapid gun cycling

• Pressure fluctuations

• Chemical exposure

• Equipment vibration

A multi-reinforced hose structure provides an additional level of mechanical robustness for these applications.

Smooth PTFE Inner Surface for Demanding Media

The material-contact layer is PTFE.

This provides a relatively smooth internal path and broad compatibility with many chemical and industrial media.

Potential applications may include:

• Chemicals

• Oils

• Steam-related systems

• Adhesives

• Industrial fluids

The exact compatibility must always be confirmed according to the material, concentration and temperature.

Temperature Capability

The product catalog specifies a temperature range of approximately:

-70°C to +260°C

This allows the hose to combine high-pressure performance with a broad thermal operating window.

Pressure ratings at elevated temperature should still be evaluated according to the specific operating condition.

Pressure Capability Changes with Diameter

As hose diameter increases, the pressure capability changes.

This is visible in the catalog data.

For example, larger 1-1/2-inch and 2-inch sizes have lower working pressures than smaller configurations.

This is why hose selection should be based on actual engineering requirements rather than simply choosing the largest available diameter.

The correct balance depends on:

• Required flow

• Pressure

• Material viscosity

• Hose length

• Temperature

• Bending radius

Hose Reinforcement Can Affect Equipment Uptime

In high-pressure equipment, an unexpected hose failure can stop the entire machine.

Downtime can involve:

• Production interruption

• Material cleanup

• Hose replacement

• Equipment inspection

• Restart and pressure testing

Selecting a hose structure that matches the true pressure and cycling conditions can therefore influence total equipment availability.

For OEM manufacturers, the hose should be considered part of the pressure system rather than a commodity connection.

Fittings and Crimping Are Part of the Pressure System

The hose body alone does not determine final assembly performance.

A high-pressure hose assembly also depends on:

• Fitting material

• Connection design

• Crimp dimensions

• Hose-to-fitting compatibility

• Pressure testing

The complete assembly must be designed as one system.

This is particularly important when producing replacement hoses for imported equipment.

Typical Applications

The catalog identifies applications such as:

• Chemical high-pressure spraying

• High-pressure gluing

• High-pressure conveying

• Steam conveying

• Oil conveying

• Brake hose systems

Additional industrial uses may include:

• Resin transfer

• High-pressure process machinery

• Automated dispensing

• Chemical equipment

• Specialized OEM systems

Customization Support

Jingcheng can customize:

• Hose size

• Hose length

• Fittings

• Thread standards

• End orientation

• Complete hose assembly

• OEM configurations

For replacement projects, technical drawings or original hose samples can be used for matching.

Information Required for Selection

Please provide:

• Transferred medium

• Operating temperature

• Normal working pressure

• Maximum pressure

• Pressure cycling frequency

• Hose length

• Inner diameter

• Required flow

• Minimum bending radius

• Inlet fitting

• Outlet fitting

• Equipment type

Conclusion

High-pressure equipment should not select hose based only on one maximum-pressure number.

Repeated pressure pulsation, fluid compatibility, temperature, bending and fitting design all affect long-term performance.

The JCC-02100-PTFE uses a smooth PTFE inner hose together with multiple 304 stainless steel reinforcement layers to provide a stronger flexible connection for high-pressure spraying, adhesive delivery, industrial conveying, steam and oil systems.

For equipment where pressure cycling and production uptime matter, a multi-reinforced PTFE hose can provide a more robust solution than a conventional single-layer construction.
