Equipment manufacturers often use dozens of different flexible connections across one product family.
One machine may require a small 1/4-inch hose.
Another model may need 1/2 inch.
A larger system may require 3/4 inch or 1 inch.
If every machine uses a completely different hose construction, spare-parts management and production planning quickly become more complicated.

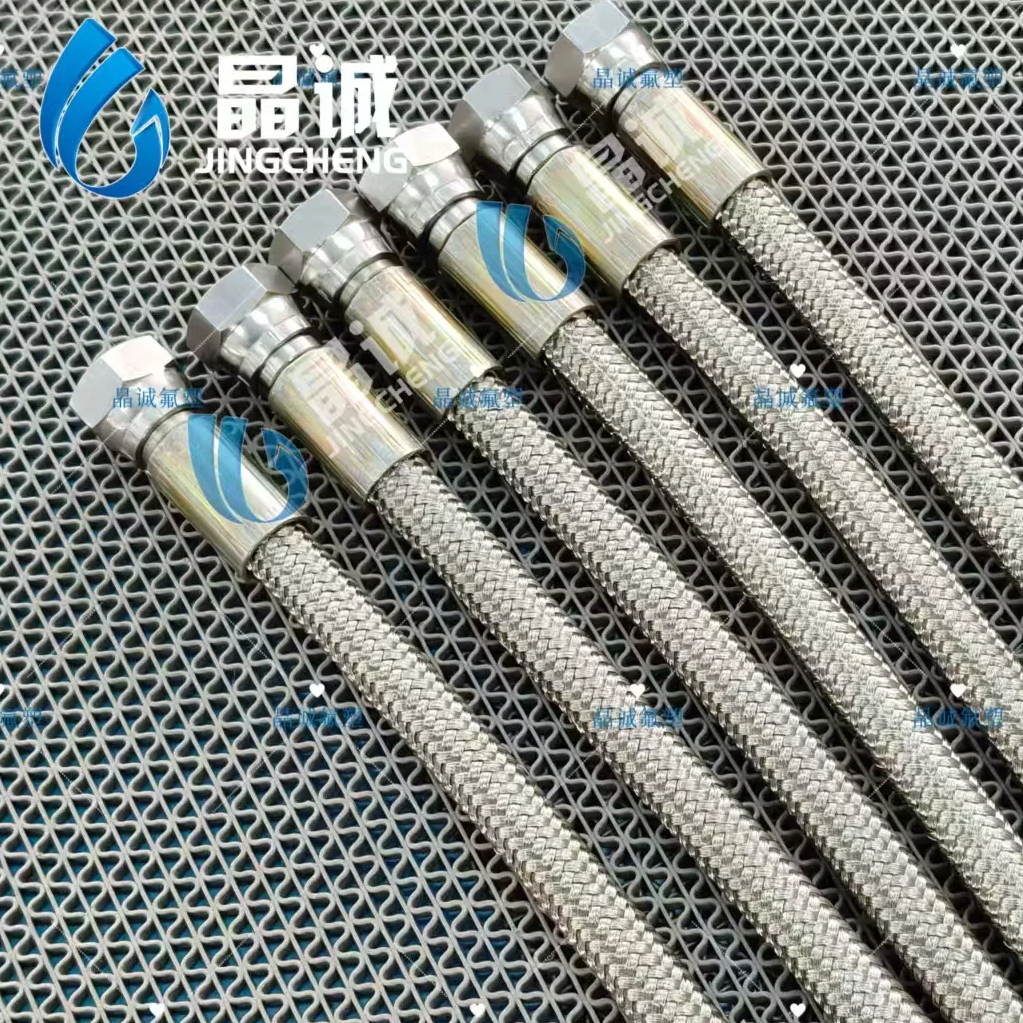

The JCC-01100-PTFE single-layer braided hose provides a straightforward solution.
The series combines a smooth PTFE inner tube with one layer of high-strength 304 stainless steel braid, creating a versatile reinforced hose platform available across multiple diameters.
For OEM manufacturers, this makes it useful not only as an individual hose but as a standardized family of fluid connections.
A hose is usually a small part of the finished machine.
But when an OEM builds dozens or hundreds of machines, small differences create supply-chain complexity.
Too many hose structures can lead to:
More part numbers
More spare inventory
More purchasing work
Greater maintenance confusion
Higher replacement risk
Using one basic hose structure across several machine sizes can simplify this.
The diameter and fittings may change, but the fundamental hose construction remains familiar.
The JCC-01100 series is relatively simple:
Smooth PTFE Inner Tube + 304 Stainless Steel Braided Reinforcement
This structure provides a balance between:
Chemical compatibility
Pressure capability
Mechanical protection
Flexible installation
Broad size availability
It is more mechanically robust than an unreinforced PTFE tube but generally simpler than double-braid or specialized multi-layer high-pressure constructions.
That makes it a practical general-purpose reinforced PTFE hose.
The catalog provides sizes from approximately:
5/32" through 1".
This range allows OEM manufacturers to use the same product family for:
Small instrument connections
Medium process lines
Larger fluid-transfer circuits
A standardized hose family can make technical documentation and spare-parts management easier across multiple machine models.
The smooth inner PTFE tube provides the material-contact path.
Its characteristics make it suitable for many industrial fluid systems where chemical compatibility and temperature stability are important.
Potential equipment applications span:
Machinery
Electronics
Automotive systems
Medical equipment
Chemical machinery
Aerospace-related equipment
Energy systems
Communication equipment
The final application must always be confirmed according to the actual medium, pressure and temperature.
The 304 stainless steel braid helps support the PTFE tube under pressure.
It also provides mechanical protection around the hose body.
This can be useful in machine environments where hoses may encounter:
Vibration
Contact with nearby components
Installation handling
Moderate external mechanical stress
The braided structure also creates a familiar industrial hose format that can be assembled with customized fittings.
The catalog specifies:
-70°C to +260°C
This wide temperature range means the same hose family can potentially serve equipment operating under very different thermal conditions.
However, pressure capability must always be evaluated at the actual operating temperature.
The catalog pressure ratings vary by size.
This is normal.
As hose diameter increases, the pressure capability generally changes.
For example, the listed series includes different working-pressure values depending on diameter.
This means engineers should not simply choose the largest possible hose.
The correct inner diameter should balance:
Required flow
Pressure
Pressure drop
Hose length
Bending radius
Oversizing a hose may increase installation space without providing a process benefit.
Suppose an equipment manufacturer sells three versions of the same machine:
Laboratory model
Standard production model
High-output model
All three may use different fluid flow rates but similar media and temperatures.
Using one PTFE braided hose family across the entire range can help standardize:
Material selection
Supplier qualification
Hose specifications
Replacement procedures
Spare inventory
This can simplify the OEM supply chain.
The hose itself is only one part of the final connection.
Jingcheng can configure assemblies with different:
Hose lengths
Fitting styles
Thread standards
End orientations
Connection combinations
This allows the same hose series to fit many different pieces of equipment.
For OEM customers, the hose can be integrated into new machine designs.
For maintenance customers, an existing hose can be reproduced according to:
Original sample
Dimensions
Fittings
Equipment information
This makes the product suitable for both production-line supply and aftermarket replacement.
The catalog page lists:
ISO9001:2015
US FDA 21 CFR 177.1550
SGS
Any required certification or documentation should be confirmed for the exact material and finished hose configuration used in the project.
Please provide:
Transferred medium
Working temperature
Working pressure
Maximum pressure
Hose length
Inner diameter
Required flow
Minimum bending radius
Inlet fitting
Outlet fitting
Equipment application
The JCC-01100-PTFE single-braid hose is valuable because it does not try to solve only one extreme application.
Instead, it provides a balanced reinforced PTFE platform that can be applied across many machine types and hose sizes.
For OEM manufacturers seeking to simplify fluid-line standardization, spare-parts management and equipment customization, a single-layer braided PTFE hose family can provide a practical foundation for multiple product platforms.
