Spring-Supported PTFE Hose for Better Shape Control in Complex Equipment

Flexibility is useful in industrial hose systems—but too much uncontrolled flexibility can also create problems.

A hose installed inside machinery may:

• Sag between supports

• Bend too sharply

• Shift during maintenance

• Contact nearby components

• Develop an undesirable routing shape

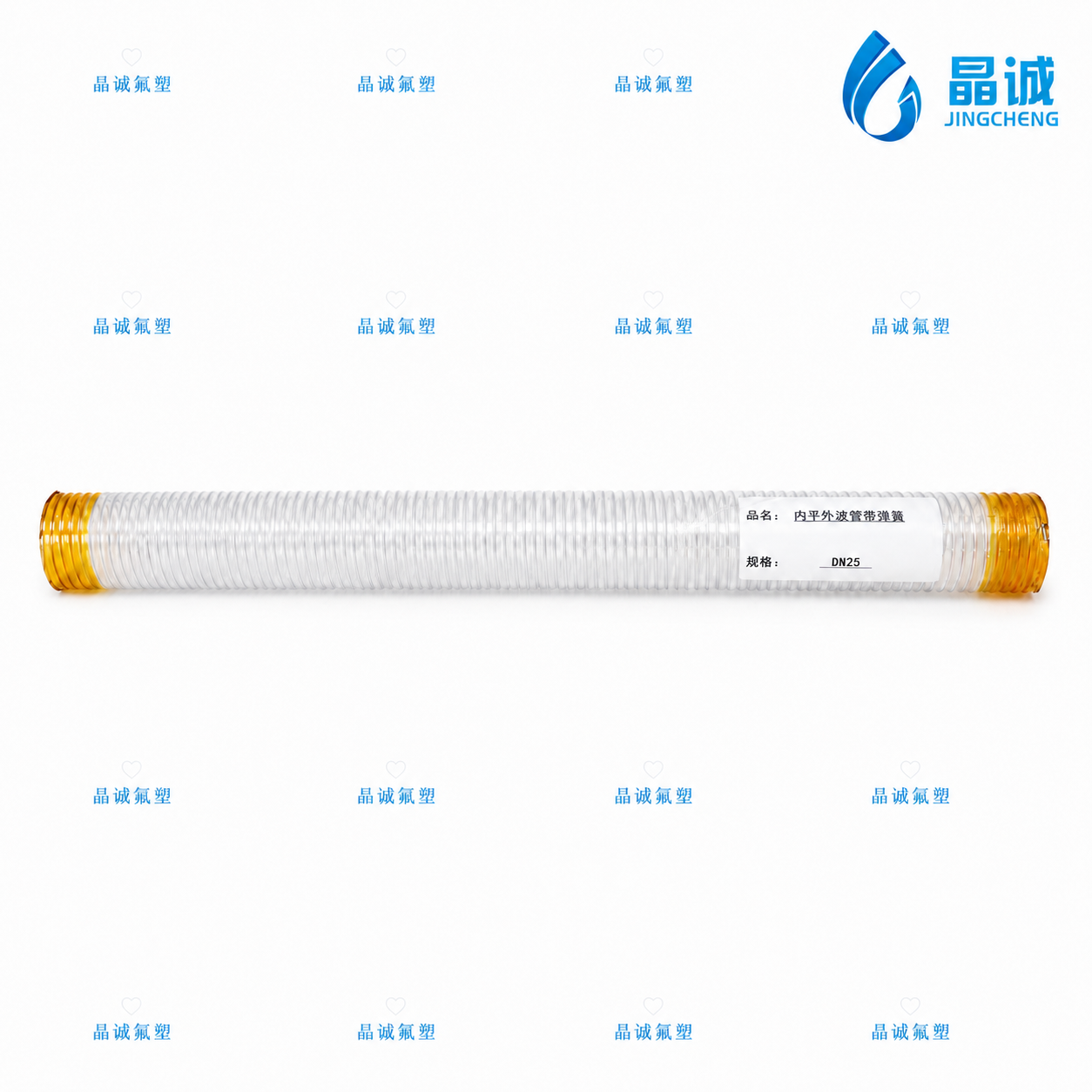

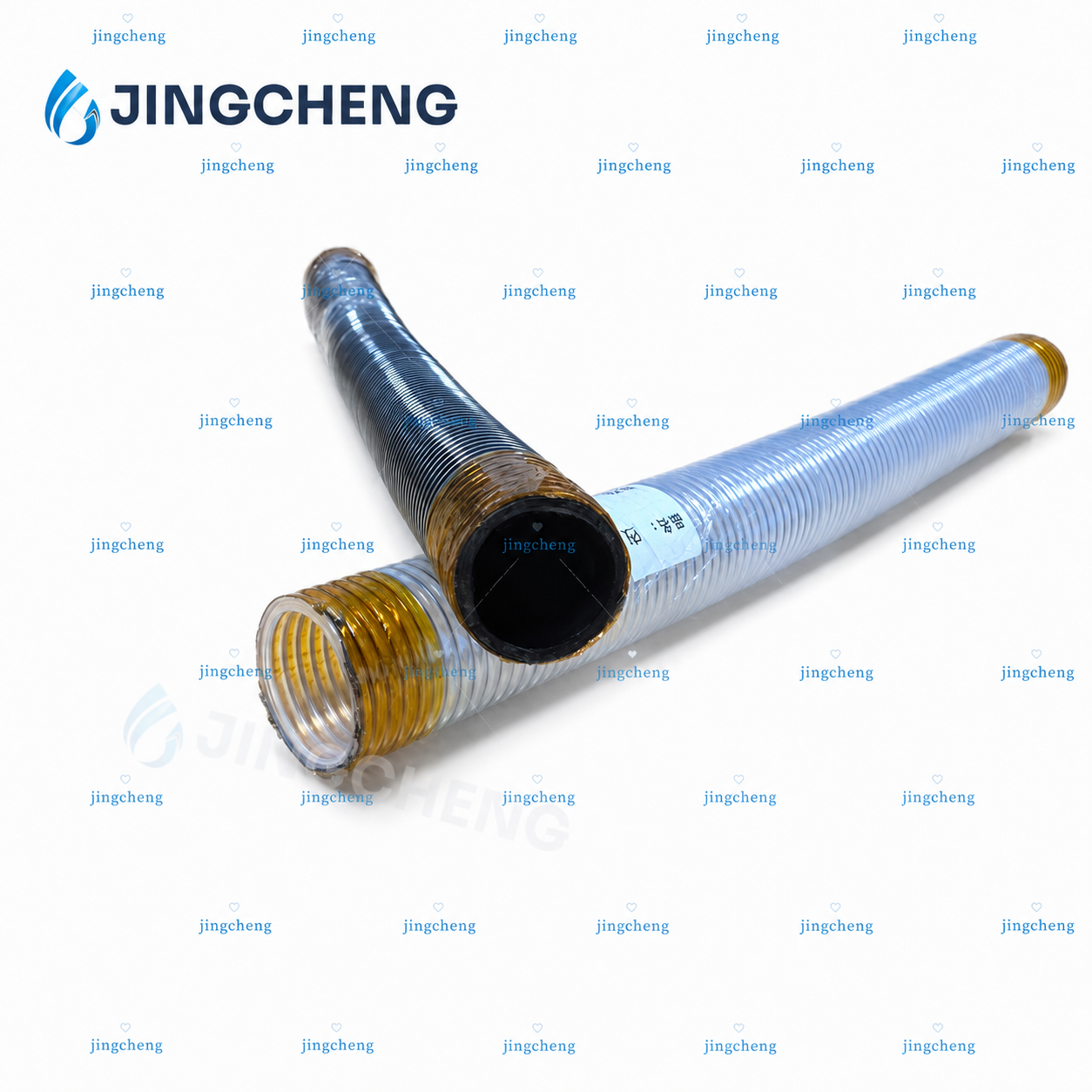

The JCC-20000-PTFE smooth-bore, outer-corrugated hose with stainless steel spring addresses this problem by combining three different design functions in one structure.

It provides:

a smooth internal PTFE flow path + a flexible corrugated body + 304 stainless steel spiral support.

The result is a hose designed not simply to bend, but to bend in a more controlled way.

Why Add a Stainless Steel Spiral Spring?

The 304 stainless steel spiral support gives the hose additional mechanical structure.

Rather than allowing the flexible PTFE body to move without control, the spring helps support the hose along the installed route.

This can be useful when:

• The hose spans between two machine components

• Several bends occur close together

• The line passes around pumps or tanks

• The hose is exposed to repeated repositioning

• The equipment has limited support points

The spring does not eliminate the need for correct installation, but it can help create a more stable hose path.

Smooth Bore Inside, Flexible Geometry Outside

One of the most important characteristics of this hose is the difference between its internal and external geometry.

The inner wall remains relatively smooth.

The external structure provides corrugated flexibility.

This combination allows designers to obtain flexibility without using a fully corrugated material-contact surface.

For certain process applications, that can provide a useful balance between:

• Fluid flow

• Flexibility

• Cleaning

• Mechanical support

Why a Smooth Internal Surface Matters

A smooth PTFE material-contact surface can help reduce internal areas where process material may collect.

This is useful with media such as:

• Hot oils

• Process chemicals

• Certain viscous materials

• Heated fluids

A smoother internal path may also simplify flushing compared with a deeply convoluted inner surface.

This makes the structure attractive in systems where both flexibility and internal flow quality are important.

Designed for Hot Process Media

The source catalog lists the hose for transporting:

• Highly corrosive chemicals

• Hot air

• Hot oil

• Steam

These are applications where both material compatibility and thermal stability can be important.

The catalog specifies a temperature range of:

-65°C to +260°C

This gives the hose a broad operating window for heated industrial systems.

The exact allowable temperature and pressure should be confirmed for the specific medium and hose size.

Higher Pressure Than a Fully Convoluted Unreinforced Hose

The spring-supported JCC-20000 series also provides greater pressure capability than many highly flexible unreinforced convoluted hoses.

For example, the 1/4-inch catalog configuration lists approximately:

396 psi / 2.64 MPa working pressure

with a burst pressure of approximately:

1,276 psi / 8.8 MPa.

Pressure decreases as hose diameter increases, so the exact size must be selected according to the application.

Excellent for Process Skid Routing

Modern process skids often place many components inside a small frame.

The hose may need to route around:

• Pumps

• Heat exchangers

• Tanks

• Filters

• Sensors

• Valves

• Structural supports

The spring-supported structure can help maintain a more organized routing path while still providing the flexibility needed for installation.

This can make the hose particularly useful for OEM equipment builders.

Useful When Hose Position Matters

In some systems, the exact position of the hose is important.

Uncontrolled sagging may create:

• Contact with hot surfaces

• Interference with moving components

• Drainage problems

• Difficult maintenance access

A spring-supported hose provides greater shape control than a very soft unsupported hose.

Combined with proper clamps and routing, this can help create a cleaner equipment installation.

Typical Industries

The catalog identifies applications across:

• Food processing

• Cosmetics

• Chemical processing

• Pharmaceutical production

Additional potential equipment uses include:

• Hot-oil circulation systems

• Steam-related process equipment

• Heated chemical transfer

• Process skids

• Fluid conditioning systems

• OEM thermal equipment

Final suitability should be confirmed for the specific medium and regulatory requirements.

Correct Installation Still Matters

The stainless spring provides support, but the hose should not be forced below its recommended bending radius.

Installation should also avoid:

• Excessive twisting

• Sharp machine edges

• Heavy unsupported fittings

• Continuous torsional movement

• Severe side loading

Good routing can significantly improve hose service life.

Customization Support

Jingcheng can customize:

• Hose length

• Inner diameter

• End fittings

• Assembly configuration

• Connection orientation

• OEM specifications

Customers can provide drawings or samples for evaluation.

Information Required for Selection

Please provide:

• Transferred medium

• Working temperature

• Working pressure

• Maximum pressure

• Hose length

• Inner diameter

• Installation route

• Required bending radius

• End connections

• Static or moving application

Conclusion

Flexible hose design is not only about how easily the hose bends.

In many machines, engineers also need to control where and how the hose bends.

The JCC-20000-PTFE combines a smooth PTFE flow path with external flexibility and 304 stainless steel spiral support, creating a balanced solution for hot fluid, chemical, steam and process-equipment connections.

For machinery where flow quality, flexibility and routing stability all matter, this structure offers a useful middle ground between rigid tubing and extremely soft unsupported hoses.
