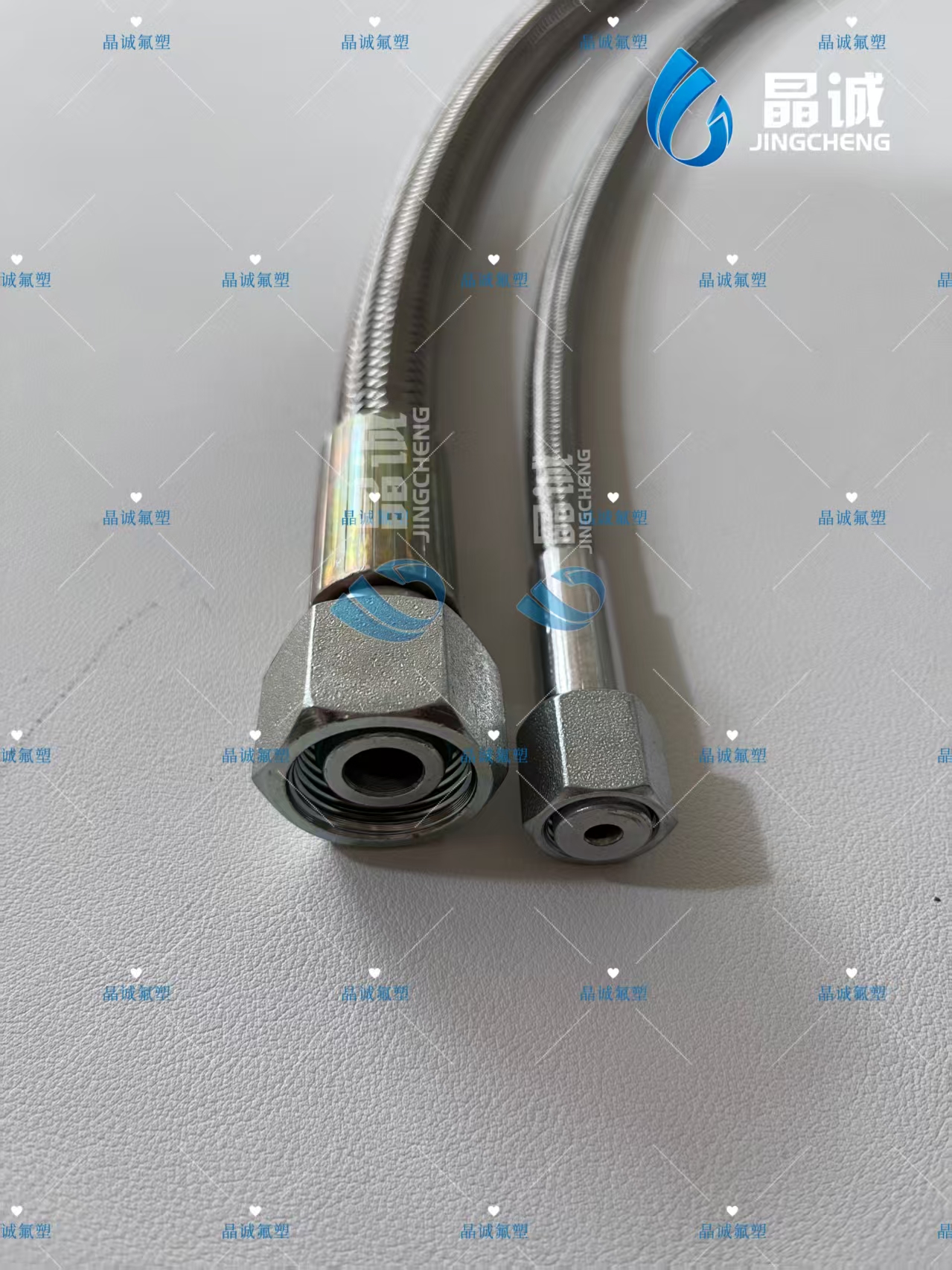

A PTFE inner corrugated braided hose is designed for applications that require excellent flexibility, chemical resistance and reinforced pressure performance. It combines a corrugated PTFE hose body with a high-strength 304 stainless steel braided outer layer, giving the hose both strong bending performance and improved mechanical protection.
Compared with a standard smooth bore PTFE hose, this corrugated braided structure provides a smaller bending radius and better flexibility. It is especially suitable for pharmaceutical, food, chemical and industrial transfer systems where the hose needs to bend easily while handling corrosive or sensitive media.
Shenzhen Jingcheng High-tech manufactures customized PTFE corrugated braided hoses for equipment manufacturers, industrial distributors and process system integrators. With factory-direct production, flexible customization and fast response, we help customers reduce sourcing cost and build more reliable fluid transfer systems.
A PTFE inner corrugated braided hose is a flexible hose made with a corrugated PTFE inner hose and a stainless steel braided reinforcement layer. The corrugated PTFE structure improves bending performance, while the 304 stainless steel braid increases pressure resistance, external protection and overall hose durability.
This structure makes the hose suitable for applications where ordinary PTFE tubing may be too rigid, but the system still requires chemical resistance, temperature resistance and pressure capability.
In many production systems, hoses need to work in limited installation spaces, around equipment corners or in moving connection points. If the hose is too stiff, installation becomes difficult and the hose may suffer from stress, deformation or early failure.
A PTFE inner corrugated braided hose helps solve these problems by providing:
Excellent flexibility
Small bending radius
304 stainless steel braid reinforcement
Strong chemical resistance
Good pressure performance
Wide temperature resistance
Reliable transfer for pharmaceutical, food and chemical applications
Custom sizes and fittings available
The corrugated PTFE structure gives the hose excellent flexibility and bending performance. It is suitable for compact equipment layouts and complex pipeline routing.
The outer layer uses high-strength 304 stainless steel braided wire. This reinforcement improves pressure resistance, mechanical protection and hose stability during operation.
PTFE has strong resistance to many acids, alkalis, solvents and corrosive media. This makes the hose suitable for chemical processing, pharmaceutical production and food-related transfer systems.
The hose can work in both low-temperature and high-temperature environments, supporting stable transfer performance under demanding process conditions.
The corrugated structure gives the hose a very small bending radius compared with many standard hose types. This makes installation easier in limited spaces.
Inner diameter, outer diameter, hose length, stainless steel braid structure, connector type and hose assembly form can be customized according to your equipment and working conditions.
Our PTFE inner corrugated braided hose can be used in:
Pharmaceutical transfer equipment
Food processing equipment
Chemical fluid transfer systems
Corrosive media transfer
Laboratory fluid systems
High-purity liquid transfer
Dosing and filling equipment
Industrial process pipelines
Equipment connection systems
Compact machinery layouts
Flexible chemical transfer lines
Item | Available Options |
|---|---|
Product Name | PTFE Inner Corrugated Braided Hose |
Model Series | JCC-11100-PTFE |
Inner Hose | Corrugated PTFE hose |
Reinforcement | High-strength 304 stainless steel braid |
Temperature Range | -70°C to +200°C |
Inner Diameter | 1/4” to 2” |
Main Advantages | Flexible, corrosion-resistant, small bending radius |
Application | Pharmaceutical, food, chemical and industrial transfer |
Customization | Available |
Standard Reference | ISO9001:2015 / US FDA 21 CFR 177.1550 / SGS |
Model | Inner Diameter | Outer Diameter | Braided Hose OD | Working Pressure | Burst Pressure | Min. Bending Radius |
JCC-11104-PTFE | 1/4” / 5.8 mm | 8.3 mm | 10.3 mm | 2001 psi / 13.8 MPa | 8004 psi / 55.2 MPa | 10 mm |
JCC-11108-PTFE | 5/16” / 7.8 mm | 10.3 mm | 12.5 mm | 1957.5 psi / 13.5 MPa | 7830 psi / 54 MPa | 15 mm |
JCC-11110-PTFE | 3/8” / 9.6 mm | 12.1 mm | 14.1 mm | 1631.3 psi / 11.3 MPa | 6525 psi / 45 MPa | 20 mm |
JCC-11113-PTFE | 1/2” / 12.5 mm | 13.5 mm | 17.5 mm | 1540.6 psi / 10.6 MPa | 6162.5 psi / 42.5 MPa | 25 mm |
JCC-11116-PTFE | 5/8” / 15.7 mm | 19.9 mm | 22.5 mm | 1395.6 psi / 9.6 MPa | 5582.5 psi / 38.5 MPa | 30 mm |
JCC-11119-PTFE | 3/4” / 19.9 mm | 23 mm | 25.5 mm | 1141.9 psi / 7.9 MPa | 4567.5 psi / 31.5 MPa | 60 mm |
JCC-11125-PTFE | 1” / 24.8 mm | 35.7 mm | 37.5 mm | 725 psi / 5.0 MPa | 2900 psi / 20 MPa | 85 mm |
JCC-11132-PTFE | 1-1/4” / 32 mm | 42 mm | 45 mm | 598.1 psi / 4.1 MPa | 2392.5 psi / 16.5 MPa | 100 mm |
JCC-11138-PTFE | 1-1/2” / 38 mm | 48 mm | 50.5 mm | 525.6 psi / 3.6 MPa | 2102.5 psi / 14.5 MPa | 155 mm |
JCC-11150-PTFE | 2” / 50 mm | 60 mm | 63 mm | 453.1 psi / 3.1 MPa | 1812.5 psi / 12.5 MPa | 200 mm |
Shenzhen Jingcheng High-tech Co., Ltd. is a professional PTFE hose manufacturer specializing in PTFE hoses, PTFE high-pressure hoses, PA hoses and electric heated hoses. Since 2005, we have provided customized hose solutions for pharmaceutical transfer, food equipment, chemical processing, automotive production, gas sampling, hot melt adhesive systems and laboratory applications.
For global buyers, equipment manufacturers and industrial distributors, we provide factory-direct PTFE hose solutions with stable quality, short lead time, flexible customization and sample support.
We manufacture PTFE hoses directly in China, helping customers reduce procurement cost, shorten the supply chain and improve sourcing efficiency.
The corrugated PTFE structure gives the hose a smaller bending radius, making it easier to install in compact equipment layouts.
The 304 stainless steel braided layer improves the hose’s pressure resistance and mechanical strength.
This hose is suitable for pharmaceutical, food, chemical and industrial transfer systems, making it a flexible solution for different B2B applications.
We can customize hose length, inner diameter, fittings, connector type and assembly structure according to your drawings, samples or equipment requirements.
We support fast response for replacement hoses, project orders and customized hose assemblies. Samples can be provided for testing before bulk production.
