When routing space is tight or frequent bending is required, standard smooth PTFE tubing can be difficult to install and prone to stress concentration. A PTFE inner corrugated hose solves this by combining PTFE’s chemical resistance with a corrugated structure for much better flexibility.
Our PTFE inner corrugated hose is designed for chemical processing, food production, and pharmaceutical applications. It offers broad media compatibility, stable temperature performance, and custom sizing support for OEM equipment and fluid transfer systems.
Temperature range: -70°C to 260°C (design-dependent)
Working pressure: up to 60 psi / 0.4 MPa (design-dependent, depends on size)
Burst pressure: up to 210 psi / 1.4 MPa (design-dependent, depends on size)
Minimum bending radius: as low as 20 mm (design-dependent, depends on size)
Material compliance: PTFE tube, catalog indicates ISO9001:2015 / US FDA 21 CFR 177.1550 / SGS
Application sectors: suitable for pharmaceutical, food, and chemical industry use cases
PTFE is already a top choice for aggressive media and high-temperature transfer, but many systems need more than chemical resistance—they need routing flexibility. The inner corrugated design helps reduce installation stress in compact layouts, moving assemblies, or machines with tight bends.
This hose is especially useful when you need:

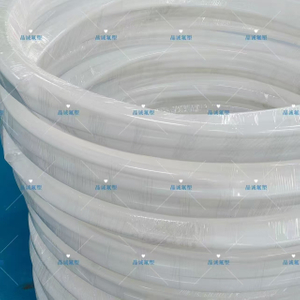

Better bendability than smooth PTFE tube
Cleaner fluid transfer path with PTFE contact material
Reliable performance across a wide temperature range
A custom hose platform for equipment integration and OEM projects

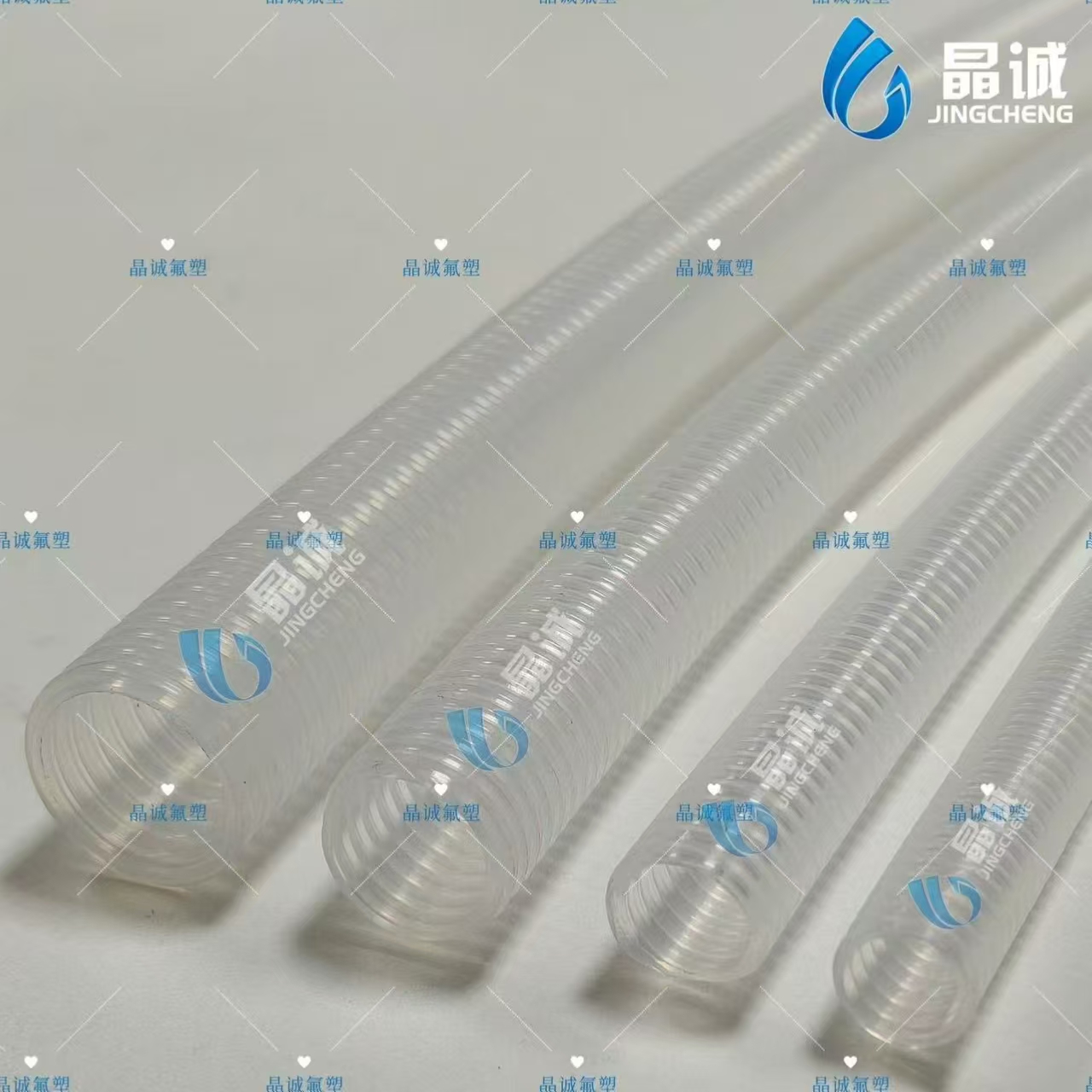

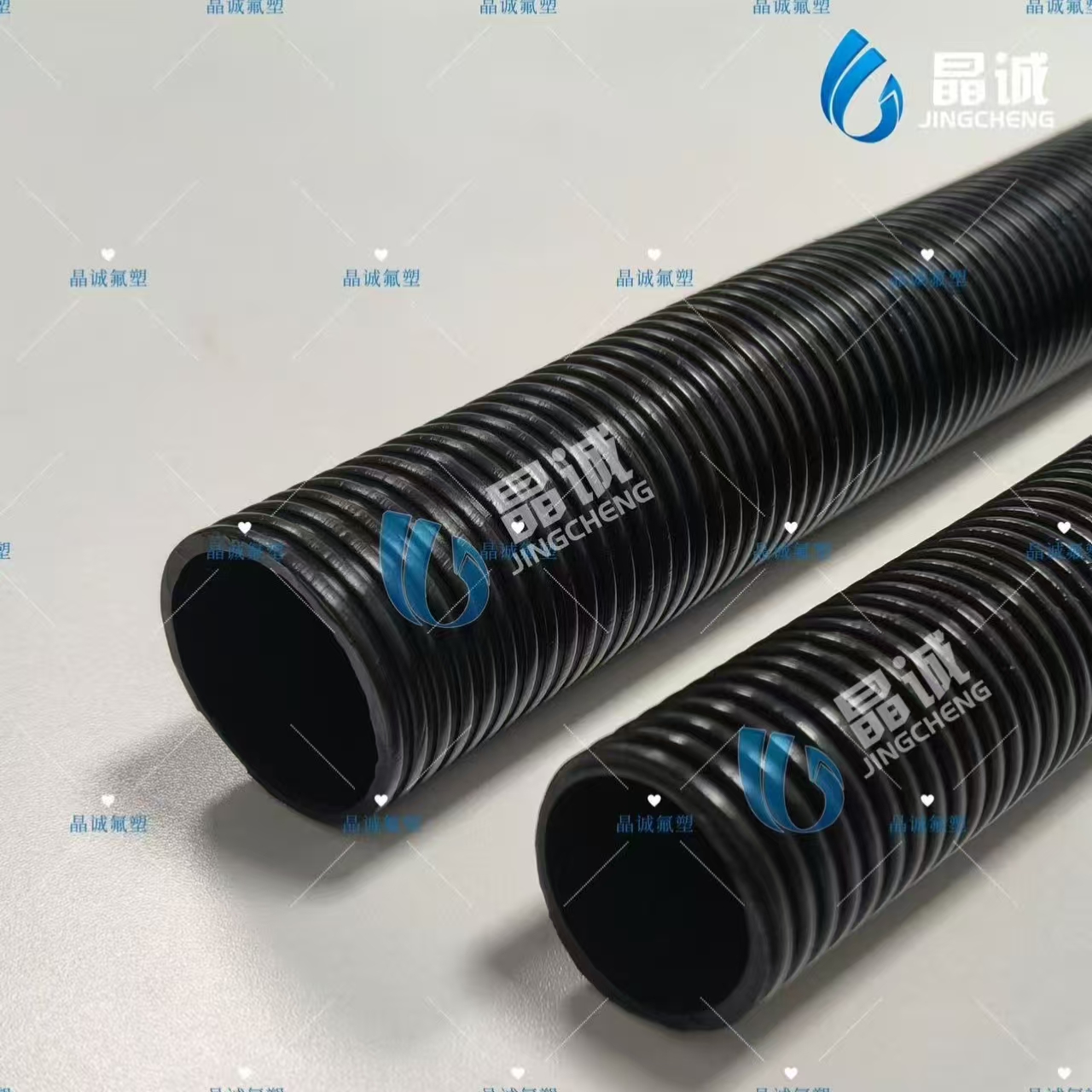

High Flexibility Corrugated PTFE Structure
Inner and outer walls use a corrugated PTFE hose design, improving bend performance for tighter routing and easier installation.
Broad Chemical & Temperature Resistance
PTFE construction supports demanding media and a wide operating range from -70°C to 260°C (catalog reference; actual application should be verified by design conditions).
Food / Pharma / Chemical Application Compatibility
The catalog page specifically lists suitability for pharmaceutical, food, and chemical industry applications, with FDA-related compliance reference shown.
| Model No. | Nominal Size | Inner Dia (mm) | Outer Dia (mm) | Working Pressure (psi / MPa) | Burst Pressure (psi / MPa) | Min. Bend Radius (inch / mm) |
|---|---|---|---|---|---|---|
| JCC-10004-PTFE | 1/4" | 6.5 | 10.6 | 60 / 0.4 | 210 / 1.4 | 0.79 / 20 |
| JCC-10008-PTFE | 5/16" | 8.0 | 12.3 | 60 / 0.4 | 210 / 1.4 | 0.87 / 22 |
| JCC-10010-PTFE | 3/8" | 10.0 | 15.0 | 60 / 0.4 | 210 / 1.4 | 1.02 / 26 |
| JCC-10013-PTFE | 1/2" | 13.0 | 17.9 | 60 / 0.4 | 210 / 1.4 | 1.02 / 26 |
| JCC-10016-PTFE | 5/8" | 16.0 | 21.9 | 45 / 0.3 | 180 / 1.2 | 1.26 / 32 |
| JCC-10019-PTFE | 3/4" | 19.0 | 26.4 | 45 / 0.3 | 180 / 1.2 | 2.17 / 55 |
| JCC-10025-PTFE | 1" | 25.0 | 35.0 | 45 / 0.3 | 150 / 1.0 | 3.15 / 80 |
| JCC-10032-PTFE | 1-1/4" | 32.0 | 39.0 | 38 / 0.3 | 135 / 0.9 | 3.94 / 100 |
| JCC-10038-PTFE | 1-1/2" | 38.0 | 45.0 | 38 / 0.3 | 135 / 0.9 | 3.94 / 100 |
| JCC-10050-PTFE | 2" | 50.0 | 59.5 | 30 / 0.2 | 120 / 0.8 | 4.92 / 125 |
Note: Values are catalog reference values and are design-dependent. Final performance depends on hose wall design, length, fittings, operating temperature, media, and installation conditions.
We support custom-built PTFE hose solutions for OEM and industrial fluid transfer systems. Available options can include:
ID / OD size customization
Hose length
End fittings / connection type (threaded, flanged, quick-connect, custom interfaces)
Assembly format (tube only or finished hose assembly)

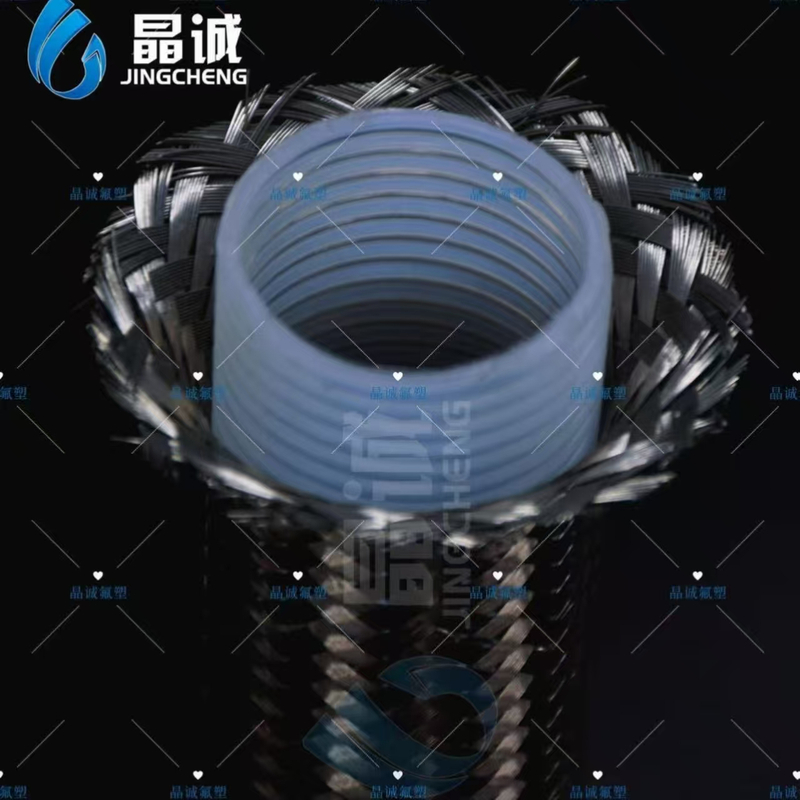

Reinforcement structure (if your application later requires braid/spring support)
Wall design optimization for flexibility vs. pressure balance
Temperature / media matching review
Labeling / part number marking
Packaging requirements for export or production line use
We are a PTFE hose manufacturer focused on custom fluid transfer solutions. Our process typically includes requirement review, structure confirmation, sample/prototype support, production, inspection, and delivery. For OEM projects, we can support specification matching and customization based on your equipment and process conditions.
When routing space is tight or frequent bending is required, standard smooth PTFE tubing can be difficult to install and prone to stress concentration. A PTFE inner corrugated hose solves this by combining PTFE’s chemical resistance with a corrugated structure for much better flexibility.
Our PTFE inner corrugated hose is designed for chemical processing, food production, and pharmaceutical applications. It offers broad media compatibility, stable temperature performance, and custom sizing support for OEM equipment and fluid transfer systems.
Temperature range: -70°C to 260°C (design-dependent)
Working pressure: up to 60 psi / 0.4 MPa (design-dependent, depends on size)
Burst pressure: up to 210 psi / 1.4 MPa (design-dependent, depends on size)
Minimum bending radius: as low as 20 mm (design-dependent, depends on size)
Material compliance: PTFE tube, catalog indicates ISO9001:2015 / US FDA 21 CFR 177.1550 / SGS
Application sectors: suitable for pharmaceutical, food, and chemical industry use cases
PTFE is already a top choice for aggressive media and high-temperature transfer, but many systems need more than chemical resistance—they need routing flexibility. The inner corrugated design helps reduce installation stress in compact layouts, moving assemblies, or machines with tight bends.
This hose is especially useful when you need:
Better bendability than smooth PTFE tube
Cleaner fluid transfer path with PTFE contact material
Reliable performance across a wide temperature range
A custom hose platform for equipment integration and OEM projects
High Flexibility Corrugated PTFE Structure
Inner and outer walls use a corrugated PTFE hose design, improving bend performance for tighter routing and easier installation.
Broad Chemical & Temperature Resistance
PTFE construction supports demanding media and a wide operating range from -70°C to 260°C (catalog reference; actual application should be verified by design conditions).
Food / Pharma / Chemical Application Compatibility
The catalog page specifically lists suitability for pharmaceutical, food, and chemical industry applications, with FDA-related compliance reference shown.
| Model No. | Nominal Size | Inner Dia (mm) | Outer Dia (mm) | Working Pressure (psi / MPa) | Burst Pressure (psi / MPa) | Min. Bend Radius (inch / mm) |
|---|---|---|---|---|---|---|
| JCC-10004-PTFE | 1/4" | 6.5 | 10.6 | 60 / 0.4 | 210 / 1.4 | 0.79 / 20 |
| JCC-10008-PTFE | 5/16" | 8.0 | 12.3 | 60 / 0.4 | 210 / 1.4 | 0.87 / 22 |
| JCC-10010-PTFE | 3/8" | 10.0 | 15.0 | 60 / 0.4 | 210 / 1.4 | 1.02 / 26 |
| JCC-10013-PTFE | 1/2" | 13.0 | 17.9 | 60 / 0.4 | 210 / 1.4 | 1.02 / 26 |
| JCC-10016-PTFE | 5/8" | 16.0 | 21.9 | 45 / 0.3 | 180 / 1.2 | 1.26 / 32 |
| JCC-10019-PTFE | 3/4" | 19.0 | 26.4 | 45 / 0.3 | 180 / 1.2 | 2.17 / 55 |
| JCC-10025-PTFE | 1" | 25.0 | 35.0 | 45 / 0.3 | 150 / 1.0 | 3.15 / 80 |
| JCC-10032-PTFE | 1-1/4" | 32.0 | 39.0 | 38 / 0.3 | 135 / 0.9 | 3.94 / 100 |
| JCC-10038-PTFE | 1-1/2" | 38.0 | 45.0 | 38 / 0.3 | 135 / 0.9 | 3.94 / 100 |
| JCC-10050-PTFE | 2" | 50.0 | 59.5 | 30 / 0.2 | 120 / 0.8 | 4.92 / 125 |
Note: Values are catalog reference values and are design-dependent. Final performance depends on hose wall design, length, fittings, operating temperature, media, and installation conditions.
We support custom-built PTFE hose solutions for OEM and industrial fluid transfer systems. Available options can include:
ID / OD size customization
Hose length
End fittings / connection type (threaded, flanged, quick-connect, custom interfaces)
Assembly format (tube only or finished hose assembly)
Reinforcement structure (if your application later requires braid/spring support)
Wall design optimization for flexibility vs. pressure balance
Temperature / media matching review
Labeling / part number marking
Packaging requirements for export or production line use
We are a PTFE hose manufacturer focused on custom fluid transfer solutions. Our process typically includes requirement review, structure confirmation, sample/prototype support, production, inspection, and delivery. For OEM projects, we can support specification matching and customization based on your equipment and process conditions.
