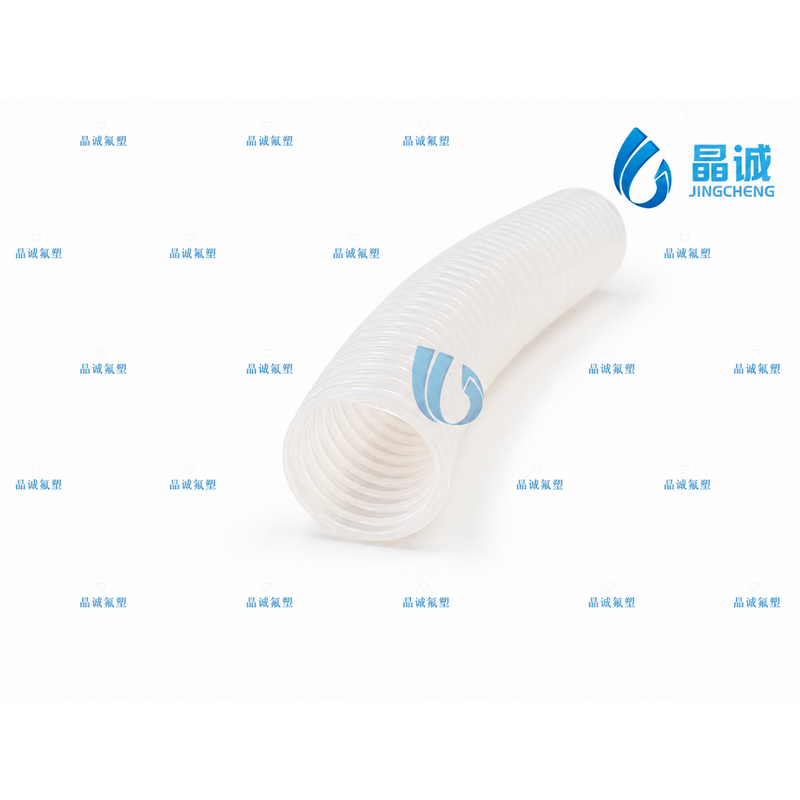

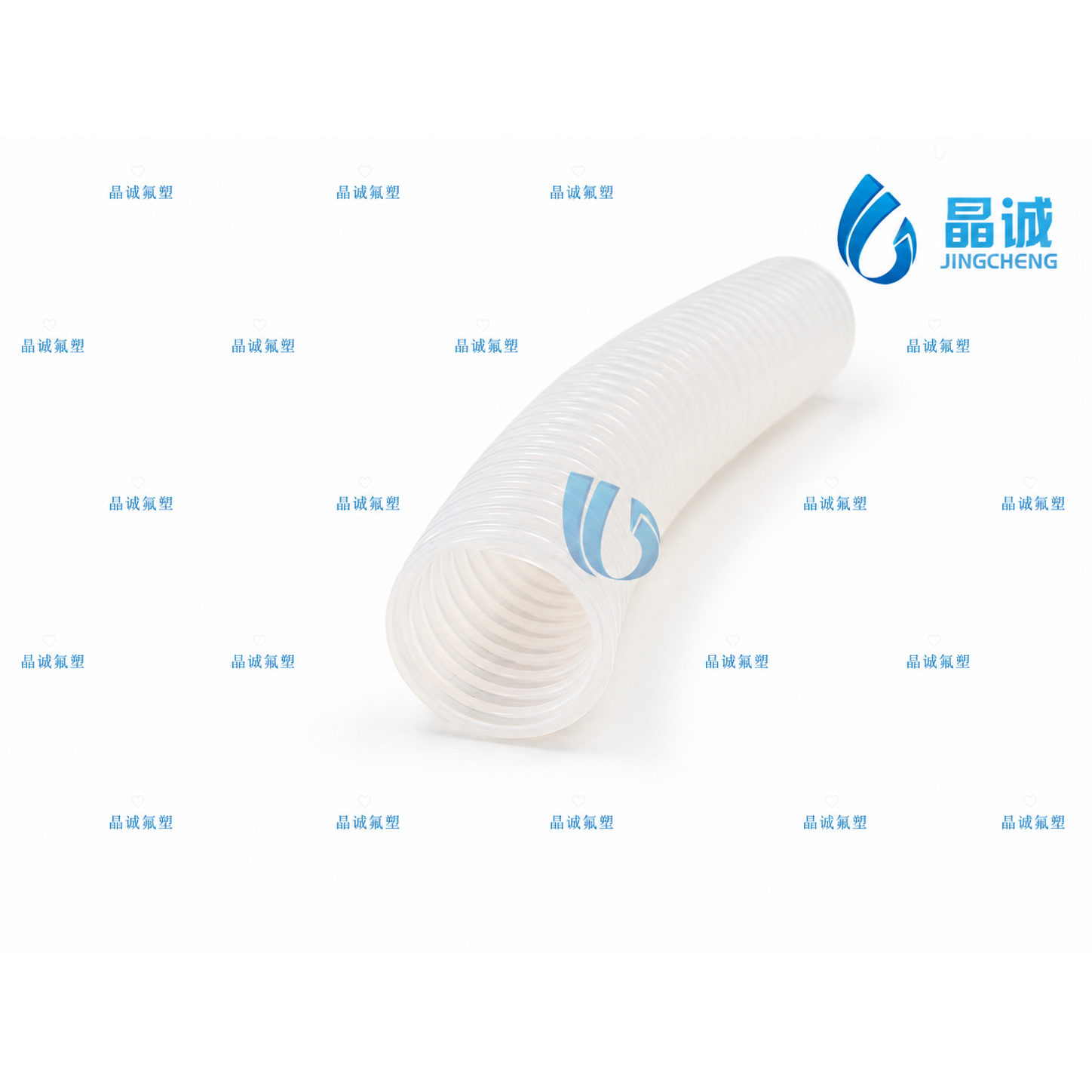

PTFE Inner Corrugated Hose
A PTFE inner corrugated hose is designed for applications that require excellent flexibility, strong bending performance and reliable chemical resistance. Compared with smooth bore PTFE hose, the corrugated structure gives the hose better flexibility, making it suitable for equipment layouts where tight installation space, repeated bending or complex pipeline routing may be required.
Shenzhen Jingcheng High-tech manufactures customized PTFE inner corrugated hoses for pharmaceutical, food, chemical and industrial fluid transfer applications. With stable PTFE material performance, flexible customization and factory-direct production, we help customers build safer, cleaner and more efficient transfer systems.
A PTFE inner corrugated hose is a flexible hose made from PTFE material with a corrugated hose body structure. The corrugated design improves bending performance and allows the hose to move more easily during installation and operation.
This hose is suitable for transferring corrosive media, high-purity fluids, food-grade materials, pharmaceutical materials and chemical fluids where both chemical resistance and flexibility are important.
In many production systems, the hose does not only need chemical resistance. It also needs to bend, move and connect equipment in limited installation spaces. A rigid or poorly flexible hose may create installation stress, reduce service life or increase the risk of leakage.
A PTFE inner corrugated hose helps solve these problems by combining:
Excellent flexibility
Strong bending performance
Wide chemical compatibility
High and low temperature resistance
Clean PTFE material contact surface
Customizable size and length
Reliable performance for demanding transfer systems
The corrugated PTFE structure gives the hose strong flexibility and bending ability. It is suitable for compact equipment layouts, moving connections and applications where smooth installation is required.
The hose supports a temperature range from -70°C to +260°C, making it suitable for both low-temperature and high-temperature transfer environments.
PTFE offers excellent resistance to many acids, alkalis, solvents and corrosive media. This makes the hose suitable for pharmaceutical, food, chemical and laboratory fluid transfer applications.
The PTFE material contact surface is suitable for applications that require clean transfer, low contamination risk and strong material compatibility.
Inner diameter, outer diameter, wall thickness, hose length, bending radius and connector configuration can be customized according to the customer’s working conditions.
Our PTFE inner corrugated hose can be used in:
Pharmaceutical transfer equipment
Food and beverage processing systems
Chemical fluid transfer
Corrosive media transfer
Laboratory fluid systems
High-purity liquid transfer
Equipment connection pipelines
Compact machinery layouts
Dosing and filling systems
Industrial process transfer lines
Item | Available Options |
|---|---|
Product Name | PTFE Inner Corrugated Hose |
Model Series | JCC-10000-PTFE |
Material | PTFE |
Structure | Corrugated PTFE hose body |
Temperature Range | -70°C to +260°C |
Inner Diameter | 1/4” to 2” |
Main Advantage | Strong bending performance |
Application | Pharmaceutical, food, chemical and industrial transfer |
Customization | Available |
Standard Reference | ISO9001:2015 / US FDA 21 CFR 177.1550 / SGS |
Model | Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | Min. Bending Radius |
JCC-10004-PTFE | 1/4” / 6.5 mm | 10.6 mm | 60 psi / 0.4 MPa | 210 psi / 1.4 MPa | 20 mm |
JCC-10008-PTFE | 5/16” / 8 mm | 12.3 mm | 60 psi / 0.4 MPa | 210 psi / 1.4 MPa | 22 mm |
JCC-10010-PTFE | 3/8” / 10 mm | 15 mm | 60 psi / 0.4 MPa | 210 psi / 1.4 MPa | 26 mm |
JCC-10013-PTFE | 1/2” / 13 mm | 17.9 mm | 60 psi / 0.4 MPa | 210 psi / 1.4 MPa | 26 mm |
JCC-10016-PTFE | 5/8” / 16 mm | 21.9 mm | 45 psi / 0.3 MPa | 180 psi / 1.2 MPa | 32 mm |
JCC-10019-PTFE | 3/4” / 19 mm | 26.4 mm | 45 psi / 0.3 MPa | 180 psi / 1.2 MPa | 55 mm |
JCC-10025-PTFE | 1” / 25 mm | 35 mm | 45 psi / 0.3 MPa | 150 psi / 1.0 MPa | 80 mm |
JCC-10032-PTFE | 1-1/4” / 32 mm | 39 mm | 38 psi / 0.3 MPa | 135 psi / 0.9 MPa | 100 mm |
JCC-10038-PTFE | 1-1/2” / 38 mm | 45 mm | 38 psi / 0.3 MPa | 135 psi / 0.9 MPa | 100 mm |
JCC-10050-PTFE | 2” / 50 mm | 59.5 mm | 30 psi / 0.2 MPa | 120 psi / 0.8 MPa | 125 mm |
Shenzhen Jingcheng High-tech Co., Ltd. is a professional manufacturer of PTFE hoses, PTFE high-pressure hoses, PA hoses and electric heated hoses. Since 2005, we have supplied customized hose solutions for pharmaceutical transfer, food equipment, chemical processing, automotive production, gas sampling, hot melt adhesive systems and laboratory applications.
For global equipment manufacturers, distributors and industrial buyers, we provide factory-direct PTFE hose solutions with stable quality, flexible customization, short lead time and sample support.
We manufacture PTFE hoses directly in China, helping customers reduce sourcing cost, shorten the supply chain and improve purchasing efficiency.
Different equipment requires different hose sizes, bending radius, pressure ratings and connection methods. We can customize the hose according to drawings, samples or actual working conditions.
The corrugated PTFE hose structure provides better flexibility than standard smooth bore hose, making it suitable for complex installation environments.
