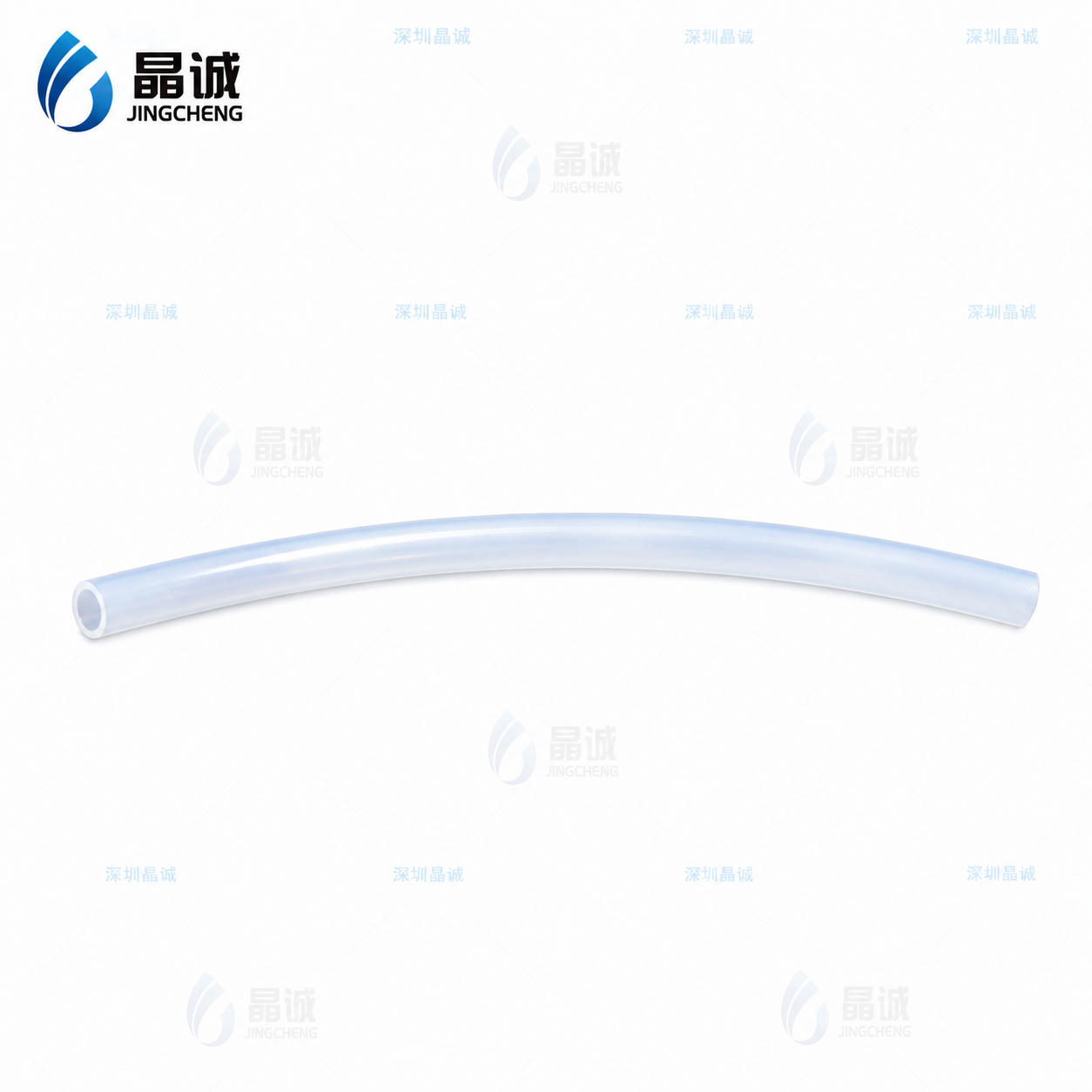

Smooth Bore PTFE Hose
A smooth bore PTFE hose is designed for applications that require excellent chemical resistance, clean fluid transfer and stable performance under a wide temperature range. Compared with ordinary plastic or rubber hoses, PTFE provides stronger resistance to acids, alkalis, oxidizing agents, reducing agents and many organic solvents.
Shenzhen Jingcheng High-tech manufactures customized smooth bore PTFE hoses for chemical processing, pharmaceutical equipment, food transfer, laboratory systems, industrial fluid transfer and high-purity media applications. With factory-direct production, flexible customization and fast response, we help global customers reduce sourcing cost while maintaining reliable hose quality.
A smooth bore PTFE hose is a flexible hose made from PTFE material through extrusion, high-temperature sintering, shaping and other manufacturing processes. The inner and outer surfaces are smooth, which helps reduce material residue, improve flow efficiency and make the hose easier to clean.
Because of PTFE’s excellent chemical stability, this hose is widely used in applications where the transferred medium may be corrosive, sensitive or high-purity.
For many industrial and high-purity transfer systems, hose material is critical. If the hose material is not chemically resistant, the medium may react with the inner wall, causing contamination, leakage, swelling or shorter service life.
A smooth bore PTFE hose helps solve these problems by providing:
Excellent chemical resistance
Smooth inner surface for cleaner transfer
Wide temperature resistance
Low friction fluid flow
Good anti-adhesion performance
Flexible customization for different equipment
PTFE is suitable for transferring strong acids, strong alkalis, strong oxidizing agents, reducing agents and many organic solvents. This makes the hose suitable for demanding chemical transfer environments.
The standard smooth bore PTFE hose supports a temperature range from -70°C to +260°C, making it suitable for both low-temperature and high-temperature fluid transfer applications.
The smooth bore structure helps reduce friction, residue buildup and pressure loss during transfer. It is especially useful for high-purity chemicals, food-grade fluids, pharmaceutical materials and clean process media.
PTFE has excellent stability and low contamination risk, making the hose suitable for applications where clean transfer and material compatibility are important.
Inner diameter, outer diameter, wall thickness, working pressure, bending radius and hose length can be customized according to the customer’s equipment and operating conditions.
Our smooth bore PTFE hose can be used in:
High-purity chemical transfer
Strong acid and alkali transfer
Organic solvent transfer
Pharmaceutical equipment
Food and beverage processing equipment
Laboratory fluid systems
Chemical dosing systems
Industrial fluid transfer lines
Semiconductor and electronic chemical systems
Corrosive media transfer equipment
Item | Available Options |
|---|---|
Product Name | Smooth Bore PTFE Hose |
Model Series | JCC-00000-PTFE |
Material | PTFE |
Temperature Range | -70°C to +260°C |
Inner Diameter | 5/32” to 2” |
Structure | Smooth PTFE tube |
Application | Chemical, pharmaceutical, food, laboratory and industrial transfer |
Customization | Available |
Certification / Standard Reference | ISO9001:2015 / US FDA 21 CFR 177.1550 / SGS |
Model | Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | Min. Bending Radius | Wall Thickness |
JCC-00004-PTFE | 5/32” / 4.5 mm | 6.5 mm | 203 psi / 1.40 MPa | 812 psi / 5.6 MPa | 60 mm | 1.0 mm |
JCC-00006-PTFE | 1/4” / 6.8 mm | 8.8 mm | 251.33 psi / 1.73 MPa | 754 psi / 5.2 MPa | 130 mm | 1.0 mm |
JCC-00008-PTFE | 5/16” / 8.2 mm | 10.5 mm | 203 psi / 1.40 MPa | 609 psi / 4.2 MPa | 160 mm | 1.2 mm |
JCC-00010-PTFE | 3/8” / 10.3 mm | 12.7 mm | 169.17 psi / 1.17 MPa | 507.5 psi / 3.5 MPa | 220 mm | 1.2 mm |
JCC-00013-PTFE | 1/2” / 13.3 mm | 15.7 mm | 135.33 psi / 0.93 MPa | 406 psi / 2.8 MPa | 270 mm | 1.2 mm |
JCC-00016-PTFE | 5/8” / 15.9 mm | 18.3 mm | 106.33 psi / 0.73 MPa | 319 psi / 2.2 MPa | 400 mm | 1.2 mm |
JCC-00019-PTFE | 3/4” / 19.8 mm | 22.3 mm | 116 psi / 0.80 MPa | 348 psi / 2.4 MPa | 500 mm | 1.5 mm |
JCC-00025-PTFE | 1” / 25.7 mm | 29.7 mm | 101.5 psi / 0.70 MPa | 304.5 psi / 2.1 MPa | 600 mm | 2.0 mm |
JCC-00032-PTFE | 1-1/4” / 31.7 mm | 35.7 mm | 91.83 psi / 0.63 MPa | 275.5 psi / 1.9 MPa | 800 mm | 2.0 mm |
JCC-00038-PTFE | 1-1/2” / 38.5 mm | 42.5 mm | 72.5 psi / 0.50 MPa | 217.5 psi / 1.5 MPa | 900 mm | 2.0 mm |
JCC-00050-PTFE | 2” / 51 mm | 55 mm | 58 psi / 0.40 MPa | 174 psi / 1.2 MPa | 1200 mm | 2.0 mm |
Shenzhen Jingcheng High-tech Co., Ltd. is a professional hose manufacturer specializing in PTFE hoses, PTFE high-pressure hoses, PA hoses and electric heated hoses. Since 2005, we have provided customized hose solutions for chemical processing, pharmaceutical transfer, food equipment, automotive production, gas sampling, hot melt adhesive systems and laboratory applications.
For global buyers, equipment manufacturers and industrial distributors, we provide factory-direct PTFE hose solutions with stable quality, short lead time, flexible customization and sample support.
We manufacture PTFE hoses directly in China, helping customers reduce procurement cost and improve supply chain efficiency.
Different applications require different hose sizes, pressure ratings, bending radius and connection methods. We can customize the hose according to drawings, samples or equipment requirements.
In addition to smooth bore PTFE hoses, we also manufacture corrugated PTFE hoses, braided PTFE hoses, high-pressure PTFE hoses, anti-static PTFE hoses and heated hose solutions.
Our production team supports fast response for replacement hoses, project-based orders and customized industrial hose requirements.
Samples can be provided for testing before bulk production, helping customers confirm material compatibility and hose performance.
To recommend the correct hose, please provide:
Working medium
Working temperature
Working pressure
Required inner diameter
Required hose length
Bending radius requirement
Connection method or fitting type
Application industry
Drawing, sample or equipment photo
With these details, our team can provide a more accurate specification and quotation.
