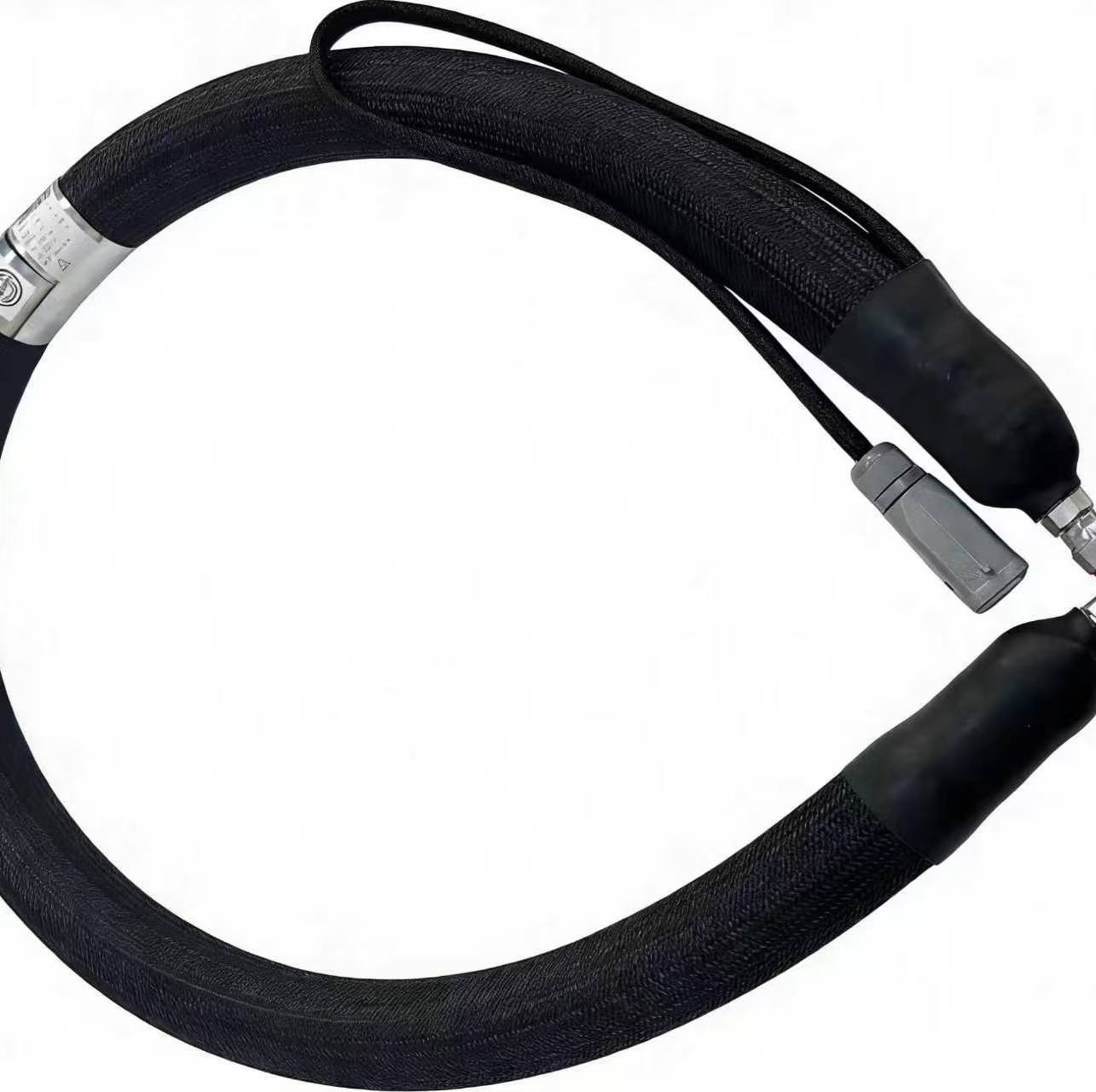

Water Heated Hose for Constant Temperature Transfer Systems
A water heated hose is designed for applications where water or water-based media need to be transferred at a stable temperature. In many industrial and food-related processes, temperature fluctuation can affect flow stability, equipment performance and production efficiency. A properly designed heated hose helps maintain a controlled temperature during transfer and reduces heat loss along the pipeline.
Shenzhen Jingcheng High-tech manufactures customized constant temperature water heating hoses with stable heating performance, high-efficiency insulation and flexible specification options. Each hose can be designed according to the customer’s equipment, working temperature, hose length, inner diameter, connector type, voltage and sensor requirements.
A water heated hose is a flexible hose with an integrated heating structure. It is used to keep water, warm liquid or temperature-sensitive fluid at the required temperature during transfer. Compared with ordinary hoses, a heated hose provides better temperature stability and helps reduce cooling during production.
For equipment manufacturers and system integrators, a customized water heated hose can improve the matching between the hose and the machine, especially when the application requires controlled heating, flexible installation and reliable long-term operation.
In temperature-controlled transfer systems, ordinary hoses may lose heat quickly, especially when the production line is long or the surrounding temperature is low. This can cause unstable process conditions, lower efficiency and inconsistent material flow.
A water heated hose helps solve these problems by maintaining heat along the hose body. It is suitable for applications where stable temperature, flexible connection and customized hose structure are required.
The hose is designed to support stable temperature control during transfer. The heating layer helps maintain a consistent temperature and reduces heat loss in the hose section.
The standard water heated hose can support working temperatures up to 100°C. For special working conditions, the hose structure, insulation and heating design can be customized according to the actual application.
The inner tube can be customized according to the transferred medium. For food-related systems, food-grade material-contact inner tube options are available.
The heating layer is made with uniformly distributed heating elements. This structure helps reduce temperature differences along the hose and supports more stable transfer performance.
The hose uses insulation materials to reduce heat loss and improve energy efficiency. This is especially important for equipment that needs continuous temperature control.
Hose length, inner diameter, voltage, power, sensor type, connector standard and outer protection layer can all be customized according to the equipment design.
Our water heated hose can be used in:
Constant temperature water transfer systems

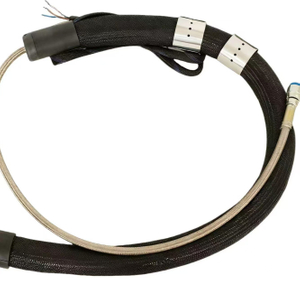

Food conveying equipment
Warm water circulation systems
Temperature-controlled production lines
Laboratory and testing equipment
Industrial heating and insulation systems
Customized machinery connection systems
Low-temperature heated transfer applications
Item | Available Options |
|---|---|
Product Type | Water heated hose / constant temperature heating hose |
Working Temperature | Up to 100°C |
Inner Tube | Custom inner tube / food-grade inner tube option |
Inner Diameter | 1/4”, 5/16”, 3/8”, 1/2”, 5/8”, 3/4”, 1” |
Hose Length | 0.1m, 3m, 4.5m, 5m, 6m, 10m or custom |
Voltage | 220V / 110V / 380V / 12V DC / Custom |
Sensor Type | J type, K type, PT100, PT1000, NI120 or custom |
Connector Standard | Metric, British, American or custom |
Customization | Available |
Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | Min. Bending Radius |
1/4” | 9 mm | 173 bar / 2501 psi | 690 bar / 10005 psi | 30 mm |
5/16” | 11 mm | 158 bar / 2284 psi | 630 bar / 3915 psi | 40 mm |
3/8” | 12.4 mm | 135 bar / 1958 psi | 540 bar / 7830 psi | 60 mm |
1/2” | 15.9 mm | 118 bar / 1704 psi | 470 bar / 6815 psi | 150 mm |
5/8” | 19 mm | 88 bar / 1269 psi | 350 bar / 5075 psi | 180 mm |
3/4” | 22.6 mm | 85 bar / 1234 psi | 340 bar / 4930 psi | 260 mm |
1” | 29.5 mm | 75 bar / 1088 psi | 300 bar / 4350 psi | 300 mm |
Shenzhen Jingcheng High-tech Co., Ltd. is a professional manufacturer of PTFE hoses, PA hoses, PTFE high-pressure hoses and electric heated hoses. Since 2005, we have provided customized hose solutions for food transfer, pharmaceutical equipment, hot melt adhesive systems, gas sampling, automotive production, laboratory equipment and other industrial applications.
For water heating and constant temperature transfer systems, we provide factory-direct heated hose solutions with flexible customization, stable quality and responsive engineering support.
We are a China source manufacturer, which helps customers reduce procurement cost, shorten the supply chain and improve project response speed.
