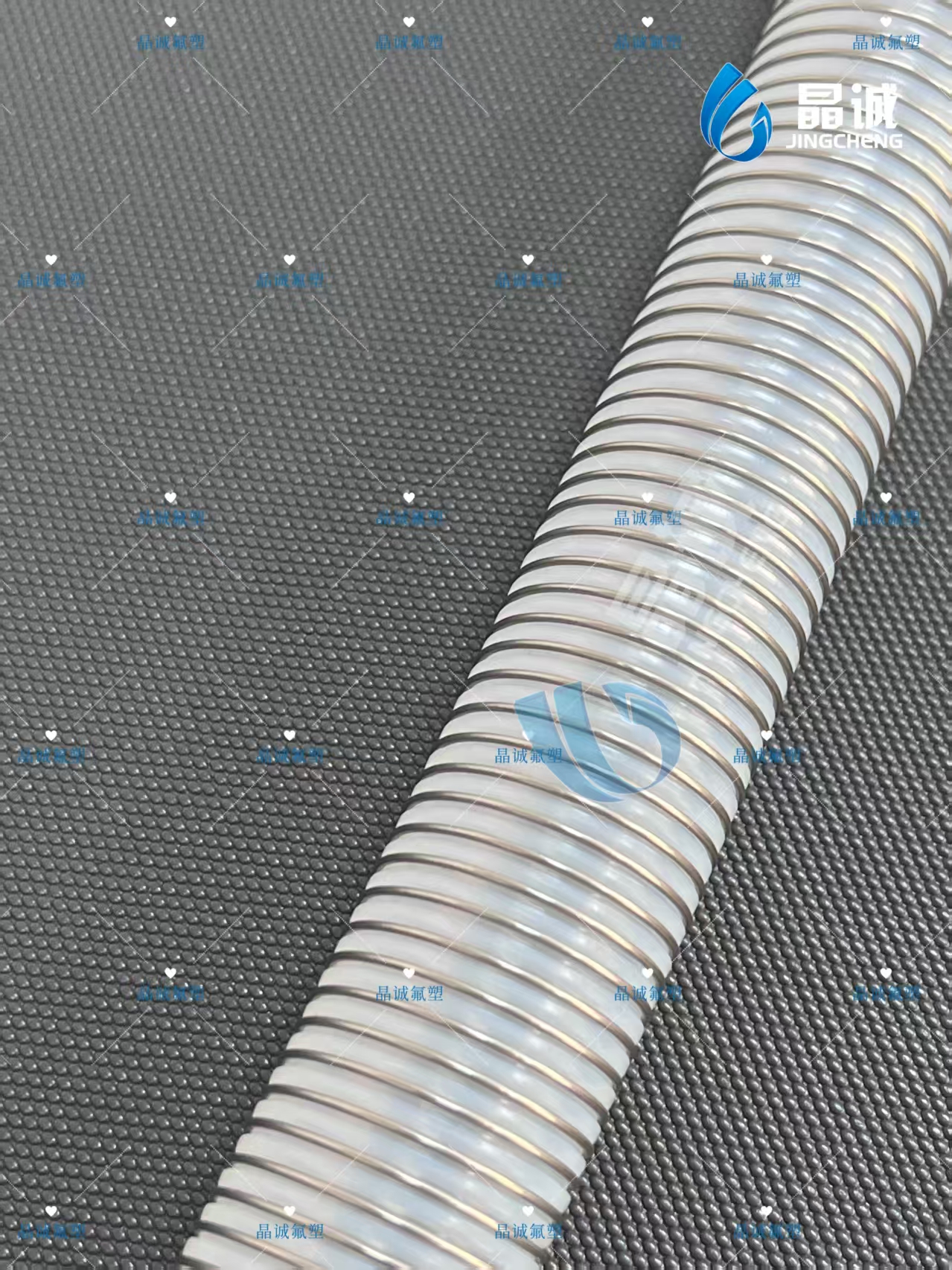

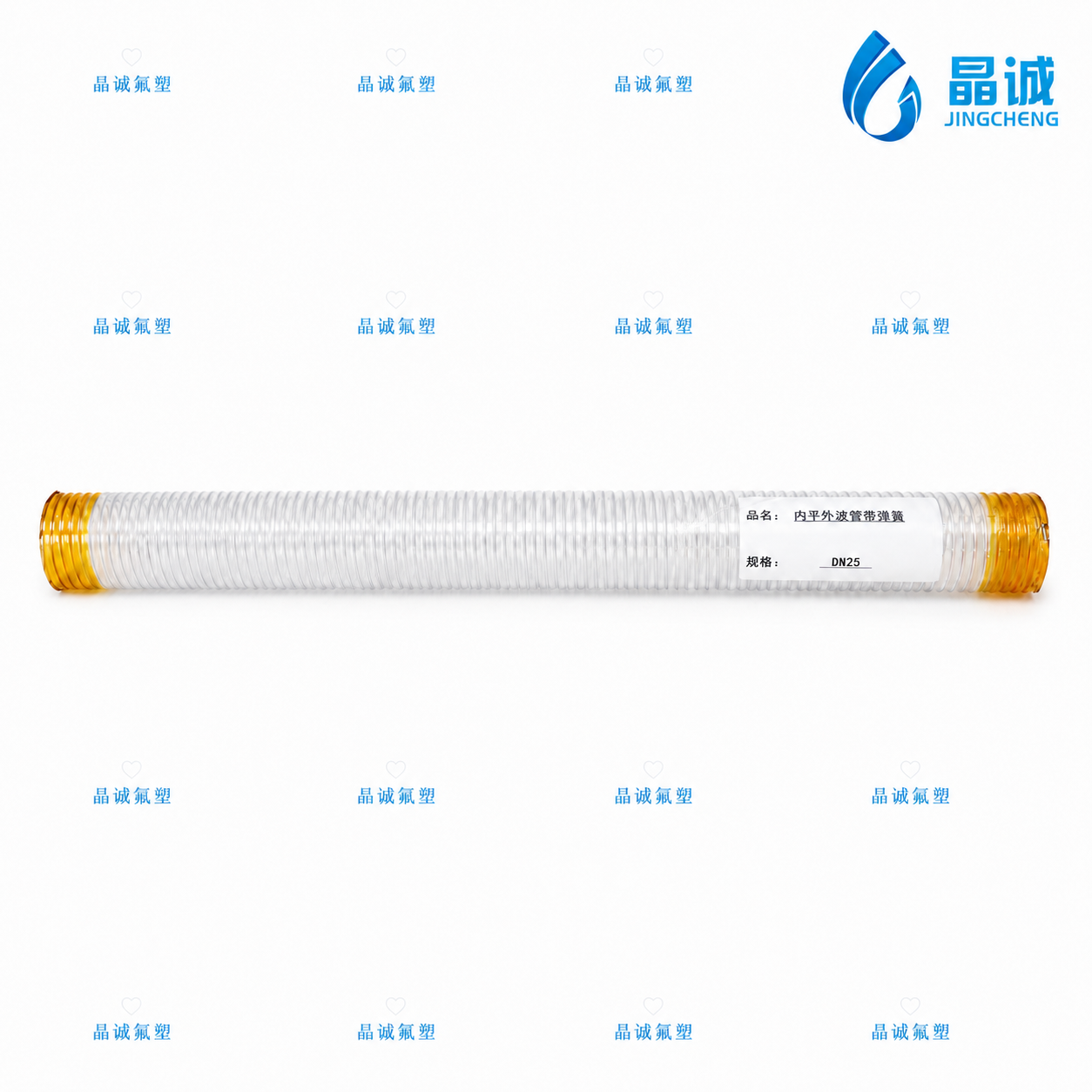

PTFE Inner Smooth Outer Corrugated Hose with Spring
A PTFE inner smooth outer corrugated hose with spring reinforcement is designed for applications that require clean fluid transfer, strong flexibility and improved structural support. This hose combines a smooth PTFE inner tube, an outer corrugated structure and a 304 stainless steel spiral spring layer, making it suitable for demanding transfer systems where both flow performance and bending flexibility are important.
Shenzhen Jingcheng High-tech manufactures customized PTFE hoses for chemical processing, food equipment, cosmetics production, pharmaceutical transfer and industrial fluid systems. With factory-direct production, flexible customization and stable quality control, we help customers build safer and more efficient transfer pipelines.
This hose is a PTFE hose with a smooth inner wall and corrugated outer structure. The smooth inner wall helps improve fluid flow and reduce residue buildup, while the corrugated outer structure improves flexibility. The 304 stainless steel spiral spring layer provides additional reinforcement and helps the hose maintain better bending performance during installation and operation.
This structure is especially useful when the application requires chemical resistance, clean transfer, flexibility and stronger hose support at the same time.
In many fluid transfer systems, a standard smooth bore PTFE hose may provide good flow performance but may not be flexible enough for compact layouts. A fully corrugated PTFE hose may offer excellent flexibility but may not be the best choice when smoother internal flow is required.
The inner smooth outer corrugated PTFE hose with spring reinforcement provides a balanced solution. It offers a smooth material-contact surface, improved flexibility and stronger bending support, making it suitable for equipment with limited space, complex routing or corrosive transfer media.
The smooth PTFE inner tube helps reduce friction, improve flow stability and minimize material residue. It is suitable for clean transfer applications in food, cosmetics, pharmaceutical and chemical industries.
The outer corrugated design improves hose flexibility and makes installation easier in compact or curved pipeline layouts.
The middle layer uses a 304 stainless steel spiral spring structure. This improves hose support, bending stability and resistance to deformation during use.
The hose supports a temperature range from -65°C to +260°C, making it suitable for both low-temperature and high-temperature transfer applications.
PTFE offers strong resistance to many corrosive chemicals, solvents, acids and alkalis. This makes the hose suitable for high-corrosion fluid transfer environments.
Inner diameter, outer diameter, hose length, connector type, bending radius and pressure requirements can be customized according to your equipment and working conditions.
Our PTFE inner smooth outer corrugated hose with spring can be used in:
Highly corrosive chemical transfer
Hot air transfer
Hot oil transfer
Steam transfer
Food processing equipment
Cosmetics production equipment
Pharmaceutical transfer systems
Chemical dosing systems
Laboratory fluid transfer
Industrial process pipelines
Equipment connection systems with limited installation space
Item | Available Options |
|---|---|
Product Name | PTFE Inner Smooth Outer Corrugated Hose with Spring |
Model Series | JCC-20000-PTFE |
Inner Tube | PTFE smooth inner tube |
Outer Structure | Corrugated PTFE outer structure |
Reinforcement | 304 stainless steel spiral spring layer |
Temperature Range | -65°C to +260°C |
Inner Diameter | 1/4” to 1” |
Application | Chemical, food, cosmetics, pharmaceutical and industrial transfer |
Customization | Available |
Standard Reference | ISO9001:2015 / US FDA 21 CFR 177.1550 / SGS |
Model | Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | Min. Bending Radius |
JCC-20006-PTFE | 1/4” / 6.8 mm | 8.35 mm | 396 psi / 2.64 MPa | 1276 psi / 8.8 MPa | 19 mm |
JCC-20008-PTFE | 5/16” / 7.9 mm | 10.3 mm | 378 psi / 2.52 MPa | 1218 psi / 8.4 MPa | 19 mm |
JCC-20010-PTFE | 3/8” / 10 mm | 11.93 mm | 360 psi / 2.4 MPa | 1160 psi / 8 MPa | 25 mm |
JCC-20013-PTFE | 1/2” / 13.6 mm | 15.1 mm | 270 psi / 1.8 MPa | 870 psi / 6 MPa | 38 mm |
JCC-20016-PTFE | 5/8” / 16.7 mm | 18.3 mm | 236.83 psi / 1.63 MPa | 725 psi / 5 MPa | 50 mm |
JCC-20019-PTFE | 3/4” / 19.8 mm | 22 mm | 203 psi / 1.4 MPa | 609 psi / 4.2 MPa | 63 mm |
JCC-20025-PTFE | 1” / 26.4 mm | 29.4 mm | 180 psi / 1.2 MPa | 580 psi / 4 MPa | 75 mm |
