Inner Layer: Corrugated PTFE tube with spiral wave pattern on both inner and outer surfaces — chemically inert, non-stick, and FDA-compliant for purity-critical applications

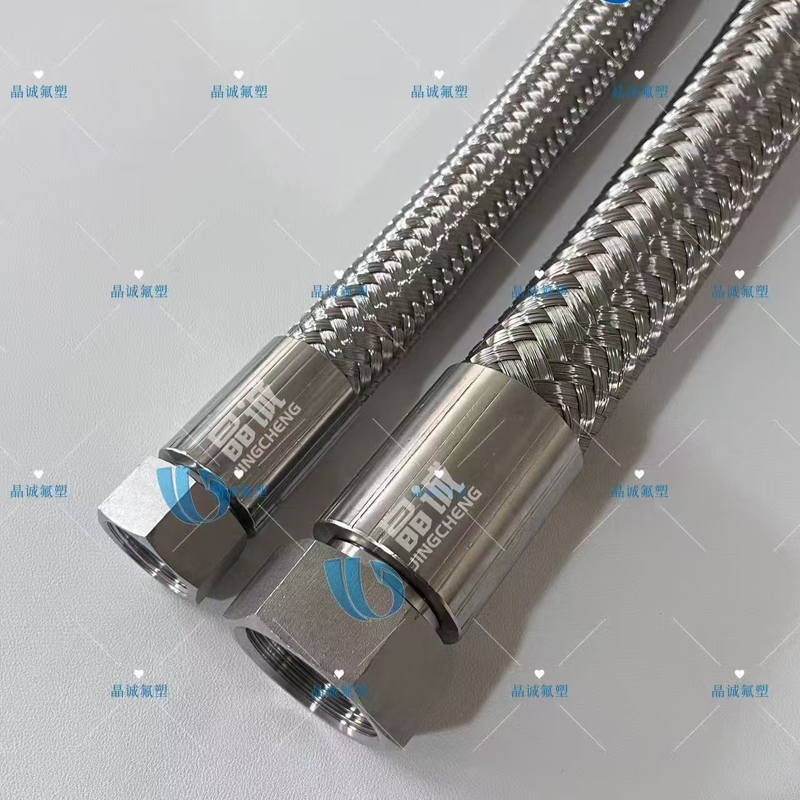

Outer Layer: High-strength 304 stainless steel braided wire reinforcement — delivers superior burst pressure resistance and robust mechanical protection
Combined Design: The dual-corrugation + stainless braid construction simultaneously achieves ultra-tight bend radii and high working pressure ratings — a balance rarely found in a single hose product
The corrugated inner and outer walls dramatically reduce stiffness compared to smooth PTFE hoses. The 1/4" size achieves a minimum bending radius of just 10 mm (0.39") — ideal for complex routing paths, compact equipment enclosures, and applications with frequent flexing or vibration.
PTFE is one of the most chemically resistant materials known. This hose handles virtually every aggressive medium including:
Strong acids (hydrochloric, sulfuric, nitric, hydrofluoric)
Strong alkalis (sodium hydroxide, potassium hydroxide)
Strong oxidizers and reducing agents
Nearly all organic solvents and fuels
No leaching, no degradation, no contamination of your process fluid.
With a working range of -70°C to +200°C, this hose performs in cryogenic transfer lines, steam systems, hot oil circuits, and everything in between — without hardening, cracking, or losing flexibility.
The 304 stainless steel braid substantially boosts burst pressure capability. The 1/4" (JCC-11104-PTFE) achieves a burst pressure of 8,004 psi (55.2 MPa) with a working pressure exceeding 2,000 psi — well-suited for demanding hydraulic and high-pressure fluid systems.
Certified to US FDA21 CFR 177.1550, this hose meets the cleanliness standards required by pharmaceutical manufacturers, food processors, and cosmetics producers. No plasticizers, no extractables, no risk of product contamination.
| Part Number | Size | Inner Dia. (mm) | Outer Dia. (mm) | Braided OD (mm) | Working Pressure (psi / MPa) | Burst Pressure (psi / MPa) | Min. Bend Radius (inch / mm) |
|---|---|---|---|---|---|---|---|
| JCC-11104-PTFE | 1/4" | 5.8 | 8.3 | 10.3 | 2001 / 13.8 | 8004 / 55.2 | 0.39" / 10 |
| JCC-11108-PTFE | 5/16" | 7.8 | 10.3 | 12.5 | 1957.5 / 13.5 | 7830 / 54 | 0.59" / 15 |
| JCC-11110-PTFE | 3/8" | 9.6 | 12.1 | 14.1 | 1631.3 / 11.3 | 6525 / 45 | 0.79" / 20 |
| JCC-11113-PTFE | 1/2" | 12.5 | 13.5 | 17.5 | 1540.6 / 10.6 | 6162.5 / 42.5 | 0.98" / 25 |
| JCC-11116-PTFE | 5/8" | 15.7 | 19.9 | 22.5 | 1395.6 / 9.6 | 5582.5 / 38.5 | 1.18" / 30 |
| JCC-11119-PTFE | 3/4" | 19.9 | 23.0 | 25.5 | 1141.9 / 7.9 | 4567.5 / 31.5 | 2.36" / 60 |
| JCC-11125-PTFE | 1" | 24.8 | 35.7 | 37.5 | 725 / 5.0 | 2900 / 20 | 3.35" / 85 |
| JCC-11132-PTFE | 1-1/4" | 32 | 42 | 45 | 598.1 / 4.1 | 2392.5 / 16.5 | 3.94" / 100 |
| JCC-11138-PTFE | 1-1/2" | 38 | 48 | 50.5 | 525.6 / 3.6 | 2102.5 / 14.5 | 6.10" / 155 |
| JCC-11150-PTFE | 2" | 50 | 60 | 63 | 453.1 / 3.1 | 1812.5 / 12.5 | 7.87" / 200 |
Dimensional tolerances: Inner diameter ±0.3mm, Outer diameter ±0.3mm, Braided OD ±0.2mm.
Custom sizes and specifications available upon request.
High-purity transfer of solvents, active ingredients, and biological fluids
Flexible connections on bioreactors, mixing vessels, and filling lines
Sterile process piping where clean-in-place (CIP) compatibility is required
Conveying food-grade liquids, flavorings, and additives
Brewery and winery hose lines requiring frequent sanitization
Dairy processing equipment connections demanding non-contaminating materials
Transfer of aggressive acids, alkalis, and oxidizing agents under pressure
Solvent recovery lines requiring full chemical inertness
Reactor inlet/outlet flexible connectors exposed to wide temperature swings
Ultra-high-purity chemical distribution for wet process tools
Cleanroom-compatible fluid lines requiring zero particle shedding
Hydraulic brake and steering fluid lines
High-pressure fuel and coolant delivery in motorsport and specialty vehicles
Aerospace fluid transfer where weight and flexibility matter
Founded in August 2005 and headquartered in Zhongshan, Guangdong Province, China, Jingcheng Fluoroplastics (Guangdong) Co., Ltd. and Shenzhen Jingcheng High-Tech Co., Ltd. are specialized manufacturers of high-performance PTFE hoses and fluid transfer solutions.
