In many transfer systems, chemical resistance alone is not enough. Users often need a hose that combines clean internal flow, easier cleaning, better flexibility, and reliable reinforcement. This is especially important in industries such as food, cosmetics, pharmaceuticals, and chemicals, where media quality, hose cleanliness, and installation practicality all matter.

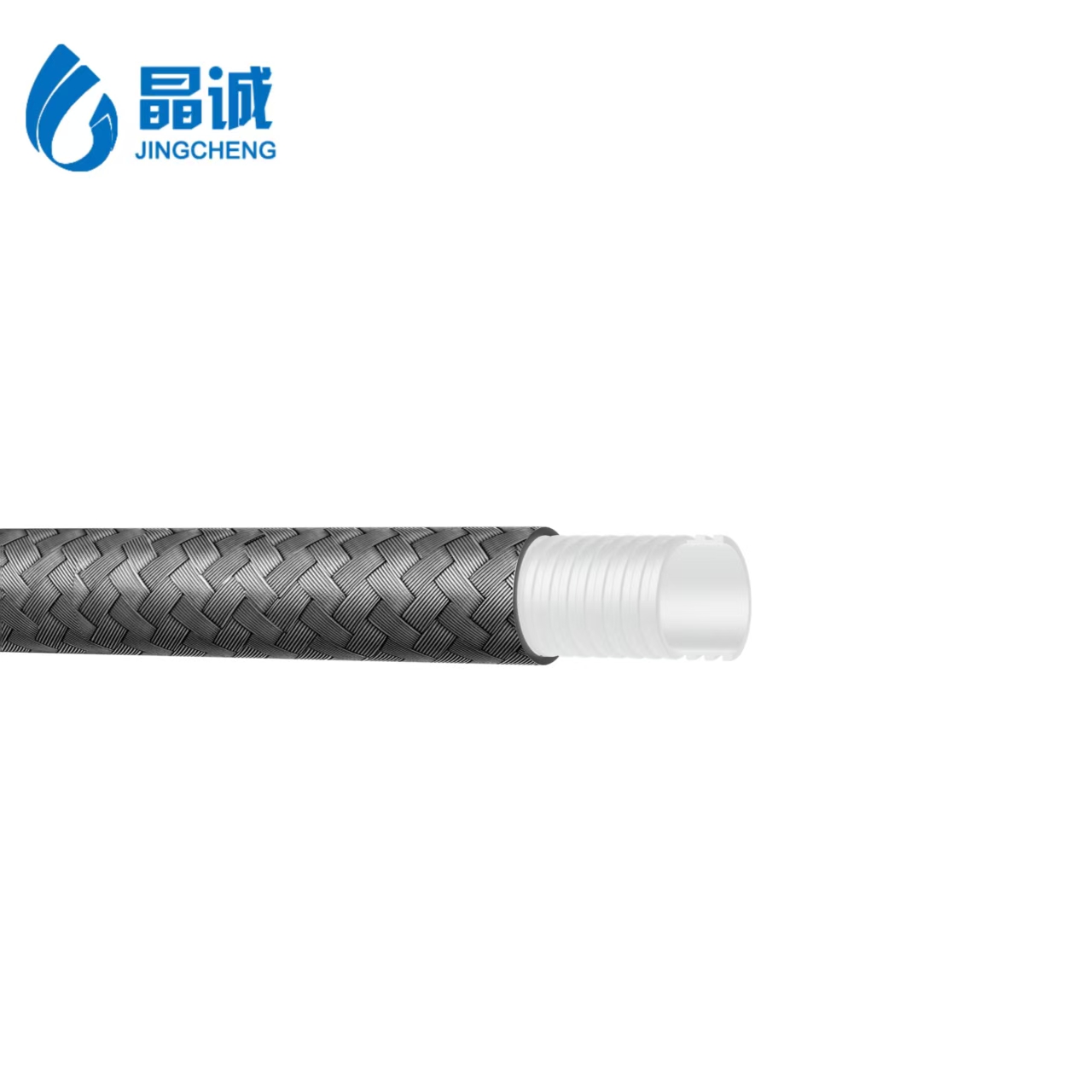

That is where a PTFE smooth bore corrugated braided hose becomes a very practical solution. Shenzhen Jingcheng’s sixth PTFE cold hose product is designed with a smooth PTFE inner wall, corrugated outer wall, and 304 stainless steel braided reinforcement, combining clean internal flow with improved flexibility and structural support. According to your brochure, the hose operates within a temperature range of -70°C to +260°C, has a small bending radius, and is suitable for food, cosmetics, chemical, and pharmaceutical industries.
Unlike a standard smooth bore PTFE hose, this product adds a corrugated outer wall to improve flexibility while keeping the inner wall smooth for cleaner fluid transfer. Unlike a non-braided corrugated PTFE hose, it also includes 304 stainless steel braid reinforcement, which adds extra structural strength.
This design gives the hose a more balanced performance profile:
a smooth inner path for cleaner transfer and easier cleaning
a corrugated outer structure for flexibility
a stainless steel braided outer layer for reinforcement
For many process users, that combination is much more useful than choosing only a plain smooth hose or only a flexible corrugated hose.
The brochure specifically notes that the hose has a smooth inner wall. This is important because a smoother inner path is easier to clean and more suitable for liquid transfer, especially in industries where cleanliness and residue control matter.
The outer wall is corrugated, which improves hose flexibility and helps it adapt more easily to tighter routing paths. This makes the hose more practical in installations where space is limited or hose movement is needed.
The hose is reinforced with 304 stainless steel braided wire, which adds structural support and improves its suitability for more demanding process conditions. This reinforcement helps balance flexibility with mechanical reliability.
Your brochure highlights that the hose has a small bending radius, which is a key advantage in compact equipment layouts and systems where routing space is limited.
The hose operates within a temperature range of -70°C to +260°C, making it suitable for both low-temperature and high-temperature transfer applications across multiple industries.
Item | Our Data |
|---|---|
Product Name | PTFE Smooth Bore Corrugated Braided Hose |
Model Series | JCC-21100-PTFE |
Inner Structure | PTFE hose with smooth inner wall |
Outer Structure | Corrugated outer wall |
Reinforcement | 304 stainless steel braided wire |
Key Features | Easy to clean, suitable for liquid delivery, small bending radius |
Temperature Range | -70°C to +260°C |
Main Industries | Food, cosmetics, chemical, pharmaceutical |
Custom Support | Customizable according to parameter requirements |
These product details are stated on the sixth product page of your PTFE cold hose brochure.
No. | Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | Minimum Bending Radius |
|---|---|---|---|---|---|
JCC-21106-PTFE | 1/4" / 6.8 mm | 8.35 mm | 1276 psi / 8.8 MPa | 5104 psi / 35.2 MPa | 0.75" / 19 mm |
JCC-21108-PTFE | 5/16" / 7.9 mm | 10.6 mm | 1218 psi / 8.4 MPa | 4872 psi / 33.6 MPa | 0.75" / 19 mm |
JCC-21110-PTFE | 3/8" / 10 mm | 13.5 mm | 1305 psi / 9 MPa | 5220 psi / 36 MPa | 0.98" / 25 mm |
JCC-21113-PTFE | 1/2" / 13.6 mm | 15.1 mm | 870 psi / 6 MPa | 3480 psi / 24 MPa | 1.50" / 38 mm |
JCC-21116-PTFE | 5/8" / 16.7 mm | 21.4 mm | 725 psi / 5 MPa | 2900 psi / 20 MPa | 1.97" / 50 mm |
JCC-21119-PTFE | 3/4" / 19.8 mm | 22 mm | 609 psi / 4.2 MPa | 2436 psi / 16.8 MPa | 2.48" / 63 mm |
JCC-21125-PTFE | 1" / 26.4 mm | 29.4 mm | 580 psi / 4 MPa | 2320 psi / 16 MPa | 2.95" / 75 mm |
JCC-21132-PTFE | 1-1/4" / 31.75 mm | 35.5 mm | 362.5 psi / 2.5 MPa | 1450 psi / 10 MPa | 3.15" / 80 mm |
These specifications are shown in the product table for the sixth PTFE hose product in your brochure.
These values help buyers judge whether the hose fits their pressure demand, cleaning requirement, and installation layout.
For example:
the smooth inner wall is important for easier cleaning and liquid transfer
the small bending radius makes the hose more useful in compact routing conditions
the high burst pressure values reflect the strength added by stainless steel braid reinforcement
and the -70°C to +260°C temperature range makes the hose suitable for a wide range of process conditions
For many process industries, the biggest value of this hose is that it combines cleanability, flexibility, and reinforcement in one product.
This product is well suited for:
food processing liquid transfer
cosmetics production lines
chemical fluid handling
pharmaceutical transfer systems
process equipment requiring a clean and flexible PTFE hose
installations where small bending radius and easy cleaning matter
These application directions are directly supported by the brochure description.
Your brochure presents Jingcheng as a professional PTFE hose manufacturer focused on PTFE hose production and customized transfer solutions. For a product like this, that matters because performance depends not only on PTFE material, but also on the consistency of the smooth inner wall, corrugated outer structure, braid quality, and dimensional control.
For buyers, this means you are not simply purchasing a PTFE hose. You are choosing a supplier that can provide the right combination of clean transfer performance, flexibility, reinforcement, and customization.
