In many industrial transfer systems, users need more than chemical resistance alone. They need a hose that can bend more easily, handle demanding routing paths, and still maintain reliable structural reinforcement. This is especially important in pharmaceutical, food, and chemical processing environments where flexibility, cleanliness, and durability all matter.

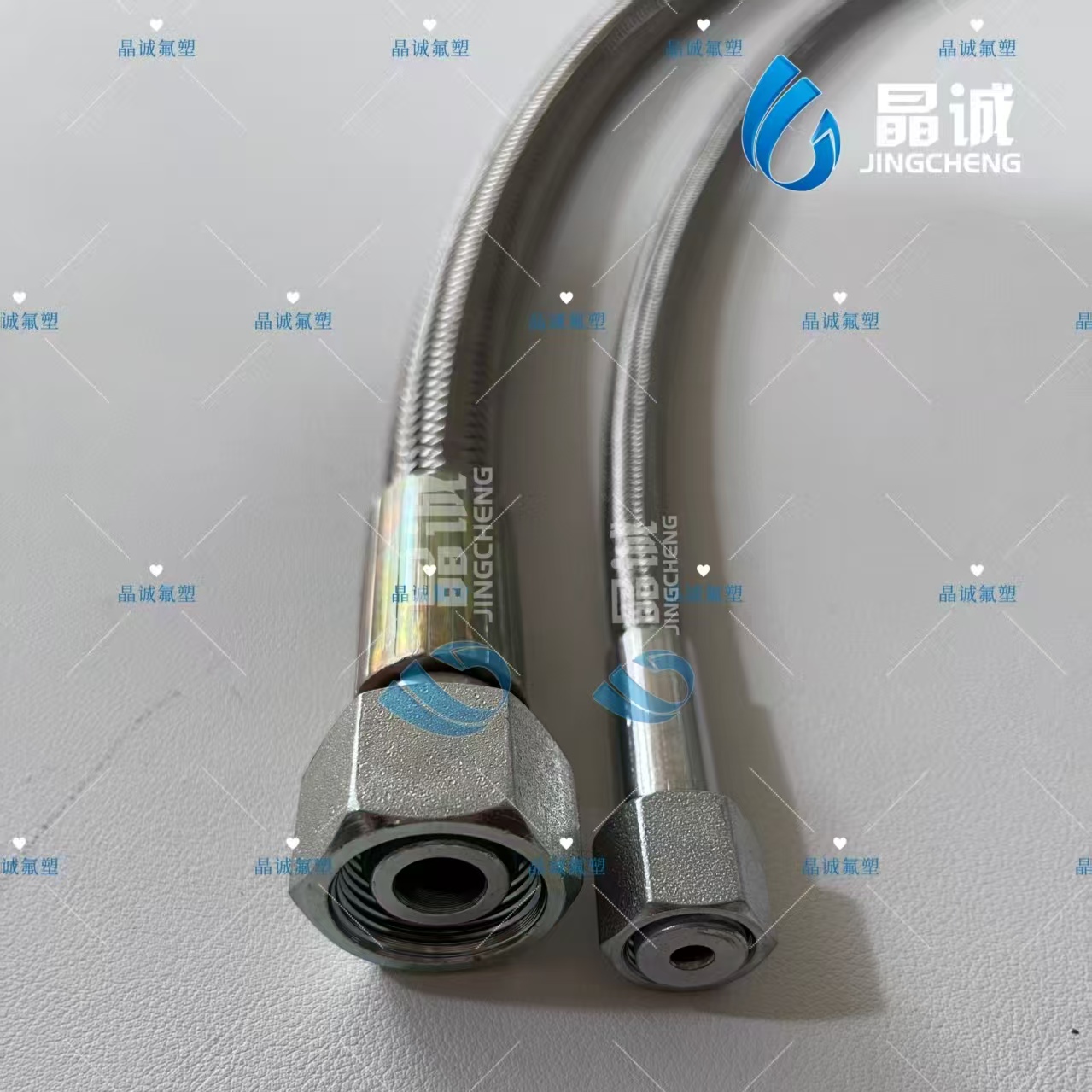

That is where a PTFE convoluted braided hose offers a strong advantage. Shenzhen Jingcheng’s PTFE inner spiral corrugated braided hose combines a corrugated PTFE hose structure with an outer layer of high-strength 304 stainless steel braided wire reinforcement, giving the hose both strong bending capability and added structural support. According to your brochure, the hose has a very small bending radius, operates within a temperature range of -70°C to +200°C, and is suitable for the pharmaceutical, food, and chemical industries.
Unlike a plain PTFE tube or even a simple corrugated PTFE hose, this product combines two key performance features in one design:
corrugated PTFE structure for stronger bending performance
304 stainless steel braided reinforcement for improved mechanical support
This means the hose is not only more flexible than a smooth PTFE hose, but also more structurally supported than a non-braided corrugated hose. For many customers, that combination makes it more practical in real installations where both routing flexibility and reinforcement are required.
Your brochure specifically highlights that the hose has a very small bending performance radius. This is a major advantage in compact systems, tight layouts, or applications where hose routing is difficult.

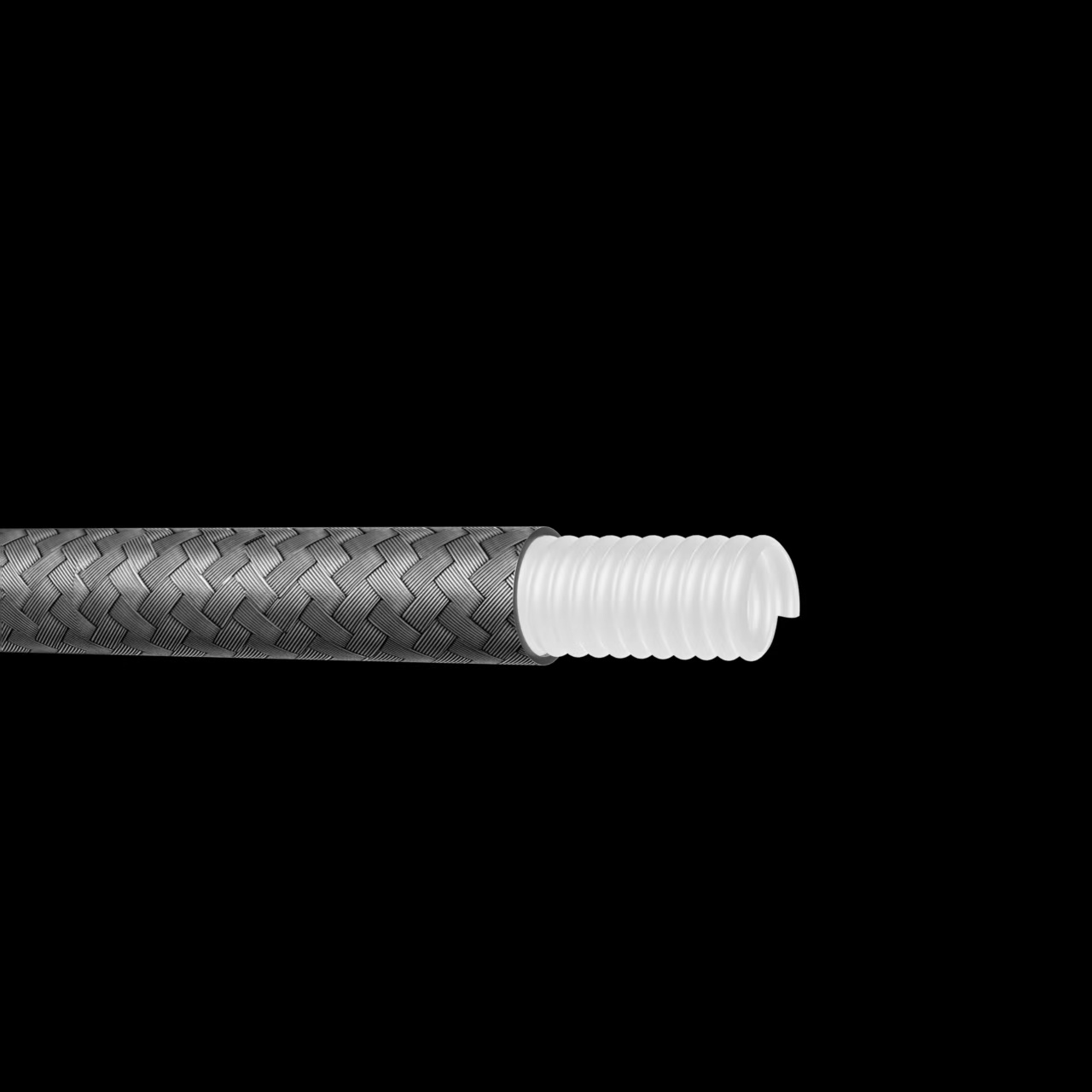

The hose inner layer is made from corrugated PTFE, which improves flexibility and helps the hose adapt more easily to dynamic installation conditions. That makes it especially suitable for systems where a plain PTFE smooth bore hose may be too rigid.

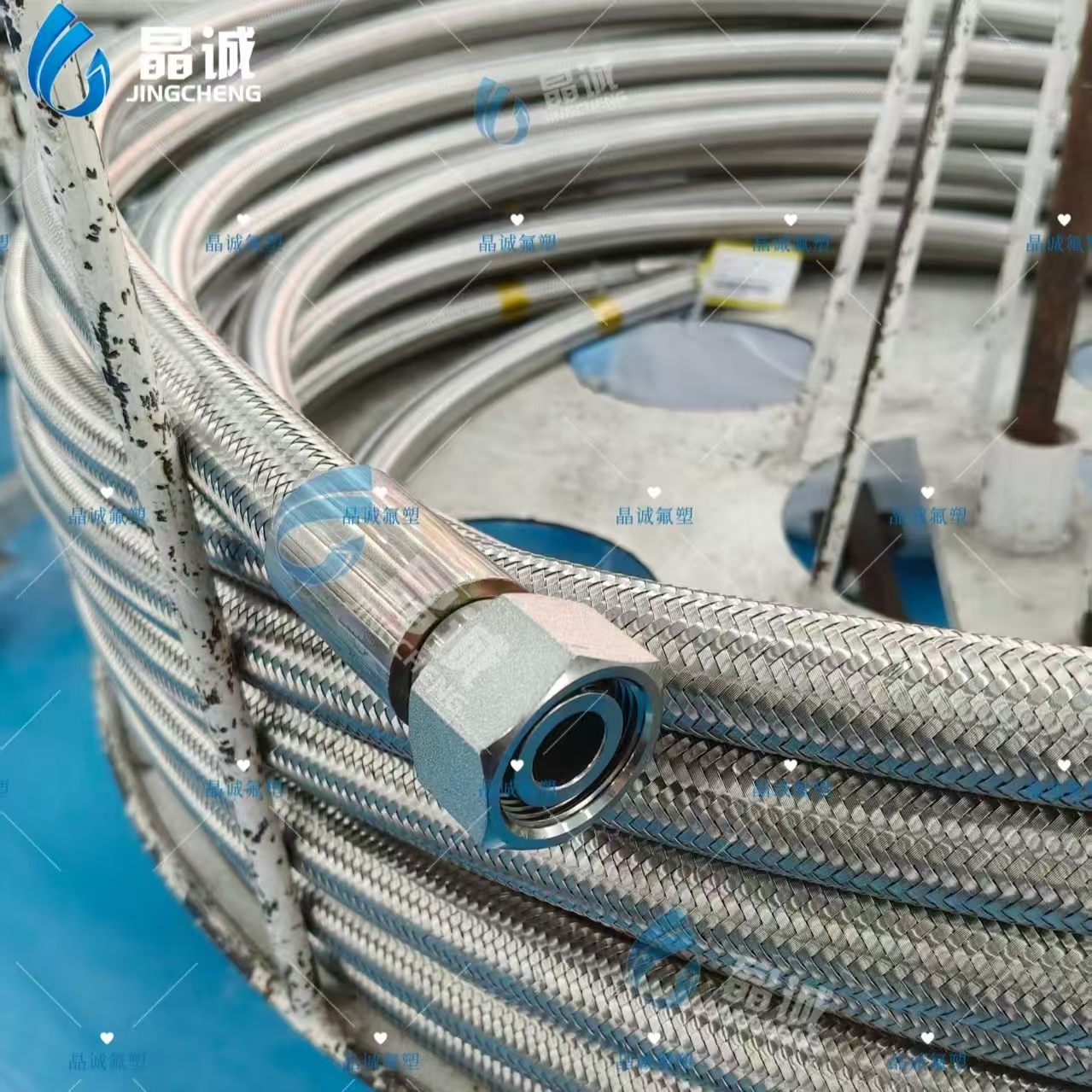

The outer layer is reinforced with high-strength 304 stainless steel braided wire, which adds structural strength and helps the hose perform more reliably in industrial applications.
The brochure states that this hose is suitable for the pharmaceutical industry, food industry, and food chemical industry. That makes it a good fit for sectors where media compatibility, transfer stability, and cleaner hose solutions are important.
The hose operates within a temperature range of -70°C to +200°C, making it useful in both low-temperature and moderately high-temperature transfer applications.
Item | Our Data |
|---|---|
Product Name | PTFE Inner Spiral Corrugated Braided Hose |
Model Series | JCC-11100-PTFE |
Inner Structure | Corrugated PTFE hose |
Reinforcement | High-strength 304 stainless steel braided wire |
Key Feature | Very small bending radius |
Temperature Range | -70°C to +200°C |
Main Industries | Pharmaceutical industry, food industry, food chemical industry |
Custom Support | Customizable according to parameter requirements |
These product details are stated on the fifth product page of your PTFE cold hose brochure.
No. | Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | Minimum Bending Radius |
|---|---|---|---|---|---|
JCC-11104-PTFE | 1/4" / 5.8 mm | 8.3 mm | 203 psi / 1.38 MPa | 8004 psi / 55.2 MPa | 0.39" / 10 mm |
JCC-11108-PTFE | 5/16" / 7.8 mm | 10.3 mm | 1957.5 psi / 13.5 MPa | 7830 psi / 54 MPa | 0.59" / 15 mm |
JCC-11110-PTFE | 3/8" / 9.6 mm | 12.1 mm | 1613.3 psi / 11.3 MPa | 6525 psi / 45 MPa | 0.79" / 20 mm |
JCC-11113-PTFE | 1/2" / 12.5 mm | 13.5 mm | 1540.6 psi / 10.6 MPa | 6162.5 psi / 42.5 MPa | 0.98" / 25 mm |
JCC-11116-PTFE | 5/8" / 15.7 mm | 19.9 mm | 1395.6 psi / 9.6 MPa | 5582.5 psi / 38.5 MPa | 1.18" / 30 mm |
JCC-11119-PTFE | 3/4" / 19.9 mm | 23 mm | 1411.9 psi / 9.7 MPa | 4567.5 psi / 31.5 MPa | 2.36" / 60 mm |
JCC-11125-PTFE | 1" / 24.8 mm | 35.7 mm | 725.0 psi / 5.0 MPa | 2300.0 psi / 20 MPa | 3.35" / 85 mm |
JCC-11132-PTFE | 1-1/4" / 32 mm | 42 mm | 598.1 psi / 4.1 MPa | 2392.5 psi / 16.5 MPa | 3.94" / 100 mm |
JCC-11138-PTFE | 1-1/2" / 38 mm | 48 mm | 525.6 psi / 3.6 MPa | 2102.5 psi / 14.5 MPa | 6.10" / 155 mm |
JCC-11150-PTFE | 2" / 50 mm | 60 mm | 453.1 psi / 3.1 MPa | 1812.5 psi / 12.5 MPa | 7.87" / 200 mm |
These specifications are shown in the product table for the fifth PTFE hose product in your brochure.
These values help buyers determine whether the hose can match both pressure demand and installation flexibility.
For example:
the very small bending radius is ideal for compact routing conditions,
the high working and burst pressure values show the benefit of stainless steel braid reinforcement,
and the wide size range up to 2" allows this hose to be used in both smaller and larger transfer systems.
For many processing systems, the biggest advantage of this hose is that it combines excellent flexibility with strong reinforcement.
This product is well suited for:
pharmaceutical transfer systems
food processing transfer lines
food chemical transfer applications
compact equipment layouts requiring flexible hose routing
reinforced PTFE hose applications where both bending and pressure matter
These application directions are directly supported by the brochure description.
Your brochure presents Jingcheng as a professional PTFE hose manufacturer focused on PTFE hose production and customized transfer solutions. For a product like this, that matters because hose performance depends not only on PTFE material, but also on braid quality, corrugated structure control, and production consistency.
For customers, this means you are not simply buying a hose type. You are choosing a manufacturer that can provide the right balance of flexibility, reinforcement, and application matching.
