In demanding industrial systems, hose performance is not only about chemical resistance. It also depends on pressure capability, structural strength, temperature range, and long-term reliability. When the transfer line must handle challenging conditions, a plain PTFE tube may not provide enough reinforcement for safe and stable operation.

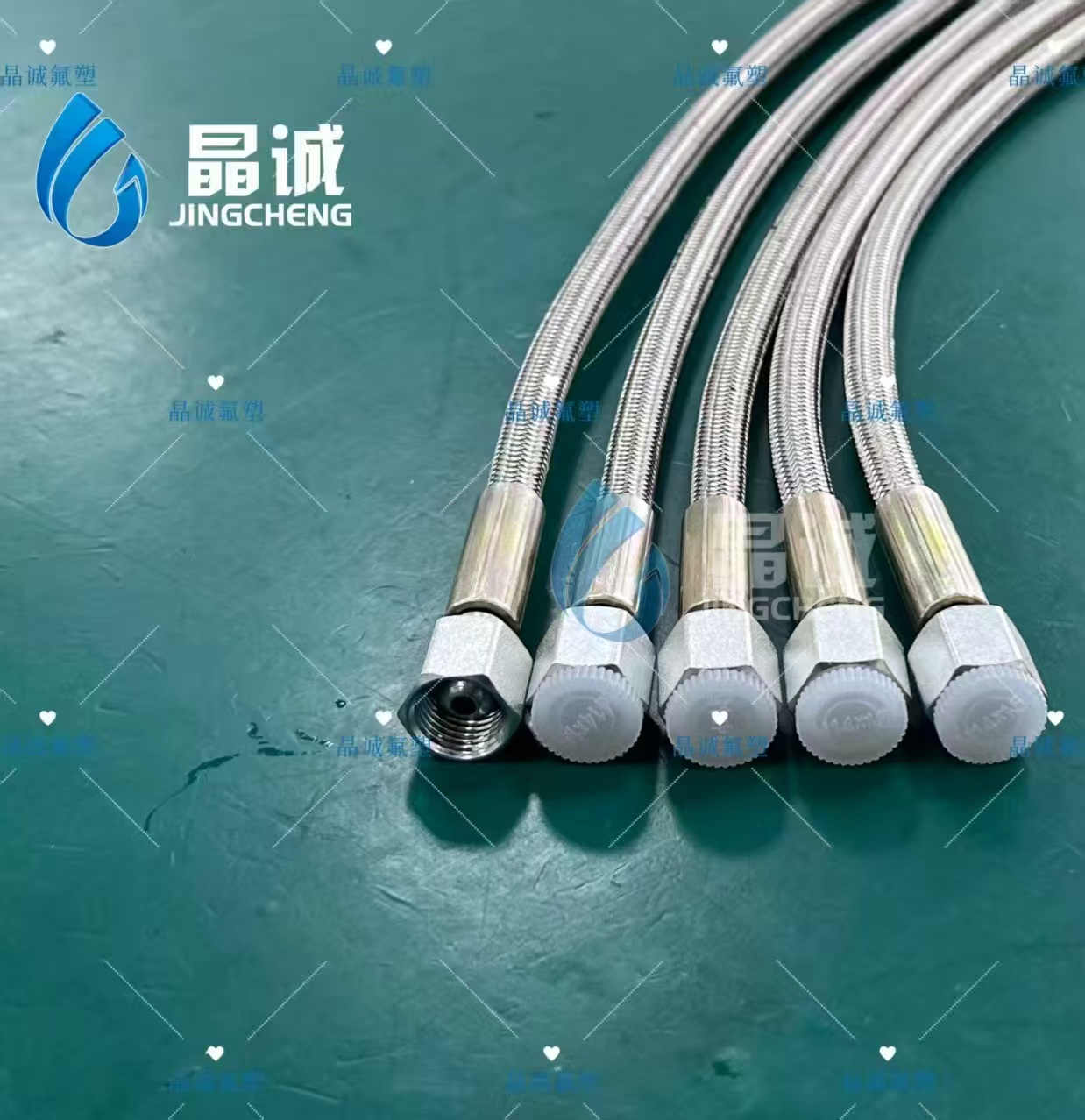

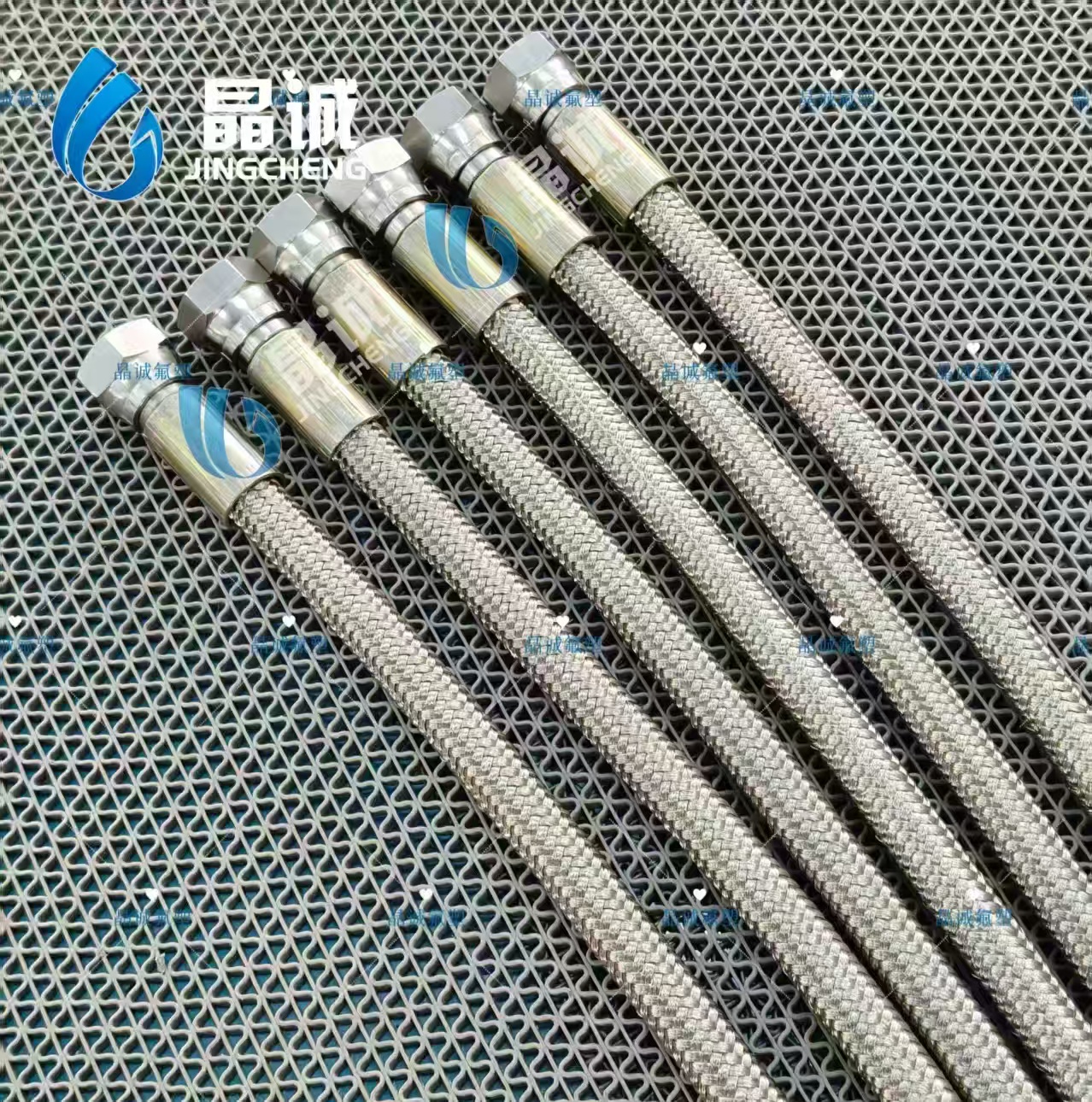

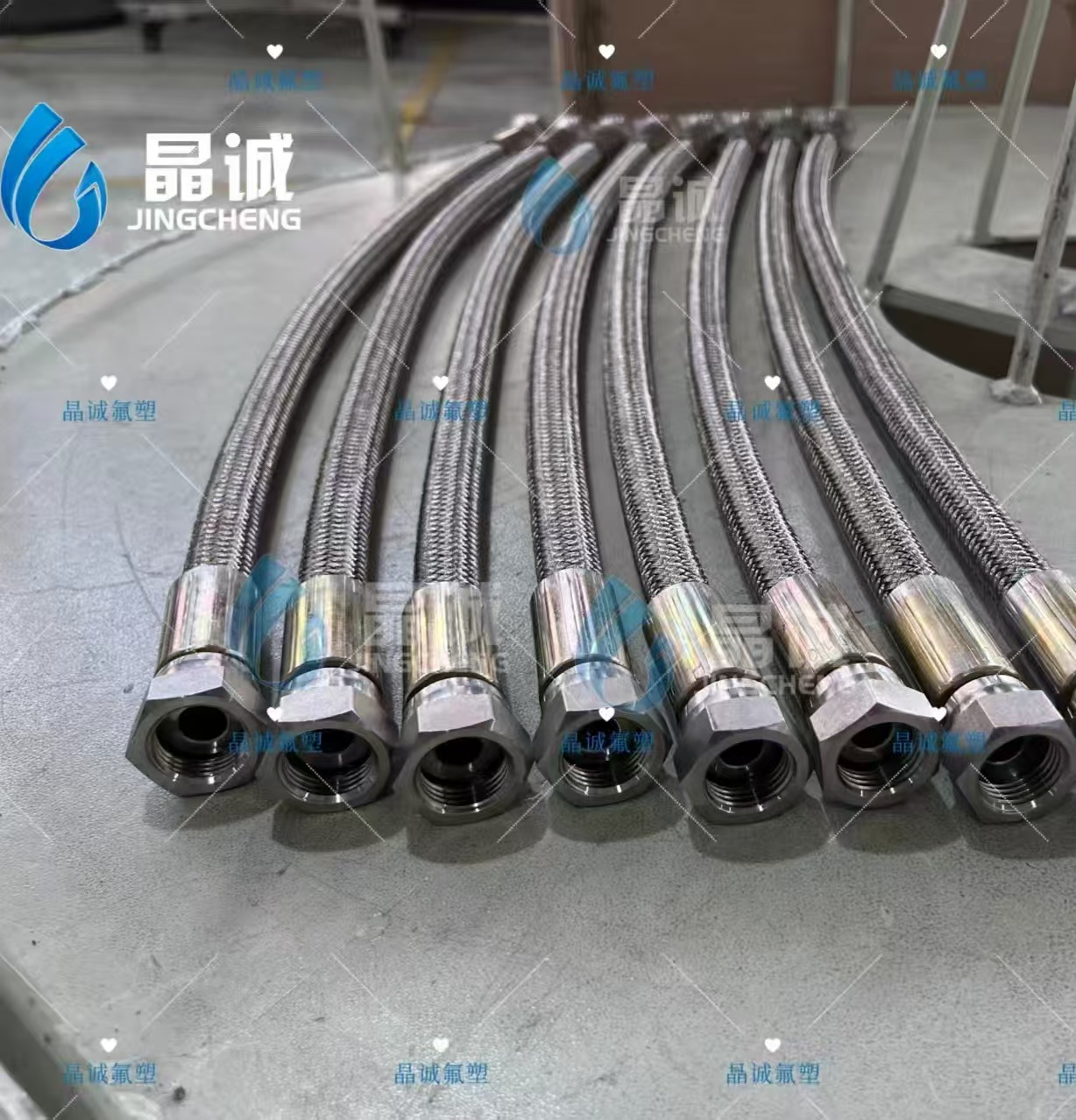

That is why a single braided PTFE hose is widely used in higher-performance transfer applications. Shenzhen Jingcheng’s single-layer PTFE braided hose is designed with a smooth PTFE inner tube and a high-strength 304 stainless steel braided reinforcement layer, combining the chemical advantages of PTFE with the structural strength of stainless steel braid. According to your brochure, the hose operates within a temperature range of -70°C to +260°C and is suitable for a wide range of industrial fields, including machinery, electronics, automotive, medical, aerospace, chemical, computer, energy, military, and communications industries.

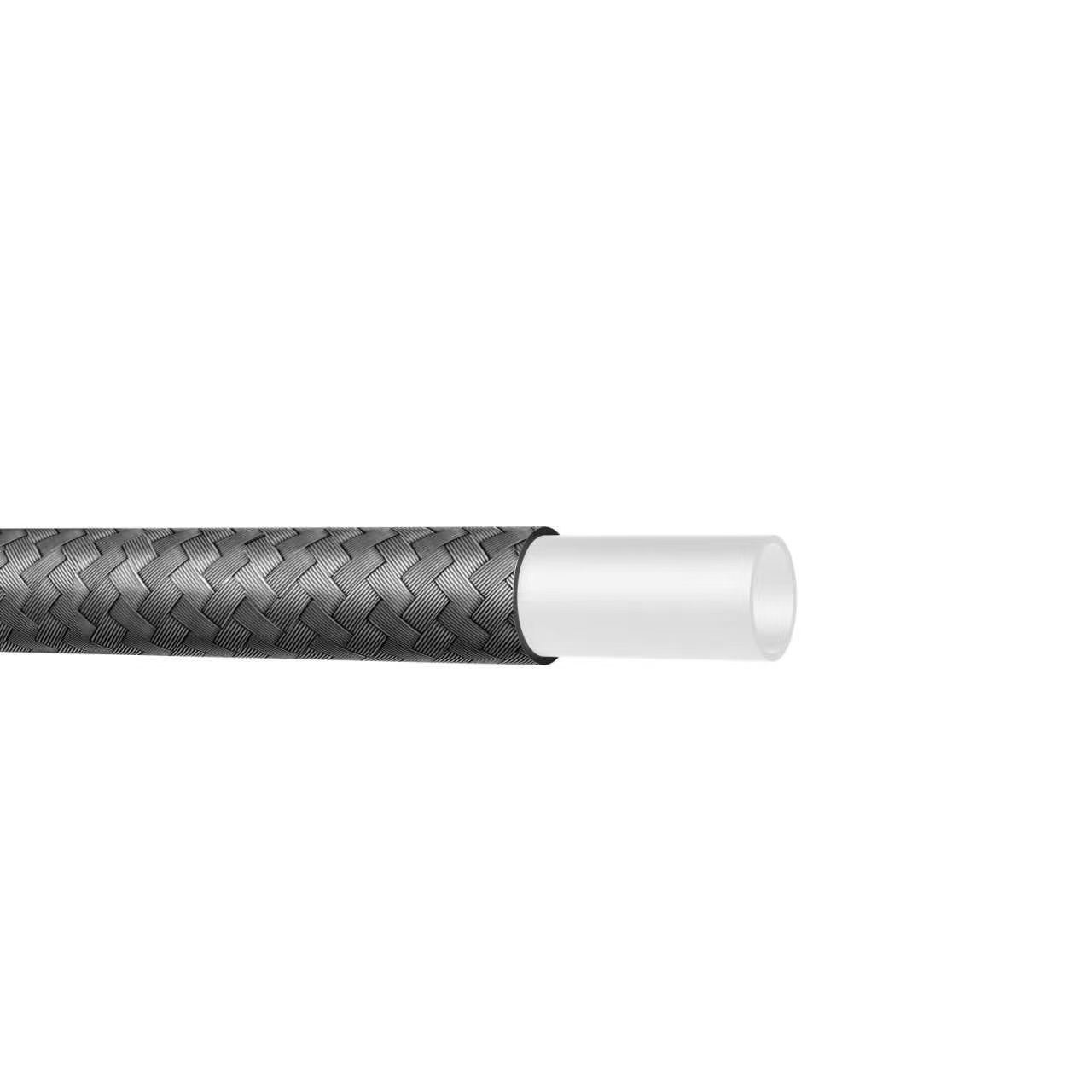

A standard PTFE hose offers excellent chemical resistance, but when higher pressure and stronger mechanical support are required, reinforcement becomes essential. This product solves that by using a smooth PTFE core combined with a 304 stainless steel braided outer layer.
This structure allows the hose to maintain the clean, corrosion-resistant inner path of PTFE while gaining additional strength from the stainless steel braid. For many industrial users, that means better suitability for dynamic systems, higher-pressure environments, and more demanding equipment connections.
The hose uses a smooth PTFE inner tube, which supports cleaner fluid transfer, broad chemical compatibility, and stable internal flow. This makes it suitable for applications where purity and corrosion resistance are both important.
The outer layer is reinforced with high-strength 304 stainless steel braided wire, which significantly improves the hose’s structural performance. This makes the hose more suitable for applications where pressure resistance and reinforcement are necessary.
The brochure states a temperature range of -70°C to +260°C, allowing this hose to perform in both low-temperature and high-temperature environments. This broad range makes it useful across many industries.
One of the key strengths of this product is its wide application range. Your brochure lists industries including machinery, electronics, automotive, medical, aerospace, chemical, computer, energy, military, and communications. That makes it a versatile reinforced PTFE hose solution.
The product page covers sizes from 5/32" to 1", and the brochure notes that the hose can be customized according to requirements. This makes it easier for customers to match system dimensions and performance needs.
Item | Our Data |
|---|---|
Product Name | Single Braided PTFE Hose |
Model Series | JCC-01100-PTFE |
Inner Structure | Smooth PTFE inner tube |
Reinforcement | High-strength 304 stainless steel braided wire |
Temperature Range | -70°C to +260°C |
Main Industries | Machinery, electronics, automotive, medical, aerospace, chemical, computer, energy, military, communications |
Custom Support | Customizable according to requirements |
These product details are stated on the fourth product page of your PTFE cold hose brochure.
No. | Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | Minimum Bending Radius |
|---|---|---|---|---|---|
JCC-01104-PTFE | 5/32" / 4 mm | 6 mm | 27 psi / 0.2 MPa | 82 psi / 0.6 MPa | 1.65" / 42 mm |
JCC-01106-PTFE | 1/4" / 6.35 mm | 8.35 mm | 42 psi / 0.29 MPa | 126.9 psi / 0.875 MPa | 2.95" / 75 mm |
JCC-01108-PTFE | 5/16" / 8 mm | 10.4 mm | 19 psi / 0.13 MPa | 57.9 psi / 0.399 MPa | 3.23" / 82 mm |
JCC-01110-PTFE | 3/8" / 9.7 mm | 12.1 mm | 23 psi / 0.16 MPa | 70.2 psi / 0.484 MPa | 3.94" / 100 mm |
JCC-01113-PTFE | 1/2" / 12.7 mm | 15.1 mm | 23 psi / 0.16 MPa | 68 psi / 0.469 MPa | 4.92" / 125 mm |
JCC-01116-PTFE | 5/8" / 15.9 mm | 18.3 mm | 18 psi / 0.12 MPa | 53.8 psi / 0.371 MPa | 6.30" / 160 mm |
JCC-01119-PTFE | 3/4" / 19 mm | 22 mm | 15 psi / 0.10 MPa | 44.8 psi / 0.309 MPa | 7.68" / 195 mm |
JCC-01125-PTFE | 1" / 25.4 mm | 29.4 mm | 31 psi / 0.21 MPa | 31 psi / 0.21 MPa | 10.24" / 260 mm |
These specifications are shown in the product table for the fourth PTFE hose product in your brochure.
These values help buyers determine whether the hose can match their operating pressure, installation layout, and bending requirements.
For example:
the 304 stainless steel braid adds reinforcement for more structurally demanding applications,
the -70°C to +260°C temperature range supports a wide range of environmental and process conditions,
and the listed bending radius values help engineers design safer, more practical routing layouts.
For many industrial systems, this hose is valuable because it combines PTFE media compatibility with external braided reinforcement, making it more application-ready than plain PTFE tubing.
This product is well suited for:
machinery and industrial equipment
electronic and electrical systems
automotive fluid transfer
medical and pharmaceutical equipment
aerospace and energy systems
chemical processing lines
communications and technical equipment requiring reinforced PTFE hose
These application directions are directly supported by the brochure description.
Your brochure presents Jingcheng as a professional PTFE hose manufacturer with long-term production experience and customization capability. For braided PTFE hose products, this matters because reinforcement quality, braid consistency, and dimensional control directly affect hose performance.
For customers, choosing the right supplier means not only getting PTFE material, but also getting stable reinforced construction, reliable product consistency, and a hose that can fit real industrial conditions.
