When fluid transfer systems operate under high pressure, standard hoses often struggle with mechanical stress, chemical attack, and long-term reliability. A PTFE steel wire bundle braided hose is designed to solve these problems by combining the chemical resistance of PTFE with the strength of stainless steel reinforcement.

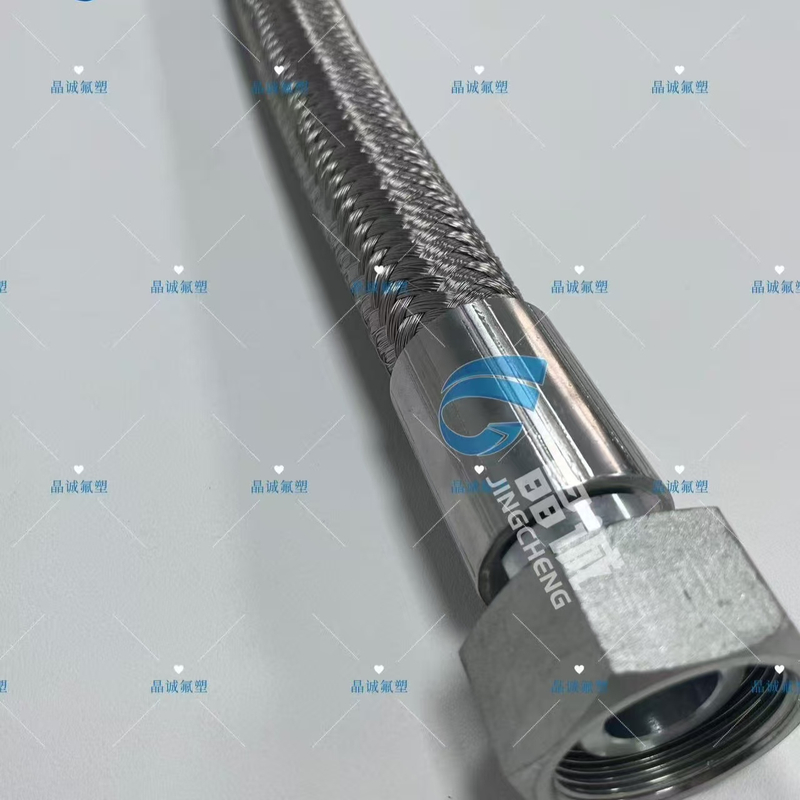

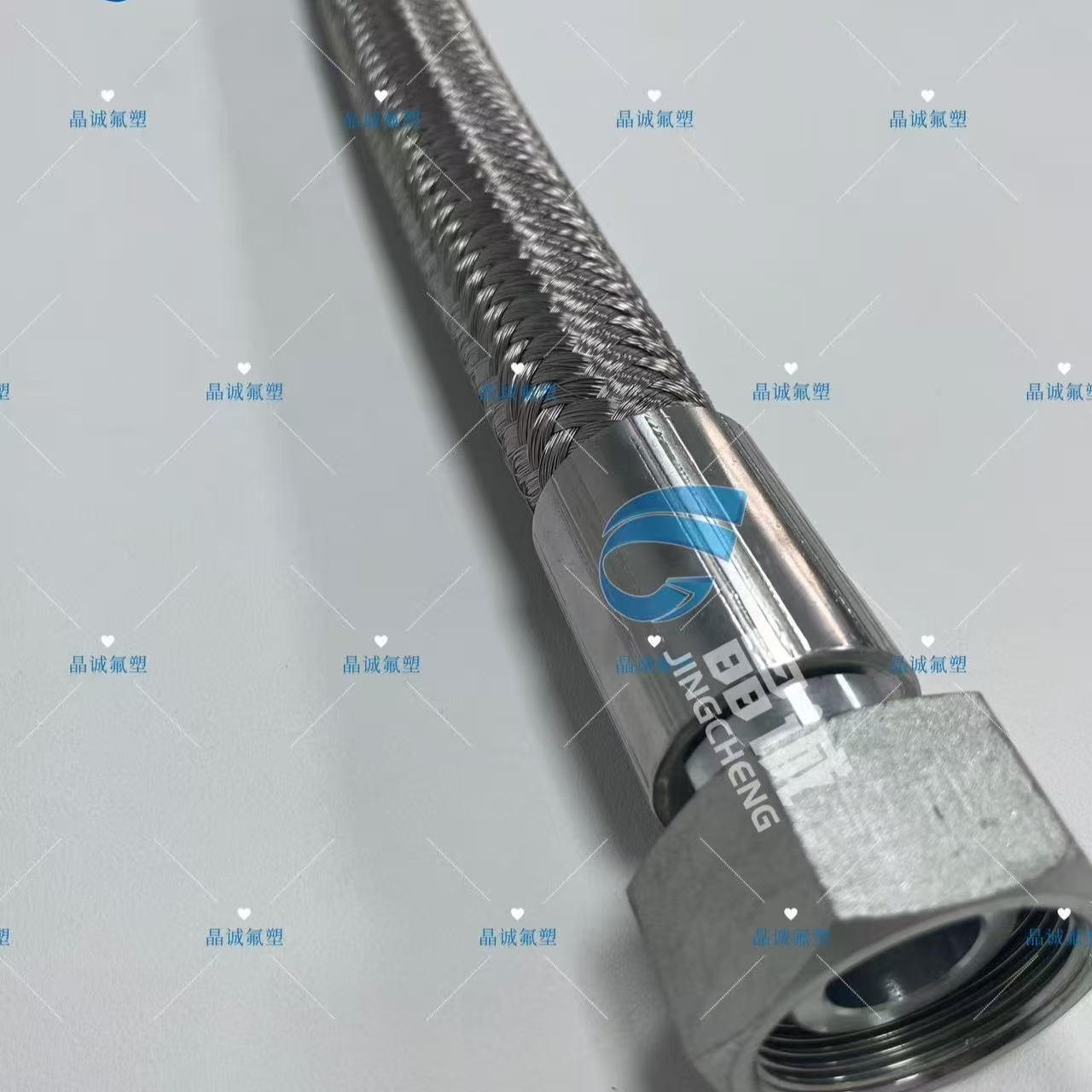

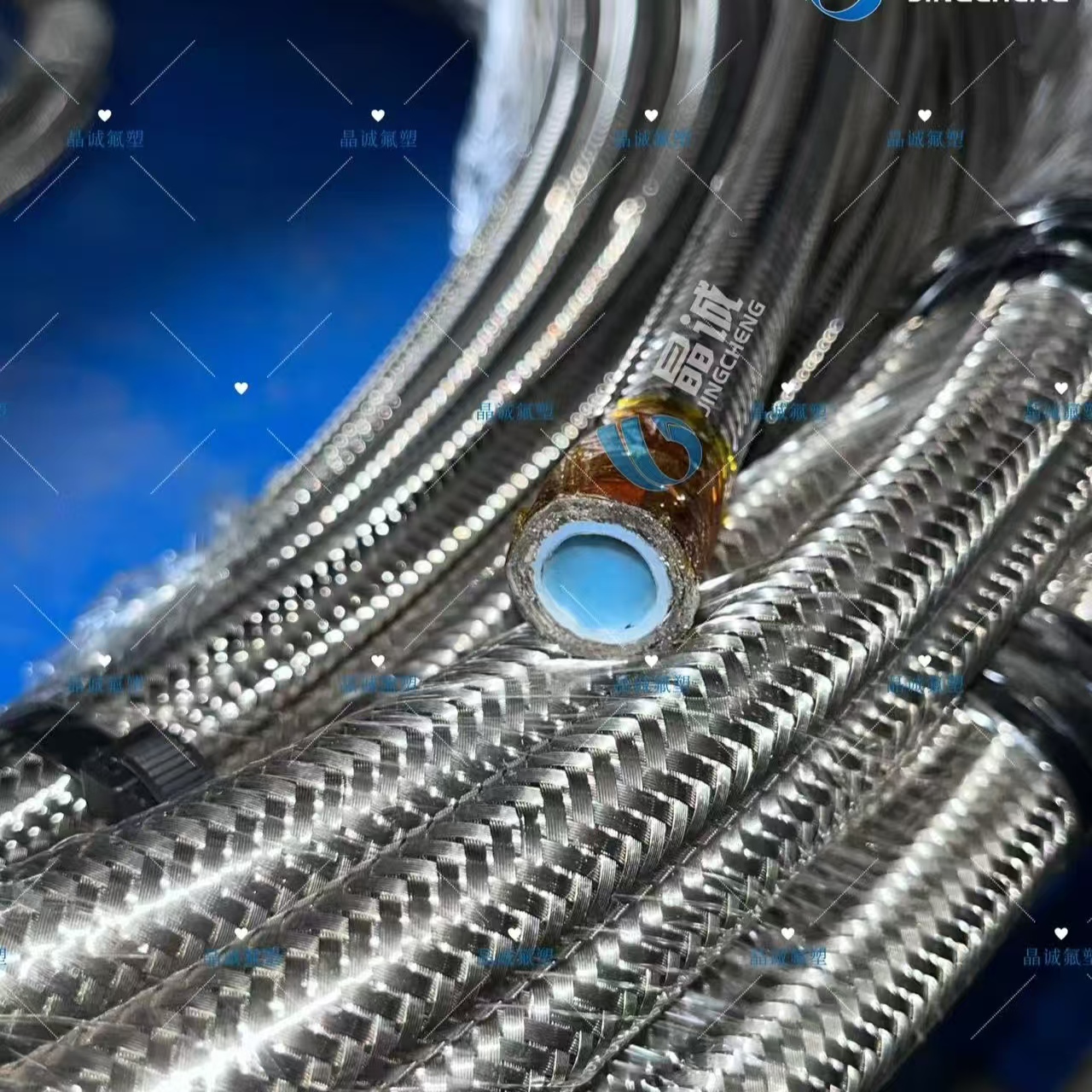

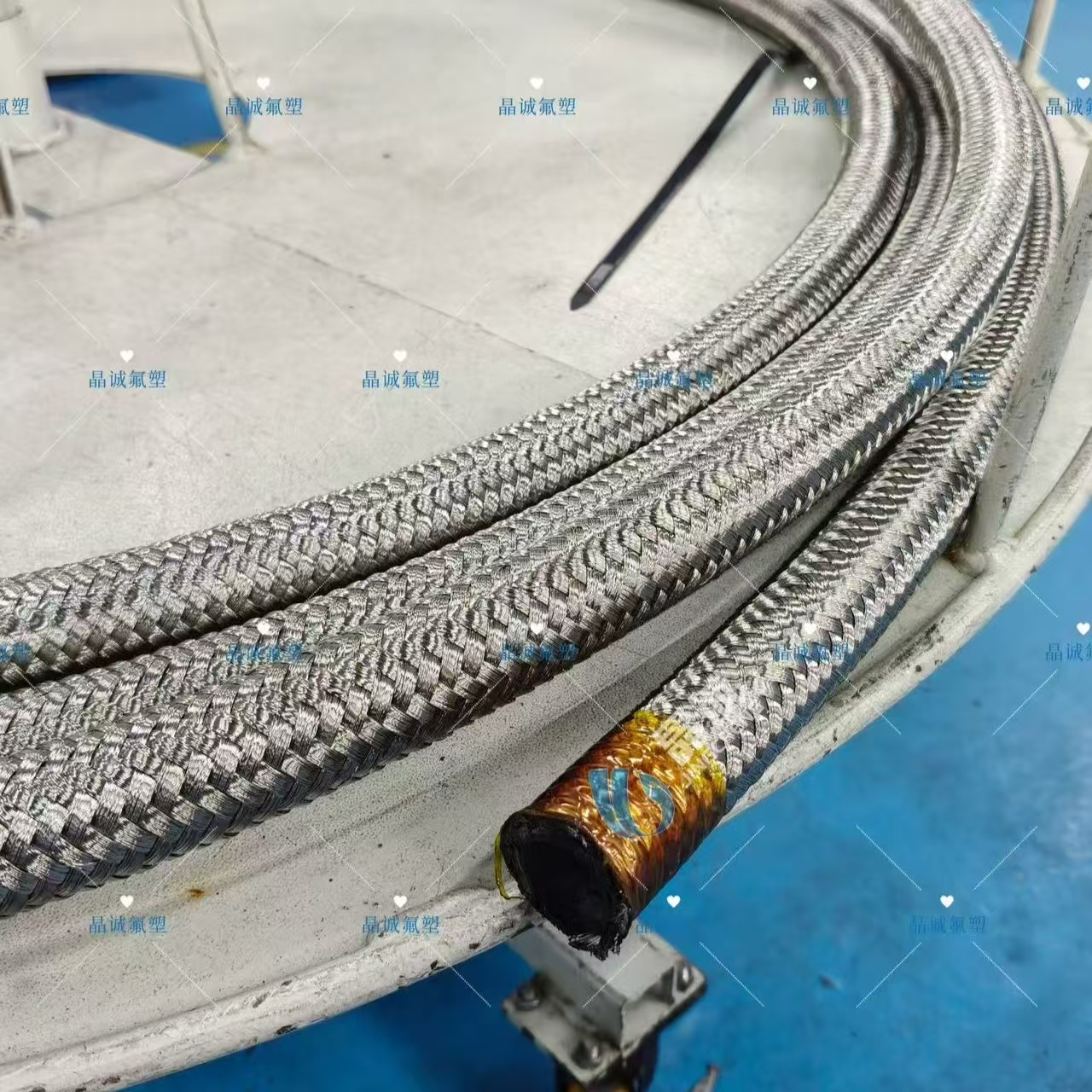

Based on the catalog specification for JCC-02100-PTFE, this hose features a smooth PTFE inner tube, a 304 stainless steel wire bundle reinforcement layer, and an additional high-strength 304 stainless steel outer braided wire bundle layer. It is suitable for high-pressure spraying, gluing, conveying, steam transfer, oil transfer, and brake hose applications, with a temperature range of -70°C to +260°C.
Temperature resistance: -70°C to +260°C
Working pressure: up to 41 MPa / 5,959 psi (design-dependent, based on size)
Burst pressure: up to 123.3 MPa / 17,879 psi (design-dependent, based on size)
Reinforcement: 304 stainless steel wire bundle braided construction
Minimum bending radius: 75 mm to 900 mm (design-dependent)
Suitable media: chemical fluids, steam, oil, and brake line service
For demanding industrial systems, hose failure usually comes from three issues: pressure load, aggressive media, and mechanical wear. PTFE solves the chemical compatibility problem, while stainless steel wire bundle reinforcement improves strength and durability under pressure. This makes the hose a practical choice for applications where both cleanliness and pressure performance matter.
1. Chemically resistant PTFE inner tube
The smooth PTFE liner offers excellent compatibility with corrosive and demanding process media.
2. Multi-layer stainless steel reinforcement
The catalog structure uses a 304 stainless steel wire bundle reinforcement layer plus an outer high-strength braided wire bundle layer for improved mechanical resistance.
3. Built for high-pressure transfer
This hose family is designed for high-pressure service such as spraying, gluing, conveying, steam transfer, oil transfer, and brake lines. Pressure capability varies by size and application.
Catalog reference: JCC-02100-PTFE series
| Model | Nominal Size | Inner Diameter (mm) | Outer Diameter (mm) | Working Pressure (MPa) | Working Pressure (psi) | Burst Pressure (MPa) | Burst Pressure (psi) | Min. Bend Radius (mm) |
|---|---|---|---|---|---|---|---|---|
| JCC-02110-PTFE | 3/8" | 9.5 | 11.9 | 41 | 5945 | 122.2 | 17719 | 75 |
| JCC-02113-PTFE | 1/2" | 12.7 | 15.1 | 39 | 5713 | 118.2 | 17139 | 113 |
| JCC-02216-PTFE | 5/8" | 16.3 | 19.9 | 41 | 5959 | 123.3 | 17879 | 170 |
| JCC-02219-PTFE | 3/4" | 19.0 | 23.0 | 41 | 5872 | 121.5 | 17618 | 205 |
| JCC-02225-PTFE | 1" | 25.0 | 29.0 | 35 | 5118 | 105.9 | 15356 | 248 |
| JCC-02232-PTFE | 1-1/4" | 31.5 | 35.5 | 26 | 3770 | 78.0 | 11310 | 490 |
| JCC-02238-PTFE | 1-1/2" | 38.0 | 42.0 | 17 | 2392 | 49.5 | 7189 | 650 |
| JCC-02250-PTFE | 2" | 50.5 | 54.5 | 18 | 2537 | 52.5 | 7613 | 900 |
The catalog states this hose can be customized according to parameter requirements. Typical project-based customization can include:
Hose size and inner diameter
Hose length
Pressure requirement
Bending requirement
Application media
End connection / fitting style
Reinforcement level based on operating conditions
To recommend the right hose quickly, please send:
Inner diameter
Required length
Working pressure
Max temperature
Fluid / media type
End fitting or connection type
Minimum bending space
Application description or equipment name
Jingcheng’s catalog presents the company as a professional PTFE hose manufacturer with production equipment, testing capability, laboratory support, and finished goods facilities. This helps support custom PTFE hose manufacturing from specification confirmation to production and inspection.
