In glass production systems, hose performance can directly affect transfer stability, temperature consistency, and overall process reliability. When the transferred medium needs to remain at an elevated temperature, a standard hose may not be enough. In these cases, a purpose-built heated hose can help maintain operating efficiency and reduce process fluctuation.

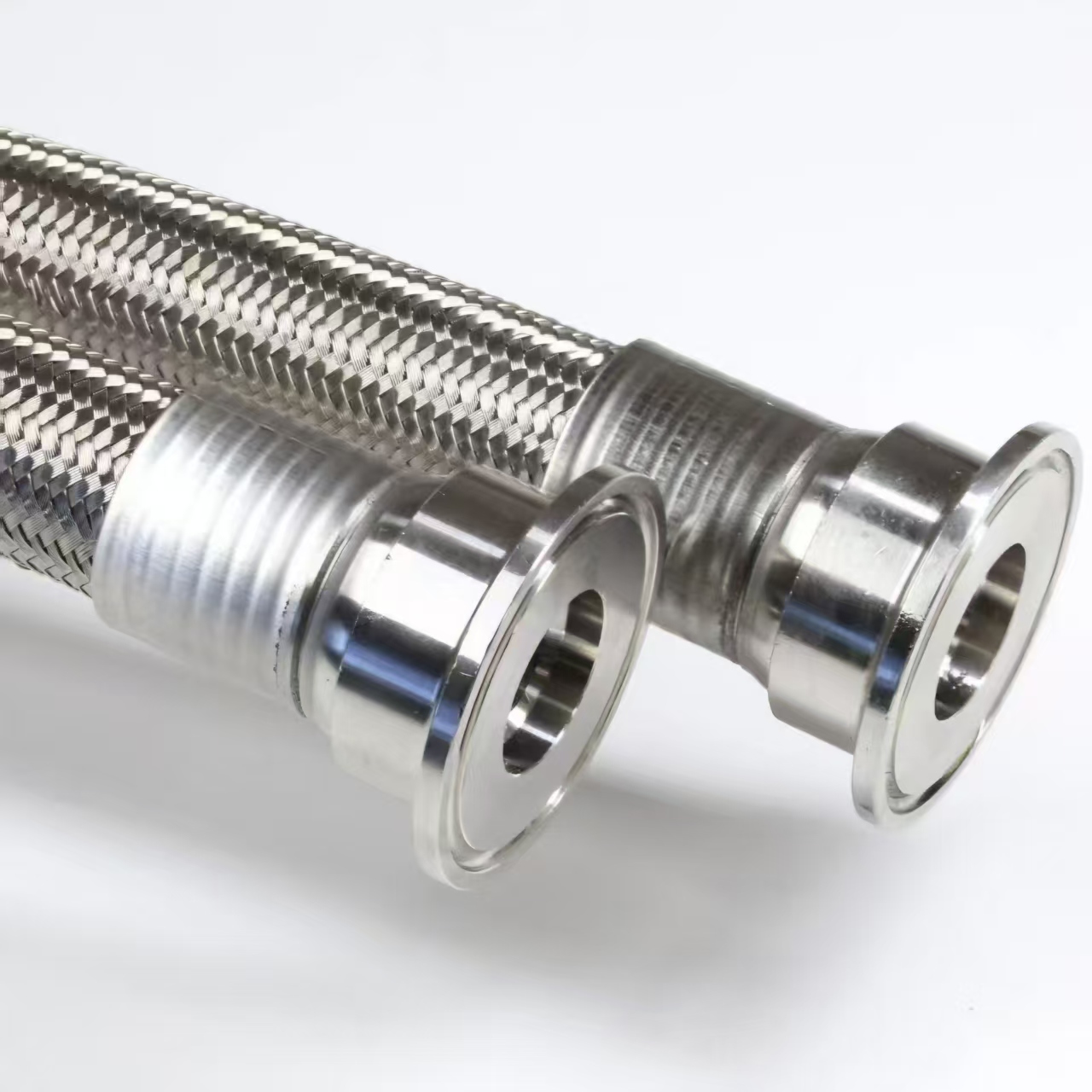

Shenzhen Jingcheng’s Pioneer Hose is designed for this kind of application. According to your catalog, it is mainly used in glass production lines, where the operating temperature is relatively high, and it is specifically used for the transfer of inert gas. That makes it a specialized product rather than a general-purpose heated hose.
Unlike a generic heated hose, this product is positioned specifically for glass production lines. That helps give it a clearer application focus and makes it more relevant for customers in this niche industrial field.
Your catalog explicitly states that the hose is used for inert gas transfer. This is an important positioning point because it tells buyers exactly what kind of medium and process environment the product is intended to support.
The hose offers a maximum heat resistance of up to 230°C, which supports high-temperature transfer conditions in industrial production lines. Higher-temperature customization is also available if the project requires it.
The heating layer is made of uniformly braided heating elements, helping minimize temperature distribution differences along the inner wall. In practice, this supports more stable heated transfer and better thermal consistency.
The catalog states that the hose is manufactured with high-insulation-efficiency materials while taking surface temperature into account. This helps improve heat retention and supports more reliable performance during continuous operation.
Item | Our Data |
|---|---|
Product Name | Pioneer Hose |
Product Category | High Temperature Low Pressure Heated Hose |
Main Application | Glass production lines |
Medium | Inert gas transfer |
Operating Condition | High-temperature transfer application |
Max Heat Resistance | Up to 230°C |
Higher Temperature Option | Available on request |
Heating Structure | Uniformly braided heating elements |
Insulation Design | High-efficiency insulation materials |
The above product description and feature points are stated in the Pioneer Hose section of your catalog.
I.D. | O.D. (mm ±0.2) | Working Pressure (bar) | Working Pressure (psi) | Burst Pressure (bar) | Burst Pressure (psi) | Min. Bend Radius (mm) |
|---|---|---|---|---|---|---|
1/4" | 9 | 173 | 2501 | 690 | 10005 | 30 |
5/16" | 11 | 158 | 2284 | 630 | 3915 | 40 |
3/8" | 12.4 | 135 | 1958 | 540 | 7830 | 60 |
1/2" | 15.9 | 118 | 1704 | 470 | 6815 | 150 |
5/8" | 19 | 88 | 1269 | 350 | 5075 | 180 |
3/4" | 22.6 | 85 | 1234 | 340 | 4930 | 260 |
1" | 29.5 | 75 | 1088 | 300 | 4350 | 300 |
These specifications are listed in the product parameter table for Pioneer Hose on page 9 of the PDF.
These data points help buyers evaluate whether the hose can match their transfer requirements, installation space, and operating conditions.
For example:
the 230°C maximum heat resistance supports higher-temperature industrial applications,
the 1/4" to 1" size range provides flexibility for different system requirements,
and the bend radius data helps engineers assess routing feasibility in actual production layouts.
For glass production lines and inert gas transfer systems, hose selection is not only about temperature. It is also about transfer stability, installation fit, and long-term reliability.
This product is well suited for:
glass production lines
inert gas transfer systems
high-temperature industrial transfer applications
heated gas transfer lines
process systems that require stable thermal insulation and heating
These use scenarios are based directly on the product positioning in your catalog.
Your catalog states that Jingcheng’s heated hoses are used for the constant-temperature transfer of water, oil, air, and solutions, helping prevent resin, grease, oil, and other viscous fluids from solidifying, freezing, or increasing in viscosity. It also states that one of your major strengths is the ability to customize different insulated heated hose types according to industry requirements and the temperature, viscosity, and flow characteristics of the internal medium. That customization capability is highly relevant for special-use products like Pioneer Hose.
In addition, the company profile states that Shenzhen Jingcheng High-tech Co., Ltd. was established in 2005 and focuses on the R&D and production of PTFE hoses, PA hoses, PTFE high-pressure hoses, and PTFE electrically heated hoses, while also providing complete thermal fluid insulation and transfer solutions.
