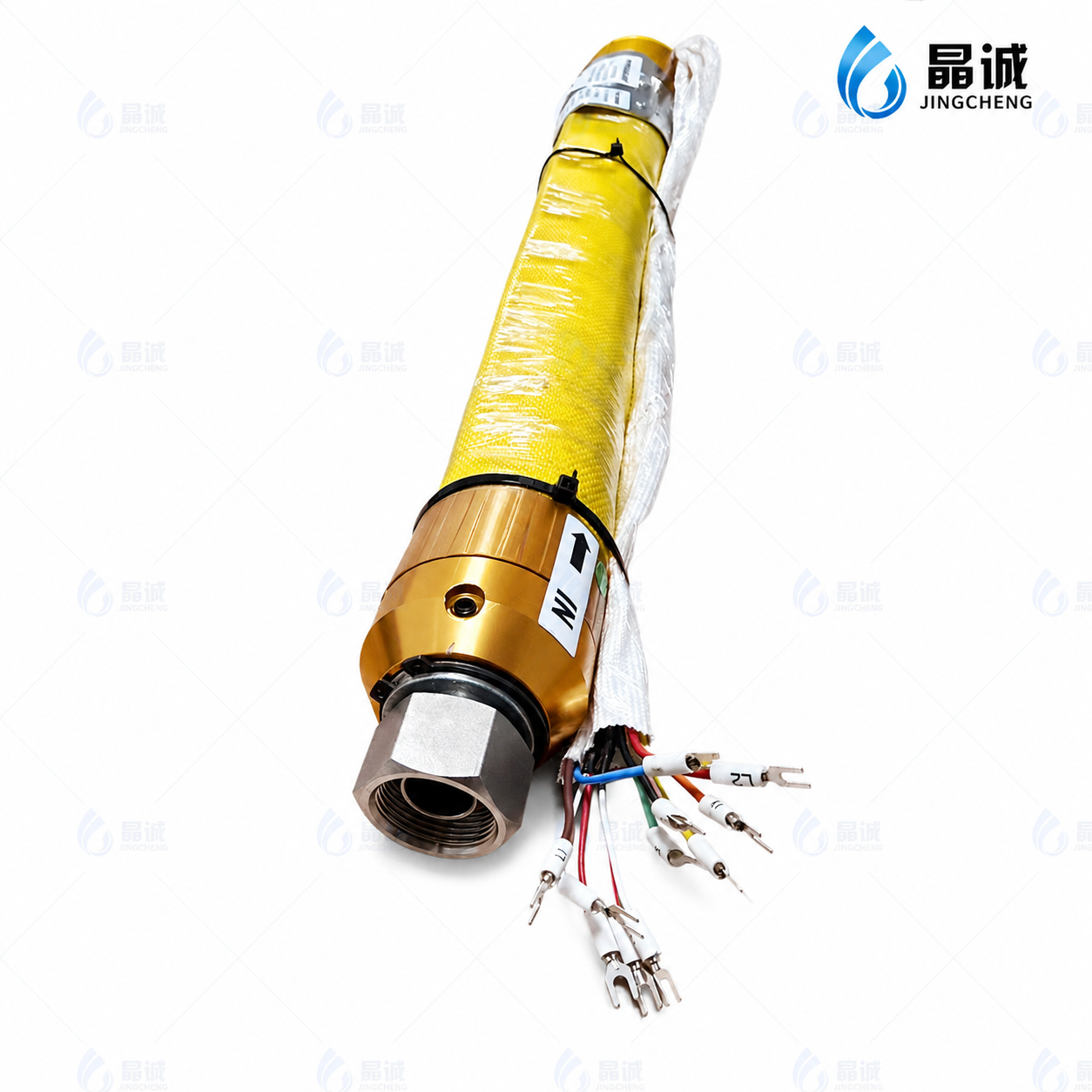

Reinforced Heated Sealant Hose for Pavement Crack Repair Machines

Introduction

A reinforced heated sealant hose transfers hot crack-sealing material from the melting unit to the application gun on pavement maintenance equipment.

Road-sealing compounds can become increasingly viscous as their temperature falls. If the material cools inside the hose, the system may experience reduced flow, higher pump load, uneven dispensing or internal blockage.

Shenzhen Jingcheng High-tech manufactures customized heated hoses for pavement maintenance machines and crack-sealing equipment. This product uses a reinforced inner-hose design intended to improve durability during demanding field operation.

Why Crack-Sealing Equipment Needs a Heated Hose

Crack-sealing machines often operate outdoors in changing ambient temperatures. The hose must transfer hot material while being moved, bent and repositioned by the operator.

An unsuitable hose may cause:

• Sealant temperature loss

• Increased viscosity

• Irregular dispensing

• Higher pumping pressure

• Material accumulation

• Internal blockage

• Premature inner-hose damage

• Longer cleaning time

• Construction delays

The heating system compensates for heat loss, while the insulation structure helps maintain the processing temperature.

Reinforced Inner-Hose Design

The crack-sealing hose uses an internally reinforced construction intended to improve hose service life.

The final inner-hose design should be selected according to:

• Sealant composition

• Working temperature

• Pump pressure

• Hose length

• Required flow rate

• Bending frequency

• Equipment movement

• Connection structure

The complete hose assembly must be treated as a system rather than selecting only by diameter.

Key Features

Maximum Standard Temperature up to 230°C

The standard product supports temperatures up to 230°C. Higher temperatures require separate evaluation.

Uniform Heating Elements

Uniformly distributed heating elements help reduce temperature variation and cold spots inside the material path.

Thermal Insulation

High-efficiency insulation reduces heat loss during outdoor road maintenance work.

Reinforced Material Path

The reinforced inner structure is designed for the demanding operating conditions of crack-sealing equipment.

Flexible Field Operation

The hose supports movement between the melting unit and application gun while observing the specified minimum bending radius.

Custom Machine and Gun Connections

The following can be customized:

• Machine-side fitting

• Gun-side fitting

• Hose length

• Inner diameter

• Electrical plug

• Voltage

• Heating power

• Sensor type

• Outer protective structure

Typical Applications

• Pavement crack-sealing machines

• Asphalt maintenance equipment

• Highway repair systems

• Municipal road maintenance

• Bridge-deck crack repair

• Airport pavement maintenance

• Heated sealant dispensing

• Road-joint sealing equipment

• Outdoor hot-material transfer

• Concrete crack-sealing equipment

• Mobile road repair machines

• Replacement crack-sealing hoses

Technical Specification Options

Reference Product Data

Final working pressure depends on temperature, sealant properties, fittings and the complete assembly design.

Installation Considerations

To reduce premature damage:

• Do not bend the hose below its specified radius.

• Avoid twisting the hose during installation.

• Protect it from sharp surfaces and vehicle traffic.

• Confirm the electrical plug and sensor before connecting.

• Do not pull the hose by its electrical cable.

• Inspect the fittings and outer cover regularly.

• Follow the equipment manufacturer’s operating procedure.

Information Required for Quotation

Please provide:

• Crack sealant type

• Required operating temperature

• Normal working pressure

• Maximum pump pressure

• Hose length

• Inner diameter

• Required flow rate

• Voltage and power

• Sensor type

• Machine-side fitting

• Gun-side fitting

• Electrical connector

• Equipment brand and model

• Original hose sample or photos

Why Choose Shenzhen Jingcheng?

Source Manufacturer

We manufacture customized heated hose assemblies directly.

Application-Specific Reinforcement

The inner structure can be selected according to the sealant and operating conditions.

Equipment Matching

Replacement hoses can be produced according to samples, drawings or connection dimensions.

Short Lead Time

We support urgent replacement, project and equipment-manufacturer orders.

Sample Support

Samples can be supplied before batch procurement.
