Single-Braided PTFE Hose for OEM Standardization and Easier Spare-Part Management

For industrial equipment manufacturers, hose selection is not only a technical question.

It is also a supply-chain question.

A machine family may use different hose diameters and fittings across several models.

If every connection uses a completely different hose structure, the manufacturer may need to manage:

• More part numbers

• More suppliers

• More technical drawings

• More replacement inventory

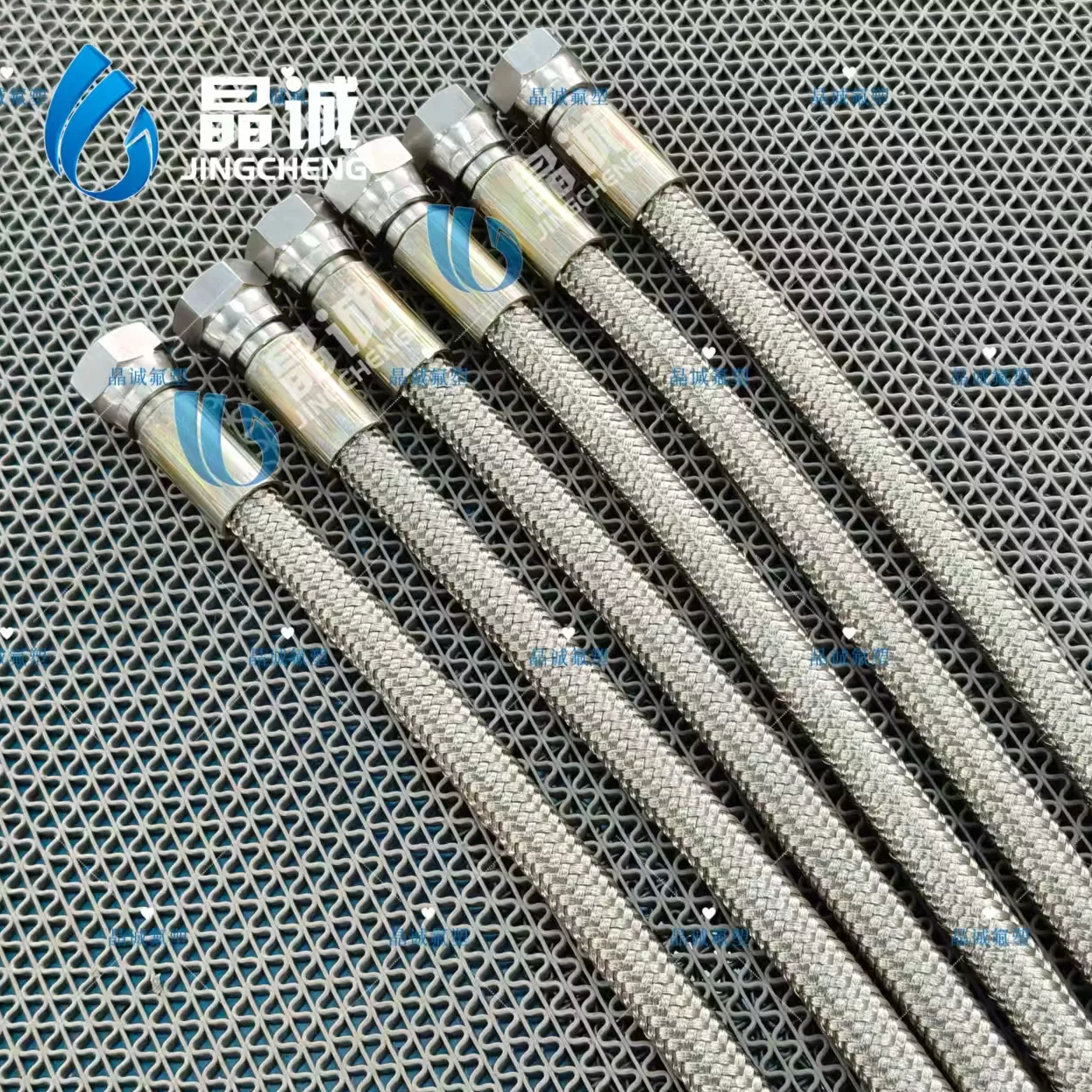

The JCC-01100-PTFE single-braided hose provides a simple reinforced PTFE platform that can be used across multiple hose sizes.

Its structure is:

Smooth PTFE Inner Tube + One Layer of High-Strength 304 Stainless Steel Braid

The catalog specifies a temperature range of approximately -70°C to +260°C.

Why a Standard Hose Platform Can Help OEM Manufacturers

Imagine an equipment manufacturer producing several machine models.

One model may require a 1/4-inch fluid line.

Another may require 1/2 inch.

A larger machine may use 3/4 inch.

If the same basic hose architecture can be used across these sizes, the manufacturer can simplify:

• Engineering documentation

• Supplier qualification

• Spare-part storage

• Maintenance training

• Purchasing

This can make the hose family valuable beyond its individual pressure rating.

Smooth PTFE Inner Tube Provides the Fluid-Contact Surface

The inner layer is a smooth PTFE tube.

This provides a straightforward material-contact path for industrial fluid transfer.

PTFE is widely used where chemical resistance and thermal stability are required.

The catalog identifies applications across several industries, including:

• Machinery

• Electronics

• Automotive

• Medical

• Aerospace

• Chemical

• Computer-related equipment

• Energy

• Military

• Communications

Actual suitability should always be evaluated according to the transferred fluid and operating conditions.

One Stainless Steel Braid Provides Reinforcement Without Excessive Complexity

The external reinforcement uses a single layer of 304 stainless steel braid.

This gives the PTFE tube additional mechanical support under pressure.

Compared with more complex double-braid or multi-wire constructions, the single-braid structure remains relatively straightforward.

This makes it useful for many general industrial flexible connections where extreme pressure is not the only priority.

Broad Size Range Supports Multiple Machine Models

The catalog lists sizes from approximately:

5/32 inch to 1 inch

This range allows the same hose family to support different flow requirements.

For example:

• Small sizes can be used for compact lines

• Mid-size hoses can serve general process connections

• Larger sizes can handle greater flow

OEM manufacturers can therefore standardize around the same basic hose architecture while changing diameter according to machine requirements.

Pressure Capability Changes by Size

The working pressure varies with hose diameter.

Selected catalog ratings include approximately:

• 1/4": 42 MPa

• 5/16": 19 MPa

• 3/8": 23 MPa

• 1/2": 23 MPa

• 5/8": 18 MPa

• 3/4": 15 MPa

• 1": 10 MPa

This means the hose should be selected based on the actual system pressure rather than nominal size alone.

Useful for Replacement Programs

Industrial machines remain in service for many years.

Original hose assemblies may eventually need replacement because of:

• Aging

• Maintenance

• Machine rebuilding

• Equipment modification

Using a standardized hose family can simplify aftermarket support.

Replacement assemblies can be produced according to:

• Original hose length

• Inner diameter

• End fitting

• Thread standard

• Machine model

This makes the JCC-01100-PTFE useful for both OEM production and maintenance supply.

Flexible Hose Can Simplify Final Assembly

Machine connection points are not always perfectly aligned.

Small variations may occur during:

• Welding

• Frame assembly

• Component installation

A flexible hose can absorb limited alignment differences more easily than rigid tubing.

This may simplify final machine assembly and reduce the need for custom rigid piping.

Wide Temperature Capability

The catalog specifies approximately:

-70°C to +260°C

This broad range allows the hose to be considered for many different machine environments.

Pressure capability at elevated temperature should always be confirmed for the exact application.

Fittings Can Be Customized to Match Equipment Standards

Different markets use different connection standards.

A complete hose assembly may need:

• Metric threads

• BSP

• NPT

• JIC

• Customized adapters

The hose can therefore be configured around the equipment interface rather than requiring the machine manufacturer to redesign the connection point.

Maintenance Teams Benefit from Consistency

If several machines use the same hose family, maintenance teams can become familiar with:

• Hose construction

• Installation method

• Spare-part identification

• Replacement procedure

This can reduce unnecessary variation across an equipment fleet.

Product Documentation

The catalog page references:

• ISO9001:2015

• US FDA 21 CFR 177.1550

• SGS

Any documentation required for a specific application should be confirmed for the final product configuration.

Customization Options

Jingcheng can customize:

• Hose length

• Inner diameter

• End fitting

• Thread standard

• Connection orientation

• Complete assemblies

• OEM labeling requirements

What Information Should Be Provided?

Please provide:

• Transferred medium

• Working temperature

• Working pressure

• Maximum pressure

• Required flow

• Hose length

• Inner diameter

• End fittings

• Minimum bending radius

• Equipment model

Conclusion

The JCC-01100-PTFE single-braided hose provides a practical balance between chemical resistance, mechanical reinforcement and broad size availability.

For OEM manufacturers, its value is not limited to one hose connection.

The same architecture can become a standardized fluid-line platform across multiple machine models, simplifying engineering, procurement and replacement support.
