Smooth-Bore Corrugated PTFE Hose for Suction-Side Transfer and Clean Process Routing

Many flexible hoses are selected primarily according to positive pressure.

But in process machinery, a hose can also work on the suction side of a pump, where the internal pressure may fall below atmospheric pressure.

This creates a completely different mechanical condition.

Instead of trying to expand outward, the hose can be subjected to forces that attempt to deform it inward.

At the same time, food, cosmetic, pharmaceutical and chemical equipment may require a hose with:

• A relatively smooth material-contact surface

• Flexible external geometry

• Small bending radius

• Good negative-pressure resistance

• Easy-to-clean internal construction

The JCC-21100-PTFE smooth-bore corrugated braided hose is designed around this combination.

Its structure consists of:

Smooth Inner-Wall PTFE Tube + Corrugated Outer Wall + 304 Stainless Steel Braided Reinforcement

The catalog specifies an operating temperature range of approximately -70°C to +260°C.

Why Suction Lines Need Different Hose Characteristics

A hose installed after a pump usually experiences positive internal pressure.

A hose installed before a pump may experience negative pressure.

This can occur in applications such as:

• Tank-to-pump transfer

• Vessel suction lines

• Product recovery

• Material feeding systems

• Chemical transfer modules

A hose that performs well under positive pressure is not automatically ideal for suction service.

The JCC-21100-PTFE is specifically described as having negative-pressure resistance, making it relevant where suction-side stability matters.

A Smooth Inner Wall Can Help Reduce Product Hold-Up

Fully convoluted hoses provide excellent flexibility, but their internal geometry contains repeated corrugations.

In certain processes, operators may prefer a smoother fluid path.

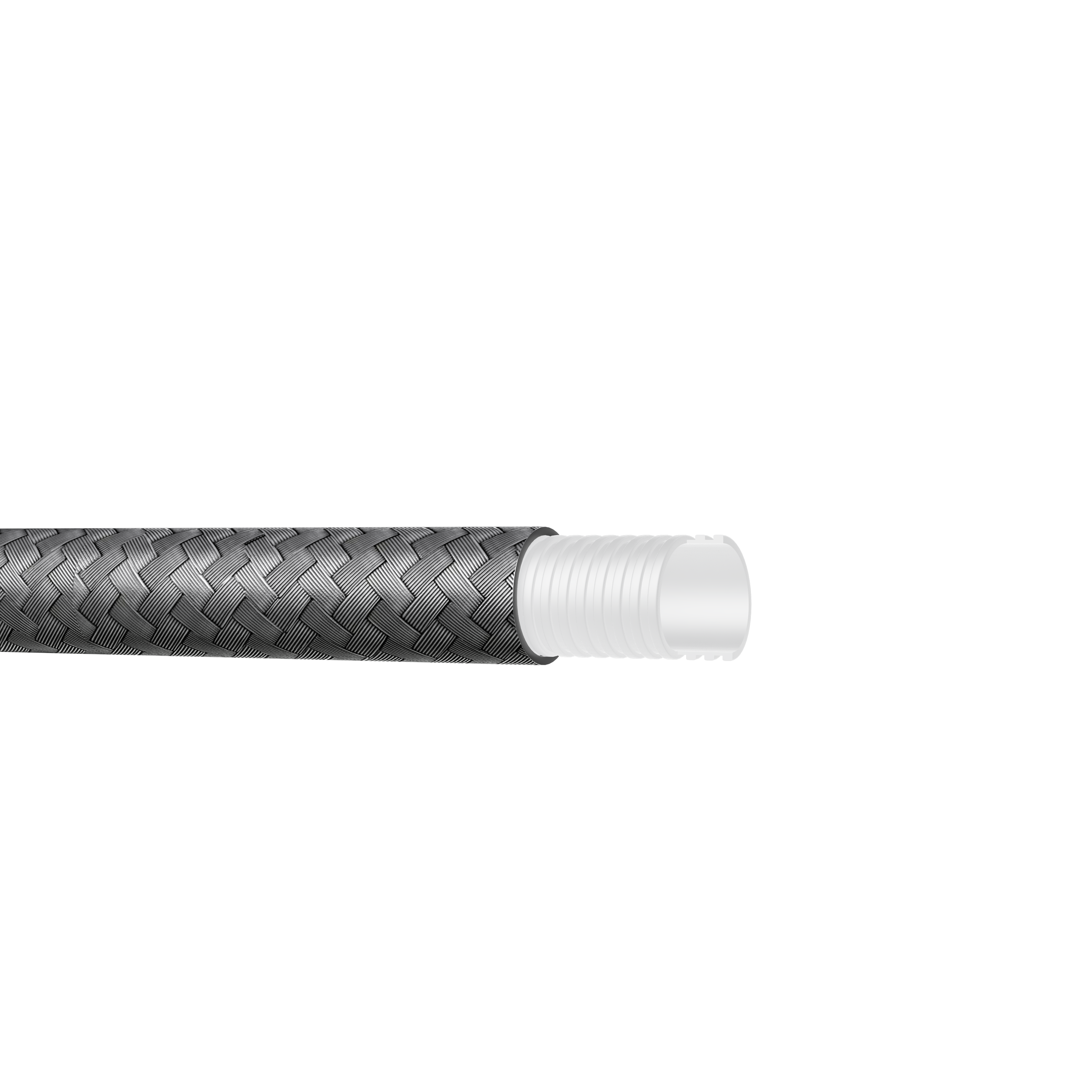

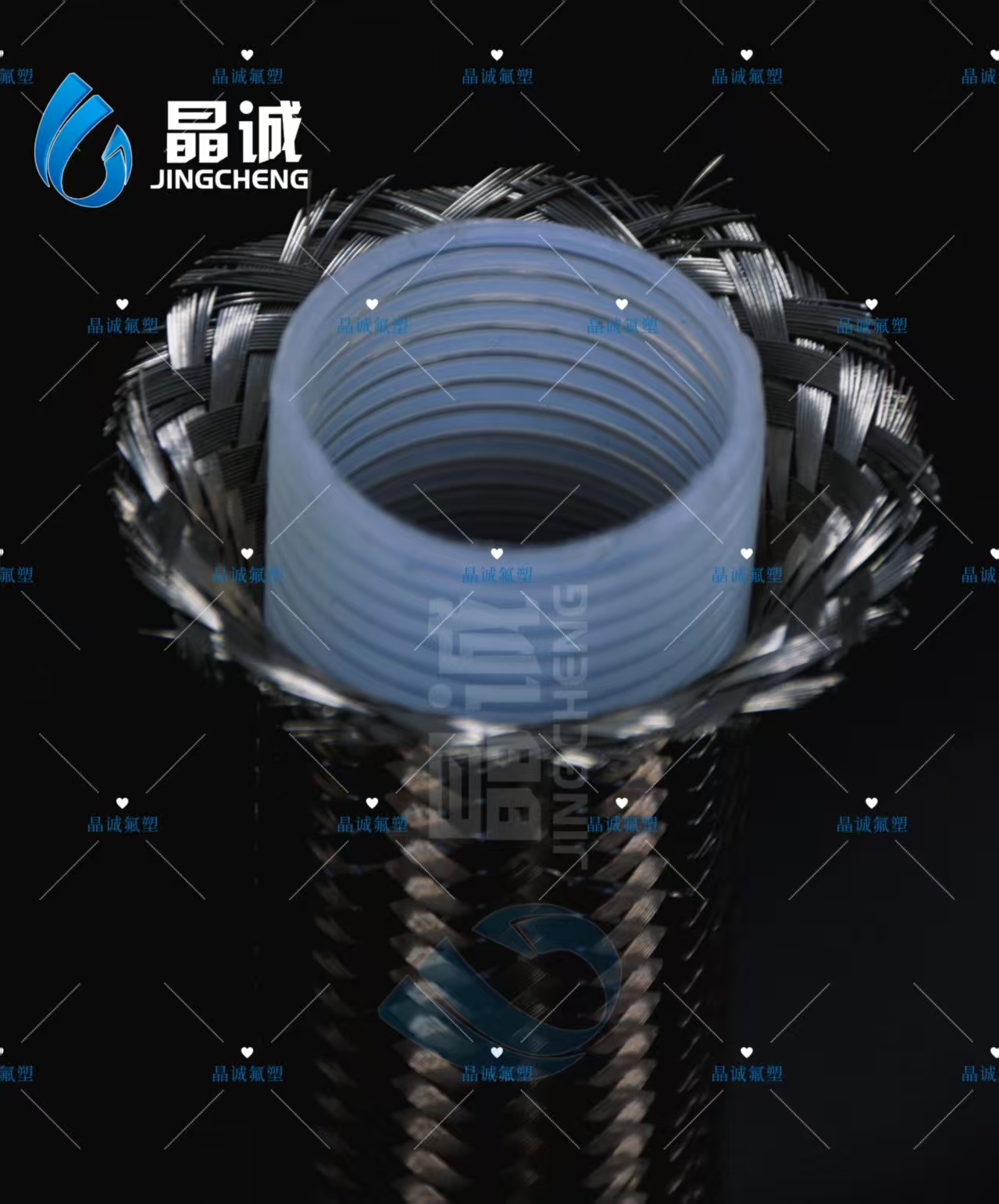

The JCC-21100-PTFE uses a PTFE hose with a smooth inner wall and corrugated outer wall.

This design can help reduce internal geometric areas where transferred material may remain after production.

For equipment that frequently changes products, this can be especially useful.

Potential examples include:

• Cosmetic formulations

• Food ingredients

• Pharmaceutical fluids

• Chemical solutions

Easier Cleaning Can Reduce Changeover Effort

The catalog specifically describes the hose as easy to clean.

This can matter in batch-oriented production.

A production line may need to switch between:

• Different formulations

• Different colors

• Different ingredients

• Different chemical batches

If a hose retains excessive residual material, operators may need more flushing before the next production run.

A smoother internal flow surface can help simplify this process compared with more deeply convoluted internal structures.

Corrugated Outer Geometry Preserves Flexibility

A smooth inner surface does not mean the hose has to behave like a rigid straight tube.

The outer corrugated geometry provides flexibility.

This allows the hose to route around:

• Pumps

• Valves

• Tanks

• Filters

• Process modules

without requiring a large rigid piping layout.

The result is a useful compromise between:

cleaner internal flow + flexible external routing

Small Bending Radius Helps Compact Machinery

Modern equipment is increasingly compact.

OEM manufacturers often place multiple processing components inside a single skid or frame.

The JCC-21100-PTFE offers relatively small bending radii.

Selected catalog values include approximately:

• 1/4" — 19 mm

• 5/16" — 19 mm

• 3/8" — 25 mm

• 1/2" — 38 mm

This can help engineers route hoses through tighter machine layouts.

Stainless Steel Braid Adds Pressure Support

The outer reinforcement is made from 304 stainless steel braided wire.

This provides additional mechanical support around the PTFE structure.

Selected catalog working pressures include approximately:

• 1/4": 1,276 psi / 8.8 MPa

• 5/16": 1,218 psi / 8.4 MPa

• 3/8": 1,305 psi / 9 MPa

• 1/2": 870 psi / 6 MPa

Pressure capability changes according to hose size.

The correct configuration should therefore be selected according to actual process pressure and diameter requirements.

Useful Between Product Vessel and Transfer Pump

One particularly relevant application is the flexible connection between a product vessel and pump.

This position may require:

• Flexible routing

• Negative-pressure resistance

• Chemical compatibility

• Easy cleaning

The JCC-21100-PTFE combines these characteristics in one hose structure.

It may therefore be useful in process skids where a rigid suction pipe would make maintenance or equipment repositioning more difficult.

Wide Temperature Range

The catalog specifies approximately:

-70°C to +260°C

This makes the hose suitable for a broad range of thermal conditions.

Potential applications may involve:

• Cold process fluids

• Heated liquids

• Chemical materials

• Temperature-controlled product transfer

Actual pressure performance at elevated temperature should always be confirmed for the selected hose size.

Food and Cosmetic Processing Applications

The catalog identifies applications in the:

• Food industry

• Cosmetics industry

• Chemical industry

• Pharmaceutical industry

In food and cosmetic equipment, potential applications may include:

• Product transfer

• Pump suction

• Filling machine supply

• Ingredient feeding

• Batch processing connections

Required food-contact documentation should be confirmed for the exact ordered configuration.

Pharmaceutical and Chemical Equipment

The hose may also be considered for:

• Pharmaceutical process modules

• Chemical transfer equipment

• Dosing systems

• Laboratory processing

• Pump connections

• Product recovery lines

PTFE provides broad resistance to many industrial chemicals, but actual compatibility should always be checked against the specific medium.

Catalog Documentation

The product page references:

• ISO9001:2015

• US FDA 21 CFR 177.1550

• SGS

For regulated applications, customers should confirm which documents apply to the exact hose material and finished assembly.

Customization Options

Jingcheng can customize:

• Hose length

• Inner diameter

• End fittings

• Thread standard

• Connection orientation

• Complete hose assemblies

• OEM specifications

What Information Should Be Provided?

Please provide:

• Transferred medium

• Positive or negative pressure

• Maximum vacuum requirement

• Working temperature

• Working pressure

• Hose length

• Inner diameter

• Required bending radius

• Cleaning method

• End fittings

• Equipment type

Conclusion

The JCC-21100-PTFE offers a useful solution when process equipment requires both flexible routing and a relatively smooth internal flow path.

Its smooth PTFE inner wall supports cleaning-oriented applications, while the corrugated outer geometry provides flexibility and the 304 stainless steel braid adds mechanical reinforcement.

For suction-side transfer, compact process skids and frequently cleaned food, cosmetic, pharmaceutical or chemical equipment, this structure provides a practical alternative to both rigid tubing and fully convoluted hoses.
