In chemical processing, laboratory systems, pharmaceutical production, and high-purity fluid transfer, the hose inner tube matters as much as the whole pipeline. If the inner surface is not clean, smooth, or chemically stable, the transfer process may face contamination risk, residue buildup, corrosion, or shortened hose life.

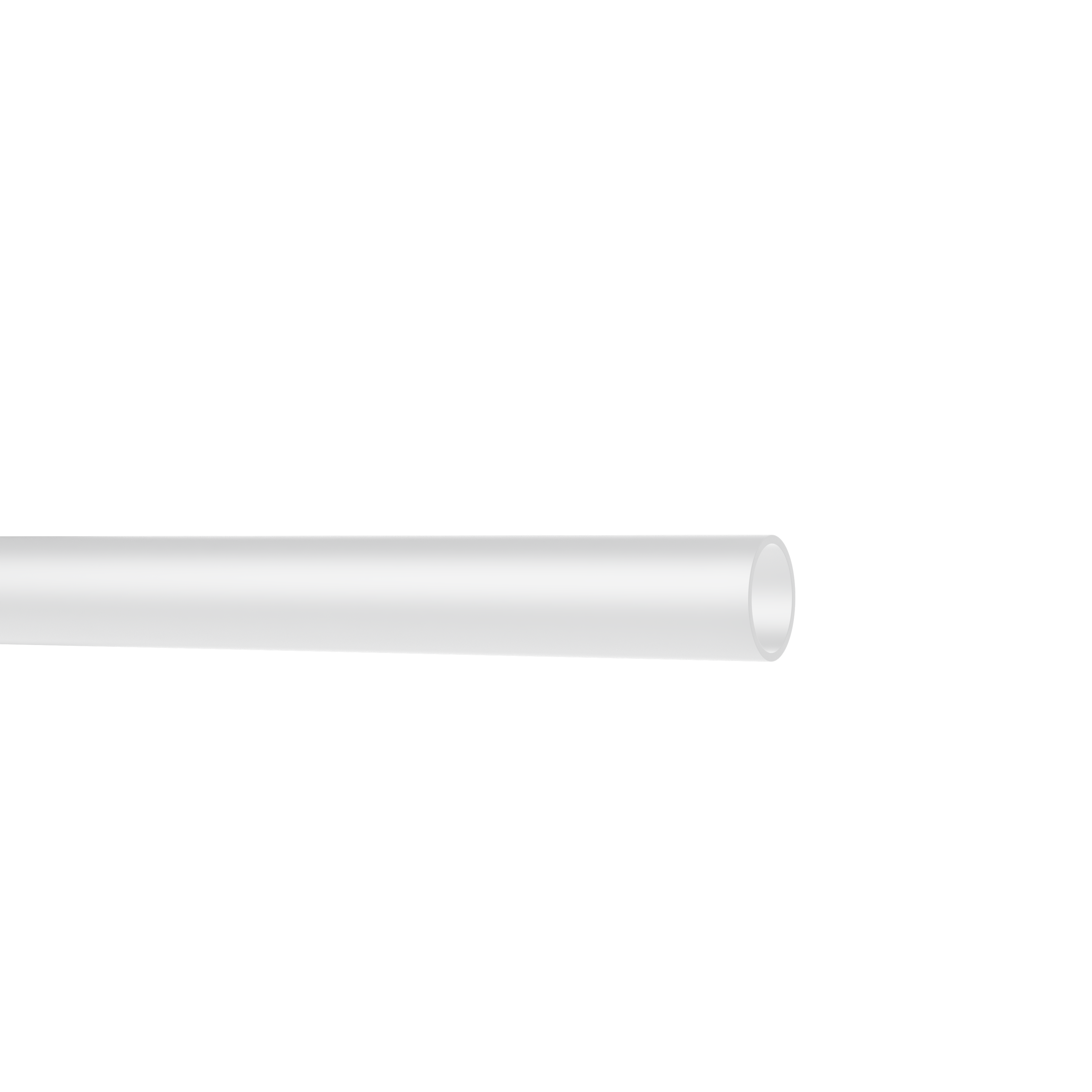

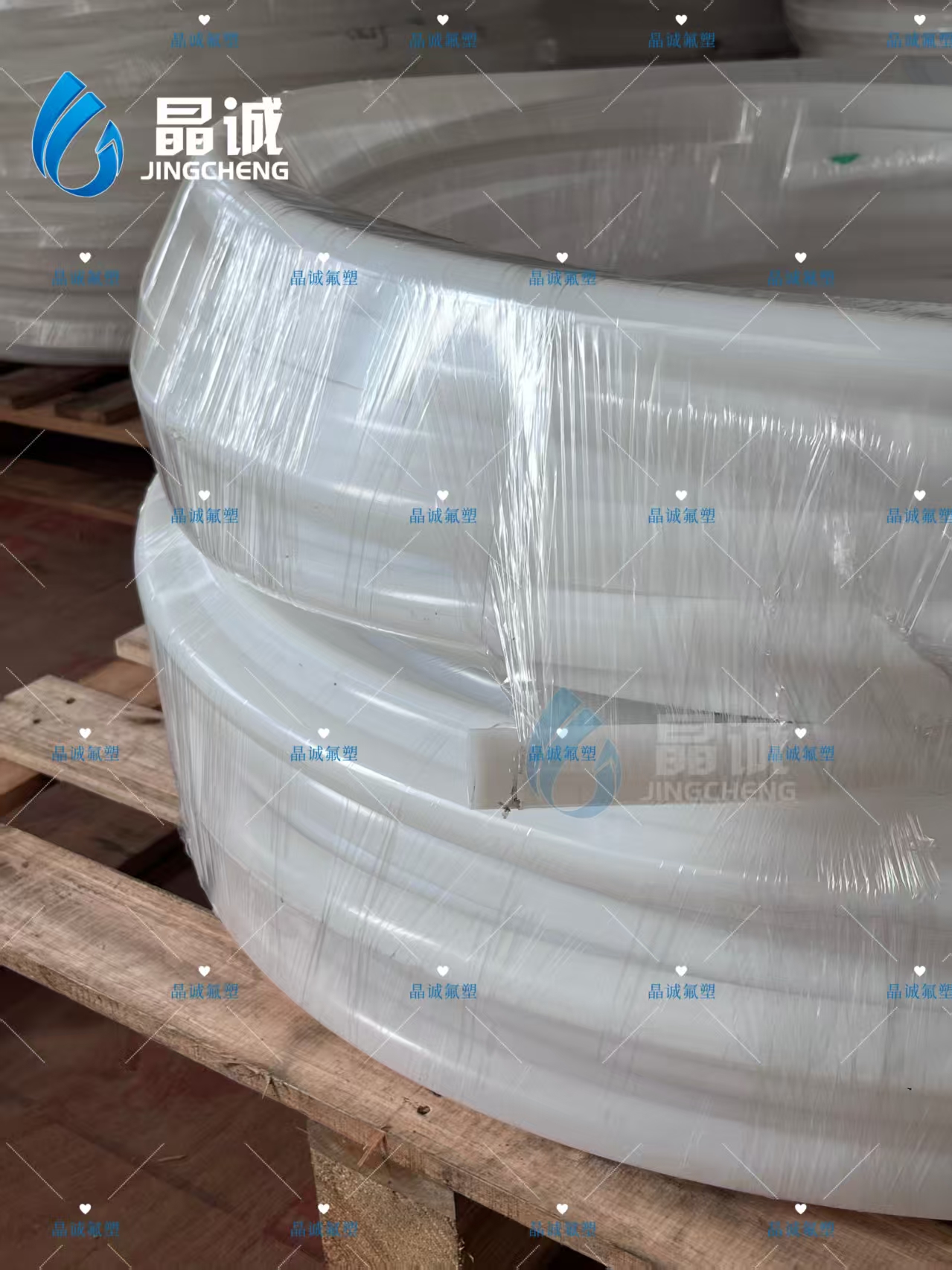

Our smooth bore PTFE hose is designed for clean, stable, and chemically resistant fluid transfer. With a smooth PTFE inner tube, wide temperature resistance, and excellent compatibility with aggressive media, it is suitable for customers who need a reliable hose solution for demanding fluid applications.
For chemical plants, equipment manufacturers, laboratories, and high-purity process systems, this hose provides a practical balance of cleanliness, flexibility, chemical resistance, and customization.
The smooth bore PTFE hose belongs to Jingcheng’s PTFE inner tube series.
According to the Jingcheng PTFE cold hose catalog, this hose is made from PTFE material through processes such as drying, high-temperature sintering, shaping, and tube forming. It has a working temperature range of -70°C to +260°C, making it suitable for both low-temperature and high-temperature fluid transfer environments.
The product is especially suitable for strong acids, strong alkalis, strong oxidizing agents, reducing agents, organic solvents, and high-purity chemical transfer.
Compared with ordinary rubber or plastic hoses, PTFE offers stronger resistance to chemicals, temperature, and aging. Its smooth inner surface helps reduce fluid resistance, material residue, and cleaning difficulty.
For industries that handle corrosive media, sensitive fluids, or high-purity chemicals, a smooth bore PTFE hose can help improve transfer reliability and reduce long-term maintenance risk.
This makes it a strong option for systems where cleanliness, chemical compatibility, and stable performance are required.
PTFE is widely used for aggressive chemical transfer because it resists many acids, alkalis, oxidizing agents, reducing agents, and organic solvents.
This makes the hose suitable for chemical processing, laboratory systems, pharmaceutical equipment, and other demanding fluid transfer applications.
The smooth bore structure helps reduce internal friction and material buildup. This supports more efficient flow and makes the hose easier to clean compared with rougher inner tube designs.
For high-purity applications, a smoother inner wall can also help reduce contamination and residue risk.
The catalog shows a temperature range of -70°C to +260°C. This allows the hose to be used in both cold and high-temperature working conditions.
It is suitable for processes where media temperature may vary or where equipment needs a more temperature-resistant hose solution.
Because PTFE has strong chemical stability and a clean inner surface, this hose is very suitable for transferring high-purity chemicals and sensitive process fluids.
Jingcheng can customize hose specifications according to customer requirements, including size, length, connection method, wall thickness, and matching outer protection or reinforcement structure.
Item | Product Information |
|---|---|
Source Product | PTFE内管系列 — 常规PTFE光面软管 |
English Product Name | Smooth Bore PTFE Hose |
Model Series | JCC-00000-PTFE |
Product Category | PTFE Hose Series / PTFE Inner Tube Series |
Certification | ISO9001:2015 / US FDA 21 CFR 177.1550 / SGS |
Material | PTFE |
Structure | Smooth bore PTFE inner tube |
Temperature Range | -70°C to +260°C |
Main Function | Clean and chemical-resistant fluid transfer |
Suitable Media | Strong acids, strong alkalis, oxidizing agents, reducing agents, organic solvents, high-purity chemicals |
Common Inner Diameter Range | 5/32" to 2" |
Customization | Size, length, fittings, wall thickness, and structure can be customized |
Main Benefit | Chemical resistance, smooth flow, high purity, temperature resistance |
Suitable for transferring corrosive liquids, acids, alkalis, solvents, and other aggressive chemical media.
Ideal for applications where cleanliness and chemical stability are important, such as high-purity chemical production and precision equipment.
Can be used in laboratory systems requiring clean, chemically resistant, and temperature-resistant tubing.
Suitable for equipment where clean transfer and chemical compatibility are required.
Works as a flexible PTFE tube solution for pumps, valves, tanks, instruments, and process modules.
Jingcheng manufactures PTFE hoses according to real application conditions, including media type, temperature, size, pressure, connection method, and installation requirements.
The smooth bore PTFE hose is made through controlled PTFE processing, helping ensure stable quality and reliable product performance.
For equipment development, replacement projects, and procurement testing, Jingcheng supports sample availability and short production lead time.
As a China-based PTFE hose manufacturer, Jingcheng provides customized hose solutions with competitive pricing, helping customers reduce procurement cost without sacrificing practical performance.
