In modern chemical processing, laboratory systems, semiconductor manufacturing, and industrial equipment, the hose used for fluid transfer directly affects system reliability, contamination control, and maintenance efficiency.
When transporting aggressive chemicals, solvents, high-purity fluids, or sensitive process materials, conventional rubber hoses or general-purpose tubing may experience swelling, corrosion, contamination, or shortened service life.
A smooth bore PTFE hose provides a reliable solution by combining the excellent chemical resistance of polytetrafluoroethylene (PTFE) with a low-friction inner surface designed for demanding fluid transfer applications.
Manufactured from high-quality PTFE resin, Jingcheng smooth bore PTFE hoses are suitable for applications requiring corrosion resistance, cleanliness, temperature stability, and long-term performance.

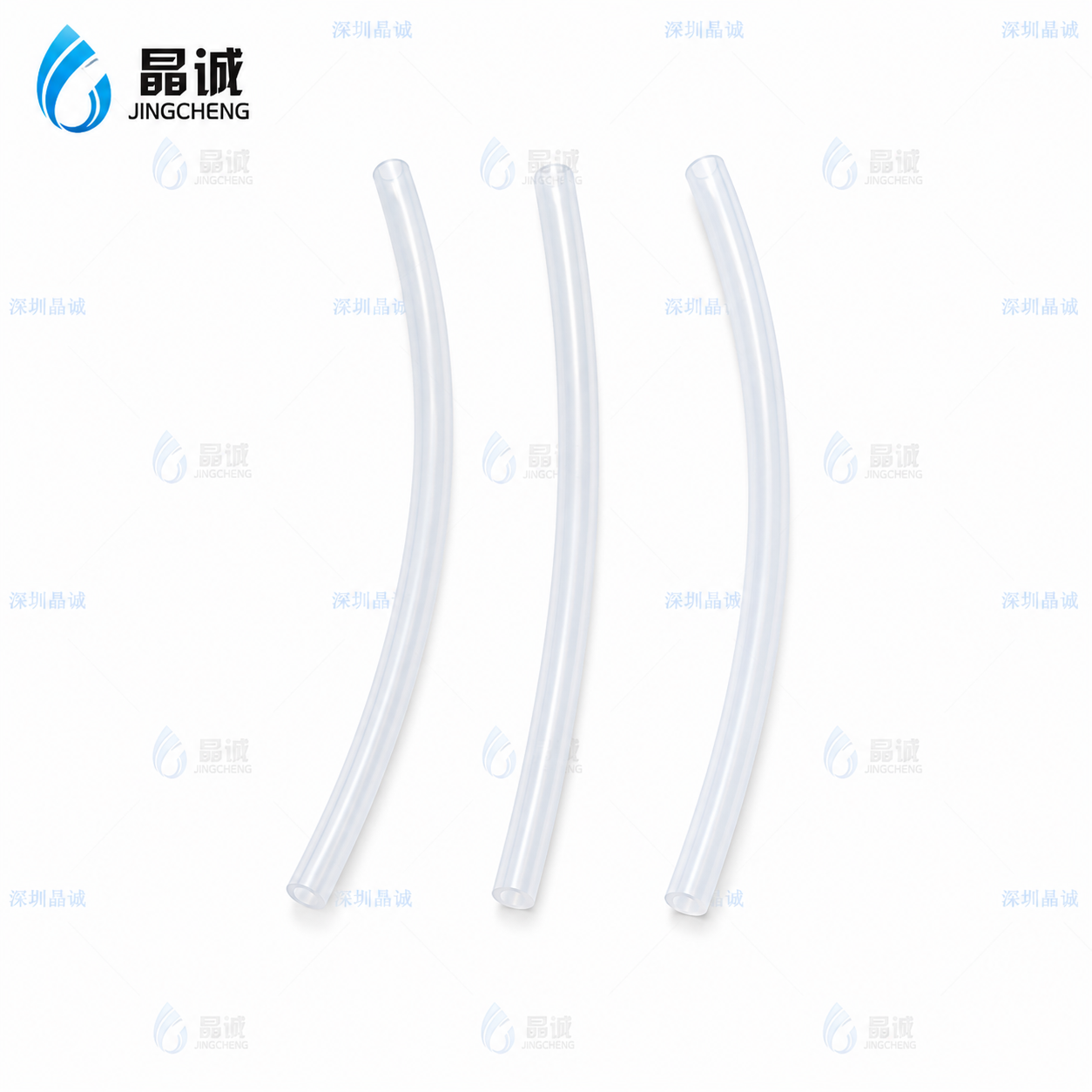

A smooth bore PTFE hose is a flexible hose featuring a smooth PTFE inner tube without internal corrugation or irregular structures.
The seamless inner surface provides:
Reduced fluid resistance
Lower pressure loss
Easy cleaning and flushing
Reduced material accumulation
Improved flow consistency
Unlike traditional hoses with rough internal surfaces, smooth bore PTFE tubing helps maintain stable fluid movement, making it especially suitable for applications where cleanliness and process control are important.
PTFE is widely used in demanding industries because of its exceptional chemical stability.
The PTFE inner liner offers resistance against:
Strong acids
Strong alkalis
Organic solvents
Oxidizing agents
Corrosive chemicals
High-purity process fluids
Even when exposed to aggressive media, PTFE maintains excellent performance without easily reacting with transported materials.
This makes smooth bore PTFE hose an ideal choice for:
Chemical processing equipment
Laboratory systems
Semiconductor manufacturing equipment
Pharmaceutical production lines
Analytical instruments
Industrial fluid transfer systems
Many industrial fluids can quickly damage ordinary hose materials.
PTFE provides outstanding resistance to a wide range of chemicals, allowing engineers to design safer and more reliable transfer systems.
Typical applications include:
Acid transfer
Solvent delivery
Chemical sampling
Process equipment connections
The smooth PTFE bore reduces friction between the hose wall and the transported medium.
Benefits include:
Improved flow efficiency
Less pressure loss
Easier material discharge
Reduced residue buildup
For industries handling expensive or sensitive materials, minimizing product retention is an important factor.
Jingcheng smooth bore PTFE hose is designed for extreme temperature environments.
Temperature range:
-70°C to +260°C
This allows the hose to operate in applications involving:
Hot chemical fluids
Cooling systems
Thermal cycling processes
High-temperature industrial equipment
The smooth bore PTFE hose consists of a PTFE inner tube manufactured through precision extrusion processes.
The production process includes:
PTFE material extrusion
Drying treatment
High-temperature sintering
Precision shaping
This manufacturing process ensures:
Uniform tube thickness
Stable mechanical performance
Reliable chemical resistance
Consistent dimensional accuracy
Jingcheng also supports customized hose solutions according to customer requirements.
Chemical manufacturers require hoses capable of handling aggressive fluids safely.
Applications include:
Chemical transfer lines
Reactor connections
Sampling systems
Solvent delivery equipment
Pharmaceutical processes require clean and stable fluid pathways.
Smooth PTFE surfaces help reduce contamination risks and simplify cleaning procedures.
Common applications:
Pharmaceutical equipment
Laboratory systems
High purity liquid transfer
Precision manufacturing requires extremely clean fluid handling systems.
PTFE hoses are commonly used for:
Chemical supply systems
Cleaning equipment
Process fluid transportation
Although both products use PTFE material, their designs serve different purposes.
Feature | Smooth Bore PTFE Hose | Corrugated PTFE Hose |
|---|---|---|
Inner surface | Smooth | Corrugated |
Flow resistance | Lower | Higher |
Cleaning | Easier | More difficult |
Flexibility | Moderate | Higher |
Main advantage | High purity transfer | Tight bending installation |
Smooth bore PTFE hose is preferred when fluid cleanliness and flow efficiency are the priority.
Jingcheng provides customized PTFE hose solutions including:
Custom length
Customized fittings
Stainless steel reinforcement
Special connection design
OEM production
Different industries have different requirements for:
Pressure rating
Temperature range
Chemical compatibility
Installation space
Our engineering team can provide suitable hose solutions according to actual working conditions.
As a professional PTFE hose manufacturer, Jingcheng focuses on customized industrial hose solutions.
Advantages include:
From PTFE extrusion to hose assembly, production processes are controlled internally.
We support customized designs for industrial equipment manufacturers and system integrators.
Each hose is manufactured according to strict production procedures to ensure stable performance.
Our PTFE hose solutions are used in chemical, pharmaceutical, food, automation, and industrial equipment applications.
Smooth bore PTFE hose is a reliable solution for industries requiring clean, stable, and chemical-resistant fluid transfer.
With excellent chemical resistance, low friction characteristics, and wide temperature capability, it provides long-term performance in demanding industrial environments.
For chemical processing equipment, laboratory systems, semiconductor applications, and high-purity fluid transfer, Jingcheng can provide customized PTFE hose solutions designed according to your application requirements.
