Constant-Temperature Water Heating Hose for Managing Thermal Lag During Machine Startup and Short Production Stops

Temperature-controlled machinery does not become thermally stable the moment the main heater is switched on.

A system may contain:

• Tanks

• Pumps

• Valves

• Rigid pipework

• Flexible connections

Each part needs time to reach the desired operating condition.

The flexible hose between two machine modules is often overlooked.

If heated water leaves the main temperature-control unit but loses heat in an unheated flexible connection, the downstream equipment can take longer to reach a stable condition.

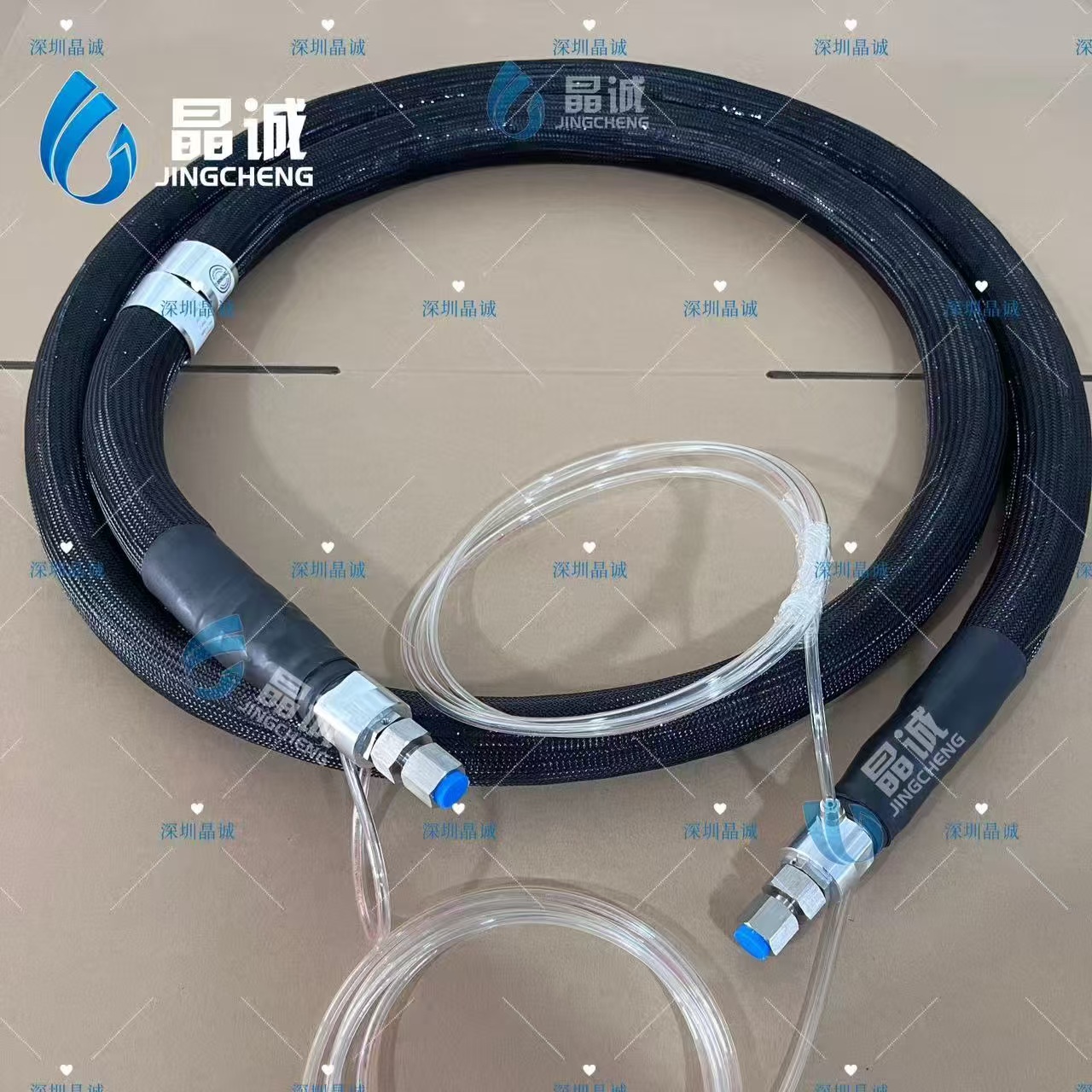

Jingcheng’s constant-temperature water heating hose is designed for food conveying and temperature-controlled equipment requiring heated-water connections.

The product uses a customized food-contact inner tube and the catalog specifies a maximum temperature of approximately:

100°C

The hose can be customized according to machine layout and operating requirements.

Startup Thermal Lag Can Reduce Effective Production Time

When equipment starts in the morning, operators may wait for the complete system to reach the required temperature.

The heating unit itself may already show the target temperature.

However, other components may still be cooler.

This can create a delay before the machine reaches a stable operating condition.

A heated water hose can help maintain temperature along flexible connections that might otherwise become a local source of heat loss.

The Last Flexible Connection Can Matter

A temperature-control system may use insulated rigid pipe for most of its length.

But the final connection to a movable or serviceable component often needs to be flexible.

If this section is not thermally controlled, it can act differently from the rest of the system.

The water heating hose helps create a more continuous thermal path through the flexible section.

Stop-and-Start Production Creates Repeated Thermal Recovery

Some production equipment does not run continuously all day.

Machines may stop for:

• Product preparation

• Cleaning

• Maintenance

• Shift changes

• Short production interruptions

During these stops, water inside flexible lines can cool.

When the equipment restarts, the system must recover.

A heated hose can reduce the amount of thermal recovery required in the flexible section.

This can be useful where production involves frequent stop-and-start operation.

Maximum Temperature Around 100°C

The catalog specifies a maximum temperature of approximately:

100°C

This makes the product suitable for low-temperature water-heating and constant-temperature applications rather than extreme high-temperature processes.

The actual operating temperature should be selected according to the equipment.

For many applications, consistent temperature is more important than maximum temperature.

Uniform Heating Along the Hose

The catalog describes a heating structure with heating elements distributed evenly around the hose.

The objective is to reduce internal wall temperature variation.

For a water connection, uniform heating helps avoid having one section of the flexible line significantly cooler than another.

This supports more predictable thermal behavior throughout the connection.

Insulation Helps Reduce Heat Loss to the Room

Without insulation, a heated hose would continuously lose energy to the surrounding environment.

The insulation layer helps retain generated heat.

The catalog also states that higher-efficiency insulation materials may be used when external surface temperature requires additional consideration.

This allows the hose construction to be adapted to different machine environments.

Hose Length Influences Thermal Response

A short flexible connection contains relatively little water and has less surface area.

A long hose contains more water and exposes a larger surface to the surrounding environment.

Therefore, heating requirements can change substantially with hose length.

For customized projects, heating power should be considered together with:

hose diameter + hose length + target temperature + ambient environment.

Diameter Influences Both Flow and Internal Water Volume

Available catalog sizes range from approximately 1/4" to 1".

Larger diameter increases flow capacity but also increases the amount of water contained inside the hose.

That means more thermal mass must be heated during startup.

This creates a practical trade-off.

A hose should provide sufficient water flow without creating unnecessary volume.

Pressure Capability Across the Product Family

Selected working-pressure values include approximately:

• 1/4" — 173 bar / 2,501 psi

• 5/16" — 158 bar / 2,284 psi

• 3/8" — 135 bar / 1,958 psi

• 1/2" — 118 bar / 1,704 psi

• 5/8" — 88 bar / 1,269 psi

• 3/4" — 85 bar / 1,234 psi

• 1" — 75 bar / 1,088 psi

Actual water-heating systems may operate at much lower pressures.

The hose should therefore be selected according to the actual application rather than using the highest available pressure rating as the main criterion.

Bending Radius Affects Machine Layout

The catalog specifies minimum bending radii from approximately:

• 30 mm for 1/4"

• 40 mm for 5/16"

• 60 mm for 3/8"

• 150 mm for 1/2"

• 180 mm for 5/8"

• 260 mm for 3/4"

• 300 mm for 1"

For compact equipment, this should be considered before the hose size is finalized.

Useful Between Fixed and Serviceable Equipment Sections

A flexible water heating hose can be useful where rigid pipe is inconvenient.

Potential locations include connections between:

• Temperature-control unit and machine

• Tank and process module

• Heating unit and movable section

• Utility manifold and serviceable component

The flexible section can make component removal and maintenance easier while maintaining thermal control.

Startup Performance Can Be Improved Through System-Level Design

A heated hose alone does not determine total machine warm-up time.

Other factors include:

• Heater capacity

• Water volume

• Pump flow

• Pipe insulation

• Machine thermal mass

However, eliminating an uncontrolled flexible section can help reduce one source of thermal lag.

This is why hose heating should be considered as part of the complete system rather than as an isolated accessory.

Customized Food-Contact Inner Tube

The product catalog states that the water heating hose uses a customized food-grade material-contact inner tube.

For food-processing applications, customers should confirm their specific material and documentation requirements.

The exact ordered configuration should be determined according to the equipment and market requirements.

Electrical Customization

Different machines may use different control systems.

Jingcheng can customize:

• Voltage

• Heating power

• Temperature sensor

• Electrical connector

• Cable length

• Connector pin arrangement

For replacement projects, the existing connector and electrical specification can be used as a reference.

What Information Should Be Provided?

For water heating hose selection, please provide:

Water temperature, working pressure, flow requirement, hose length, inner diameter, equipment application, fittings, voltage, heating power, sensor type, electrical connector and ambient operating conditions.

Why Choose Jingcheng

Jingcheng specializes in customized heated hose and PTFE hose manufacturing.

For temperature-controlled water applications, we support:

• Factory-direct manufacturing

• Customized hose assemblies

• Food-contact inner tube options

• Electrical customization

• OEM development

• Replacement hose matching

• Sample support

• Short lead times

• Engineering assistance

• Competitive pricing

Conclusion

Machine warm-up is a system-level process.

Even when the main water heater has reached its target temperature, an unheated flexible connection can introduce additional thermal lag.

A constant-temperature water heating hose helps maintain thermal continuity through the flexible part of the system, particularly during startup and repeated stop-start production.

Jingcheng’s water heating hose provides multiple diameter options, customized food-contact inner tubing and a catalog maximum temperature of approximately 100°C.

For OEM equipment, the correct design should balance water flow, hose volume, length, heating power, bending radius and machine startup requirements.
