Industrial fluid systems are becoming increasingly specialized.
In some applications, the main requirement is not extreme pressure, reinforcement or repeated bending.
Instead, the priority is to create the simplest possible material-contact path between two points.
This is particularly important in systems handling:
High-purity chemicals
Strong acids
Strong alkalis
Oxidizing agents
Reducing agents
Organic solvents

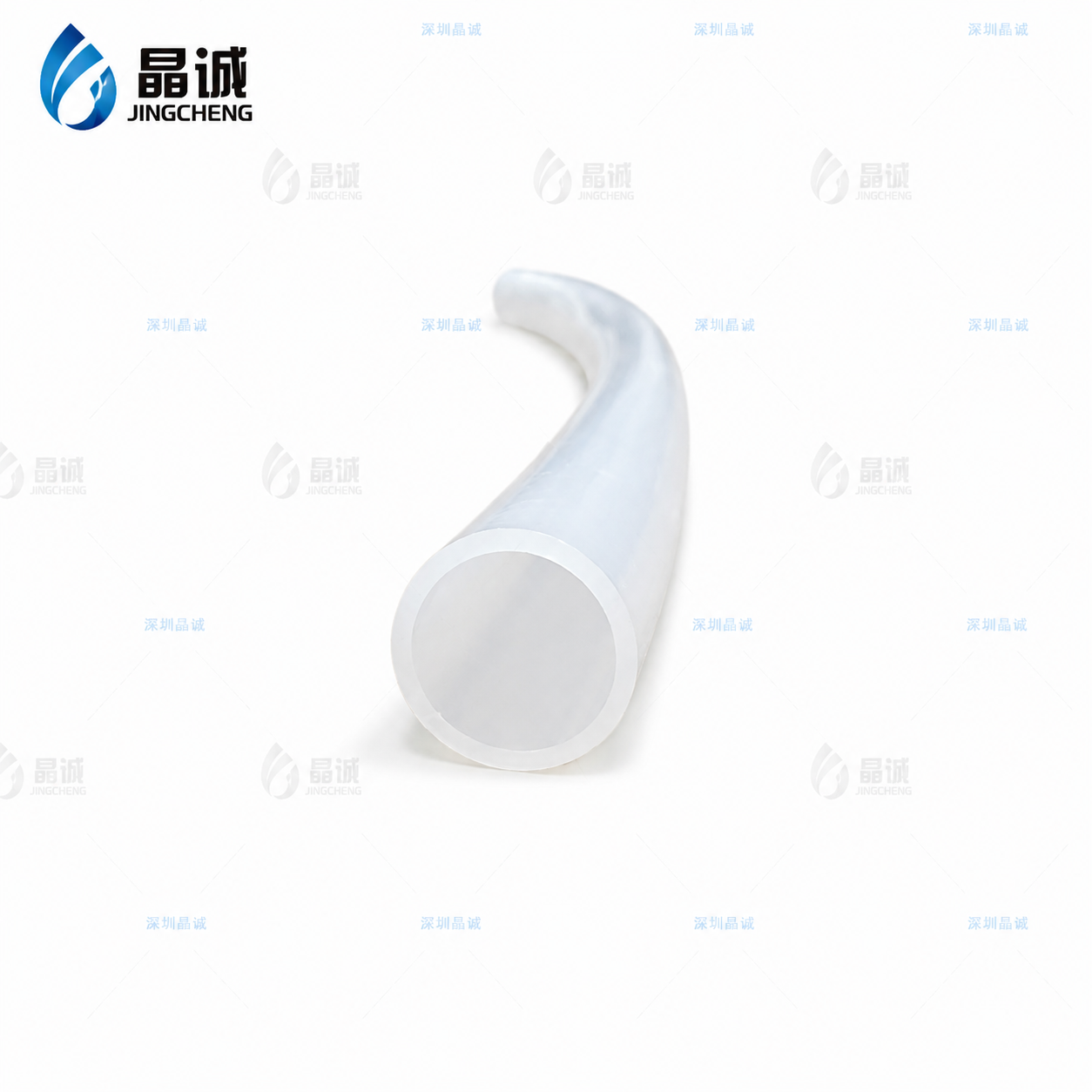

The JCC-00000-PTFE smooth tube provides a straight-wall PTFE construction without external braiding or complex internal corrugation.
This makes it a fundamental material for chemical equipment where simplicity, chemical compatibility and a smooth internal surface are important.
Every additional layer or structural feature inside a hose serves a purpose.
Corrugations improve flexibility.
Braiding improves pressure resistance.
Protective covers improve external durability.
But when those characteristics are unnecessary, a simpler tube can offer practical advantages.
A smooth PTFE tube provides a continuous material path without internal convolutions.
This can be useful in equipment where engineers prioritize:
Straightforward flow
Low internal surface complexity
Easy routing through fixed equipment
Custom dimensions
Material compatibility
The result is a versatile basic tube that can be integrated into many different systems.
The catalog specifically identifies the product as suitable for high-purity chemical transportation.
In these systems, the material-contact surface is a critical part of the equipment design.
PTFE is widely selected because of its inert behavior toward many aggressive chemical media.
Typical applications may involve:
Chemical dosing equipment
Laboratory fluid systems
High-purity chemical delivery
Analytical instruments
Chemical-processing modules
Precision liquid handling
Final suitability should always be confirmed according to the exact chemical, concentration, temperature and pressure.
The source catalog lists applications involving:
Strong acids
Strong alkalis
Strong oxidizing agents
Reducing agents
Various organic solvents
This broad range is one reason PTFE is commonly considered when conventional polymer tubing may have limited chemical compatibility.
However, chemical compatibility should never be determined only by the general material name.
Factors such as:
Concentration
Temperature
Pressure
Exposure time
should also be evaluated.
The smooth internal geometry can help create a more straightforward flow path.
Compared with internally corrugated structures, a smooth tube has fewer geometric changes along the material-contact surface.
This can help reduce areas where process fluid may remain after transfer.
It may also support easier flushing in suitable applications.
This makes the tube useful in systems involving frequent material movement between tanks, pumps, valves or analytical components.
The catalog specifies a temperature range of:
-70°C to +260°C
This wide range allows the tube to be considered for both cold and elevated-temperature chemical environments.
However, the allowable working pressure decreases as operating conditions become more demanding.
Pressure selection must therefore be evaluated together with:
Tube size
Wall thickness
Temperature
Bending condition
Smooth PTFE tubing is available in different internal diameters and wall thicknesses.
Wall thickness influences:
Outer diameter
Mechanical stability
Flexibility
Pressure capability
Bending behavior
For custom equipment, simply requesting “1/2-inch PTFE tube” may not provide enough information.
The required wall thickness and complete dimensional tolerance should also be specified.
Smooth PTFE tube is generally more appropriate when the fluid path does not require the extremely tight bends available from convoluted hose structures.
Typical installations may include:
Instrument panels
Chemical cabinets
Dosing modules
Fixed machinery
Laboratory systems
Chemical distribution equipment
Where very tight bending, vibration or significant movement is required, a reinforced or convoluted PTFE hose may be more appropriate.
The product page lists:
ISO9001:2015
US FDA 21 CFR 177.1550
SGS
These references should be evaluated according to the specific material and project requirements.
For regulated applications, customers should confirm which documentation applies to the exact product configuration being ordered.
Jingcheng can customize parameters including:
Inner diameter
Outer diameter
Wall thickness
Tube length
Material configuration
Finished assembly requirements
For OEM equipment, tubing can be selected according to the machine design rather than relying only on standard dimensions.
Potential applications include:
Chemical dosing equipment
Semiconductor-related chemical systems
Laboratory instruments
Solvent-transfer equipment
High-purity fluid systems
Analytical devices
Chemical treatment equipment
Precision liquid handling
OEM process machinery
Industrial chemical distribution systems
Please provide:
Chemical name
Concentration
Working temperature
Working pressure
Inner diameter
Outer diameter
Required wall thickness
Tube length
Bending requirement
Cleaning method
Equipment application
This information helps determine whether a smooth tube is the correct structure or whether reinforcement is required.
The JCC-00000-PTFE smooth tube is a simple product, but that simplicity is exactly what makes it useful.
For high-purity chemical and aggressive-fluid applications that do not require complex reinforcement or extreme flexibility, a straight smooth PTFE material path can provide a clean and practical equipment solution.
The correct tube should be selected according to the actual chemical, temperature, pressure, dimensions and installation conditions.
