TPU Covered PTFE Hose for Cleaner, More Organized Fluid-Line Management in Industrial Machinery

Complex industrial equipment may contain many flexible hoses installed side by side.

A single machine can include separate circuits for:

• chemicals,

• compressed media,

• process fluids,

• paint,

• adhesives,

• hydraulic functions.

When several braided hoses are routed through the same equipment frame, maintenance becomes more complicated.

Technicians need to identify which line performs which function, while equipment designers must also protect the reinforcement from repeated contact with surrounding machine structures.

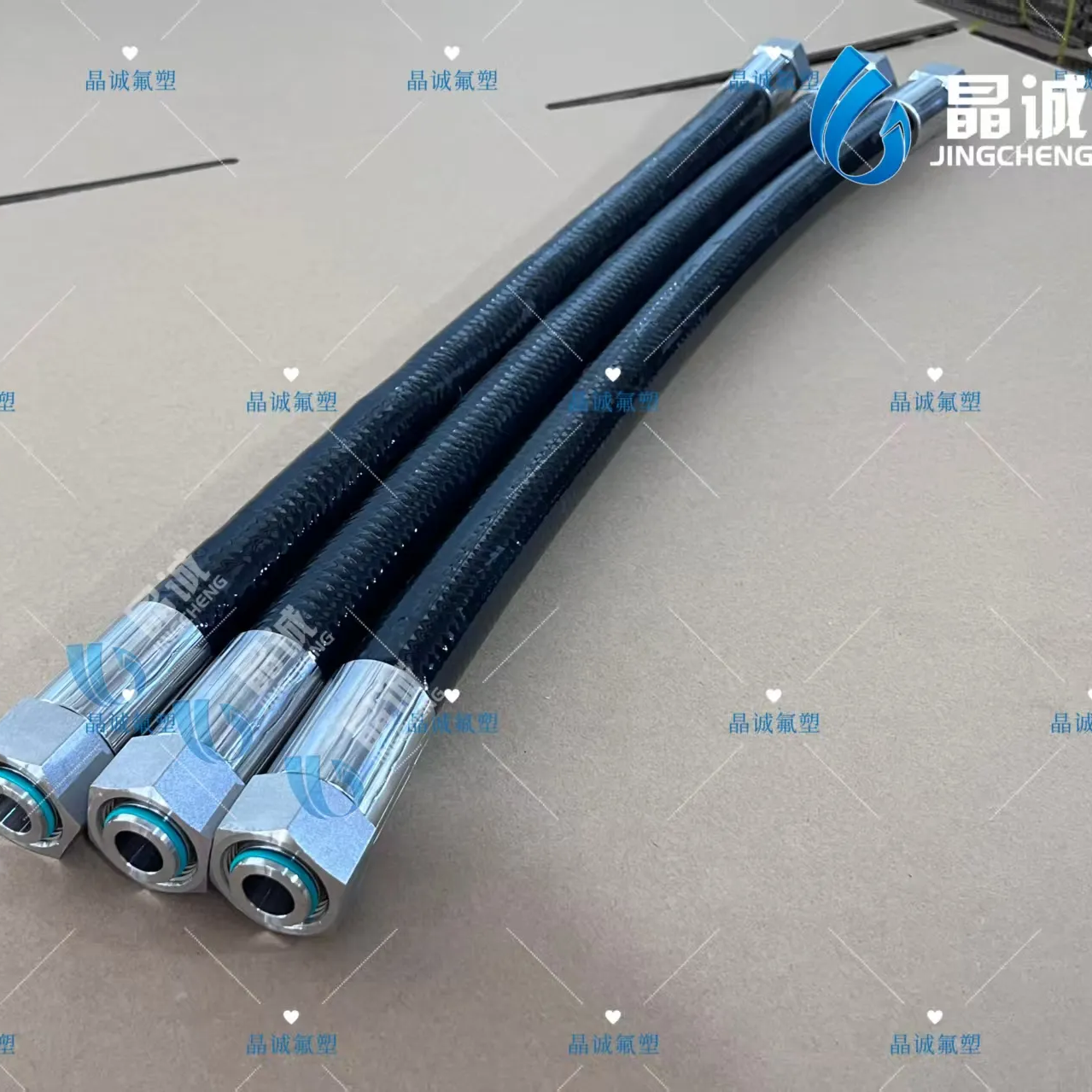

The JCC-61100-PTFE TPU covered braided hose adds an additional smooth outer layer to a conventional reinforced PTFE hose.

Its construction includes:

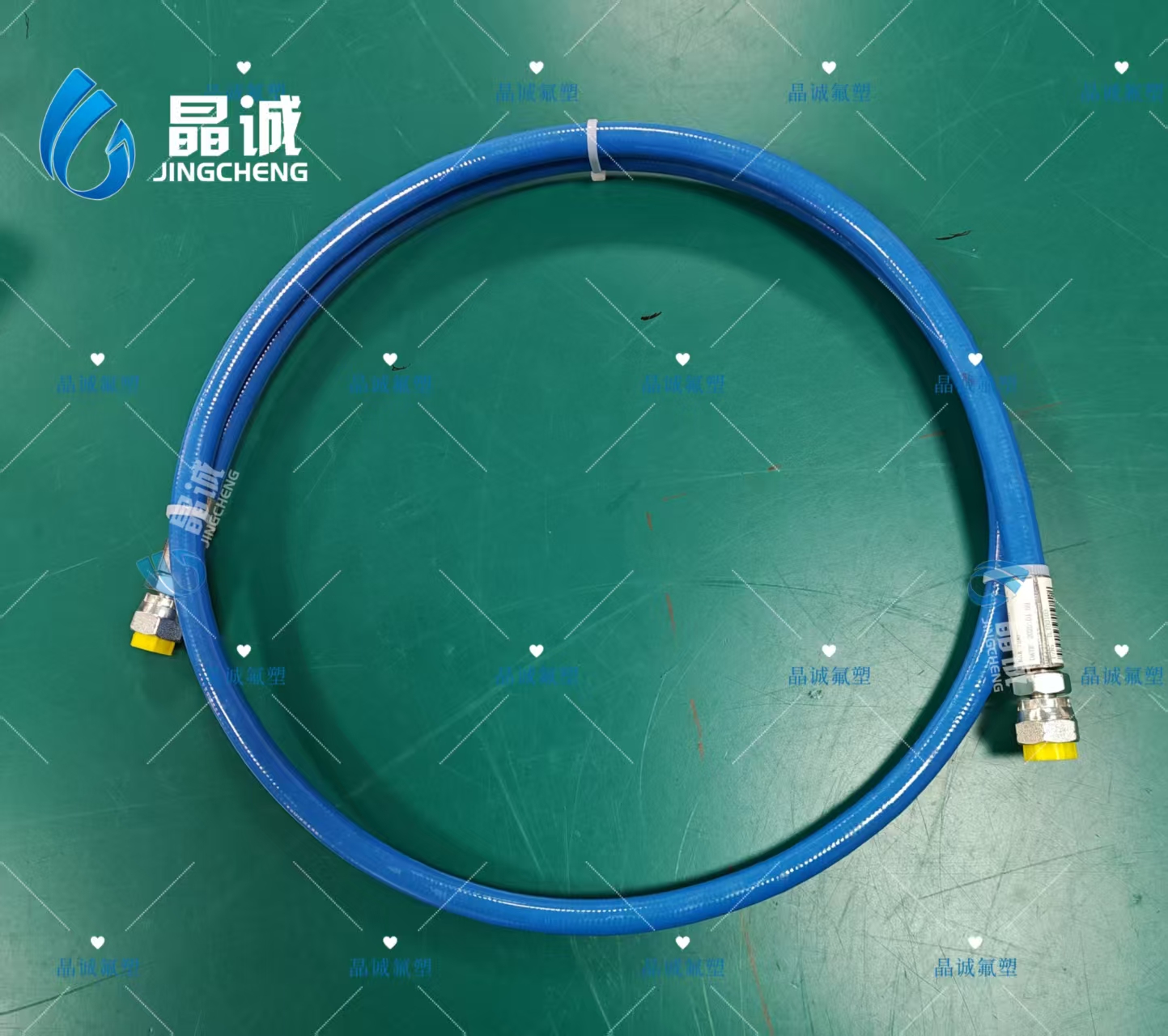

Smooth PTFE Inner Tube + High-Strength 304 Stainless Steel Braid + Smooth TPU Outer Cover

The catalog lists a temperature range of approximately:

-70°C to +260°C

and offers TPU colors including black, red and blue according to customization requirements.

This makes the hose useful not only for fluid transfer, but also for improving organization and serviceability inside complex equipment.

Why Multi-Line Machinery Creates a Maintenance Challenge

When many identical metallic braided hoses are installed together, they can look very similar.

During maintenance, technicians may need to trace a hose from one machine component to another.

This becomes increasingly difficult inside:

• large dispensing systems,

• process skids,

• coating machines,

• chemical equipment,

• automated production lines.

A covered hose provides additional opportunities for visual identification and organized routing.

Customized TPU Colors Can Help Identify Fluid Circuits

The catalog states that the smooth outer PU layer can be supplied in colors such as:

• black,

• red,

• blue.

Different colors can be assigned to different hose circuits.

For example, an OEM equipment manufacturer may use different colors for:

• supply,

• return,

• different media,

• different machine zones.

This can help technicians identify lines more quickly during servicing.

Color should not replace technical labels or documentation, but it can provide an additional visual reference.

Smooth Outer Surface Makes Hose Bundles Easier to Organize

Exposed stainless steel braid has a textured woven surface.

The TPU jacket creates a smoother outside profile.

This can be useful when several hoses are:

• bundled,

• routed through supports,

• installed close together.

The smooth exterior provides a more controlled outer surface than exposed braid.

This can make complex hose routing visually cleaner and easier to manage.

TPU Jacket Protects the Stainless Steel Reinforcement

The product description specifically states that the PU sheath protects the stainless steel reinforcement from:

• wear,

• contamination.

This is important because the braid is the mechanical reinforcement layer of the hose.

Protecting that braid from the external environment can help preserve the hose assembly during service.

Reducing Direct Contact Between Braid and Machine Structures

A bare stainless braid can directly contact:

• frames,

• guides,

• brackets,

• nearby hoses.

The TPU cover creates a separation layer between the braid and the outside environment.

This can be useful in equipment where hoses run through crowded machine areas.

The cover should still not be used as a substitute for correct hose clamps, guides and routing practices.

Smooth PTFE Inner Tube for Diverse Process Media

Inside the hose, the material-contact path remains smooth PTFE.

The catalog identifies media including:

• fuel,

• gas,

• strong acids,

• strong alkalis,

• organic solvents.

PTFE provides broad resistance to many industrial media.

Actual compatibility should be confirmed for the specific process conditions.

Applications for Paint and Adhesive Systems

The source catalog identifies viscous materials such as:

• paint,

• adhesives.

These systems can contain multiple material lines.

Color-coded outer jackets can help distinguish lines in equipment containing several:

• colors,

• adhesive materials,

• material circuits.

This can be particularly useful for OEM dispensing and coating machines.

Pharmaceutical, Food and Cosmetic Equipment

The product catalog also identifies:

• pharmaceutical,

• food,

• cosmetics,

• beverage applications.

For these applications, the smooth outer cover can help create a more enclosed external hose surface.

The exact material-contact requirements and documentation should be confirmed for the specific ordered configuration.

Low Permeability Is Another Catalog Feature

The product description highlights relatively low permeability.

This can be relevant for selected applications where limiting transfer through the hose wall is important.

Actual permeability performance varies with:

• fluid,

• pressure,

• temperature,

• hose construction.

Project-specific requirements should therefore be confirmed rather than assuming one universal value.

High-Temperature Hydraulic and Pneumatic Applications

The catalog also describes use in high-temperature hydraulic or pneumatic environments.

This demonstrates that the hose is not limited to clean-process applications.

It can also be considered for industrial machinery requiring:

• reinforced flexible fluid lines,

• external hose protection,

• organized routing.

Pressure Capability Across Multiple Sizes

The product family includes sizes from approximately 5/32" to 1".

Selected working pressures include approximately:

• 5/32" — 27 MPa

• 1/4" — 42 MPa

• 5/16" — 19 MPa

• 3/8" — 23 MPa

• 1/2" — 23 MPa

• 5/8" — 18 MPa

• 3/4" — 15 MPa

• 1" — 10 MPa

The required diameter should be selected according to actual flow and pressure requirements.

Hose Routing Should Consider Minimum Bend Radius

The minimum bending radius increases as hose size increases.

The catalog lists values from approximately:

50 mm to 300 mm.

Equipment designers should allow sufficient routing space.

A protective TPU jacket does not change the need to respect the mechanical bend limits of the hose.

Useful for Modular Equipment Platforms

An equipment manufacturer may build several machine models using similar fluid circuits.

A standardized TPU-covered hose family can support machine-platform organization.

For example, the manufacturer may define:

• one color for material supply,

• another for return,

• another for auxiliary fluid.

This creates a repeatable visual system across multiple machine models.

Replacement and After-Sales Advantages

During field maintenance, technicians often work without the original equipment designer present.

Clear hose identification can simplify replacement.

If the original specification includes:

• color,

• hose diameter,

• length,

• fittings,

the replacement assembly becomes easier to identify.

This can improve spare-part management for OEM equipment manufacturers.

Customization Options

Jingcheng can customize:

• TPU outer color,

• hose length,

• inner diameter,

• fittings,

• thread standards,

• connection orientation,

• complete assemblies.

What Information Should Be Provided?

Customers should provide:

• transferred medium,

• working temperature,

• working pressure,

• hose length,

• inner diameter,

• required TPU color,

• installation environment,

• bending radius,

• end fittings,

• equipment application.

Why Choose Jingcheng

Jingcheng supports customized PTFE hose assemblies for:

• industrial equipment manufacturers,

• system integrators,

• machine builders,

• replacement parts suppliers.

Capabilities include:

• PTFE tube production,

• stainless steel braiding,

• outer-cover customization,

• fitting integration,

• OEM development,

• sample production,

• short lead times.

Conclusion

A fluid hose is not only part of the pressure system.

In modern equipment, it is also part of the machine’s routing, maintenance and service architecture.

The JCC-61100 combines a smooth PTFE inner tube, 304 stainless steel braid and a smooth TPU outer jacket.

For multi-line machinery, the TPU cover can help protect the reinforcement, provide customizable visual identification and create a more organized hose-routing system.

This makes the product particularly suitable for machines where:

multiple flexible lines + regular servicing + clear circuit identification + external hose protection

are important design requirements.
