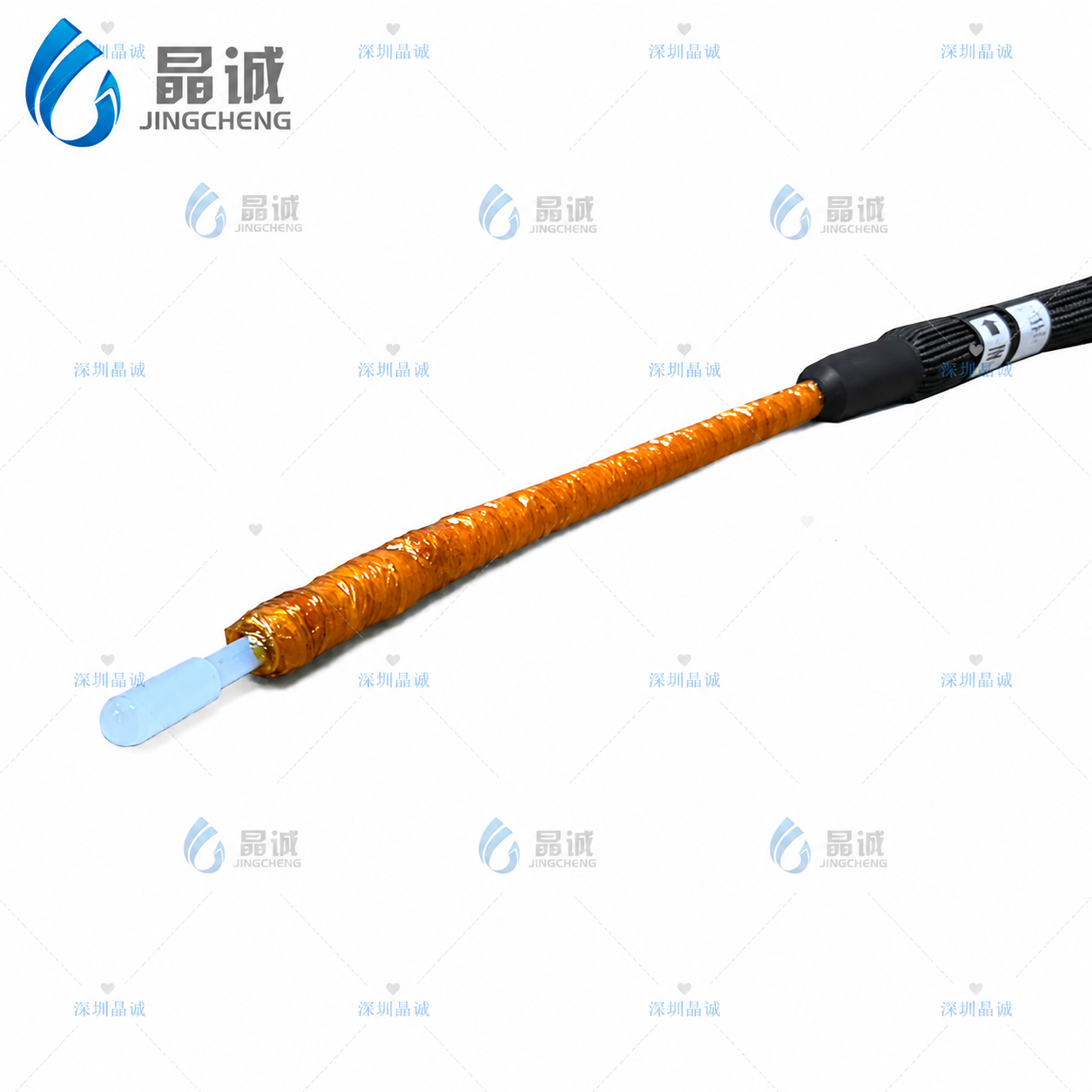

Temperature-Maintained Inert Gas Hose for Glass Production Atmosphere Control

Introduction

Stable gas delivery is an important part of many modern glass-manufacturing processes.

Nitrogen, argon and other compatible inert gases may be used to create a controlled atmosphere, protect a high-temperature process zone or support specialized glass-forming operations. However, gas conditions can change as the medium travels from the supply point to the production equipment.

A temperature-maintained inert gas hose provides a flexible heated connection while reducing thermal loss along the transfer route.

Shenzhen Jingcheng High-tech manufactures customized heated gas hoses for glass production lines, thermal-processing equipment and other industrial systems requiring controlled gas temperature.

Why Temperature Stability Matters in Glass Manufacturing

Glass-production equipment often operates around furnaces, forming stations and thermal-treatment areas.

The gas may leave its source at the correct temperature but cool while passing through an ordinary flexible tube. This can create a difference between the expected and actual gas conditions at the point of use.

Potential consequences include:

• Unstable outlet temperature

• Variation in process atmosphere

• Slower equipment response

• Condensation in suitable gas mixtures

• Inconsistent thermal treatment

• Longer equipment warm-up time

• Reduced process repeatability

A heated hose compensates for heat loss and helps maintain a more consistent gas-delivery condition.

A Flexible Thermal Connection Between Machine Sections

Rigid heated piping may be difficult to install when the gas line must pass around machine frames, furnace structures, valves or moving components.

A heated flexible hose can accommodate:

• Restricted installation space

• Minor equipment misalignment

• Machine vibration

• Thermal expansion

• Maintenance disassembly

• Non-standard connection positions

The hose functions as both a gas-transfer path and a controlled thermal bridge between equipment sections.

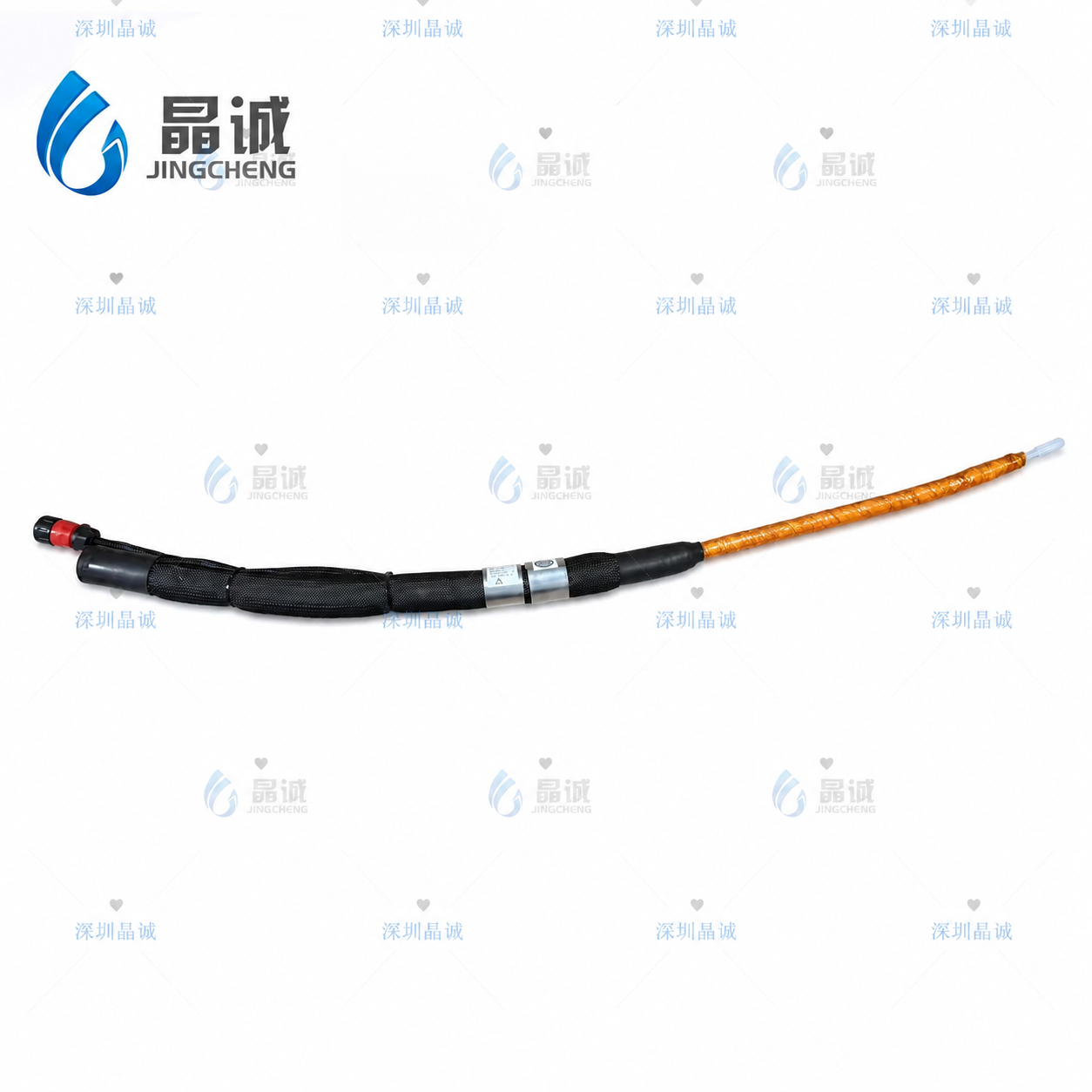

Hose Construction

A customized glass-production gas hose may contain:

• Gas-compatible inner tube

• Pressure reinforcement

• Uniformly distributed heating elements

• Thermal-insulation layer

• Protective outer cover

• Temperature sensor

• Inlet and outlet fittings

• Electrical cable and connector

The inner-tube material should be selected according to gas purity, temperature, pressure and contamination-control requirements.

Uniform Heat Distribution

The heating layer is arranged around the hose to reduce temperature differences along the gas path.

More consistent heat distribution helps reduce localized cold sections and supports a stable outlet temperature.

The design can help provide:

• More predictable gas conditions

• Reduced thermal fluctuation

• Faster process startup

• Stable continuous operation

• Better equipment-to-equipment consistency

The heating power should be calculated according to hose length, diameter, ambient conditions and required gas temperature.

Standard Temperature Capability

The catalog product supports temperatures up to:

230°C

Special temperature requirements can be evaluated according to:

• Inner-tube material

• Hose length

• Gas-flow rate

• Ambient temperature

• Insulation thickness

• Heating power

• Temperature-sensor position

Typical Applications

• Glass production lines

• Glass forming machinery

• Furnace atmosphere-control systems

• Nitrogen supply lines

• Argon delivery equipment

• Glass coating machinery

• Thermal-treatment systems

• Laboratory glass-processing equipment

• Protective-gas pipelines

• Flexible heated gas connections

Customization Options

Reference Product Data

*The catalog lists 630 bar and 3,915 psi together, but these values are not equivalent. This row should be checked before publication.

The table contains reference values. Final pressure capability depends on temperature, gas type, fittings and complete hose construction.

Information Required for Selection

Please provide:

• Gas type

• Required gas purity

• Inlet gas temperature

• Required outlet temperature

• Working pressure

• Gas-flow rate

• Hose length

• Inner diameter

• Voltage

• Heating power

• Sensor type

• Inlet and outlet fittings

• Electrical connector

• Equipment model

• Ambient temperature

• Original hose or drawing
