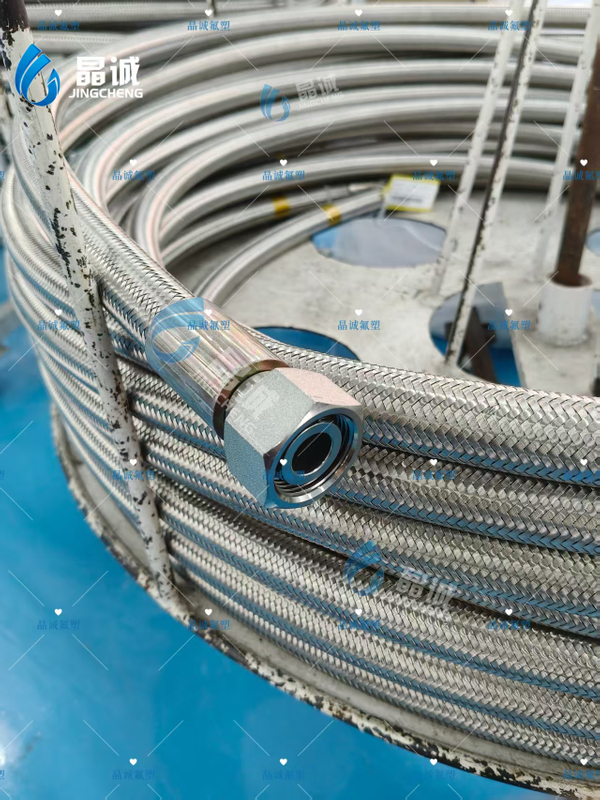

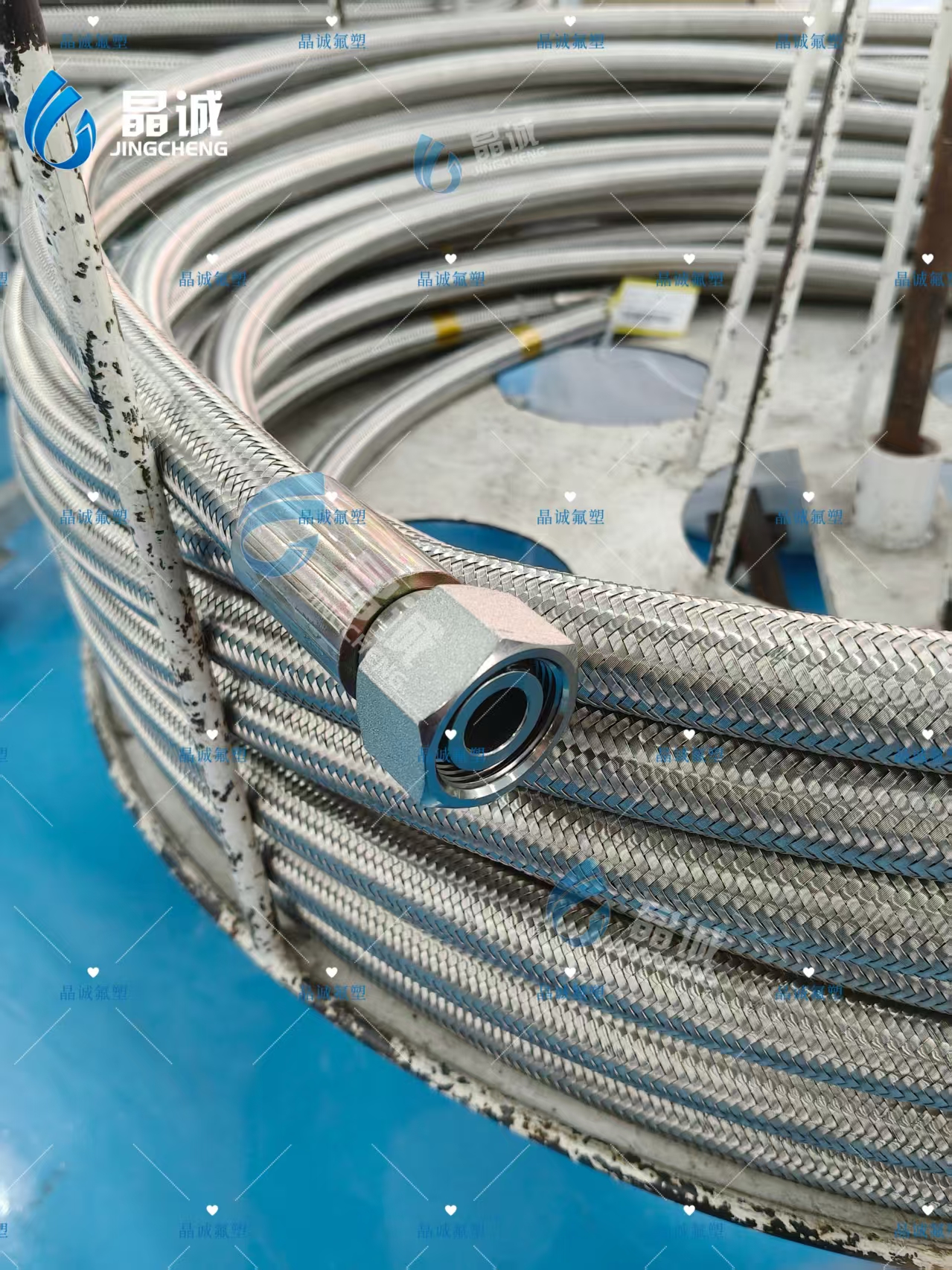

An ultra-flexible convoluted PTFE braided hose is designed for systems that require chemical resistance, pressure reinforcement and an exceptionally small bending radius.
The hose uses a corrugated PTFE inner tube covered by one layer of high-strength 304 stainless steel wire braid. The convoluted PTFE structure provides significantly greater flexibility than a conventional smooth-bore PTFE tube, while the stainless steel braid increases working pressure and protects the hose against external damage.
The JCC-11100-PTFE series is suitable for pharmaceutical, food, chemical and industrial equipment where compact routing and flexible movement are required.
Industrial equipment often has limited installation space. The hose may need to route around pumps, valves, frames or other machine components.
A rigid hose can create:
Excessive stress at fittings
Difficult installation
Large routing space
Premature fatigue
Hose kinking
Connection misalignment
Vibration-related damage
The convoluted structure allows the hose to bend more easily and reduces the minimum bend radius.
The inner and outer surfaces of the PTFE hose are corrugated, providing high flexibility and excellent bending performance.
Selected sizes have a minimum bending radius as low as 10 mm.
The external braid improves pressure resistance, burst strength and mechanical protection.
The hose is suitable for both low-temperature and elevated-temperature applications.
PTFE is resistant to many acids, alkalis, solvents and corrosive process media.
Catalog sizes range from 1/4 inch to 2 inches.
Pharmaceutical processing equipment
Food conveying systems
Chemical production equipment
Laboratory systems
Dosing equipment
Filling machinery
Flexible pump connections
Compact equipment layouts
Corrosive liquid transfer
High-purity fluid systems
Equipment vibration connections
Industrial process pipelines
Item | Specification |
|---|---|
Product Name | Convoluted PTFE Braided Hose |
Model Series | JCC-11100-PTFE |
Inner Hose | Corrugated PTFE hose |
Reinforcement | High-strength 304 stainless steel braid |
Temperature Range | -70°C to +200°C |
Inner Diameter Range | 1/4” to 2” |
Main Advantages | Small bending radius, flexibility and chemical resistance |
Applications | Pharmaceutical, food and chemical industries |
Customization | Length, fittings and hose assembly |
Catalog Standard Reference | ISO9001:2015 / US FDA 21 CFR 177.1550 / SGS |
Model | Inner Diameter | Tube Outer Diameter | Braided Hose OD | Working Pressure | Burst Pressure | Minimum Bending Radius |
JCC-11104-PTFE | 1/4” / 5.8 mm | 8.3 mm | 10.3 mm | 2,001 psi / 13.8 MPa | 8,004 psi / 55.2 MPa | 10 mm |
JCC-11108-PTFE | 5/16” / 7.8 mm | 10.3 mm | 12.5 mm | 1,957.5 psi / 13.5 MPa | 7,830 psi / 54 MPa | 15 mm |
JCC-11110-PTFE | 3/8” / 9.6 mm | 12.1 mm | 14.1 mm | 1,631.3 psi / 11.3 MPa | 6,525 psi / 45 MPa | 20 mm |
JCC-11113-PTFE | 1/2” / 12.5 mm | 13.5 mm | 17.5 mm | 1,540.6 psi / 10.6 MPa | 6,162.5 psi / 42.5 MPa | 25 mm |
JCC-11116-PTFE | 5/8” / 15.7 mm | 19.9 mm | 22.5 mm | 1,395.6 psi / 9.6 MPa | 5,582.5 psi / 38.5 MPa | 30 mm |
JCC-11119-PTFE | 3/4” / 19.9 mm | 23 mm | 25.5 mm | 1,141.9 psi / 7.9 MPa | 4,567.5 psi / 31.5 MPa | 60 mm |
JCC-11125-PTFE | 1” / 24.8 mm | 35.7 mm | 37.5 mm | 725 psi / 5 MPa | 2,900 psi / 20 MPa | 85 mm |
JCC-11132-PTFE | 1-1/4” / 32 mm | 42 mm | 45 mm | 598.1 psi / 4.1 MPa | 2,392.5 psi / 16.5 MPa | 100 mm |
JCC-11138-PTFE | 1-1/2” / 38 mm | 48 mm | 50.5 mm | 525.6 psi / 3.6 MPa | 2,102.5 psi / 14.5 MPa | 155 mm |
JCC-11150-PTFE | 2” / 50 mm | 60 mm | 63 mm | 453.1 psi / 3.1 MPa | 1,812.5 psi / 12.5 MPa | 200 mm |
Final allowable pressure depends on operating temperature, hose movement, fittings and complete assembly configuration.
This hose structure can help:
Reduce installation space
Route around machine components
Reduce stress on connectors
Accommodate equipment vibration
Improve movement flexibility
Reduce the risk of kinking
Simplify replacement installation
Maintain chemical resistance
Support high-purity transfer
Reduce the need for rigid elbows
Please provide:
Working medium
Working temperature
Working pressure
Hose length
Inner diameter
Minimum bending radius
Static or dynamic installation
Movement frequency
Connection standard
Cleaning requirements
Original hose sample or drawing
