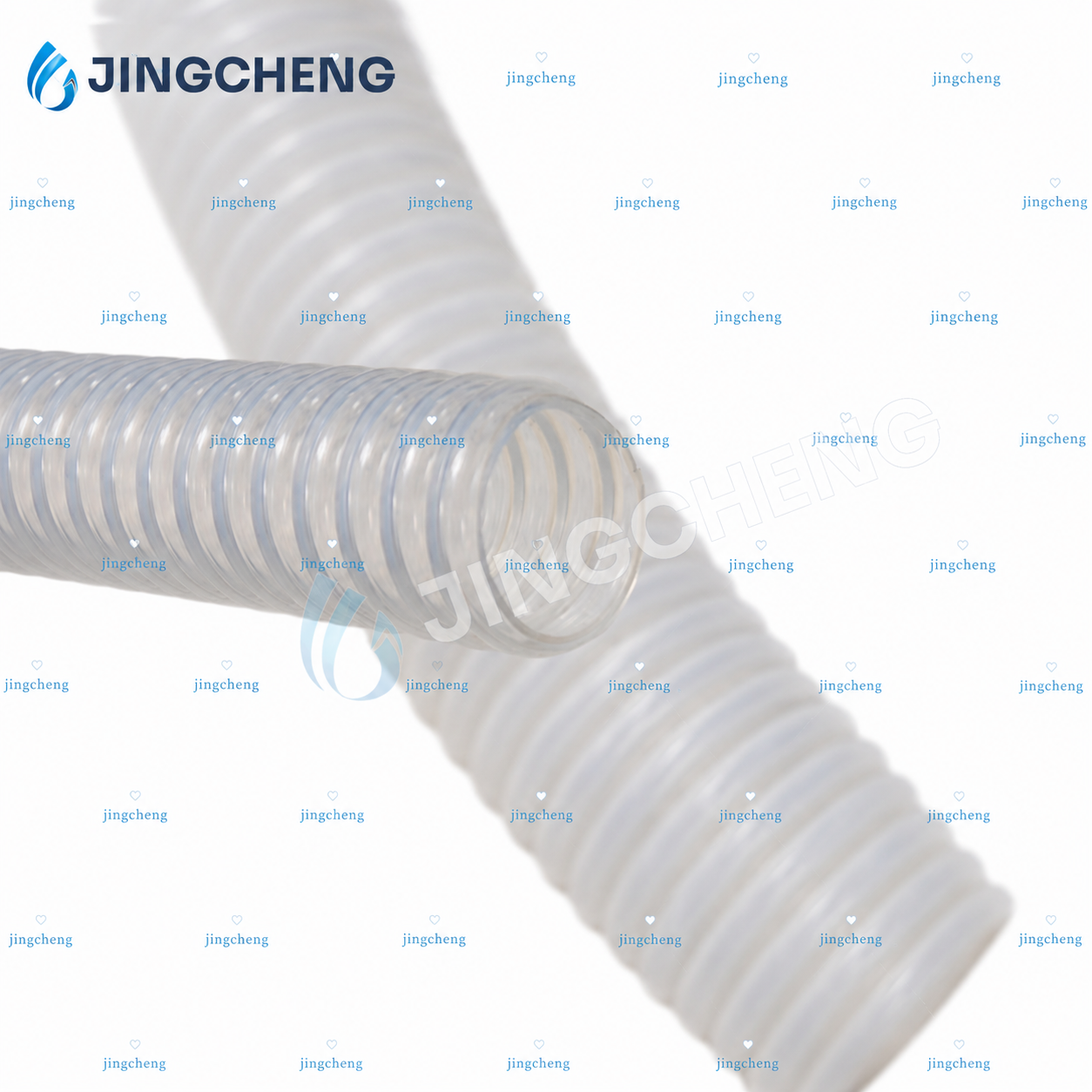

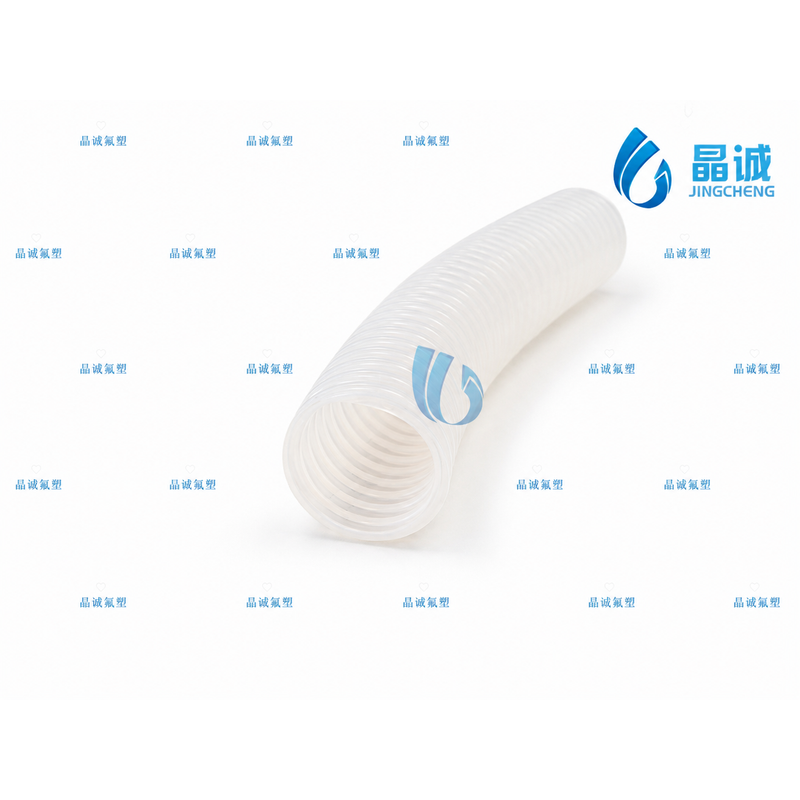

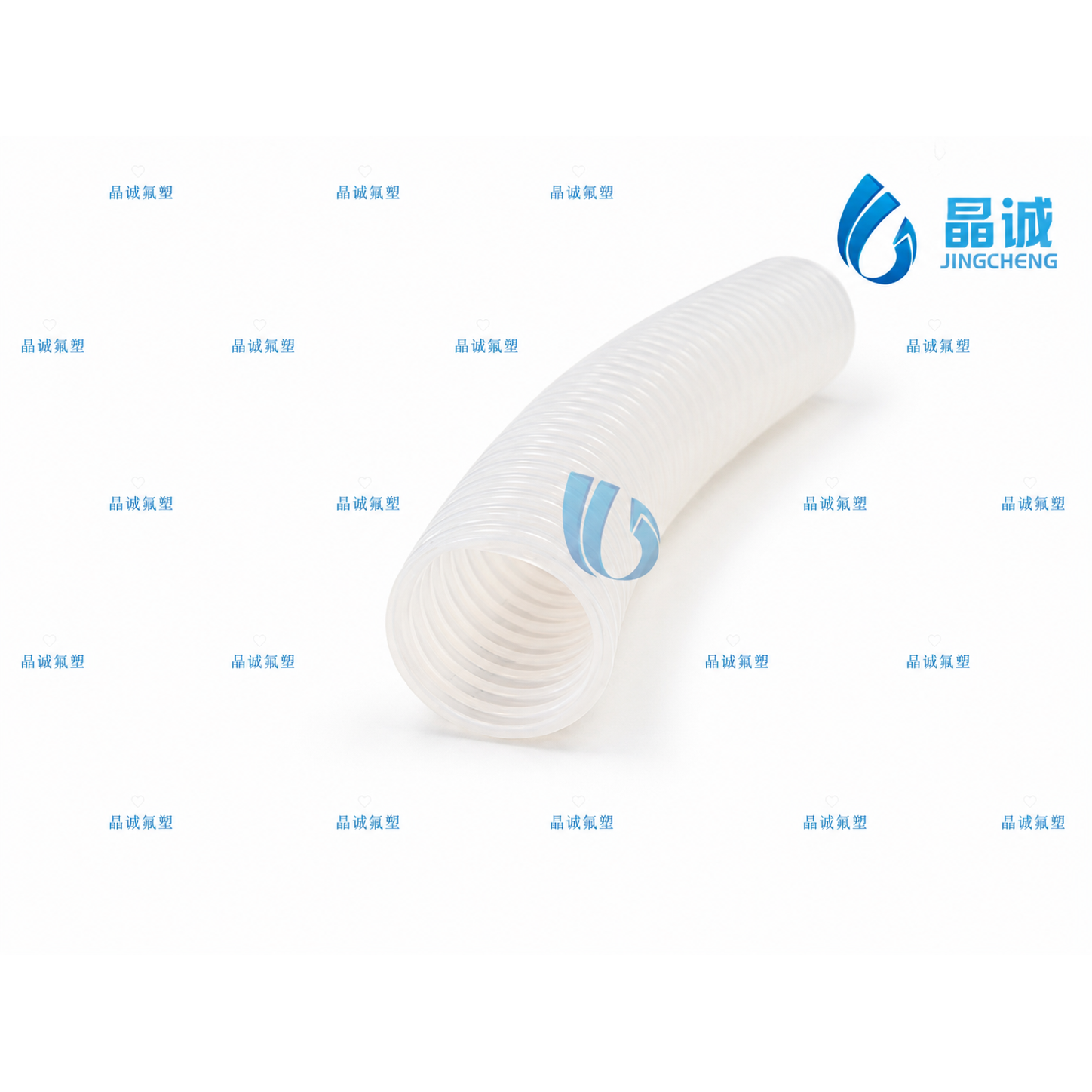

Ultra-Flexible Convoluted PTFE Hose for Tight-Radius Installations

Custom convoluted PTFE hose with corrugated inner and outer walls, excellent flexibility and small bending radius for pharmaceutical, food and chemical equipment.

Availability:

Quantity:



Inquire Add to Basket

Model:
Soren20060728
Brand:
JINGCHENG
Code:
3917290000 3904610000 3917390000

Product Description

Introduction

A convoluted PTFE hose is designed for equipment requiring excellent chemical resistance and significantly greater flexibility than conventional smooth-wall PTFE tubing.

The JCC-10000-PTFE series has corrugated inner and outer PTFE walls. The convoluted structure allows the hose to bend in compact spaces while maintaining the chemical and temperature resistance associated with PTFE.

This hose is suitable for pharmaceutical, food, chemical and industrial fluid-transfer systems where limited installation space, machine vibration or flexible routing is required.

Why Choose a Convoluted PTFE Hose?

Smooth PTFE tubing provides stable fluid flow but generally requires a larger bending radius.

In compact machinery, the hose may need to route around:

Pumps
Valves
Frames
Tanks
Filling heads
Instrument panels
Other machine components

A convoluted hose can follow these routes more easily and reduce mechanical stress at the connections.

Key Features

Corrugated Inner and Outer Walls

The hose uses a fully convoluted PTFE structure, providing excellent bending performance.

Small Bending Radius

Selected sizes have minimum bending radii as low as 20 mm.

Excellent Flexibility

The hose can accommodate compact installation layouts and minor equipment movement.

Strong Chemical Resistance

PTFE is resistant to many:

Acids
Alkalis
Solvents
Pharmaceutical fluids
Food-processing materials
Corrosive chemical media

Wide Temperature Range

The catalog temperature range is:

-70°C to +260°C

Wide Size Selection

Available catalog sizes range from 1/4 inch to 2 inches.

Customized Assemblies

Length, fittings, connections and complete hose assemblies can be customized according to equipment requirements.

Typical Applications

Pharmaceutical processing equipment
Food-processing machinery
Chemical fluid transfer
Laboratory equipment
Dosing systems
Filling machines
Flexible pump connections
Compact equipment layouts
Corrosive-liquid pipelines
Equipment vibration connections
Process-control systems
High- and low-temperature fluid transfer

Technical Specification

Item	Specification
Product Name	Convoluted PTFE Hose
Model Series	JCC-10000-PTFE
Material	PTFE
Structure	Corrugated inner and outer walls
Temperature Range	-70°C to +260°C
Inner Diameter Range	1/4” to 2”
Main Advantages	High flexibility and small bending radius
Applications	Pharmaceutical, food and chemical industries
Customization	Length, diameter, fittings and assembly
Catalog Reference	ISO9001:2015 / US FDA 21 CFR 177.1550 / SGS

Product Data

Model	Inner Diameter	Outer Diameter	Working Pressure	Burst Pressure	Minimum Bending Radius
JCC-10004-PTFE	1/4” / 6.5 mm	10.6 mm	60 psi / 0.4 MPa	210 psi / 1.4 MPa	20 mm
JCC-10008-PTFE	5/16” / 8 mm	12.3 mm	60 psi / 0.4 MPa	210 psi / 1.4 MPa	22 mm
JCC-10010-PTFE	3/8” / 10 mm	15 mm	60 psi / 0.4 MPa	210 psi / 1.4 MPa	26 mm
JCC-10013-PTFE	1/2” / 13 mm	17.9 mm	60 psi / 0.4 MPa	210 psi / 1.4 MPa	26 mm
JCC-10016-PTFE	5/8” / 16 mm	21.9 mm	45 psi / 0.3 MPa	180 psi / 1.2 MPa	32 mm
JCC-10019-PTFE	3/4” / 19 mm	26.4 mm	45 psi / 0.3 MPa	180 psi / 1.2 MPa	55 mm
JCC-10025-PTFE	1” / 25 mm	35 mm	45 psi / 0.3 MPa	150 psi / 1.0 MPa	80 mm
JCC-10032-PTFE	1-1/4” / 32 mm	39 mm	38 psi / 0.3 MPa	135 psi / 0.9 MPa	100 mm
JCC-10038-PTFE	1-1/2” / 38 mm	45 mm	38 psi / 0.3 MPa	135 psi / 0.9 MPa	100 mm
JCC-10050-PTFE	2” / 50 mm	59.5 mm	30 psi / 0.2 MPa	120 psi / 0.8 MPa	125 mm
