On waterproofing job sites, temperature loss in the hose can ruin spray consistency—material thickens, flow becomes unstable, and the system needs frequent stops. A heated hose is designed to insulate + heat the transfer line to keep viscous media from freezing/solidifying or increasing viscosity during delivery.

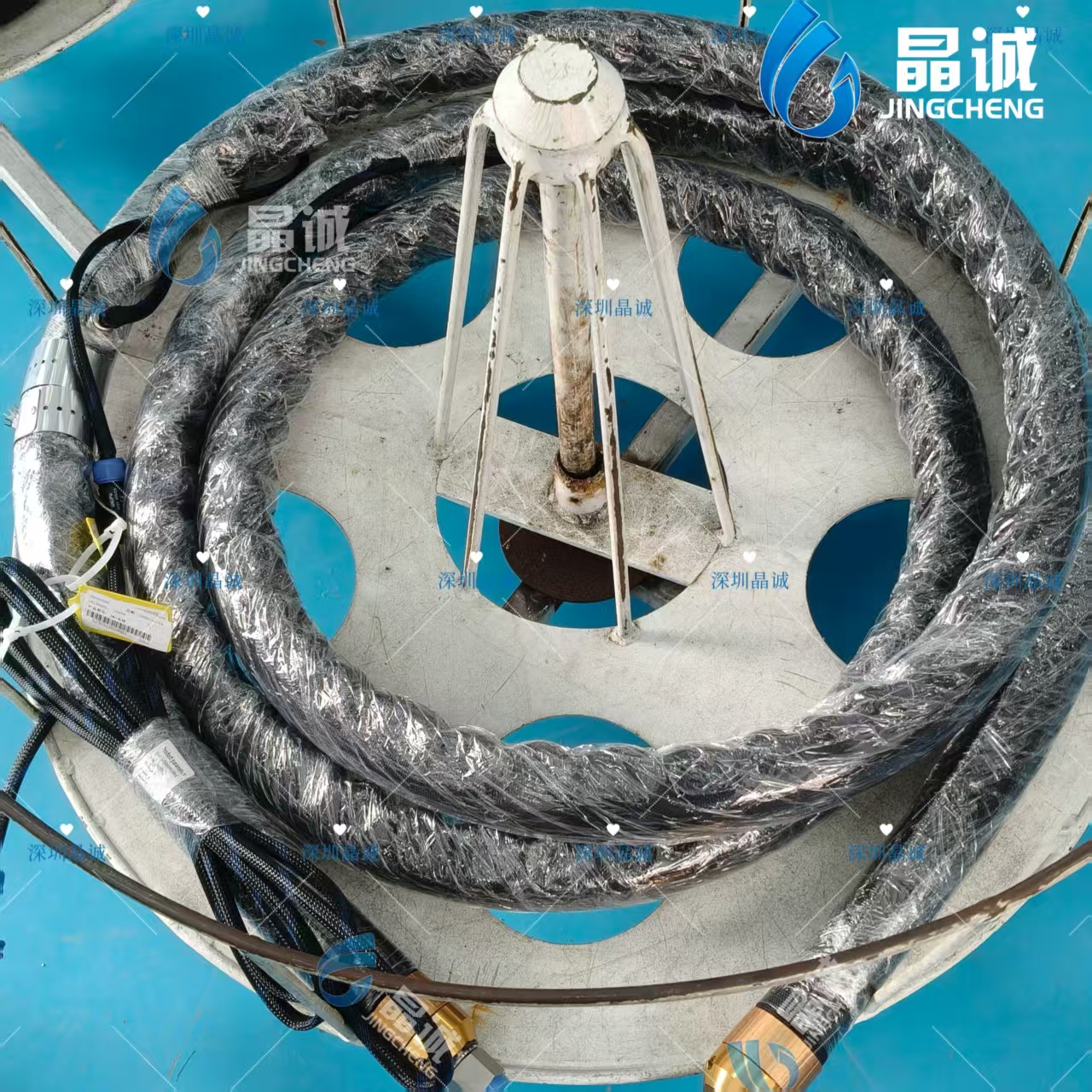

This Waterproof Construction Equipment Hose is built for waterproof construction machines and non-curing spray equipment, and is proven for harsh outdoor conditions. The catalog notes long-term cooperation with leading waterproof construction equipment companies since 2013 and strong stability/durability in severe weather and construction environments.
Max service temperature: up to 230°C (design-dependent; higher temp available by customization)
Insulation + heating structure to support stable temperature delivery (design-dependent)
Uniform braided heating layer helps minimize temperature variation on the inner wall (design-dependent)
High insulation-efficiency materials selected with surface temperature consideration (design-dependent)
Working pressure reference: up to 118 bar / 1704 psi (size/design-dependent; see table
Waterproofing materials used in spray systems often behave like viscous media—once they cool in the line, they can become difficult to pump and atomize. Heated hoses are used to:
Reduce temperature drop from pump to gun
Keep flow consistent for smoother spraying
Reduce clogging risk and downtime caused by thickening
Improve jobsite reliability in cold/windy environments
(These benefits align with heated hose purpose: insulation/heat tracing to prevent solidification/freezing and viscosity increase.)
Designed for waterproof construction machines & non-curing spray equipment
Uniform heating layer to minimize inner-wall temperature differences
High-efficiency insulation design with surface temperature consideration
(High-temperature, low-pressure heated hose series reference commonly used in this application family.)
| ID Size | OD (mm ±0.2) | Working Pressure (bar / psi) | Burst Pressure (bar / psi) | Min Bend Radius (mm) |
|---|---|---|---|---|
| 1/2” | 15.9 | 118 / 1704 | 470 / 6815 | 150 |
| 5/8” | 19.0 | 88 / 1269 | 350 / 5075 | 180 |
| 3/4” | 22.6 | 85 / 1234 | 340 / 4930 | 260 |
| 1” | 29.5 | 75 / 1088 | 300 / 4350 | 300 |
You can configure key parameters for your waterproofing equipment and jobsite power/safety needs:
Voltage: 380Vac / 220Vac / 110Vac / 12Vdc (others available)
Temperature sensor: J / K / NI120 / PT100 / PT1000 (others available)
Length: 0.1–10 m (and other lengths)
Diameter options: Φ8 / Φ12 / Φ16 / Φ19 / Φ25 (and others)
Target temperature / pressure / power (W/m): multiple selectable ranges
End fittings: US / UK / metric standards on both ends
For fast, accurate selection and quoting, send:
Waterproofing material type + target hose temperature setpoint
Pump output / working pressure (continuous + peak)
Required hose ID/OD + length + routing path + minimum bend radius
Jobsite power supply (AC/DC, voltage, phase if applicable)
Sensor requirement (PT100 / thermocouple J/K / NI120 / none)
End fittings on both sides (standard + size; swivel needs)
Environment constraints (cold weather, moisture, dust) and protection requirements
Inquiry → Spec confirmation → Quotation → Production → Inspection & packing → Shipment.
