Industrial machinery is changing.
Modern production equipment is becoming more automated, more compact and increasingly dependent on complex fluid-delivery systems.
Inside one automated production machine, dozens of flexible lines may be responsible for transporting:
Chemicals
Adhesives
Paint
Process fluids
Oil
Gas
Other production materials
For many years, stainless steel braided PTFE hose has been a common solution for these applications because it combines the chemical resistance of PTFE with the mechanical reinforcement of metal braid.
However, a new equipment-design question is becoming more important:
Should the stainless steel reinforcement remain exposed?
In many modern machines, equipment manufacturers are beginning to pay more attention to the external environment of the hose—not only the fluid flowing inside it.
This is increasing interest in TPU covered PTFE braided hose, where an additional smooth protective layer is placed over the stainless steel reinforcement.

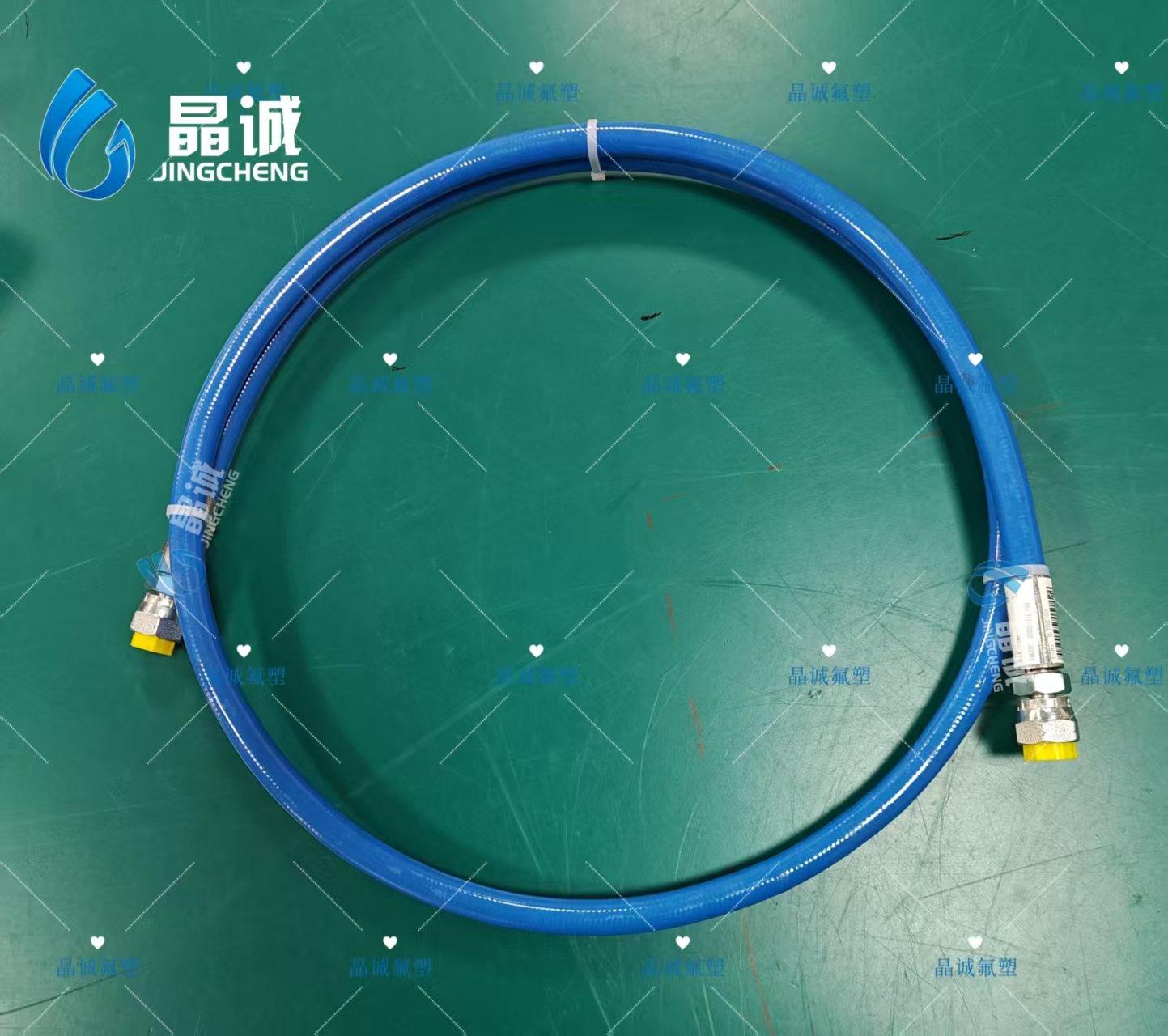

Jingcheng’s JCC-61100-PTFE TPU covered PTFE braided hose is one example of this design approach.
Its structure combines:
Smooth PTFE Inner Tube + 304 Stainless Steel Braided Reinforcement + Smooth TPU Outer Cover
This three-layer concept addresses three different engineering requirements:
fluid compatibility, mechanical reinforcement and external hose protection.
Automation equipment has become much more complex during the past decade.
One production cell may contain:
Pumps
Metering units
Dispensing valves
Robots
Material tanks
Manifolds
Heating systems
Process modules
These components must often be connected with flexible hoses.
As the number of flexible lines increases, hose management becomes part of machine design.
Equipment manufacturers now need to consider not only:
“Can this hose carry the material?”
but also:
“How will this hose behave inside the machine for several years?”
That second question brings external hose protection into focus.
Stainless steel braid provides excellent mechanical reinforcement.
It helps support the PTFE tube against internal pressure and provides substantial mechanical strength.
However, exposed braid also has a woven external structure.
In demanding production environments, this surface may come into contact with:
Paint
Adhesive
Oil
Dust
Machine frames
Other hoses
Over time, equipment manufacturers may prefer an additional protective layer between the reinforcement and the surrounding environment.
This does not mean stainless steel braid itself is unsuitable.
Instead, it reflects a broader movement toward multi-layer hose construction, where each layer has a more specialized role.
The JCC-61100 adds a smooth TPU cover over the stainless steel braid.
This changes the external interface of the hose.
Instead of the reinforcement being directly exposed to the machine environment, the TPU layer becomes the first external contact surface.
The catalog specifically describes the outer layer as helping protect the stainless steel reinforcement from:
Wear
Contamination
This can be particularly useful in production equipment where hoses pass close to structural components or other fluid lines.
Industrial cleanliness is no longer limited to pharmaceutical or food-processing factories.
Even general automated machinery manufacturers increasingly care about how easily equipment can be inspected and maintained.
Consider an exposed stainless steel braided hose installed near a paint or adhesive process.
If production material reaches the external braid, it can enter the small spaces between individual wires.
Cleaning this structure can be more difficult than wiping a relatively smooth external jacket.
A smooth TPU surface can therefore offer a more maintenance-friendly outer interface.
This is one reason covered hose designs are becoming attractive for:
Dispensing machines
Coating equipment
Chemical process skids
Automated fluid-handling machinery
Paint and adhesive applications are particularly relevant.
These materials may create contamination around:
Pumps
Valves
Application heads
Hose connections
If sticky material reaches exposed reinforcement, maintenance can become more complicated.
The JCC-61100 catalog specifically identifies viscous media such as:
Paint
Adhesives
among its intended applications.
A covered PTFE hose provides a smooth PTFE material-contact path internally while protecting the reinforcement externally.
This makes the structure suitable for equipment where the hose experiences demanding conditions on both sides.
In compact machines, hoses rarely operate alone.
Several lines may be bundled together or routed through the same area.
During machine operation, hoses may contact:
Each other
Support structures
Guides
Brackets
A protective outer cover provides a physical layer between the metal braid and adjacent components.
Correct routing and hose support are still essential, but the outer jacket adds another level of environmental protection.
This becomes increasingly useful as equipment becomes more compact.
Another advantage of TPU covering is the ability to customize the outer color.
The JCC-61100 catalog references colors such as:
Black
Red
Blue
For an equipment manufacturer, color can become part of a maintenance strategy.
For example:
Red may identify one fluid circuit
Blue may identify another
Black may identify a return or auxiliary line
The exact system is determined by the OEM.
Color coding should not replace proper labeling, but it can make visual inspection faster.
This is particularly useful in equipment containing many similar hose assemblies.
Imagine a machine containing fifteen stainless steel braided hoses.
During maintenance, a technician may need to identify one specific line.
If every hose looks almost identical, the technician may need to trace the line through the entire machine.
A standardized color or external marking strategy can make this process easier.
For OEM manufacturers, this also provides an opportunity to create more organized spare-part documentation.
A hose can be defined by:
color + diameter + length + fitting configuration + machine position.
This can simplify both production assembly and after-sales service.
Although the TPU cover is important, the primary material-contact layer remains PTFE.
The JCC-61100 uses a smooth PTFE inner tube.
The catalog identifies potential transported media including:
Fuel
Gas
Strong acids
Strong alkalis
Organic solvents
PTFE is valued for its broad chemical resistance and low surface friction.
This means the external TPU cover does not replace the core functional advantages of PTFE.
Instead, it complements them.
The construction can be understood as three separate engineering layers.
Responsible for contact with the transferred fluid.
Primary functions include:
Chemical resistance
Smooth material passage
Broad media compatibility
Provides mechanical reinforcement.
Its function is primarily related to:
Pressure support
Structural stability
Separates the reinforcement from the surrounding machine environment.
Its role includes:
External protection
Cleaner outer surface
Optional color identification
This separation of functions is one reason multi-layer hose construction is attractive to modern equipment designers.
The JCC-61100 is not simply a protective sleeve around a low-pressure tube.
The catalog provides substantial working-pressure capability depending on hose size.
Selected values include approximately:
5/32" — 27 MPa
1/4" — 42 MPa
5/16" — 19 MPa
3/8" — 23 MPa
1/2" — 23 MPa
5/8" — 18 MPa
3/4" — 15 MPa
1" — 10 MPa
This allows the covered design to be considered for demanding industrial equipment as well as lower-pressure fluid systems.
The exact working condition should always be confirmed according to hose size, temperature and complete assembly design.
The catalog specifies a temperature range of approximately:
-70°C to +260°C
This gives the hose family a broad operating range.
Potential applications can therefore extend across:
Chemical processing
Industrial fluid handling
Temperature-controlled systems
Hydraulic and pneumatic machinery
The final allowable temperature should always be confirmed for the complete hose assembly and operating conditions.
Another developing trend in industrial machinery is platform standardization.
An OEM may manufacture several models using similar:
Pumps
Valves
Fluid modules
Hose assemblies
Using a standardized hose family can simplify engineering and spare-parts management.
For example, an equipment manufacturer might define:
one TPU color for material supply,
one for return,
one for auxiliary circuits.
The same visual architecture can then be applied across several machine models.
This is not only cosmetic.
It can make machine assembly, inspection and after-sales maintenance more systematic.
An exposed stainless braided PTFE hose remains an excellent solution for many industrial systems.
Adding a TPU cover is most useful when the machine specifically benefits from:
external reinforcement protection,
easier external cleaning,
visual circuit identification,
organized multi-line routing.
If none of these factors matter, the additional cover may not be necessary.
Good hose engineering is not about choosing the most complex construction.
It is about selecting the structure that solves the actual machine problem.
Before specifying a covered hose, engineers should define:
Transferred medium
Working pressure
Working temperature
Required inner diameter
Hose length
Minimum bending radius
External machine environment
Required outer color
End fitting type
These parameters allow the hose assembly to be designed around the complete application.
Industrial machinery rarely uses one universal hose assembly.
Different machine models may require different:
Lengths
Diameters
Fittings
Connection orientations
Outer colors
Jingcheng supports customized JCC-61100 assemblies according to customer requirements.
This makes the hose suitable for both:
new OEM machine development and replacement-hose projects.
Hose technology is increasingly moving beyond the basic question of fluid compatibility.
Modern machine builders are evaluating hoses as part of the complete equipment architecture.
A hose influences:
Machine layout
Maintenance
Spare parts
Cleanliness
Visual organization
Reliability
The addition of a protective outer jacket reflects this broader engineering philosophy.
Rather than leaving every functional layer exposed, manufacturers can design the hose so that each layer performs a specific role.
The next generation of industrial fluid systems will increasingly be judged not only by how reliably they transport material, but also by how easily the equipment can be built, maintained and serviced.
The JCC-61100 TPU covered PTFE braided hose reflects this shift.
Its smooth PTFE inner tube manages the process medium.
Its stainless steel braid provides mechanical reinforcement.
Its TPU outer layer protects the reinforcement and creates a smoother, customizable external surface.
For paint, adhesive, chemical and automated process machinery, this type of multi-layer hose design can help equipment manufacturers build fluid systems that are not only functional but also easier to organize and maintain.
As industrial machines continue becoming more compact and complex, protected, identifiable and service-friendly hose assemblies are likely to become increasingly important components of modern equipment design.
