Wire-Wound Braided PTFE Hose for Controlled Expansion Under High Pressure

When a flexible hose is pressurized, several things happen at the same time.

The hose may:

• Expand radially

• Change slightly in length

• Move under impulse pressure

• Transfer force to its fittings

• React to vibration from pumps or machinery

In demanding hydraulic and transport equipment, controlling these movements can be just as important as achieving a high pressure rating.

The JCC-03100-PTFE wire-wound braided hose uses a multi-stage reinforcement design intended to improve structural stability while retaining the chemical advantages of PTFE.

Its structure includes:

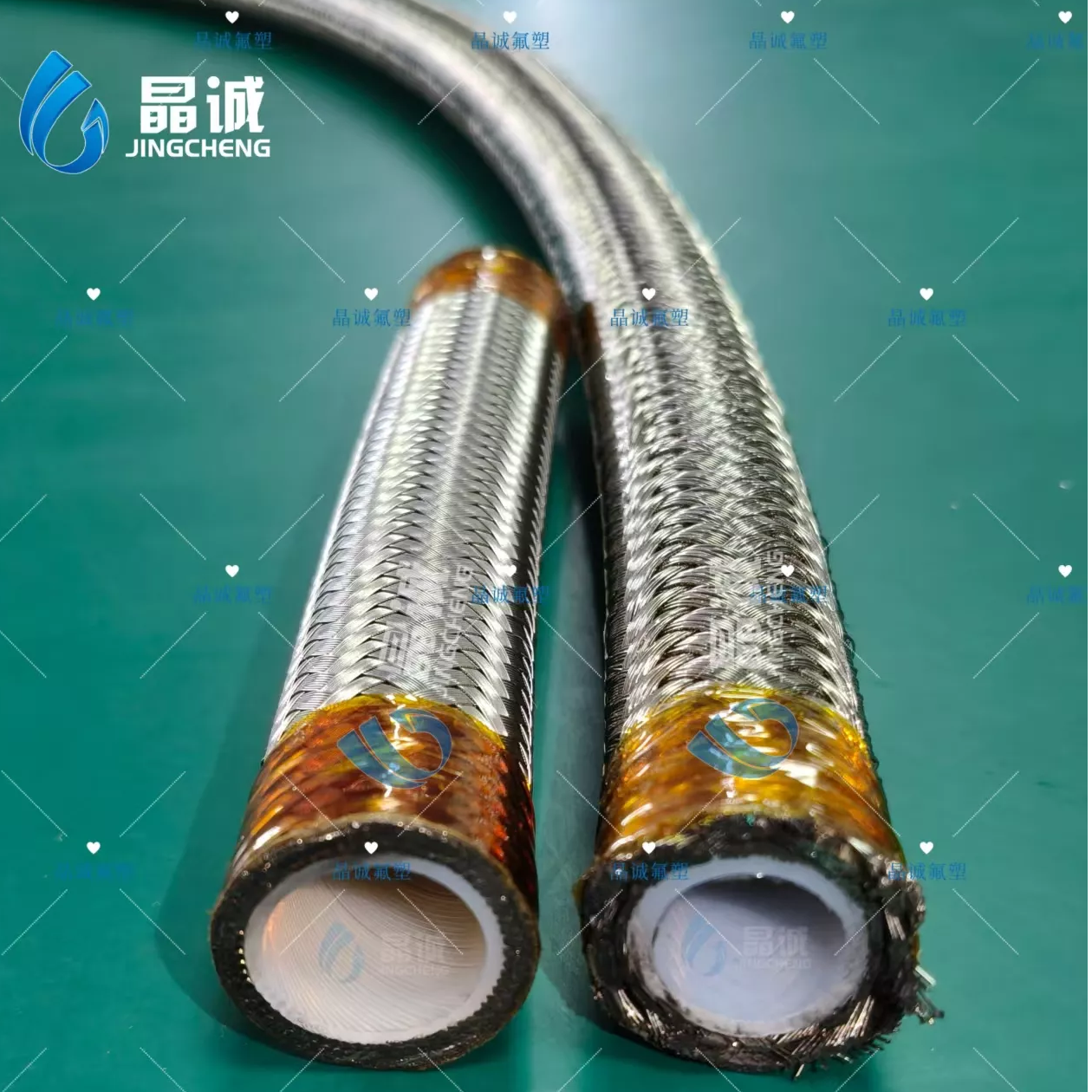

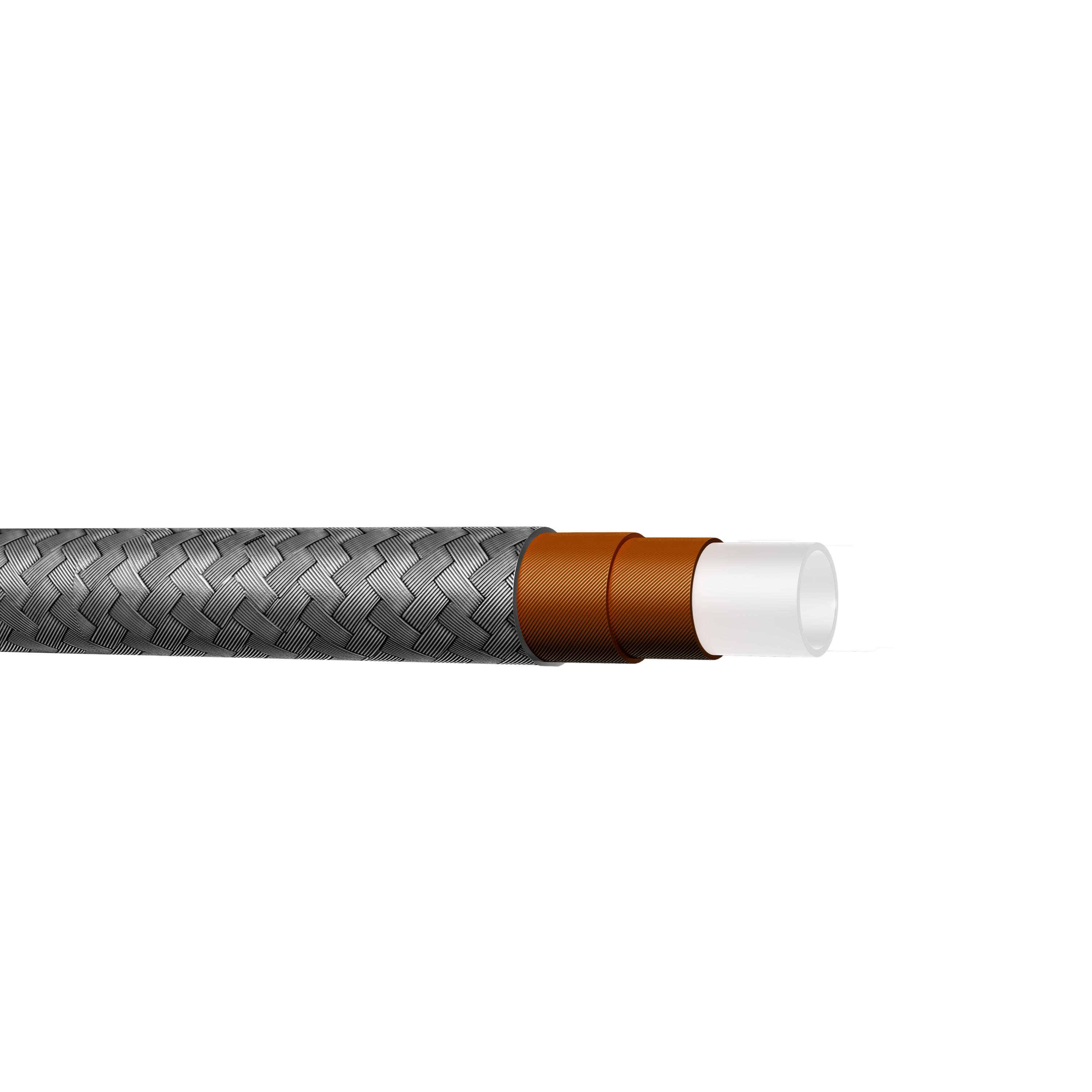

PTFE Inner Tube → One or Two Layers of Copper-Plated Steel Wire Winding → 304 Stainless Steel Braided Outer Reinforcement

This design makes the hose suitable for demanding pressure systems where dimensional stability and mechanical strength are important.

Why Wire Winding Is Different from Simple Braiding

A braided reinforcement layer wraps around a hose in an interwoven pattern.

A wire-wound layer provides a different form of structural support.

By combining winding with braiding, the hose gains multiple reinforcement mechanisms around the PTFE inner tube.

This can help control:

• Radial expansion

• Hose deformation

• Movement caused by pressure

• Mechanical loading during operation

The result is useful in systems where the hose is exposed to substantial internal pressure and dynamic operating conditions.

Pressure Stability Matters in Mobile Equipment

Vehicle and mobile equipment hose systems operate under very different conditions from stationary factory piping.

The hose may experience:

• Engine vibration

• Chassis movement

• Road shock

• Repeated acceleration

• Temperature changes

• Pressure pulsation

A hose that expands or moves excessively under pressure can increase mechanical stress on surrounding components.

A more stable reinforced construction can help reduce uncontrolled hose behavior in these environments.

Designed for Demanding Pressure Levels

The catalog lists working pressure values such as:

• 1/2": approximately 44 MPa / 6,394.5 psi

• 5/8": approximately 36 MPa / 5,165.6 psi

• 3/4": approximately 33 MPa / 4,756 psi

• 1": approximately 27 MPa / 3,918.6 psi

Burst pressure values are substantially higher.

This makes the JCC-03100-PTFE suitable for industrial systems requiring significant pressure capability combined with flexible installation.

Suitable for Fuels and Lubrication Systems

The catalog identifies transmission media including:

• Fuel

• Gas

• Strong acids

• Strong alkalis

• Organic solvents

It also lists applications involving:

• Fuel delivery

• Coolant

• Lubricant pipelines

This combination makes the hose useful for machinery where chemical compatibility and high-pressure performance must exist together.

Relevant to Hydraulic Machinery

Hydraulic systems depend on controlled energy transfer through pressurized fluid.

A hose in these systems may be exposed to repeated:

• Pump cycles

• Pressure spikes

• Valve switching

• Mechanical vibration

The reinforced construction of the JCC-03100-PTFE makes it relevant to specialized hydraulic equipment requiring PTFE as the material-contact tube.

Useful in Transportation Equipment

The catalog lists applications including:

• Trains

• Automobiles

• Ships

• Aircraft

These industries often require flexible lines to fit through complex mechanical structures while resisting vibration and demanding operating conditions.

The hose provides a flexible alternative where rigid piping would be difficult to route.

Aerospace and Specialized Systems

The source material also identifies applications related to:

• Rockets

• Spacecraft

• Satellites

Such applications require extensive engineering validation beyond a general catalog specification.

However, the hose architecture illustrates why wire-wound PTFE constructions are relevant to equipment where low weight, flexible routing, chemical compatibility and mechanical strength may all be required simultaneously.

Any aerospace application must be engineered and qualified according to the specific project requirements.

Temperature Range

The product is specified for approximately:

-65°C to +220°C

This makes it suitable for systems exposed to broad thermal variation.

Possible applications may involve:

• Cold starts

• Heated fluids

• Engine compartments

• Industrial process systems

• Mobile machinery

The allowable pressure should always be evaluated together with operating temperature.

Why Hose Length and Routing Affect Performance

A high-pressure hose should never be selected only by internal diameter.

Longer hoses may experience more:

• Pressure drop

• Weight

• Movement

• Installation load

Routing should avoid:

• Excessive twisting

• Bends below minimum radius

• Heavy unsupported fittings

• Contact with sharp edges

Correct installation is essential for taking advantage of the reinforced hose structure.

Customization Options

Jingcheng can customize:

• Hose length

• Hose diameter

• End fittings

• Thread standards

• End orientation

• Complete assemblies

• OEM specifications

Original hoses or technical drawings can also be used for replacement projects.

Information Required for Selection

Please provide:

• Transferred medium

• Operating temperature

• Working pressure

• Maximum pressure

• Pressure pulsation

• Hose length

• Inner diameter

• Flow requirement

• Installation route

• End fittings

• Equipment type

Conclusion

The JCC-03100-PTFE is designed for applications where a hose must remain flexible while controlling deformation under demanding pressure.

Its combination of PTFE inner tubing, copper-plated wire winding and 304 stainless steel braiding creates a multi-reinforced structure suited to hydraulic machinery, fuel and lubricant systems, transport equipment and specialized industrial applications.

For engineers concerned with both pressure rating and hose dimensional stability, the reinforcement architecture can be as important as the material itself.
