Wire-Wound PTFE Hose for Fluid Systems Exposed to Vibration and Temperature Cycling

A hose installed in a stationary chemical plant experiences very different operating conditions from one installed on a vehicle, train, ship or mobile machine.

Mobile equipment continuously experiences changes in:

• Temperature

• Vibration

• Mechanical movement

• Pressure

• Equipment load

A fuel line may be cold when the machine starts and much hotter after several hours of operation.

A coolant line may experience repeated warm-up and cool-down cycles every day.

A lubricant line may operate close to vibrating engines, pumps or hydraulic components.

For these environments, hose selection cannot be based on chemical compatibility alone.

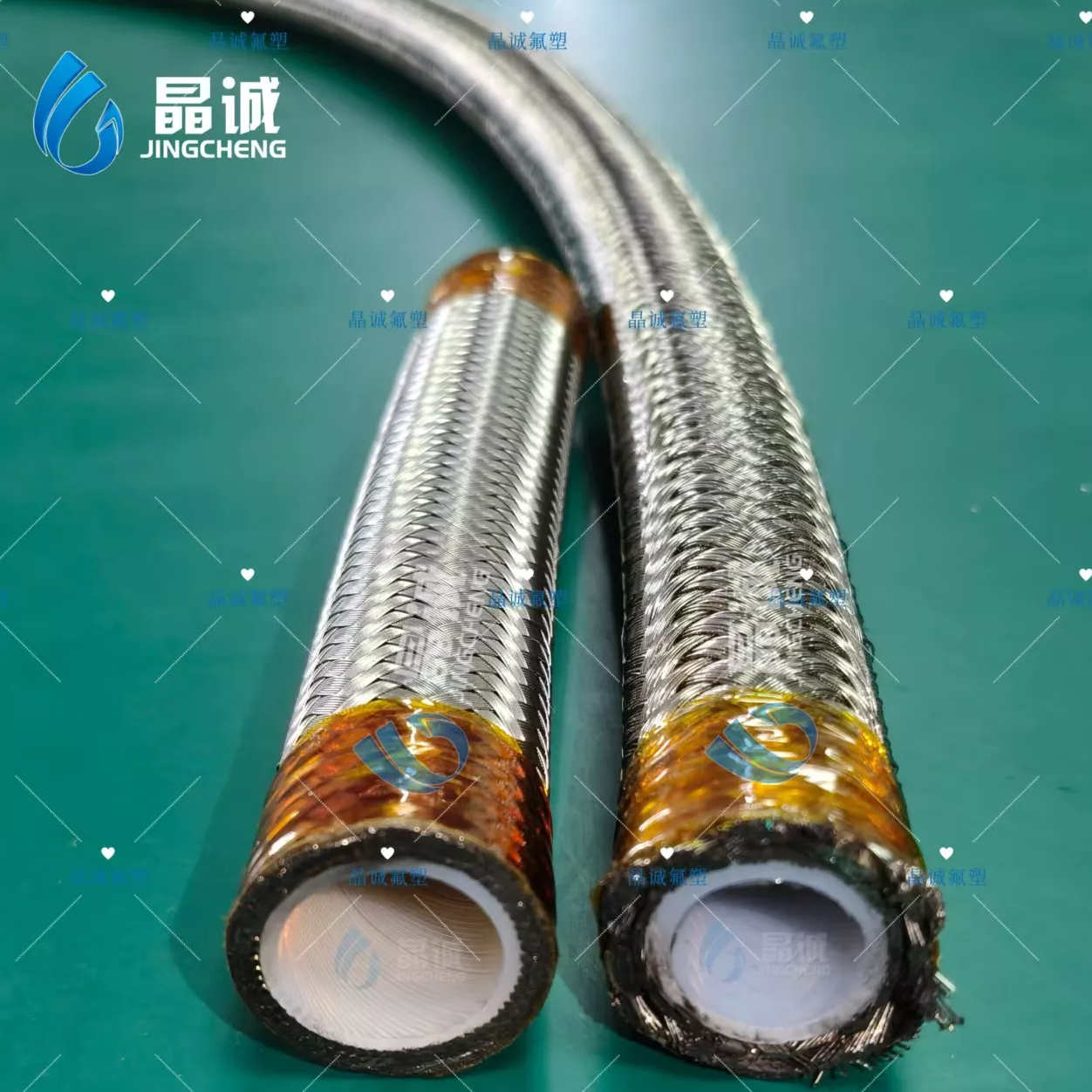

The JCC-03100-PTFE wire-wound braided hose uses a reinforced structure designed for demanding fluid-transfer applications where pressure, temperature and mechanical movement exist at the same time.

Its construction includes:

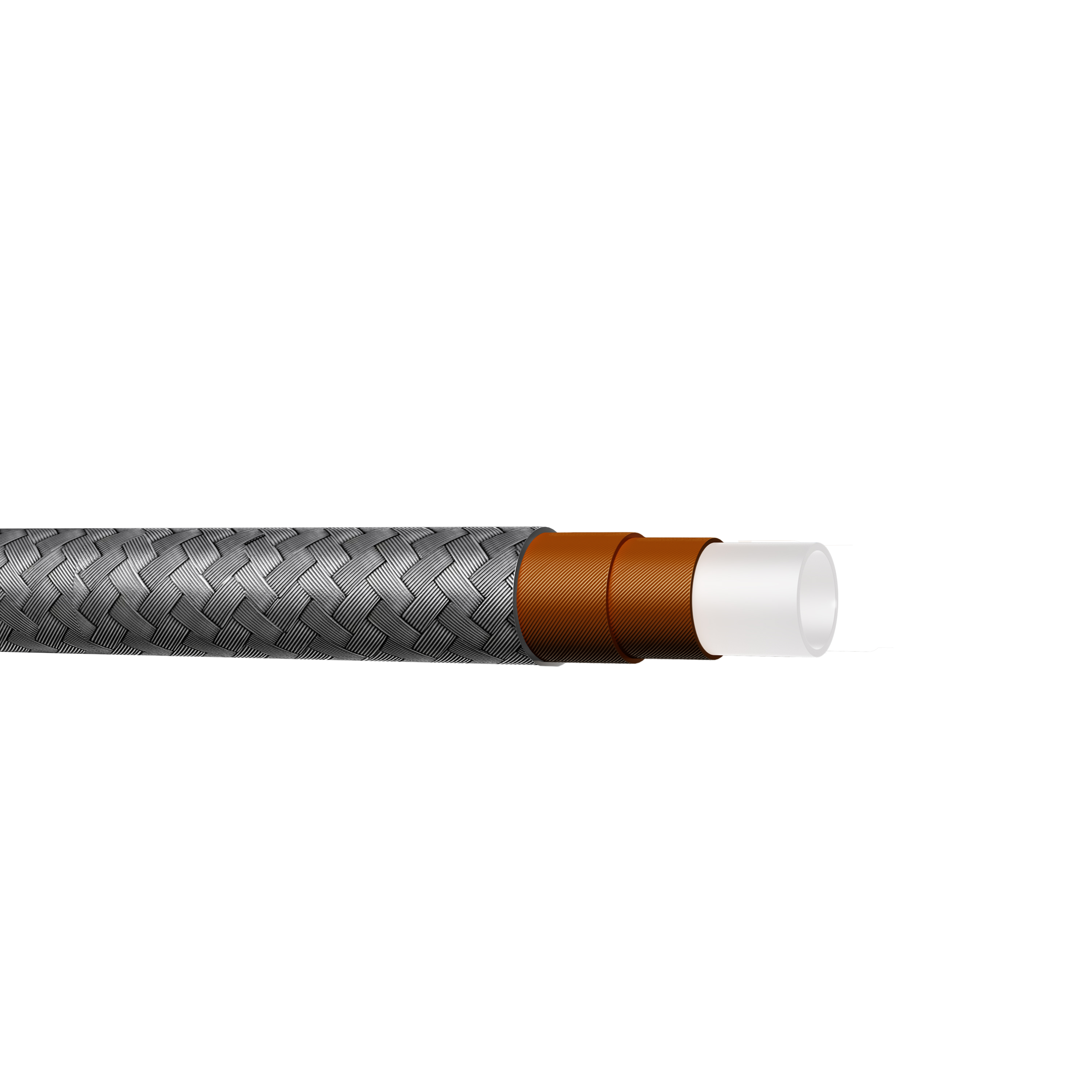

PTFE Inner Tube + One or Two Layers of Copper-Plated Steel Wire Winding + 304 Stainless Steel Braided Outer Layer

The catalog specifies an operating temperature range of approximately:

-65°C to +220°C

Why Thermal Cycling Matters

Industrial equipment does not always stay at one temperature.

Consider an automotive or mobile hydraulic system.

During startup, the hose may be close to ambient temperature.

As the machine operates, fuel, coolant or lubricant temperature increases.

After shutdown, the entire system cools again.

This process may repeat every day.

Repeated thermal cycling can change the dimensions and mechanical behavior of materials throughout the fluid system.

A reinforced hose construction helps provide structural support while allowing the flexible line to operate through changing thermal conditions.

Vibration Is a Continuous Load

Pressure is easy to measure.

Vibration is often harder to quantify.

A hose connected near:

• Engine

• Pump

• Compressor

• Hydraulic power unit

may experience continuous small movements throughout operation.

If the line is completely rigid, these movements may be transferred directly into fittings and machine ports.

A flexible hose provides a controlled transition between vibrating components.

The reinforced structure of the JCC-03100-PTFE helps the hose maintain its function while still providing flexible routing.

Multi-Stage Reinforcement Supports Pressure Stability

The hose uses a combination of wire winding and stainless steel braid.

This is different from a conventional single-braid PTFE hose.

The intermediate copper-plated steel wire winding provides additional structural support around the PTFE tube.

The external 304 stainless steel braided layer adds another reinforcement stage.

This multi-layer design makes the hose suitable for demanding pressure systems.

High Working Pressure Capability

The catalog lists substantial working-pressure capability.

Selected examples include approximately:

• 1/2" — 6,394.5 psi / 44 MPa

• 5/8" — 5,165.6 psi / 36 MPa

• 3/4" — 4,756 psi / 33 MPa

• 1" — 3,918.6 psi / 27 MPa

These pressure levels make the hose suitable for high-pressure industrial fluid systems.

The final working pressure should always be matched to the actual operating temperature and hose size.

Fuel Lines Need Both Chemical and Mechanical Performance

Fuel-transfer systems can expose a hose to several conditions simultaneously.

The hose may need to resist:

• Fuel chemistry

• Heat

• Pressure

• Vibration

• Installation movement

The catalog specifically identifies fuel as one of the transport media for this product.

This makes the JCC-03100-PTFE relevant to fuel-delivery systems requiring a reinforced flexible connection.

Coolant Circuits Experience Constant Temperature Change

Coolant systems are another typical application.

Coolant temperature may change considerably between:

• Cold startup

• Normal operation

• High-load operation

• Shutdown

The hose must remain functional throughout these changes.

A broad temperature range and reinforced construction make this hose suitable for certain coolant-delivery systems in demanding machinery.

Lubrication Systems Require Reliable Flow

Lubricants help protect:

• Bearings

• Gear systems

• Engines

• Hydraulic components

• Mechanical assemblies

An unreliable lubricant line can affect the entire machine.

The hose therefore needs to provide a stable path while accommodating equipment vibration and installation geometry.

Chemical Compatibility Expands the Application Range

The catalog lists transfer media including:

• Fuel

• Gas

• Strong acids

• Strong alkalis

• Organic solvents

PTFE provides broad compatibility with many industrial media.

The exact chemical suitability should still be confirmed according to:

• Concentration

• Temperature

• Pressure

• Exposure time

Mobile Equipment Requires Careful Hose Routing

A high-pressure flexible hose should not be allowed to move freely without control.

Installation should avoid:

• Sharp bending

• Hose twisting

• Contact with moving mechanical components

• Excessive unsupported fitting weight

• Abrasion against sharp surfaces

Correct routing can reduce unnecessary mechanical load on both the hose and its fittings.

Applications in Transportation and Mobile Machinery

The catalog identifies applications including:

• Hydraulic machinery

• Trains

• Automobiles

• Ships

• Aircraft

It also lists specialized aerospace-related systems.

Each advanced application requires project-specific engineering and qualification.

However, the hose structure is clearly designed for environments where mechanical strength and flexible fluid delivery must operate together.

Pressure and Bending Radius Must Be Balanced

A hose with higher pressure capability generally uses significant reinforcement.

This influences bending performance.

The catalog lists minimum bending radii of approximately:

• 1/2" — 90 mm

• 5/8" — 120 mm

• 3/4" — 150 mm

• 1" — 225 mm

Machine designers should therefore reserve sufficient installation space.

Custom Hose Assembly Options

Jingcheng can customize:

• Hose length

• Inner diameter

• End fittings

• Thread type

• Connection orientation

• Complete hose assembly

• OEM configuration

For replacement projects, customers can provide an original hose or technical drawing.

What Information Should Be Provided?

Please provide:

• Transferred medium

• Operating temperature range

• Working pressure

• Maximum pressure

• Hose length

• Inner diameter

• Required flow

• Minimum bending radius

• Vibration environment

• Inlet fitting

• Outlet fitting

• Equipment type

Conclusion

A mobile or vibration-intensive fluid system needs more than a chemically resistant tube.

The hose must also tolerate changing temperature, high pressure and continuous mechanical movement.

The JCC-03100-PTFE combines a PTFE inner tube with wire winding and stainless steel braid to provide a reinforced flexible connection for fuel, coolant, lubricant and demanding chemical-transfer systems.

For mobile machinery and transport equipment, the hose should be evaluated as part of the entire pressure, temperature and vibration environment.
