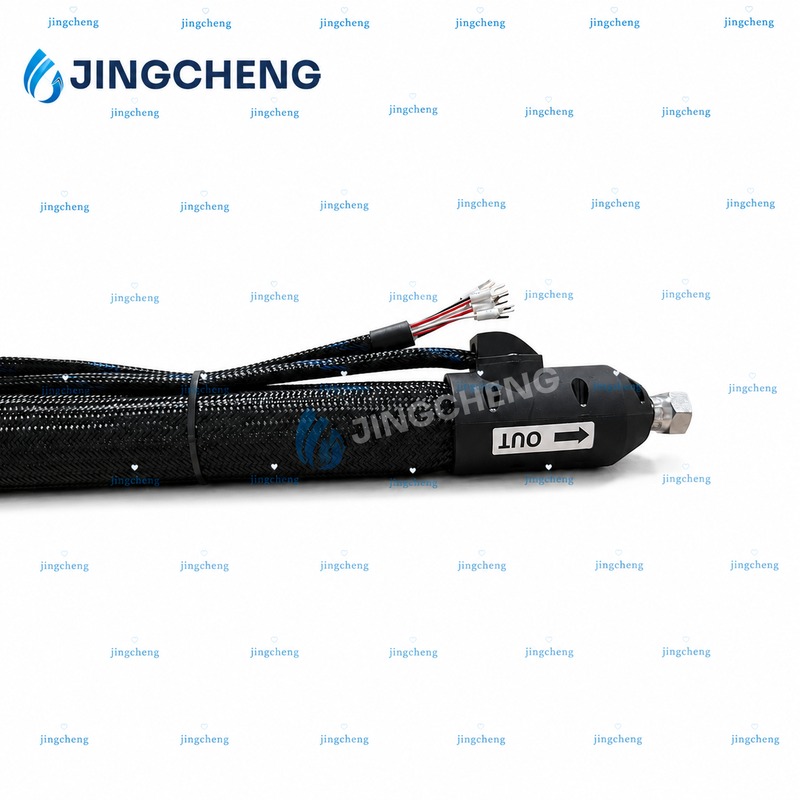

In every hot melt and PUR adhesive system, the hose between melter and applicator decides whether the adhesive arrives at the gun at the right temperature. Too little heat and the adhesive thickens, the bead becomes irregular and nozzles block; uneven heat and the adhesive degrades or chars. JINGCHENG's hot melt hose is an electrically heated adhesive hose for hot melt adhesive machines and PUR adhesive machines, heat resistant up to 230°C. Instead of the traditional manual winding method, JINGCHENG winds these hoses on fully automated equipment, so every hose is built identically and delivers consistent, durable quality.
Heat loss: adhesive cools in a poorly heated or insulated hose and its viscosity rises
Local overheating: hot spots degrade the adhesive, leading to char and blocked nozzles
Irregular glue lines: viscosity changes along the hose appear as uneven beads at the gun
Variable hose quality: hand-wound hoses differ from piece to piece and can fail early under constant heat cycling
A purpose-built heated adhesive hose keeps the adhesive at a stable temperature from the melter outlet to the gun.

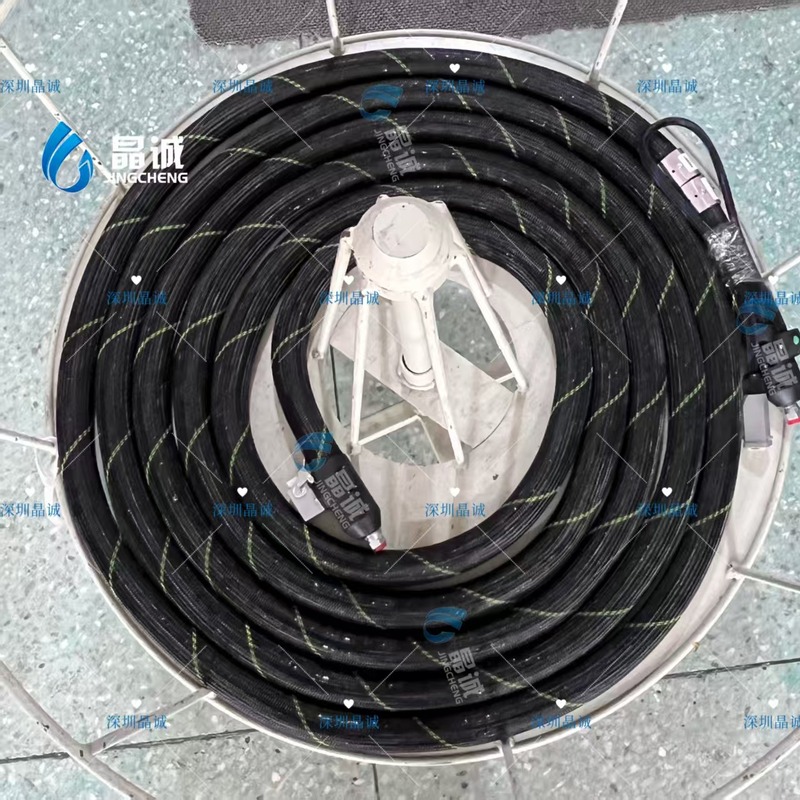

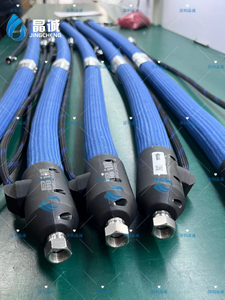

JINGCHENG hot melt hoses are wound on fully automated equipment rather than by hand. Machine winding gives repeatable tension and layer placement, so finished hoses are consistent and long-lasting.
Evenly braided heating elements form the heating layer and keep the inner-wall temperature difference to a minimum, so the adhesive is heated uniformly rather than overheated in some places and cooled in others.
Insulating materials with high efficiency are applied around the heating layer, selected with the hose surface temperature in mind. This saves energy and keeps the outer surface safer for operators.

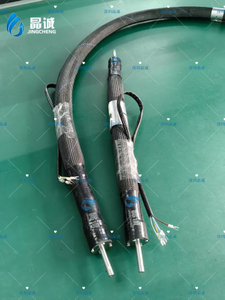

The hose can be fitted with the sensor your melter uses (Type J or Type K thermocouple, Ni120, PT100 or PT1000) and with the pin layout of the melter end and gun end.
Heat resistance up to 230°C, higher on request
Automated winding for consistent, durable quality
Even inner-wall temperature from uniformly braided heating elements
Energy-efficient insulation designed around surface temperature
Seven catalog sizes from 1/4" to 1" ID
Built to fit your melter: voltage, sensor, length, fittings and wiring made to order
The hose serves all types of hot melt adhesive machines and PUR adhesive machines, including:
Packaging lines: carton and case sealing, tray forming and labeling
Woodworking and furniture: edge banding, profile wrapping and panel lamination
Automotive and product assembly: bonding of trim, filters and components with hot melt or PUR
Nonwovens, textiles and hygiene products: spray and slot coating of hot melt adhesives
Bookbinding and paper converting: spine gluing and PUR binding
Inner Diameter (inch) | Outer Diameter (mm ±0.2) | Working Pressure (bar) | Working Pressure (psi) | Burst Pressure (bar) | Burst Pressure (psi) | Min. Bend Radius (mm) |
|---|---|---|---|---|---|---|
1/4" | 9 | 173 | 2501 | 690 | 10005 | 30 |
5/16" | 11 | 158 | 2284 | 630 | 9137 | 40 |
3/8" | 12.4 | 135 | 1958 | 540 | 7830 | 60 |
1/2" | 15.9 | 118 | 1704 | 470 | 6815 | 150 |
5/8" | 19 | 88 | 1269 | 350 | 5075 | 180 |
3/4" | 22.6 | 85 | 1234 | 340 | 4930 | 260 |
1" | 29.5 | 75 | 1088 | 300 | 4350 | 300 |
Data source: JINGCHENG 2025 Electrically Heated Hose Catalog. Heat resistance up to 230°C; higher temperature on request. Confirm the rating at your operating temperature with our engineers when ordering.
Each JINGCHENG electrically heated hose is assembled to the buyer's specification. The catalog order form covers the following items:
Parameter | Options listed in the catalog |
|---|---|
Supply voltage | 380 Vac, 220 Vac, 110 Vac, 12 Vdc or other |
Temperature sensor | Type J thermocouple, Type K thermocouple, Ni120, PT100, PT1000 or other |
Hose length | 3 m, 4.5 m, 5 m, 6 m, 10 m or other |
Inner diameter | Φ8, Φ12, Φ16, Φ19, Φ25 mm or other |
Working pressure | 4 MPa, 10 MPa, 20 MPa, 35 MPa or other |
Heating power | 110 W/m, 150 W/m, 170 W/m, 200 W/m or other |
End fittings | US, British or metric threads, or other |
Wiring | Pin number, wire color and function at the controller end and the gun/tool end |
A typical code such as JCH-200-16-B-3X220-P2-8 is read as follows: 200 = working temperature 200°C; 16 = inner diameter Φ16 mm; B = inner tube type (B stainless steel corrugated tube, TB PTFE hose with stainless steel braid, T PTFE hose, X special material); 3X220 = supply (220 = 220 V single phase, 3X220 = three-phase four-wire 220 V); P2 = sensor (P2 PT100 two-wire, P3 PT100 three-wire, K Type K, J Type J, W no sensor, T special sensor); 8 = working pressure 8 MPa.
Ambient temperature -40°C to +55°C, relative humidity not above 85%
Atmospheric pressure 86 kPa to 106 kPa; voltage range 12 Vac to 380 Vac
No gases that corrode metal or damage insulation, no conductive media and no severe mold in the surroundings; other environments are handled as custom builds
Connect the hose strictly according to its technical data and the pin table delivered with it.
Never twist the hose sideways during or after installation; torsion can lead to leakage, flow loss, hose damage or fire.
Keep bends generous; over-bending can damage the hose and cause short circuit, leakage or fire.
Let only authorized, trained operators handle the hose, ideally a dedicated team.
Unauthorized modification or adjustment voids the warranty.
For any situation not covered by the instructions, contact JINGCHENG engineers for installation guidance.
Send your inquiry by phone, fax or the website inquiry form.
Our engineers confirm the most suitable specification as the basis for quotation.
You receive a quotation and confirm with a purchase order.
The hose is produced in our factory to the confirmed specification.
Every hose is inspected for defects and packed.
The order is shipped to your designated address.
Adhesive and temperature: state the adhesive type (EVA, PO, PA, PUR and others) and its application temperature (standard up to 230°C).
Size and length: choose the inner diameter for your adhesive output (1/4" to 1") and the hose length from melter to gun.
Electrical data: supply voltage, power per meter and the sensor type used by your melter.
Interfaces: thread standard at each end (US, British or metric) and the pin layout at the melter end and gun end.
Routing: plan the route so the hose is neither twisted nor sharply bent, especially next to the fittings.
Shenzhen Jingcheng High-Tech Co., Ltd. has manufactured PTFE hoses and PTFE electrically heated hoses since 2005, and hot melt adhesive conveying is one of its core industries. Automated winding, evenly braided heating elements and build-to-order wiring allow JINGCHENG to supply replacement and OEM hot melt hoses that match your melter and gun. Send us your melter data, adhesive and fitting details for a matching specification and quotation.
