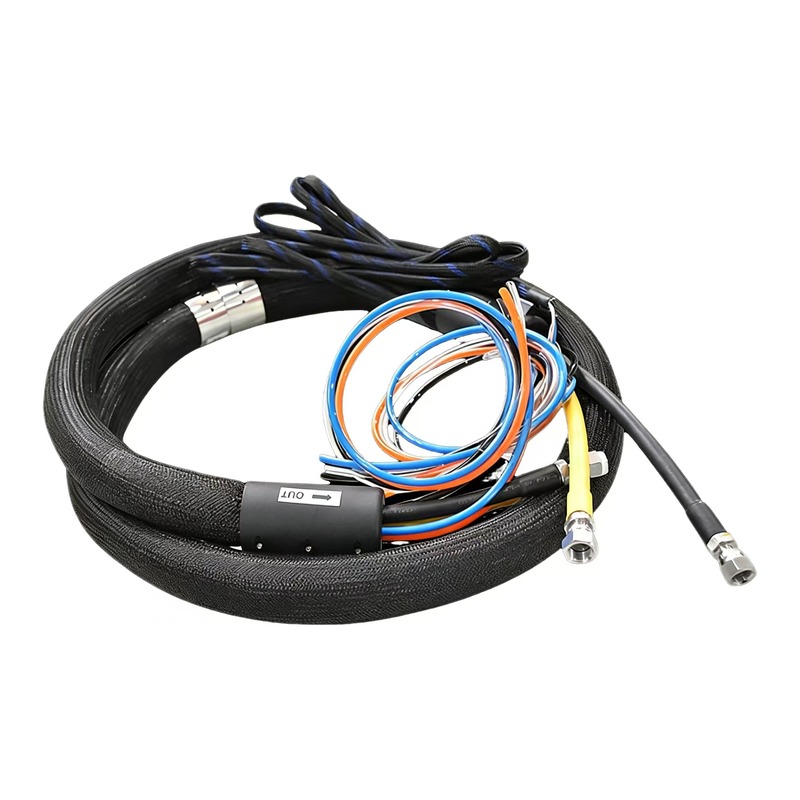

Solvent-free lamination depends on adhesive that arrives at the coating unit at the right temperature and viscosity. If the adhesive cools in the supply line, it thickens, the coat weight drifts and the line has to slow down or stop for cleaning. JINGCHENG's Solvent-Free Laminator Hose is an electrically heated hose built for all kinds of solvent-free laminating machines. It is heat resistant up to 230°C, and many laminating machine brands in the industry have worked with us on it in long-term, stable cooperation.
The hose that carries adhesive on a solvent-free laminator affects both coating quality and line uptime:
Viscosity drift: solvent-free adhesives are thick, and their viscosity rises quickly as they cool
Uneven coat weight: a change in viscosity along the hose shows up as uneven adhesive transfer
Cold spots: an unheated section near a fitting can let adhesive build up and narrow the bore
Cleaning stops: thickened or partly cured adhesive in the line means extra downtime and wasted material
An electrically heated laminator hose holds the adhesive at a controlled temperature from the supply unit to the point of use.
The heating layer is made of uniformly braided heating elements around the inner hose. Heat is spread evenly over the inner wall, which keeps the temperature difference along the hose to a minimum, so the adhesive is neither overheated in one place nor cooled in another.
High-insulation-efficiency materials surround the heating layer and are selected with the hose surface temperature in mind. They keep heat in the adhesive, reduce energy use and help keep the outside of the hose at a safer temperature around the machine.
The laminator hose is listed in four compact catalog sizes, 1/4", 5/16", 3/8" and 1/2" ID, so the bore can be chosen to match the adhesive flow of each solvent-free laminating machine.
A temperature sensor (Type J or Type K thermocouple, Ni120, PT100 or PT1000) can be built into the hose, with supply voltage and connector wiring matched to the laminator's temperature controller.
Heat resistance up to 230°C (higher temperatures available on request)
Built for all kinds of solvent-free laminating machines
Long-term, stable cooperation with laminating machine brands in the industry
Uniformly braided heating elements for an even inner-wall temperature
High-efficiency insulation designed around the hose surface temperature
Four catalog sizes: 1/4", 5/16", 3/8" and 1/2" ID, with voltage, sensor, length and fittings built to order
The Solvent-Free Laminator Hose is used on:
Solvent-free laminating machines: heated adhesive supply lines between the adhesive supply unit and the coating section
New laminator builds: hoses supplied to laminating machine makers to match their connection and control layout
Line upgrades: replacing unheated or worn adhesive lines with electrically heated hoses
Replacement hoses: heated hoses built to the length, fittings and pin layout of an existing laminator
ID (inch) | OD (mm ±0.2) | Working Pressure (bar) | Working Pressure (psi) | Burst Pressure (bar) | Burst Pressure (psi) | Min. Bend Radius (mm) |
|---|---|---|---|---|---|---|
1/4" | 9 | 173 | 2501 | 690 | 10005 | 30 |
5/16" | 11 | 158 | 2284 | 630 | 9137 | 40 |
3/8" | 12.4 | 135 | 1958 | 540 | 7830 | 60 |
1/2" | 15.9 | 118 | 1704 | 470 | 6815 | 150 |
Heat resistance up to 230°C; higher temperature on request. Please confirm the rating at your operating temperature with our engineers when you order.
Every JINGCHENG electrically heated hose is built to order. The catalog order form lets you specify each of the following:
Item | Catalog options |
|---|---|
Rated voltage | 380 Vac, 220 Vac, 110 Vac, 12 Vdc, or other |
Temperature sensor | Type J thermocouple, Type K thermocouple, Ni120, PT100, PT1000, or other |
Hose length | 3 m, 4.5 m, 5 m, 6 m, 10 m, or other |
Inner diameter | Φ8, Φ12, Φ16, Φ19, Φ25 mm, or other |
Hose working pressure | 4 MPa, 10 MPa, 20 MPa, 35 MPa, or other |
Rated power | 110 W/m, 150 W/m, 170 W/m, 200 W/m, or other |
End fittings (each end) | US, British or metric thread, or other |
Wiring | Pin number, wire color and function defined for the controller end and the gun/tool end |
JINGCHENG heated hoses are identified by a model code such as JCH-200-16-B-3X220-P2-8:
200: working temperature in °C (200 = 200°C)
16: hose inner diameter in mm (16 = Φ16)
B: inner tube material (B = stainless steel corrugated tube; TB = PTFE hose with stainless steel braid; T = PTFE hose; X = special material)
3X220: working voltage (220 = 220 V; 3X220 = three-phase four-wire 220 V)
P2: temperature sensor (P2 = PT100 two-wire; P3 = PT100 three-wire; K = Type K thermocouple; J = Type J thermocouple; W = no sensor; T = special sensor)
8: working pressure in MPa (8 = 8 MPa)
Ambient temperature: -40°C to +55°C
Relative humidity: not more than 85%
Atmospheric pressure: 86 kPa to 106 kPa
Voltage range: 12 Vac to 380 Vac
The surrounding medium should not contain gases that corrode metal or damage insulation, or conductive media, and severe mold must not be present. For special environments, contact us for a customized hose.
Wire the hose according to its technical parameters and the pin table supplied with it.
Do not twist the hose sideways during or after installation; lateral twisting can cause leakage, flow loss, hose damage or fire.
Avoid sharp bends; bending the hose too tightly can damage it and cause short circuit, leakage or fire.
The hose should be operated only by authorized and trained personnel, ideally the same dedicated operators.
Unauthorized modification or adjustment of the hose voids the warranty.
If you meet a problem not covered by the instructions, contact us so that our engineers can guide the installation.
Inquiry: send us your requirements by phone, fax or the inquiry form.
Specification confirmation: our engineers propose the most suitable specification as a quotation reference.
Quotation: we issue a quotation; you confirm with a purchase order.
Production: the hose is built in our factory to the confirmed specification.
Inspection and packing: every hose is checked for defects and packed.
Shipment: the hose is shipped to your designated address.
Adhesive and temperature: tell us the adhesive system and the temperature the hose must hold (standard heat resistance up to 230°C).
Size and length: choose the inner diameter for your adhesive flow (1/4", 5/16", 3/8" or 1/2" in the catalog) and the length from the supply unit to the coating section.
Electrical: specify the supply voltage (380 Vac, 220 Vac, 110 Vac or 12 Vdc), the power per meter and the sensor type of your laminator's controller.
Connections: give the thread standard at each end (US, British or metric) and the connector and pin layout.
Routing: route the hose without twisting and keep bends gentle, especially next to the fittings.
Shenzhen Jingcheng High-Tech Co., Ltd. has been manufacturing PTFE hoses and PTFE electrically heated hoses since 2005, and many laminating machine brands in the industry have kept long-term, stable cooperation with us. Every laminator hose is built to order, with uniformly braided heating elements, high-efficiency insulation and wiring matched to your machine.
For solvent-free laminating machines that need adhesive at a steady temperature and viscosity, the JINGCHENG Solvent-Free Laminator Hose offers uniformly braided heating elements, high-efficiency insulation and heat resistance up to 230°C, in 1/4", 5/16", 3/8" and 1/2" sizes. Send us your laminator model, adhesive temperature and hose length for a matching specification and quotation.
