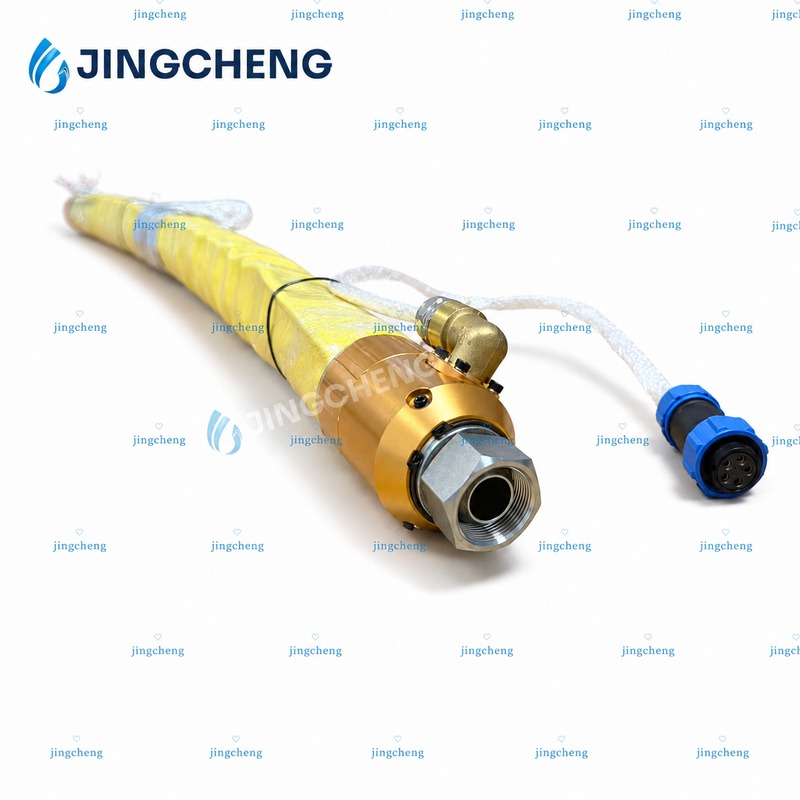

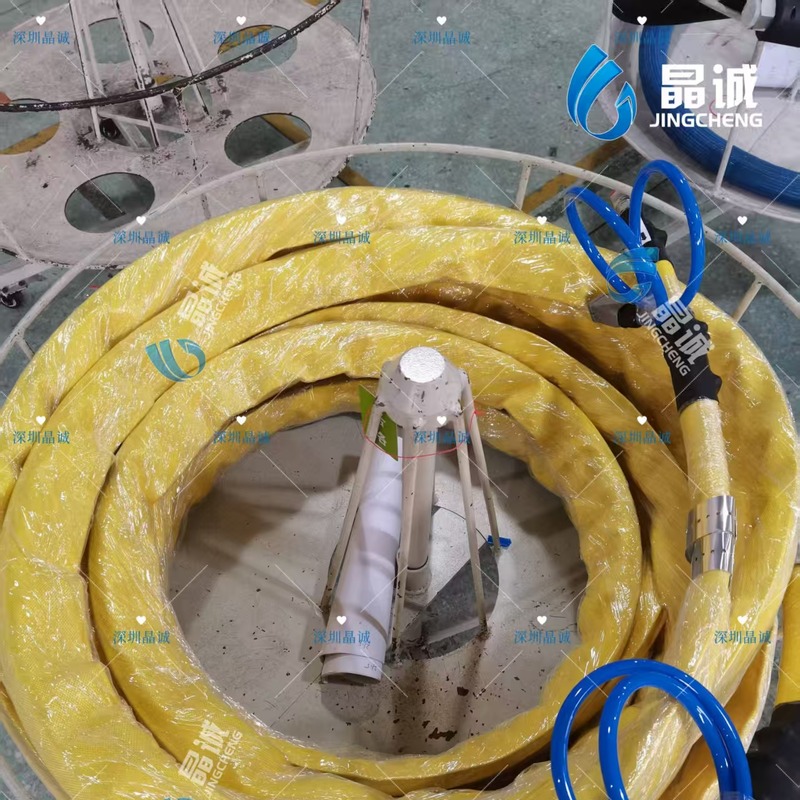

Hot-applied crack sealants only work when they reach the crack hot and fluid. If the sealant cools in the delivery hose between the melter kettle and the applicator wand, it thickens, flow drops, the bead becomes uneven and the hose can block. JINGCHENG's Crack Sealing Machine Hose is an electrically heated hose for all types of road maintenance equipment and crack sealing equipment. It is heat resistant up to 230°C, keeps the material evenly heated along its full length, and uses JINGCHENG's unique inner tube reinforcement technology to secure a long hose service life.
The delivery hose is one of the hardest-working parts of a crack sealing machine:
Heat loss: sealant cools quickly in an unheated hose, especially in cold or windy weather
Blockage: material that thickens or sets in the line stops work and is difficult to clear
Uneven application: viscosity changes along the hose show up as inconsistent sealant beads in the crack
Hard service conditions: the hose is dragged, flexed and moved along the road surface all day, which wears out weak inner tubes
A dedicated heated hose keeps the sealant at working temperature from the kettle to the wand and stands up to daily road work.
JINGCHENG crack sealing machine hoses use a unique inner tube reinforcement technology. The reinforced inner tube is the core of the hose's durability and is what secures its service life under repeated heating and handling.
The heating layer is made of uniformly braided heating elements, which minimizes the temperature difference across the inner wall. The sealant is heated evenly, without hot spots that overheat the material or cold spots where it begins to set.
High-insulation-efficiency materials are used around the heating layer, chosen with the hose surface temperature in mind. This reduces energy loss on the truck or trailer and keeps the outside of the hose safer for operators.
The hose can be built with the temperature sensor your machine's controller uses (Type J or Type K thermocouple, Ni120, PT100 or PT1000), with voltage and connector wiring to match.
Heat resistance up to 230°C (higher temperatures available on request)
Unique inner tube reinforcement technology for a long hose service life
Uniformly braided heating elements for an even inner-wall temperature
High-efficiency insulation designed around the hose surface temperature
Four catalog sizes from 1/2" to 1" ID for sealant delivery
Built to order: voltage, power, sensor, length, fittings and wiring to fit your machine
The Crack Sealing Machine Hose is used on road maintenance and pavement preservation equipment, including:
Crack sealing machines: heated delivery from the melter kettle to the applicator wand
Road maintenance equipment: heated hoses for hot-applied sealing and repair materials
Pavement crack repair: hot-applied sealing of cracks in road surfaces
Replacement and OEM hoses: built to match the connections and controls of the machine
ID (inch) | OD (mm ±0.2) | Working Pressure (bar) | Working Pressure (psi) | Burst Pressure (bar) | Burst Pressure (psi) | Min. Bend Radius (mm) |
|---|---|---|---|---|---|---|
1/2" | 15.9 | 118 | 1704 | 470 | 6815 | 150 |
5/8" | 19 | 88 | 1269 | 350 | 5075 | 180 |
3/4" | 22.6 | 85 | 1234 | 340 | 4930 | 260 |
1" | 29.5 | 75 | 1088 | 300 | 4350 | 300 |
Heat resistance up to 230°C; higher temperature on request. Please confirm the rating at your operating temperature with our engineers when you order.
Every JINGCHENG electrically heated hose is built to order. The catalog order form lets you specify each of the following:
Item | Catalog options |
|---|---|
Rated voltage | 380 Vac, 220 Vac, 110 Vac, 12 Vdc, or other |
Temperature sensor | Type J thermocouple, Type K thermocouple, Ni120, PT100, PT1000, or other |
Hose length | 3 m, 4.5 m, 5 m, 6 m, 10 m, or other |
Inner diameter | Φ8, Φ12, Φ16, Φ19, Φ25 mm, or other |
Hose working pressure | 4 MPa, 10 MPa, 20 MPa, 35 MPa, or other |
Rated power | 110 W/m, 150 W/m, 170 W/m, 200 W/m, or other |
End fittings (each end) | US, British or metric thread, or other |
Wiring | Pin number, wire color and function defined for the controller end and the gun/tool end |
JINGCHENG heated hoses are identified by a model code such as JCH-200-16-B-3X220-P2-8:
200: working temperature in °C (200 = 200°C)
16: hose inner diameter in mm (16 = Φ16)
B: inner tube material (B = stainless steel corrugated tube; TB = PTFE hose with stainless steel braid; T = PTFE hose; X = special material)
3X220: working voltage (220 = 220 V; 3X220 = three-phase four-wire 220 V)
P2: temperature sensor (P2 = PT100 two-wire; P3 = PT100 three-wire; K = Type K thermocouple; J = Type J thermocouple; W = no sensor; T = special sensor)
8: working pressure in MPa (8 = 8 MPa)
Ambient temperature: -40°C to +55°C
Relative humidity: not more than 85%
Atmospheric pressure: 86 kPa to 106 kPa
Voltage range: 12 Vac to 380 Vac
The surrounding medium should not contain gases that corrode metal or damage insulation, or conductive media, and severe mold must not be present. For special environments, contact us for a customized hose.
Wire the hose according to its technical parameters and the pin table supplied with it.
Do not twist the hose sideways during or after installation; lateral twisting can cause leakage, flow loss, hose damage or fire.
Avoid sharp bends; bending the hose too tightly can damage it and cause short circuit, leakage or fire.
The hose should be operated only by authorized and trained personnel, ideally the same dedicated operators.
Unauthorized modification or adjustment of the hose voids the warranty.
If you meet a problem not covered by the instructions, contact us so that our engineers can guide the installation.
Inquiry: send us your requirements by phone, fax or the inquiry form.
Specification confirmation: our engineers propose the most suitable specification as a quotation reference.
Quotation: we issue a quotation; you confirm with a purchase order.
Production: the hose is built in our factory to the confirmed specification.
Inspection and packing: every hose is checked for defects and packed.
Shipment: the hose is shipped to your designated address.
Material and temperature: tell us the sealant you apply and its application temperature (standard heat resistance up to 230°C).
Size and length: choose the inner diameter for your output (1/2" to 1" in the catalog) and the hose length your crew needs to reach the work.
Electrical: specify the supply voltage (380 Vac, 220 Vac, 110 Vac or 12 Vdc), the power per meter and the sensor type of your machine.
Connections: give the thread standard at each end (US, British or metric) and the connector and pin layout at the machine end and the wand end.
Handling: avoid twisting the hose and keep bends gentle, especially next to the fittings.
Shenzhen Jingcheng High-Tech Co., Ltd. has been manufacturing PTFE hoses and PTFE electrically heated hoses since 2005 and provides complete insulated hot-fluid conveying solutions. Our inner tube reinforcement technology, uniformly braided heating elements and build-to-order wiring let us supply crack sealing hoses that fit your machine and last in road work.
For crack sealing and road maintenance equipment that must keep sealant hot and flowing, the JINGCHENG Crack Sealing Machine Hose combines unique inner tube reinforcement, uniformly braided heating elements, high-efficiency insulation and heat resistance up to 230°C, in four sizes from 1/2" to 1". Send us your machine model and hose requirements for a matching specification and quotation.
