Road maintenance machinery operates in environments very different from those found inside an industrial factory.
A crack sealing machine may spend its working life on highways, municipal roads, industrial yards, parking facilities and other paved surfaces.
During normal work, the machine may repeatedly change position while operators guide the heated material-delivery hose toward cracks and joints.
The hose is exposed not only to internal temperature and pressure but also to external mechanical conditions.
These may include dragging, bending, contact with rough pavement, vibration, repeated handling and mechanical loads near the end fittings.
For this reason, a heated crack sealing machine hose must be selected according to the actual field operating environment rather than temperature alone.

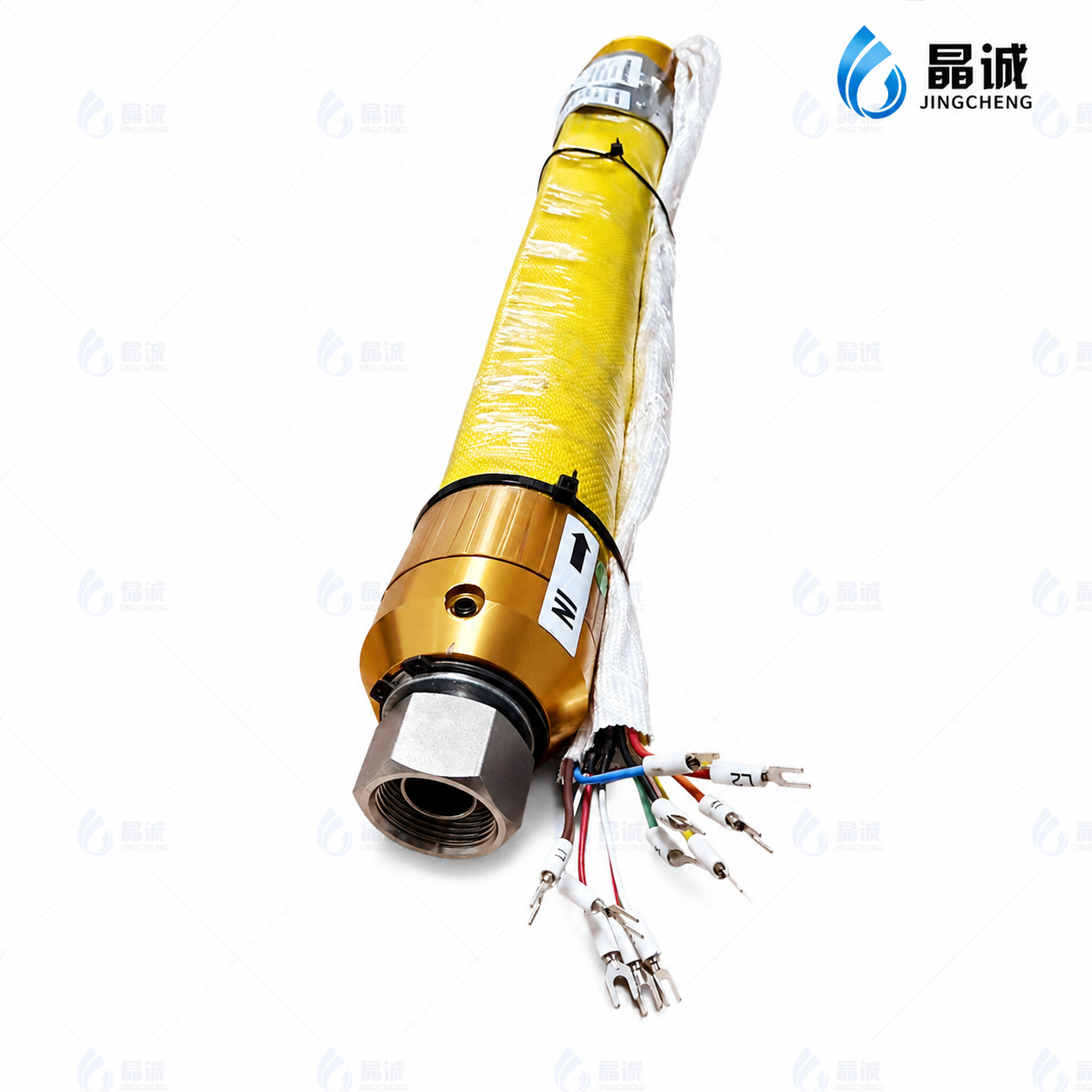

Jingcheng's heated crack sealing hose is designed for pavement maintenance and crack filling equipment.
The catalog highlights a specially reinforced inner tube construction intended to improve hose service life.
The product family provides a maximum temperature capability of approximately 230°C, with different hose diameters available for matching material-flow and equipment requirements.
A hose permanently installed inside an industrial machine may remain relatively stationary.
A crack sealing hose operates differently.
During pavement repair, the equipment may be moved from one location to another while the operator handles the applicator.
The hose may therefore experience repeated mechanical loads.
These loads can come from:
Pulling the hose across the working area
Repeated repositioning
Contact with rough asphalt
Bending around equipment
Hose weight near the applicator
Vibration during machine movement
Even when the hose is designed for high temperature, these mechanical conditions still need to be considered.
A correctly engineered assembly should provide a suitable balance between flexibility, strength and field durability.
The Jingcheng catalog specifically states that its crack sealing machine hose uses a special inner tube reinforcement design to support longer service life.
This feature distinguishes the product from an ordinary heated material-transfer hose.
The reinforced inner construction is intended to support the hose during demanding use.
However, the full service life of the assembly also depends on fitting installation, hose routing, operating temperature, pressure and external handling.
Therefore, reinforcement should be considered as one element of the overall durability strategy.
A hose with high temperature capability is not automatically suitable for road maintenance equipment.
For example, an assembly may withstand the required internal temperature but still experience mechanical damage if it is continuously bent too tightly or pulled by its fittings.
This is why the installation should be evaluated as a complete operating system.
Three mechanical areas deserve particular attention:
The hose body, which carries the material.
The transition to the end fitting, where concentrated bending forces may occur.
The external routing path, where contact with pavement or machinery can create abrasion.
All three influence how well the hose performs in service.
The hose-to-fitting transition is a particularly important area.
When an operator pulls a hose, part of the force may be transferred toward the connection point.
If the hose bends sharply immediately behind the fitting, the assembly can experience concentrated mechanical stress.
Suitable hose routing and strain relief can help distribute those loads more effectively.
Depending on the equipment design, the manufacturer may consider protective sleeves, supports or alternative connection orientations.
The correct configuration should be selected according to the machine's actual installation geometry.
The product catalog specifies maximum temperature resistance of approximately:
230°C
This makes the hose relevant to heated pavement sealing equipment that transports materials requiring elevated application temperatures.
The actual setpoint should be based on the sealing material manufacturer's processing recommendations and the machine design.
A hose rated for a high maximum temperature should not be operated unnecessarily at its upper limit.
The complete hose assembly must also remain suitable for the required pressure and temperature combination.
The catalog describes heating elements arranged evenly around the hose.
This construction is intended to reduce internal temperature variation.
In a road maintenance machine, the hose forms the connection between the heated material supply and the application tool.
A uniform heating structure helps provide a controlled thermal path through this flexible section.
However, actual temperature performance depends on additional factors, including:
Hose length
Heating power
Insulation
Ambient conditions
Material flow
Temperature control
These factors should be evaluated together when designing a custom assembly.
Jingcheng provides the following catalog sizes for its heated crack sealing machine hose.
Nominal size | Outer diameter | Working pressure | Minimum bending radius |
|---|---|---|---|
1/2" | 15.9 mm | 118 bar | 150 mm |
5/8" | 19 mm | 88 bar | 180 mm |
3/4" | 22.6 mm | 85 bar | 260 mm |
1" | 29.5 mm | 75 bar | 300 mm |
These are catalog reference values. Final operating limits should be confirmed for the complete assembly at its intended temperature.
The diameter should be selected according to the equipment's flow demand, working pressure and installation requirements.
The table shows that bending requirements change significantly with hose size.
For example, a 1/2-inch hose has a catalog minimum bending radius of approximately 150 mm, while the 1-inch version requires approximately 300 mm.
This matters during both machine design and field operation.
A hose that is bent below its specified radius may experience unnecessary mechanical strain.
Equipment manufacturers should therefore consider:
Applicator movement
Hose support positions
Storage arrangement
Available space around the machine
The hose should bend naturally rather than being forced into a sharp angle.
Road surfaces are often rough and abrasive.
If a hose repeatedly contacts pavement, its outer covering can experience wear.
This is especially relevant when operators move between cracks over a large working area.
A durable hose system should therefore consider the external operating conditions.
Where necessary, the equipment designer can specify additional protective components or routing features to reduce direct abrasion.
The exact outer-cover material and any extra protective construction should be confirmed as part of the customized hose specification.
Road maintenance hoses may be stored between jobs or transported together with the machine.
Poor storage can subject the hose to sharp bends or excessive mechanical compression.
For equipment manufacturers, suitable hose-storage design is an important consideration.
The storage arrangement should maintain an appropriate bending radius and prevent unnecessary loads on fittings and electrical connections.
The hose should also be protected from damage during transport.
These measures help maintain the integrity of the assembly between operating periods.

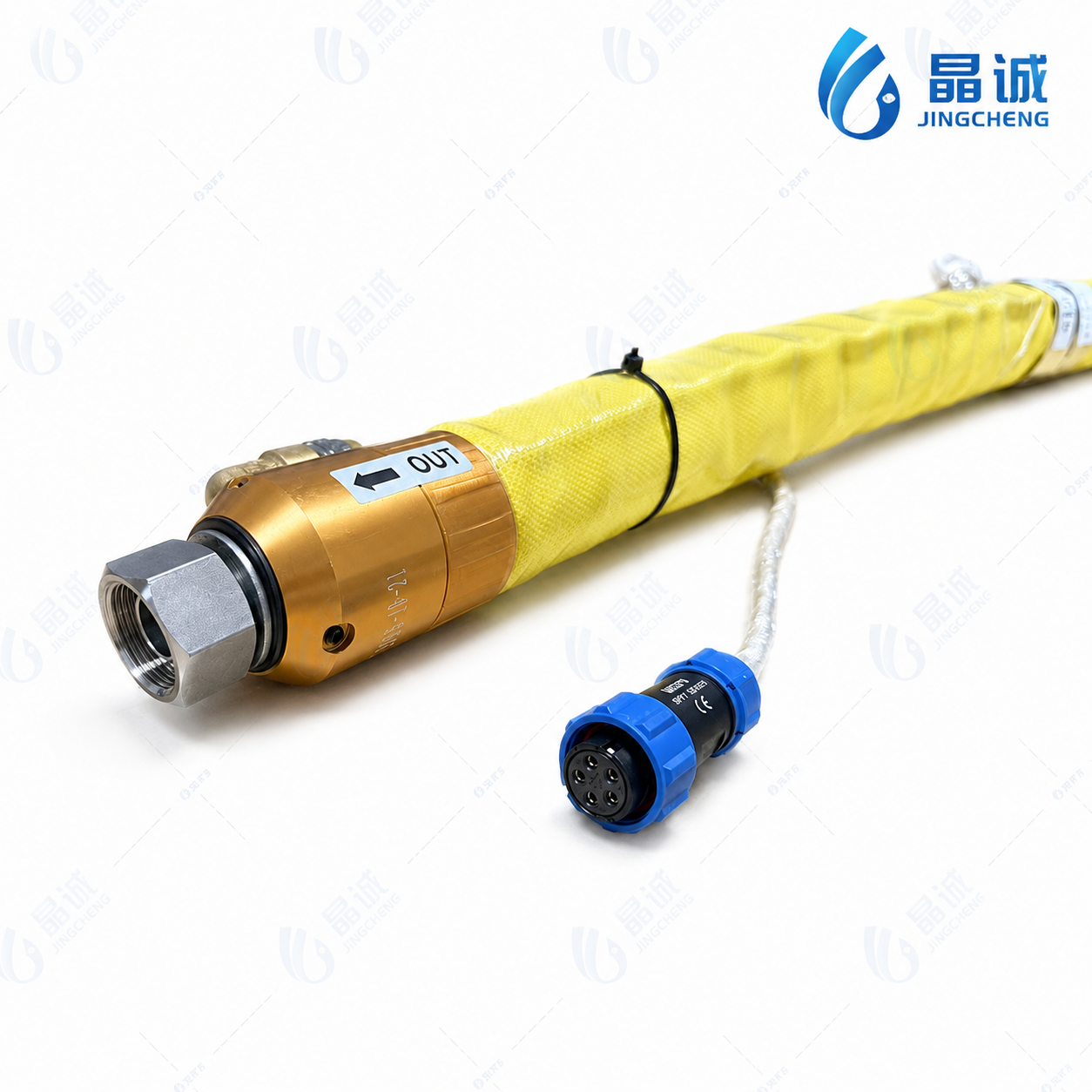

A heated crack sealing hose may contain electrical heating components and associated wiring.
These components need to remain compatible with the machine's power and control arrangement.
For field equipment, their physical protection also matters.
Cable exits, electrical connectors and connection leads should be arranged to avoid unnecessary pulling or repeated mechanical impact.
For OEM projects, Jingcheng can evaluate customized electrical configurations according to the machine's requirements.
These may include voltage, heating power, temperature sensing and connector details.
The product is designed for pavement maintenance machinery and crack filling applications.
Potential equipment includes:
Asphalt crack sealing machines
Pavement joint sealing equipment
Road maintenance material applicators
Heated sealant transfer systems
Mobile pavement repair machinery
Different applications may use different sealing materials, operating temperatures and pressures.
Therefore, the exact hose configuration should be matched to the intended material and equipment.
Road maintenance companies may operate several machines from different manufacturers.
Replacement hoses can differ in:
Diameter
Length
Fitting style
Voltage
Heating power
Electrical connectors
A replacement hose should therefore be matched to the original assembly rather than selected only by its outside appearance.
Customers can provide photographs, dimensions or an original sample to support initial evaluation.
Jingcheng supports customized heated hose assemblies for road maintenance equipment manufacturers.
Available project customization can include hose length, diameter, end fittings and electrical requirements.
The supplier can also work from OEM drawings or original hose specifications.
For recurring production, manufacturers may define a standardized hose part number for each machine model.
This can simplify future purchasing and replacement orders.
For an accurate quotation, the following information is useful:
Crack sealing material
Working temperature
Maximum pressure
Required hose length
Inner diameter
Fitting specifications
Minimum bending radius
Voltage
Heating power
Temperature sensor
Electrical connector
Machine manufacturer and model
Information about the physical working environment is also valuable when evaluating external hose protection.
Jingcheng manufactures customized industrial heated hose assemblies and provides engineering support for equipment manufacturers.
Its capabilities include hose production, heating assembly customization, fitting integration, sample development and replacement hose matching.
For road maintenance machinery, Jingcheng can support both new OEM equipment and existing machine maintenance requirements.
The operating life of a heated crack sealing hose depends on more than its ability to transport hot sealing material.
Road maintenance environments expose hose assemblies to bending, abrasion, vibration and repeated handling.
A durable hose system therefore needs appropriate inner reinforcement, correct bending geometry, suitable fitting support and a practical installation arrangement.
Jingcheng's heated crack sealing hose combines temperature-controlled material transfer with a reinforced hose construction intended for demanding pavement maintenance applications.
For road maintenance OEMs and equipment service providers, selecting the complete assembly around the actual field conditions is essential to achieving reliable long-term operation.
