Choosing Smooth-Bore PTFE Tubing for Corrosive and High-Purity Process Lines

A practical guide to smooth-bore PTFE tubing for strong acids, alkalis, oxidizers, reducing agents and organic solvents from -70°C to +260°C.

Availability:

Quantity:



Inquire Add to Basket

Model:
Soren20060807
Brand:
JINGCHENG
Code:
3917290000 3904610000 3917390000

Product Description

Introduction

Selecting tubing for corrosive or high-purity media requires more than checking pressure and diameter.

The tube material must resist chemical attack, remain stable across the operating-temperature range and avoid contaminating the transferred medium.

Ordinary rubber and thermoplastic tubes may swell, harden, crack or release extractable substances when exposed to aggressive chemicals.

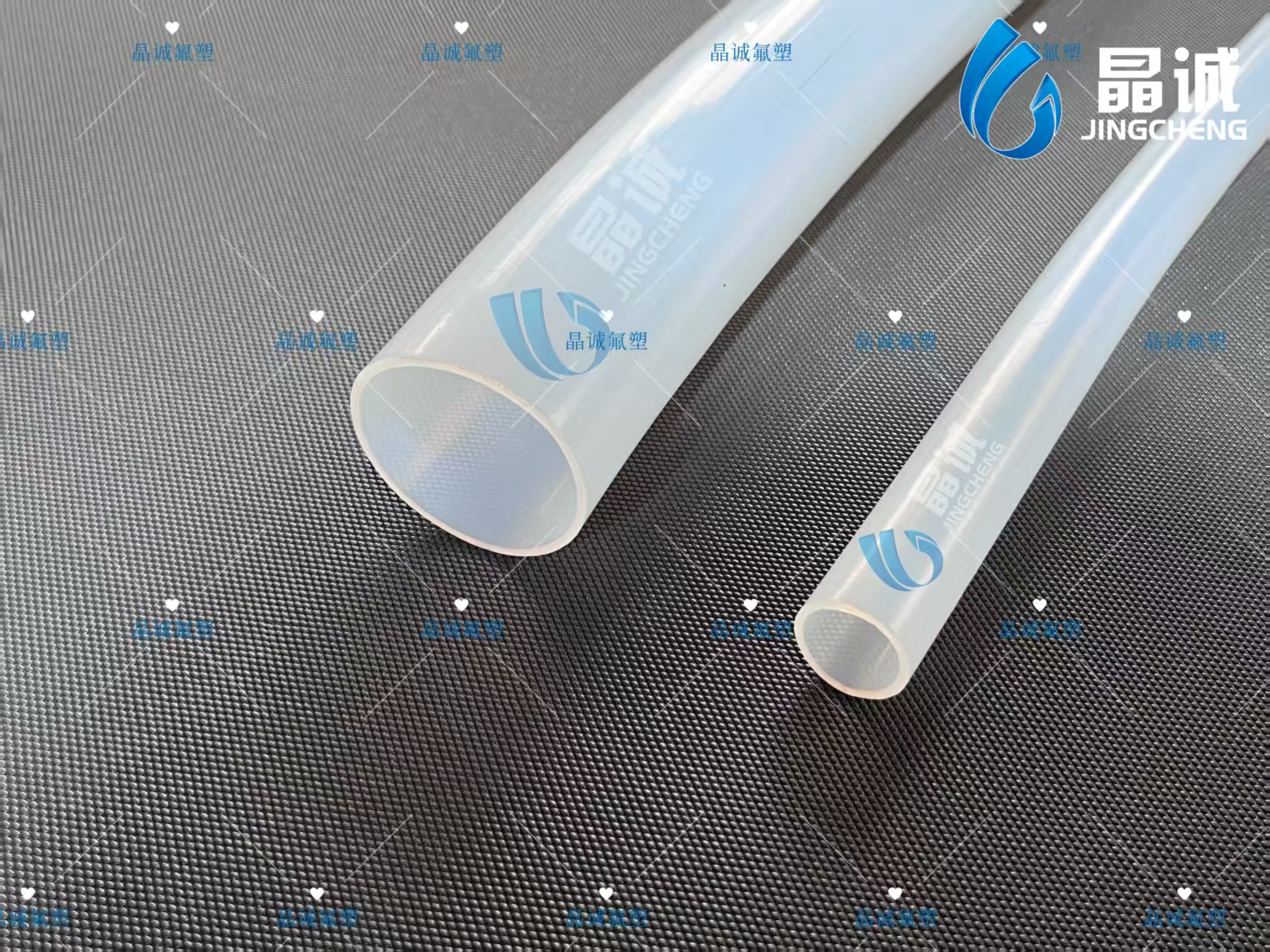

Smooth-bore PTFE tubing is widely used where chemical inertness, low friction and a clean flow path are essential.

The JCC-00000-PTFE series is manufactured from PTFE through extrusion, drying, high-temperature sintering and forming processes.

Where Conventional Tubing Can Fail

Chemical-service tubing may be exposed to:

Strong acids
Strong alkalis
Oxidizing agents
Reducing agents
Organic solvents
Temperature variation
Continuous chemical contact
High-purity process requirements

An unsuitable tube may experience:

Material swelling
Surface cracking
Hardening
Chemical decomposition
Permeation
Internal contamination
Reduced service life
Leakage at the connection

PTFE provides a chemically stable alternative for many demanding process conditions.

Smooth Bore and Process Cleanliness

The smooth internal surface of PTFE tubing helps reduce:

Flow resistance
Pressure loss
Material accumulation
Particle trapping
Cleaning time
Cross-contamination

This makes the tubing suitable for applications where the condition of the transferred medium is important.

The low-friction surface also supports stable flow in laboratory, chemical, pharmaceutical and high-purity process systems.

Temperature Performance

The catalog operating range is:

-70°C to +260°C

This wide range allows the tube to operate in both low- and elevated-temperature systems.

However, pressure capability decreases as temperature increases. Working pressure must therefore be evaluated together with:

Actual operating temperature
Tube diameter
Wall thickness
Hose length
Fitting design
Pressure cycles
Installation method

Chemical Compatibility

The catalog lists the tubing for:

Strong acids
Strong alkalis
Strong oxidizing agents
Reducing agents
Organic solvents
High-purity chemicals

Although PTFE resists a broad range of chemicals, the exact medium, concentration, temperature and pressure should still be confirmed before selection.

Typical Application Areas

Chemical processing
Laboratory equipment
Pharmaceutical machinery
Semiconductor chemical delivery
High-purity fluid systems
Analytical instruments
Food-processing equipment
Chemical dosing systems
Solvent-transfer lines
Corrosive-liquid pipelines
Research equipment
Customized industrial machinery

Product Structure and Catalog Information

Item	Specification
Product Name	Smooth-Bore PTFE Tubing
Model Series	JCC-00000-PTFE
Material	PTFE
Surface	Smooth inner and outer walls
Temperature Range	-70°C to +260°C
Inner Diameter Range	5/32" to 2"
Primary Advantages	Chemical resistance, low friction and high-purity transfer
Customization	Diameter, wall thickness, length and fittings
Catalog References	ISO9001:2015 / US FDA 21 CFR 177.1550 / SGS

Reference Product Data

Model	Inner Diameter	Outer Diameter	Working Pressure	Burst Pressure	Minimum Bending Radius	Wall Thickness
JCC-00004-PTFE	5/32" / 4.5 mm	6.5 mm	203 psi / 1.40 MPa	812 psi / 5.6 MPa	60 mm	1.0 mm
JCC-00006-PTFE	1/4" / 6.8 mm	8.8 mm	251.33 psi / 1.73 MPa	754 psi / 5.2 MPa	130 mm	1.0 mm
JCC-00008-PTFE	5/16" / 8.2 mm	10.5 mm	203 psi / 1.40 MPa	609 psi / 4.2 MPa	160 mm	1.2 mm
JCC-00010-PTFE	3/8" / 10.3 mm	12.7 mm	169.17 psi / 1.17 MPa	507.5 psi / 3.5 MPa	220 mm	1.2 mm
JCC-00013-PTFE	1/2" / 13.3 mm	15.7 mm	135.33 psi / 0.93 MPa	406 psi / 2.8 MPa	270 mm	1.2 mm
JCC-00016-PTFE	5/8" / 15.9 mm	18.3 mm	106.33 psi / 0.73 MPa	319 psi / 2.2 MPa	400 mm	1.2 mm
JCC-00019-PTFE	3/4" / 19.8 mm	22.3 mm	116 psi / 0.80 MPa	348 psi / 2.4 MPa	500 mm	1.5 mm
JCC-00025-PTFE	1" / 25.7 mm	29.7 mm	101.5 psi / 0.70 MPa	304.5 psi / 2.1 MPa	600 mm	2.0 mm
JCC-00032-PTFE	1-1/4" / 31.7 mm	35.7 mm	91.83 psi / 0.63 MPa	275.5 psi / 1.9 MPa	800 mm	2.0 mm
JCC-00038-PTFE	1-1/2" / 38.5 mm	42.5 mm	72.5 psi / 0.50 MPa	217.5 psi / 1.5 MPa	900 mm	2.0 mm
JCC-00050-PTFE	2" / 51 mm	55 mm	58 psi / 0.40 MPa	174 psi / 1.2 MPa	1,200 mm	2.0 mm

The table contains catalog reference data. Final operating limits depend on temperature, wall thickness, fittings and installation.

When to Select Smooth PTFE Tubing

Smooth-bore PTFE tubing is generally appropriate when the application prioritizes:

Chemical inertness
High-purity media transfer
Low internal friction
Reduced material retention
Easy flushing
Wide temperature resistance
A clean material-contact surface

Applications requiring very tight bends, high external abrasion resistance or high working pressure may require a convoluted or braided PTFE construction instead.
