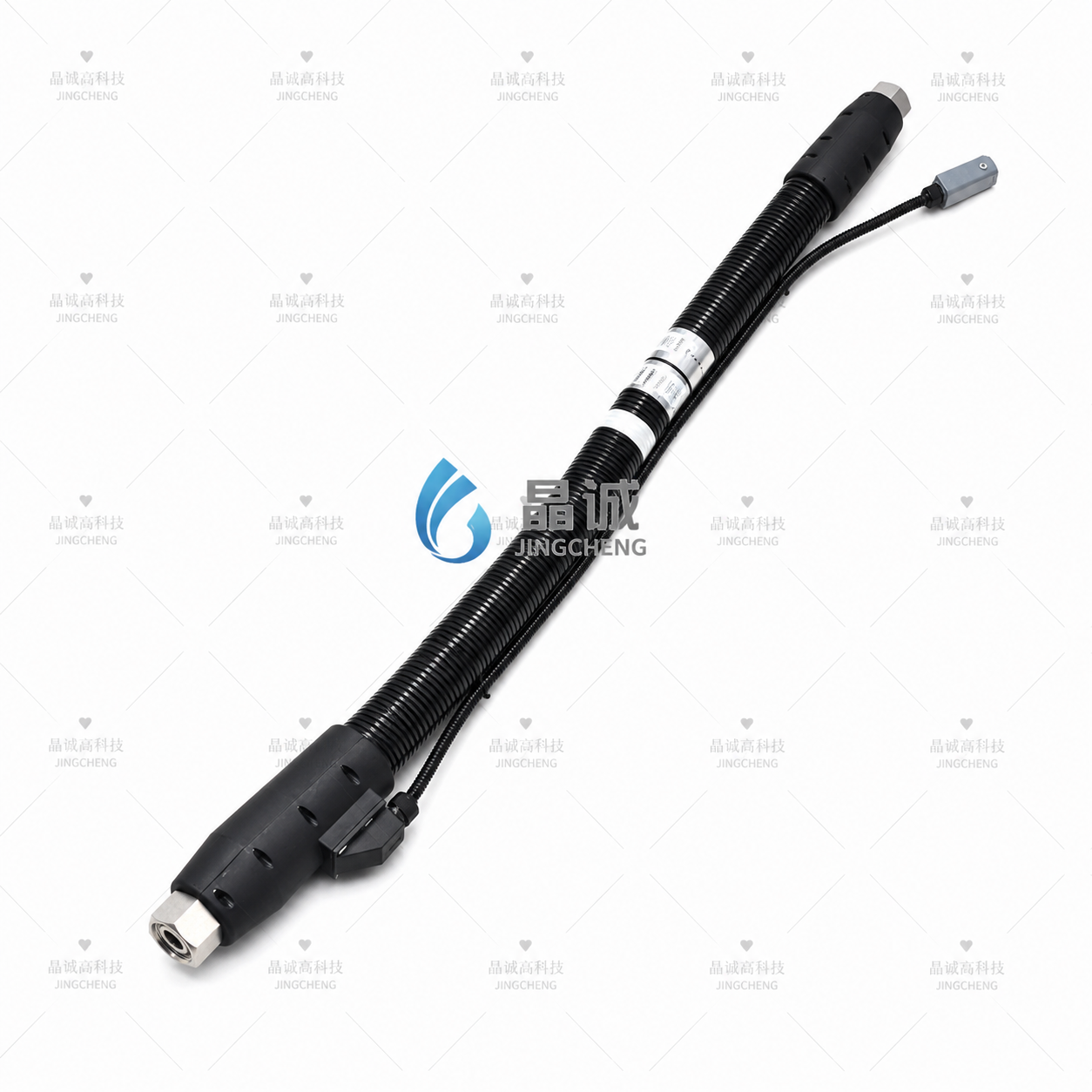

Custom Thermal Transfer Hose for Special-Industry High-Pressure Equipment

Introduction

A custom thermal transfer hose for special-industry equipment is designed for applications that require temperature maintenance, pressure resistance and non-standard equipment connections.

Special machinery often operates under working conditions that cannot be met by standard hoses. The transferred medium may need to remain at a controlled temperature while the hose is exposed to pressure, repeated bending, vibration or limited installation space.

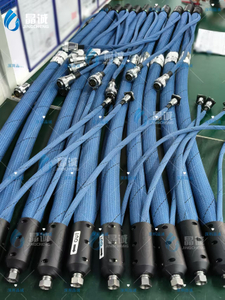

Shenzhen Jingcheng High-tech manufactures customized heated hose assemblies for domestic and imported special equipment. Hose length, inner diameter, fittings, voltage, heating power, temperature sensor and electrical connections can be configured according to the actual machine.

What Is a Special-Industry Heated Connection Hose?

A special-industry heated connection hose combines fluid transfer, electrical heating and thermal insulation in one flexible assembly.

Its structure may include:

• PTFE material-contact inner tube

• 304 stainless steel pressure reinforcement

• Uniformly distributed heating elements

• High-efficiency insulation

• Protective outer covering

• Temperature sensor

• Customized fluid fittings

• Equipment-specific electrical connector

The complete construction is selected according to the medium, pressure, temperature and operating environment.

Why Special Equipment Requires a Customized Hose

Standard heated hoses may not match the dimensions, electrical interfaces or working conditions of specialized machinery.

An unsuitable hose may cause:

• Temperature fluctuation

• Increased medium viscosity

• Flow instability

• Excessive system pressure

• Leakage at the fittings

• Premature hose failure

• Electrical mismatch

• Equipment downtime

A customized hose assembly helps match the complete system rather than only matching the thread size.

Key Features

Operating Temperature up to 230°C

The standard product supports working temperatures up to 230°C.

Higher temperature requirements can be evaluated according to the inner tube, insulation, sensor and electrical configuration.

Customized High-Pressure Capability

The product description states that customized constructions can be designed for pressure requirements up to 40 MPa or higher.

The listed standard sizes have lower catalog working pressures. Final pressure capability must therefore be confirmed according to hose structure, temperature, fittings and complete assembly design.

PTFE Inner Tube

The PTFE material-contact layer provides resistance to many chemicals and elevated-temperature process media.

304 Stainless Steel Reinforcement

The pressure-resistant steel-wire structure helps limit expansion and improves the mechanical stability of the hose.

Uniform Heating Elements

Uniformly distributed heating elements help minimize temperature differences along the inner wall.

Efficient Thermal Insulation

High-efficiency insulation reduces heat loss while helping control the external surface temperature.

Complete Equipment Customization

The following items can be customized:

• Hose length

• Inner diameter

• Working pressure

• Voltage

• Heating power

• Sensor type

• Fluid fittings

• Electrical plug

• Pin arrangement

• Outer protection

Typical Applications

• Special industrial machinery

• High-temperature process equipment

• High-pressure material transfer

• Heated chemical conveying

• Customized production systems

• Imported equipment replacement hoses

• Temperature-controlled fluid transfer

• Laboratory process machinery

• Industrial coating equipment

• Adhesive and resin transfer

• Pilot production equipment

• Non-standard automation systems

Technical Specification Options

Reference Product Data

These values are reference data for the listed standard construction. They should not be interpreted as the pressure rating of every customized hose.

Required Information for Selection

Please provide:

• Transferred medium

• Chemical concentration

• Required temperature

• Normal working pressure

• Maximum system pressure

• Required flow rate

• Hose length

• Inner diameter

• Minimum bending radius

• Voltage and power

• Sensor type

• Inlet and outlet fittings

• Electrical connector

• Equipment model

• Installation drawing

• Original hose sample or photos

Why Choose Shenzhen Jingcheng?

Source Manufacturer

We manufacture heated hose assemblies directly and support technical confirmation with the production team.

Complete Customization

The hose can be produced according to drawings, samples, equipment models or actual operating conditions.

Short Lead Time

Customized replacement and project orders can be handled quickly after specifications are confirmed.

Sample Support

Samples can be manufactured for equipment testing before larger orders.

Competitive Factory Pricing

Factory-direct production helps reduce unnecessary sourcing layers.
