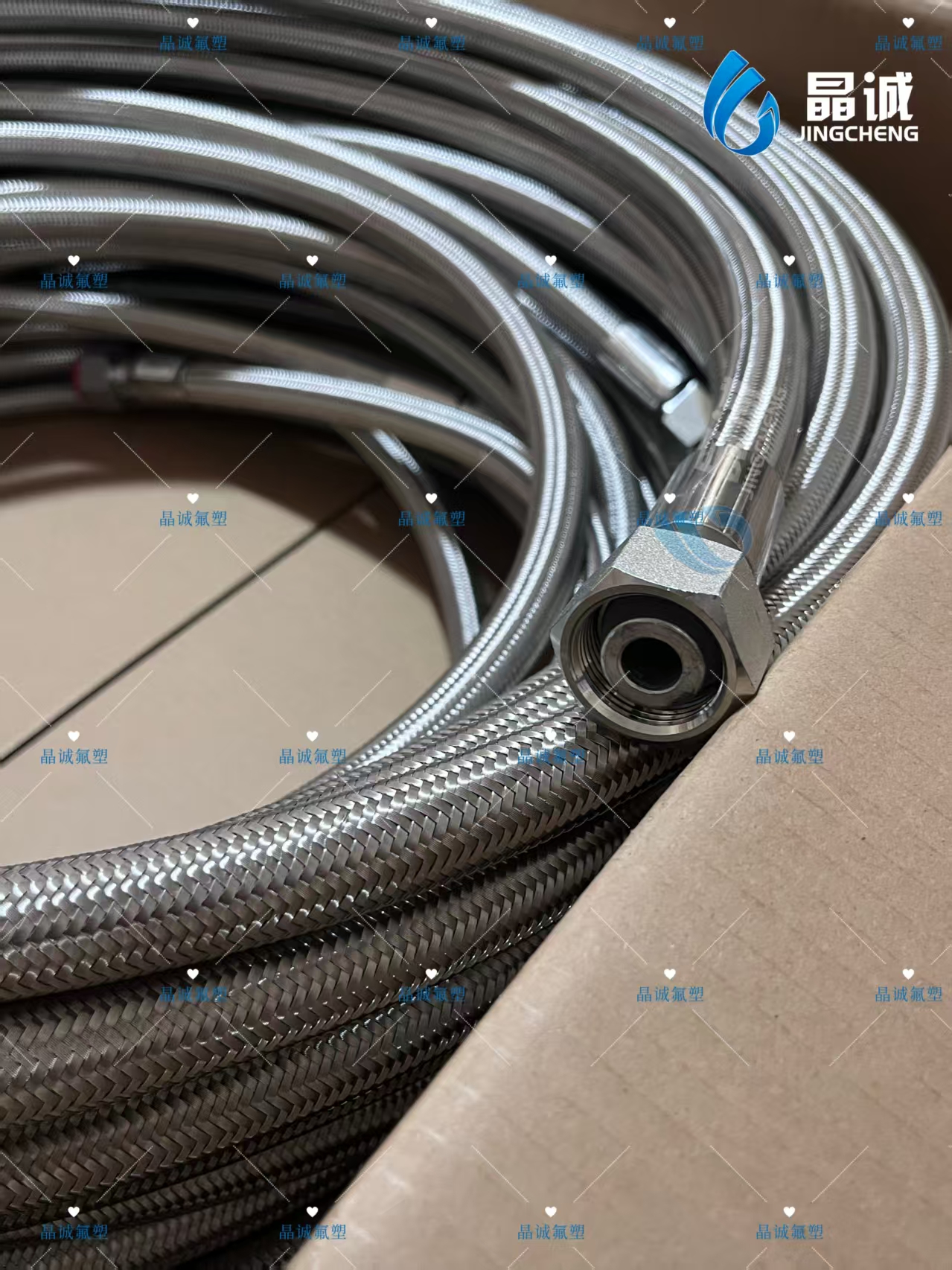

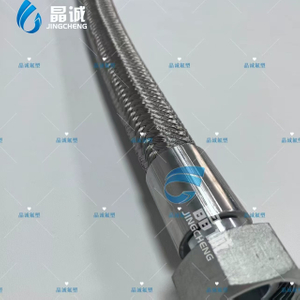

A double layer PTFE braided hose is designed for hydraulic transmission and industrial fluid transfer systems that require higher pressure resistance, chemical compatibility and reliable hose durability. This hose uses a smooth PTFE inner tube as the material-contact layer and two layers of high-strength 304 stainless steel braided wire as the outer reinforcement.
Compared with single layer braided PTFE hoses, the double braided structure provides stronger pressure resistance and mechanical protection. It is suitable for the hydraulic transmission of gas-based fluids, oil-based fluids, water-based fluids and chemical materials.
Shenzhen Jingcheng High-tech manufactures customized double layer stainless steel braided PTFE hoses for equipment manufacturers, distributors and industrial buyers. With factory-direct production, flexible customization and fast delivery support, we help customers improve equipment matching and reduce procurement cost.
A double layer PTFE braided hose is a reinforced hose made with a smooth PTFE inner tube and two layers of 304 stainless steel braided reinforcement. The PTFE inner tube provides chemical resistance, temperature resistance and smooth flow performance, while the two stainless steel braided layers improve pressure rating, burst strength and external protection.
This hose is suitable for transfer systems where higher pressure capacity is required but the customer still needs the chemical resistance and clean flow performance of PTFE.
In hydraulic and industrial fluid systems, hoses often need to handle pressure fluctuation, vibration, temperature changes and different working media. Ordinary hoses may age quickly, swell, crack or fail when exposed to aggressive fluids or high pressure.
A double layer PTFE braided hose helps improve system reliability by offering:
Smooth PTFE inner tube
Two layers of 304 stainless steel braid
Higher pressure resistance than standard single layer structures
Excellent chemical compatibility
Temperature range from -70°C to +260°C
Suitable for gas, oil, water and chemical fluid transmission
Custom fittings and hose assembly options
The smooth PTFE inner tube helps reduce friction, improve flow stability and provide chemical resistance for different working media.
The two-layer stainless steel braid structure provides improved pressure resistance, burst strength and mechanical protection.
This hose is suitable for hydraulic transmission of gas-based fluids, oil-based fluids, water-based fluids and chemical materials.
The hose supports a temperature range from -70°C to +260°C, making it suitable for both low-temperature and high-temperature environments.
PTFE provides strong resistance to many corrosive media, solvents, oils and industrial chemicals.
Inner diameter, hose length, connector type, fittings, bending radius and assembly structure can be customized according to customer requirements.
Our double layer PTFE braided hose can be used in:
Hydraulic transmission systems
Gas-based fluid transfer
Oil-based fluid transfer
Water-based fluid transfer
Chemical material transfer
Industrial machinery
Automotive systems
Energy equipment
Chemical processing equipment
High-pressure fluid equipment
Corrosive media pipelines
Custom equipment connection systems
Item | Available Options |
|---|---|
Product Name | Double Layer PTFE Braided Hose |
Model Series | JCC-01200-PTFE |
Inner Tube | Smooth PTFE tube |
Reinforcement | Two layers of 304 stainless steel braid |
Temperature Range | -70°C to +260°C |
Inner Diameter | 1/4” to 1-1/4” |
Main Advantages | High pressure, chemical resistance, hydraulic transmission |
Application | Gas-based, oil-based, water-based and chemical fluid transfer |
Customization | Available |
Standard Reference | ISO9001:2015 / US FDA 21 CFR 177.1550 / SGS |
Model | Inner Diameter | Outer Diameter | Braided Hose OD | Working Pressure | Burst Pressure | Min. Bending Radius |
JCC-01206-PTFE | 1/4” / 6.3 mm | 8.3 mm | 10.6 mm | 40 MPa | 120.9 MPa | 83 mm |
JCC-01208-PTFE | 5/16” / 7.9 mm | 10.3 mm | 12.8 mm | 35 MPa | 105 MPa | 83 mm |
JCC-01210-PTFE | 3/8” / 9.5 mm | 11.9 mm | 15 mm | 32 MPa | 96.9 MPa | 105 mm |
JCC-01213-PTFE | 1/2” / 12.6 mm | 15 mm | 18.3 mm | 27 MPa | 79.8 MPa | 140 mm |
JCC-01216-PTFE | 5/8” / 16.3 mm | 20.3 mm | 22 mm | 21 MPa | 62.7 MPa | 176 mm |
JCC-01219-PTFE | 3/4” / 19.5 mm | 23.5 mm | 26.4 mm | 20 MPa | 58.5 MPa | 210 mm |
JCC-01225-PTFE | 1” / 25 mm | 29 mm | 32.6 mm | 17 MPa | 51.6 MPa | 285 mm |
JCC-01232-PTFE | 1-1/4” / 31.5 mm | 35.5 mm | 39.5 mm | 14 MPa | 42 MPa | 340 mm |
Shenzhen Jingcheng High-tech Co., Ltd. is a professional manufacturer of PTFE hoses, PTFE high-pressure hoses, PA hoses and electric heated hoses. We provide customized hose solutions for hydraulic systems, chemical processing, automotive equipment, machinery, energy equipment, gas sampling, food equipment and industrial transfer applications.
For global buyers, equipment manufacturers and distributors, we provide factory-direct PTFE hose solutions with stable quality, flexible customization, short lead time and sample support.
We manufacture PTFE hoses directly in China, helping customers reduce sourcing cost and shorten the supply chain.
The double stainless steel braided structure improves working pressure and burst pressure performance.
This hose can be used for gas-based, oil-based, water-based and chemical fluid hydraulic transmission.
The PTFE inner tube provides excellent resistance to many chemicals, solvents, oils and corrosive media.
We can customize hose length, inner diameter, fittings, connector type and hose assembly structure according to drawings, samples or working conditions.
