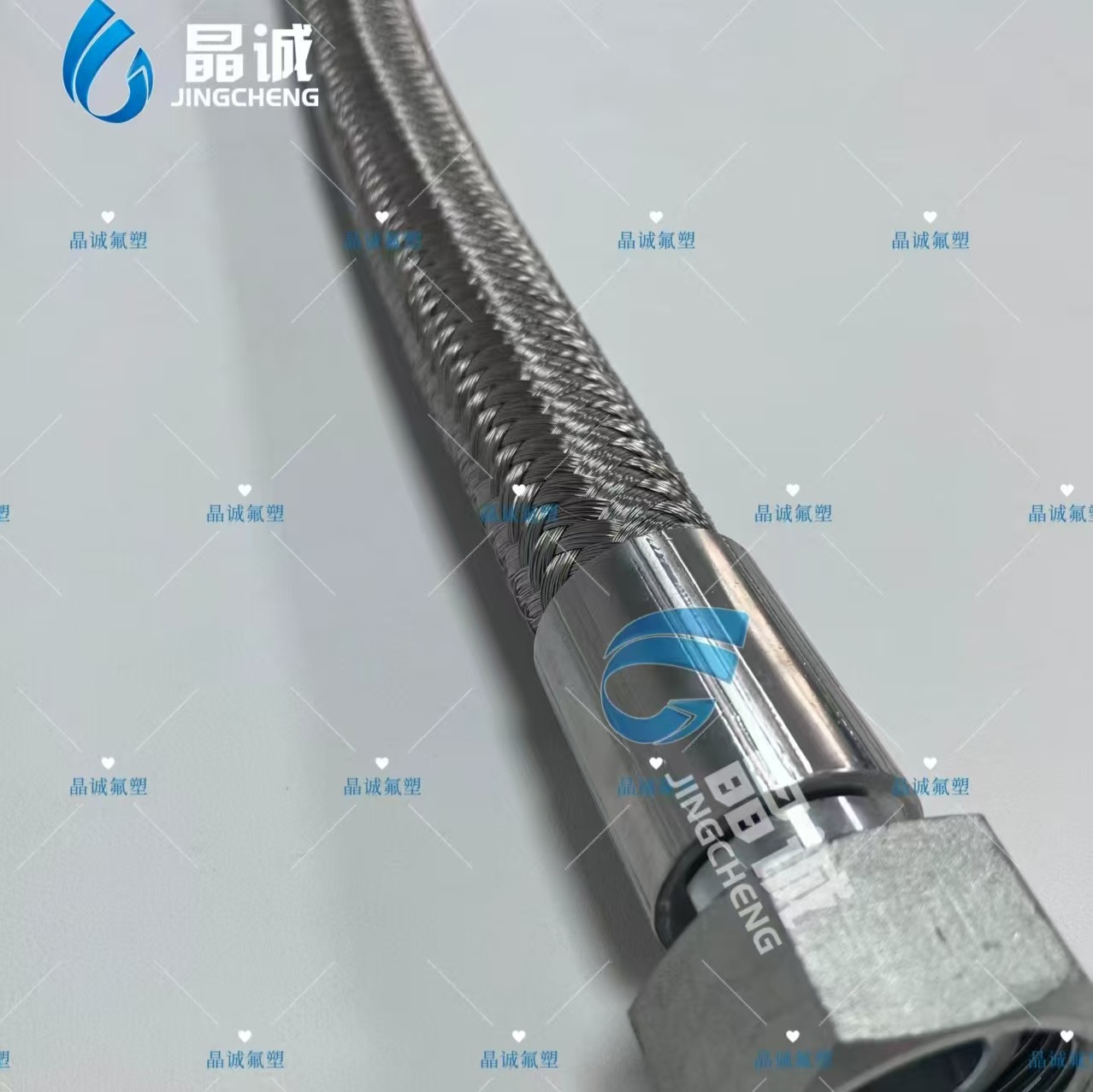

A PTFE steel wire bundle braided hose is designed for demanding high-pressure transfer systems where chemical resistance, mechanical strength and stable pressure performance are required. This hose uses a smooth PTFE inner tube as the material-contact layer, a 304 stainless steel braided wire layer as the middle reinforcement, and a high-strength 304 stainless steel wire bundle braided layer as the outer reinforcement.
This multi-layer reinforced structure gives the hose excellent mechanical resistance, high working pressure and reliable durability in harsh industrial environments. It is suitable for chemical high-pressure spraying, high-pressure gluing, high-pressure conveying, steam conveying, oil transfer and brake hose applications.
Shenzhen Jingcheng High-tech manufactures customized PTFE steel wire bundle braided hoses for industrial equipment manufacturers, distributors and process system integrators. With factory-direct supply, flexible customization and fast response, we help customers reduce sourcing cost and improve hose compatibility with their equipment.
A PTFE steel wire bundle braided hose is a reinforced PTFE hose with a smooth PTFE inner tube and a multi-layer stainless steel reinforcement structure. The PTFE inner layer provides excellent chemical resistance and clean fluid compatibility. The 304 stainless steel braided middle layer improves pressure resistance, while the high-strength wire bundle braid further increases mechanical protection and working durability.
This hose is designed for applications where ordinary single-layer braided PTFE hoses may not provide enough mechanical strength or pressure performance.
In high-pressure industrial systems, hose failure can lead to production downtime, leakage, safety risks and higher maintenance cost. A reinforced PTFE hose must resist pressure, temperature, vibration, chemical media and external mechanical stress at the same time.
The PTFE steel wire bundle braided hose helps solve these problems by offering:
Smooth PTFE inner tube for clean and stable flow
304 stainless steel braided reinforcement
High-strength stainless steel wire bundle outer layer
Excellent mechanical resistance
High working pressure and burst pressure
Wide temperature range from -70°C to +260°C
Suitable for chemical, oil, steam and high-pressure transfer systems
Custom hose assembly options
The smooth PTFE inner tube helps reduce friction, improve flow stability and resist chemical corrosion. It is suitable for many aggressive media, including chemicals, oils, solvents and high-temperature fluids.
The hose has a 304 stainless steel braided wire layer as the middle reinforcement and a high-strength stainless steel wire bundle braided layer as the outer reinforcement. This structure improves pressure capacity and mechanical protection.
This hose is designed for high-pressure applications such as chemical spraying, high-pressure gluing and high-pressure conveying. Selected sizes can reach working pressure above 40 MPa, depending on specification.
The hose can operate under both low-temperature and high-temperature conditions, making it suitable for a wide range of industrial transfer systems.
PTFE provides strong resistance to many acids, alkalis, solvents, oils and corrosive industrial media. This makes the hose suitable for chemical plants, spraying systems and fluid transfer equipment.
Hose length, inner diameter, fittings, connector type, bending radius and assembly structure can be customized according to equipment requirements.
Our PTFE steel wire bundle braided hose can be used in:
Chemical high-pressure spraying
High-pressure gluing systems
High-pressure conveying systems
Steam conveying
Oil transfer
Brake hose systems
Industrial hydraulic systems
Chemical process equipment
High-pressure fluid equipment
Equipment connection pipelines
Corrosive media transfer
Item | Available Options |
|---|---|
Product Name | PTFE Steel Wire Bundle Braided Hose |
Model Series | JCC-02100-PTFE |
Inner Tube | Smooth PTFE tube |
Middle Layer | 304 stainless steel braided wire |
Outer Layer | High-strength 304 stainless steel wire bundle braid |
Temperature Range | -70°C to +260°C |
Inner Diameter | 3/8” to 2” |
Main Advantages | High pressure, mechanical resistance, chemical resistance |
Application | High-pressure spraying, gluing, conveying, steam, oil, brake hose |
Customization | Available |
Standard Reference | ISO9001:2015 / US FDA 21 CFR 177.1550 / SGS |
Model | Inner Diameter | Outer Diameter | Braided Hose OD | Working Pressure | Burst Pressure | Min. Bending Radius |
JCC-02110-PTFE | 3/8” / 9.5 mm | 11.9 mm | 15.8 mm | 5945 psi / 41 MPa | 17719 psi / 122.2 MPa | 75 mm |
JCC-02113-PTFE | 1/2” / 12.7 mm | 15.1 mm | 18.3 mm | 5713 psi / 39 MPa | 17139 psi / 118.2 MPa | 113 mm |
JCC-02216-PTFE | 5/8” / 16.3 mm | 19.9 mm | 26.3 mm | 5959 psi / 41 MPa | 17879 psi / 123.3 MPa | 170 mm |
JCC-02219-PTFE | 3/4” / 19 mm | 23 mm | 30 mm | 5872 psi / 41 MPa | 17618 psi / 121.5 MPa | 205 mm |
JCC-02225-PTFE | 1” / 25 mm | 29 mm | 35.5 mm | 5118 psi / 35 MPa | 15356 psi / 105.9 MPa | 248 mm |
JCC-02232-PTFE | 1-1/4” / 31.5 mm | 35.5 mm | 43.5 mm | 3770 psi / 26 MPa | 11310 psi / 78 MPa | 490 mm |
JCC-02238-PTFE | 1-1/2” / 38 mm | 42 mm | 50 mm | 2392 psi / 17 MPa | 7178 psi / 49.5 MPa | 650 mm |
JCC-02250-PTFE | 2” / 50.5 mm | 54.5 mm | 60 mm | 2537 psi / 18 MPa | 7613 psi / 52.5 MPa | 900 mm |
Shenzhen Jingcheng High-tech Co., Ltd. is a professional PTFE hose manufacturer specializing in PTFE hoses, PTFE high-pressure hoses, PA hoses and electric heated hoses. We provide customized hose solutions for chemical processing, hydraulic systems, automotive systems, high-pressure equipment, pharmaceutical transfer, food equipment and industrial fluid transfer applications.
For global equipment manufacturers, distributors and industrial buyers, we provide factory-direct hose solutions with stable quality, flexible customization, short lead time and sample support.
We manufacture PTFE hoses directly in China, helping customers reduce sourcing cost, shorten the supply chain and improve purchasing efficiency.
The multi-layer stainless steel reinforcement structure provides reliable pressure resistance for demanding industrial transfer systems.
The PTFE inner tube is suitable for many chemicals, oils, gases, solvents and corrosive media.
We can customize hose length, inner diameter, fittings, connector standards and assembly structure according to drawings, samples or working conditions.
We support fast response for project orders, replacement hoses and customized hose assemblies. Samples can be provided for testing before bulk production.
