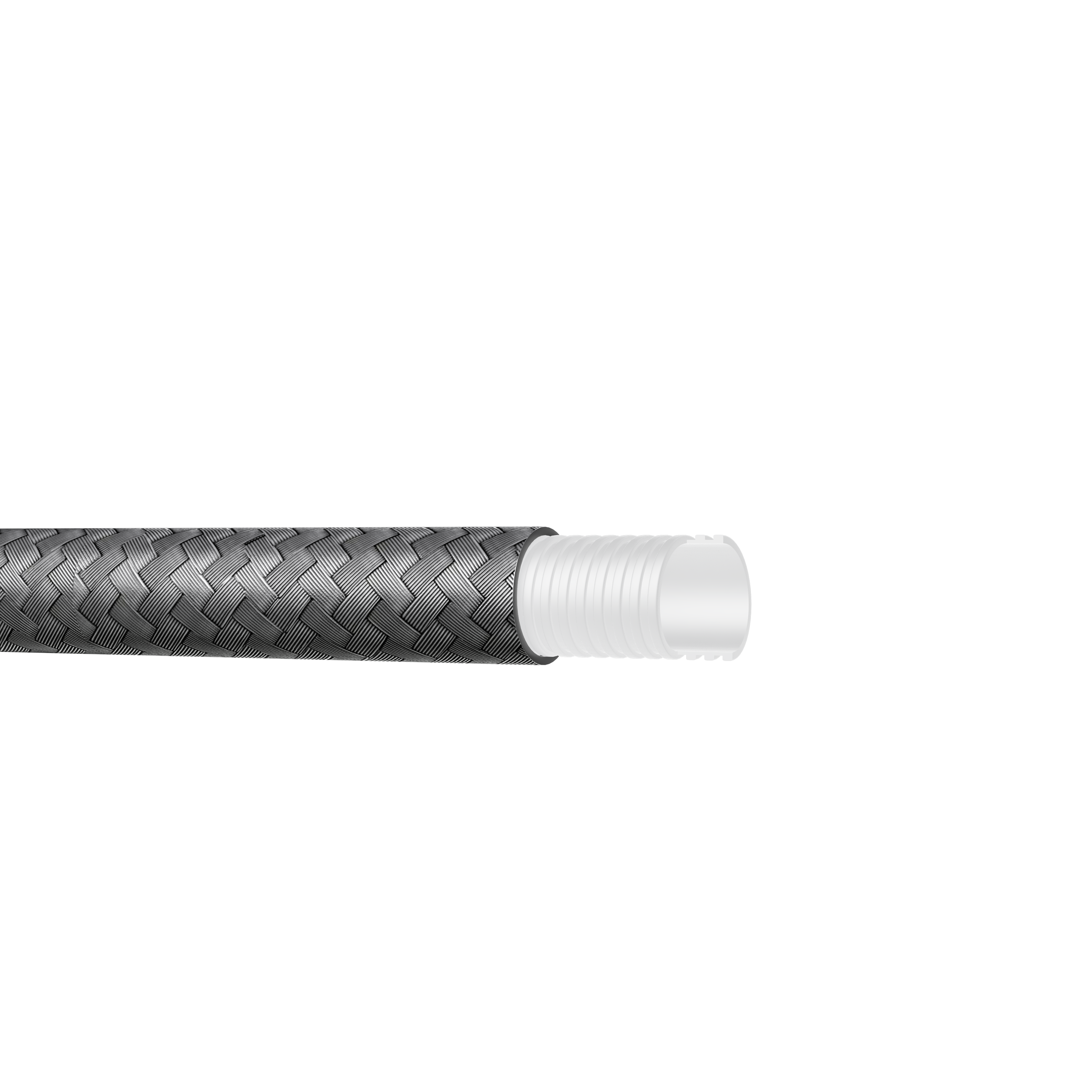

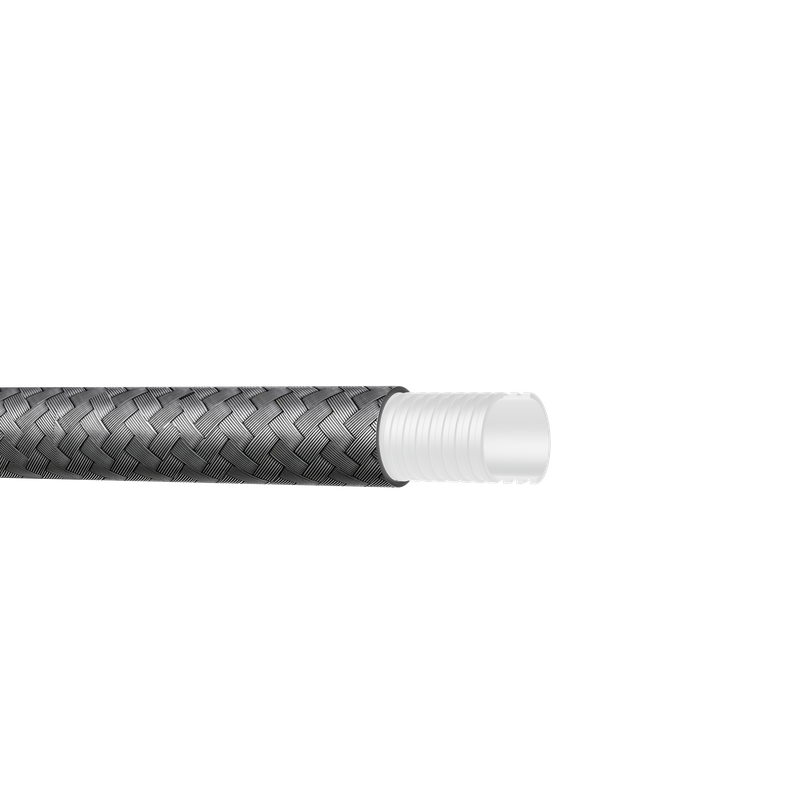

A PTFE inner smooth outer corrugated braided hose is designed for transfer systems that require clean flow, strong flexibility, chemical resistance and reinforced pressure performance. This hose combines a smooth inner PTFE wall, a corrugated outer PTFE structure and a 304 stainless steel braided reinforcement layer.
The smooth inner wall helps reduce material residue and makes the hose easier to clean. The corrugated outer structure improves flexibility and allows a smaller bending radius. The stainless steel braid provides better mechanical protection and pressure resistance, making the hose suitable for food, cosmetics, chemical and pharmaceutical transfer applications.
Shenzhen Jingcheng High-tech manufactures customized PTFE hose solutions for equipment manufacturers, distributors and industrial fluid transfer systems. With factory-direct production, flexible customization and fast response, we help customers reduce sourcing cost and improve equipment compatibility.

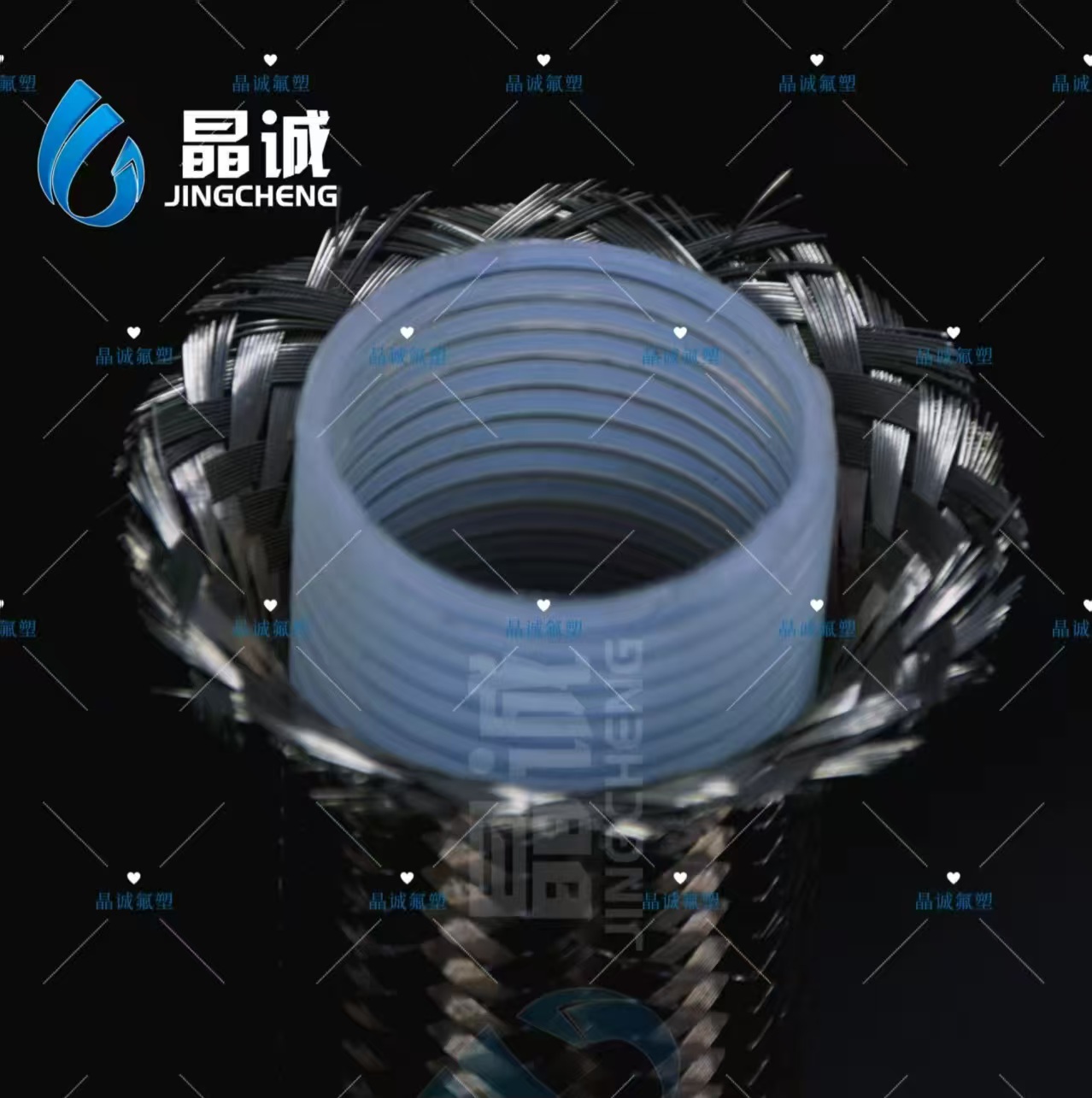

A PTFE inner smooth outer corrugated braided hose is a reinforced PTFE hose with a special structure. The inner wall is smooth for cleaner fluid transfer, while the outer wall is corrugated to improve bending flexibility. The outside is covered with a high-strength 304 stainless steel braided layer.
This structure provides a strong balance between clean transfer, flexibility, pressure resistance and chemical compatibility. It is especially useful for systems where a hose needs to be easy to clean, resistant to negative pressure and flexible enough for compact installation.
In food, cosmetics, pharmaceutical and chemical production, the hose must often meet several requirements at the same time. It needs to transfer sensitive or corrosive media, reduce residue buildup, bend easily in limited space and maintain stable performance under pressure or negative pressure conditions.
A PTFE inner smooth outer corrugated braided hose helps solve these problems by offering:
Smooth inner wall for cleaner transfer
Corrugated outer structure for better flexibility
304 stainless steel braid for reinforcement
Small bending radius for compact installation
Resistance to negative pressure
Excellent chemical resistance
Wide temperature range
Custom hose assembly options
The smooth inner wall helps improve flow efficiency and reduce residue buildup. This is important for food, cosmetics and pharmaceutical transfer systems where cleanliness and easier cleaning are required.
The corrugated outer wall improves flexibility and bending performance. It allows the hose to be installed more easily in compact equipment layouts and curved pipeline systems.
The outer 304 stainless steel braid improves pressure resistance, mechanical protection and hose durability. It also helps the hose perform better in demanding industrial environments.
This hose structure is suitable for applications where negative pressure or suction resistance is required. The reinforced braided structure helps maintain hose stability during operation.
The hose supports a temperature range from -70°C to +260°C, making it suitable for both low-temperature and high-temperature transfer applications.
PTFE provides strong resistance to many acids, alkalis, solvents and corrosive media. This makes the hose suitable for chemical transfer, pharmaceutical production and other demanding fluid systems.
Compared with fully corrugated inner structures, the smooth inner wall helps reduce material retention and supports easier cleaning in suitable applications.
Our PTFE inner smooth outer corrugated braided hose can be used in:
Food transfer systems
Cosmetics production equipment
Chemical fluid transfer
Pharmaceutical transfer equipment
High-purity liquid transfer
Corrosive media transfer
Dosing and filling systems
Laboratory fluid transfer
Industrial process pipelines
Suction and negative pressure transfer systems
Compact equipment connection systems
Item | Available Options |
|---|---|
Product Name | PTFE Inner Smooth Outer Corrugated Braided Hose |
Model Series | JCC-21100-PTFE |
Inner Structure | Smooth PTFE inner wall |
Outer Structure | Corrugated PTFE outer wall |
Reinforcement | 304 stainless steel braided layer |
Temperature Range | -70°C to +260°C |
Inner Diameter | 1/4” to 1-1/4” |
Main Advantages | Easy to clean, flexible, negative pressure resistant, small bending radius |
Application | Food, cosmetics, chemical, pharmaceutical and industrial transfer |
Customization | Available |
Standard Reference | ISO9001:2015 / US FDA 21 CFR 177.1550 / SGS |
Model | Inner Diameter | Outer Diameter | Braided Hose OD | Working Pressure | Burst Pressure | Min. Bending Radius |
JCC-21106-PTFE | 1/4” / 6.8 mm | 8.35 mm | 9.6 mm | 1276 psi / 8.8 MPa | 5104 psi / 35.2 MPa | 19 mm |
JCC-21108-PTFE | 5/16” / 7.9 mm | 10.3 mm | 10.6 mm | 1218 psi / 8.4 MPa | 4872 psi / 33.6 MPa | 19 mm |
JCC-21110-PTFE | 3/8” / 10 mm | 11.93 mm | 13.5 mm | 1305 psi / 9 MPa | 5220 psi / 36 MPa | 25 mm |
JCC-21113-PTFE | 1/2” / 13.6 mm | 15.1 mm | 17.5 mm | 870 psi / 6 MPa | 3480 psi / 24 MPa | 38 mm |
JCC-21116-PTFE | 5/8” / 16.7 mm | 18.3 mm | 21.4 mm | 725 psi / 5 MPa | 2900 psi / 20 MPa | 50 mm |
JCC-21119-PTFE | 3/4” / 19.8 mm | 22 mm | 24.2 mm | 609 psi / 4.2 MPa | 2436 psi / 16.8 MPa | 63 mm |
JCC-21125-PTFE | 1” / 26.4 mm | 29.4 mm | 31.7 mm | 580 psi / 4 MPa | 2320 psi / 16 MPa | 75 mm |
JCC-21132-PTFE | 1-1/4” / 31.75 mm | 35.5 mm | 37 mm | 362.5 psi / 2.5 MPa | 1450 psi / 10 MPa | 80 mm |
Shenzhen Jingcheng High-tech Co., Ltd. is a professional PTFE hose manufacturer specializing in PTFE hoses, PTFE high-pressure hoses, PA hoses and electric heated hoses. Since 2005, we have provided customized hose solutions for food equipment, cosmetics production, pharmaceutical transfer, chemical processing, automotive systems, gas sampling, hot melt adhesive systems and laboratory applications.
For global equipment manufacturers, industrial distributors and process system integrators, we provide factory-direct PTFE hose solutions with stable quality, short lead time, flexible customization and sample support.
We manufacture PTFE hoses directly in China, helping customers reduce procurement cost, shorten the supply chain and improve sourcing efficiency.
The smooth PTFE inner wall helps reduce residue buildup and supports easier cleaning, making it suitable for food, cosmetics and pharmaceutical transfer systems.
The corrugated outer structure gives the hose a smaller bending radius, making installation easier in compact or complex equipment layouts.
The 304 stainless steel braided layer improves pressure resistance, mechanical strength and hose protection.
We can customize hose length, inner diameter, pressure rating, connector type, fitting standard and assembly structure according to drawings, samples or equipment requirements.
We support fast response for replacement hoses, project orders and customized hose assemblies. Samples can be provided for testing before bulk production.
