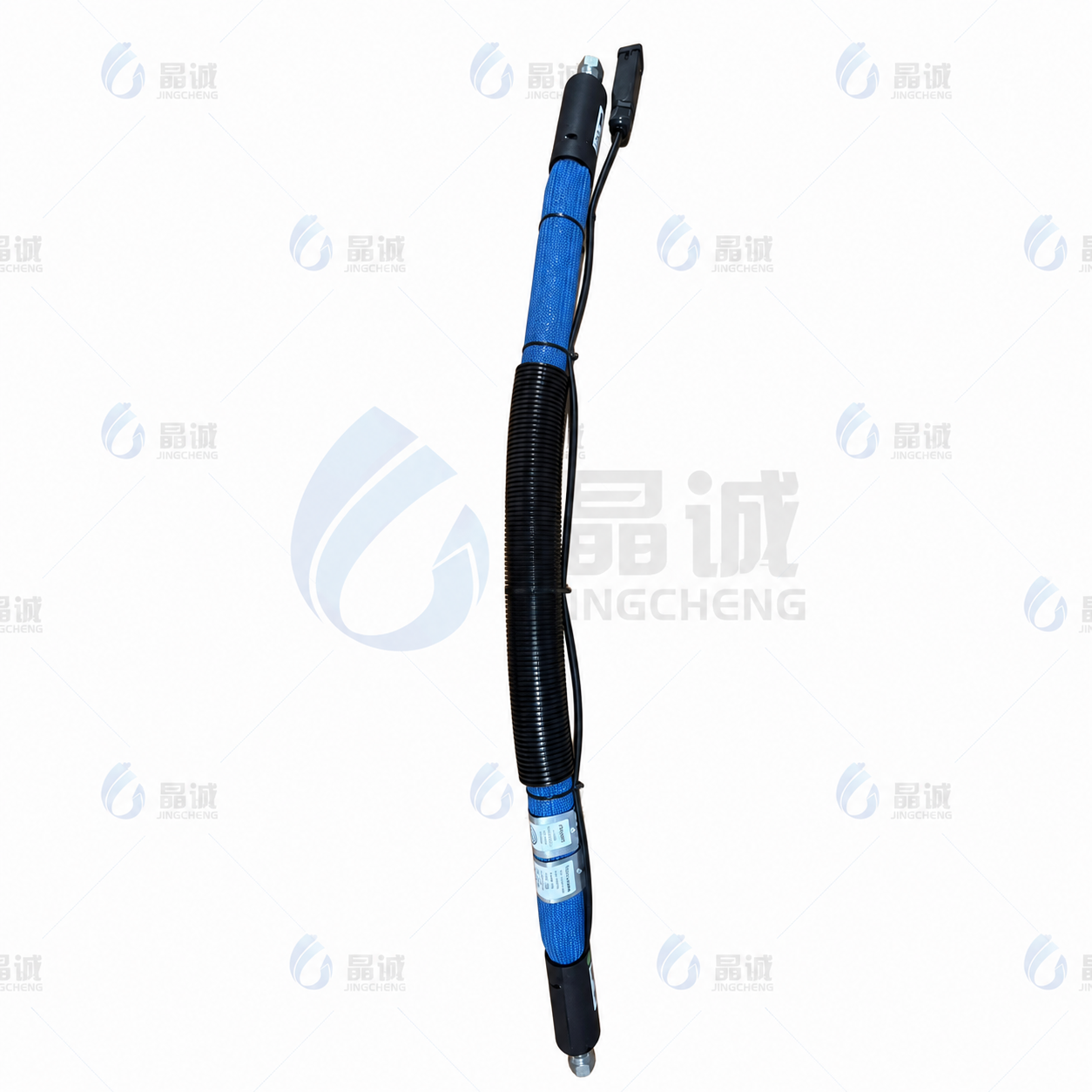

Extruder Heated Connection Hose
An extruder heated connection hose is designed for extrusion equipment, extruders, marking machines and other high-temperature material transfer systems. In extrusion production, the hose is not just a connection part. It must maintain material temperature, resist pressure, reduce heat loss and match the equipment connection structure.
Shenzhen Jingcheng High-tech manufactures customized heated connection hoses for extrusion equipment. This hose is suitable for material soft connection between different extrusion systems and can be customized according to working temperature, pressure, hose length, inner diameter, voltage, sensor type and connector standard.
An extruder heated connection hose is a temperature-controlled hose used to transfer heated materials between extruder equipment and related production systems. It combines a reinforced hose structure, heating layer and insulation layer to help maintain stable material temperature during transfer.
Compared with ordinary transfer hoses, this hose is designed for high-temperature and pressure-sensitive working conditions. It helps prevent material cooling, viscosity increase, flow instability and production interruption.
In extrusion systems, material temperature directly affects flow stability and final production quality. If the hose loses heat during transfer, the material may cool down, become more viscous, or create unstable pressure inside the system.
A properly designed extruder heated hose helps solve these problems by maintaining stable heating along the hose body. It supports better material flow, more stable operation and easier equipment connection.
This hose is suitable for different types of extrusion equipment, extruders and marking machines. It can be used as a flexible heated connection hose between machine sections.
The product is designed for high-temperature material transfer. The maximum working temperature can reach 250°C depending on the customized hose structure and application.
The hose can be customized to withstand high pressure. Under suitable design conditions, pressure resistance can reach up to 35MPa at 250°C.
The heating layer is made with uniformly braided heating elements. This helps reduce temperature differences along the hose inner wall and supports more stable material transfer.
High-insulation materials are used to reduce heat loss and improve thermal efficiency during operation.
Hose length, inner diameter, pressure rating, voltage, power, sensor type, connector type and electrical interface can be customized according to your equipment.
Our extruder heated connection hose can be used in:
Extrusion equipment
Extruders
Marking machines
Plastic processing equipment
High-temperature material transfer
Flexible equipment connection
Temperature-controlled production lines
Industrial material conveying systems
Customized extrusion machinery
High-pressure heated transfer systems
Item | Available Options |
|---|---|
Product Name | Extruder Heated Connection Hose |
Product Type | Heated hose for extrusion equipment |
Application | Extruders, extrusion systems, marking machines |
Temperature | Up to 250°C by application |
Pressure | Up to 35MPa by customization |
Heating Structure | Uniformly braided heating element |
Voltage | 220V / 110V / 380V / 12V DC / Custom |
Sensor Type | PT100, PT1000, J type, K type, NI120 or custom |
Connector Standard | Metric, British, American or custom |
Customization | Available |
Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | Minimum Bending Radius |
3/8” | 15.5 mm | 110 bar / 1595 psi | 440 bar / 6380 psi | 20 mm |
1/2” | 19 mm | 88 bar / 1269 psi | 350 bar / 5075 psi | 25 mm |
5/8” | 22.7 mm | 70 bar / 1015 psi | 280 bar / 4060 psi | 30 mm |
3/4” | 27 mm | 65 bar / 943 psi | 260 bar / 3770 psi | 60 mm |
1” | 34 mm | 57.5 bar / 834 psi | 230 bar / 3335 psi | 85 mm |
Shenzhen Jingcheng High-tech Co., Ltd. is a professional manufacturer of PTFE hoses, PA hoses, PTFE high-pressure hoses and electric heated hoses. We provide customized heated hose solutions for extrusion equipment, hot melt adhesive systems, gas sampling equipment, automotive production, pharmaceutical transfer, food equipment and other industrial applications.
For equipment manufacturers and global buyers, we provide factory-direct heated hose solutions with flexible customization, stable quality, short lead time and sample support.
We manufacture heated hoses directly in China, helping customers reduce sourcing cost and improve supply chain efficiency.
Extrusion equipment often requires special hose length, connector standard, sensor type and pressure rating. We can customize the hose according to drawings, samples or working conditions.
The uniformly braided heating structure helps reduce temperature fluctuation and supports stable material transfer.
We can help customers match hose structure with extruders, extrusion systems and related production machines.
Samples can be provided for testing before bulk production.
