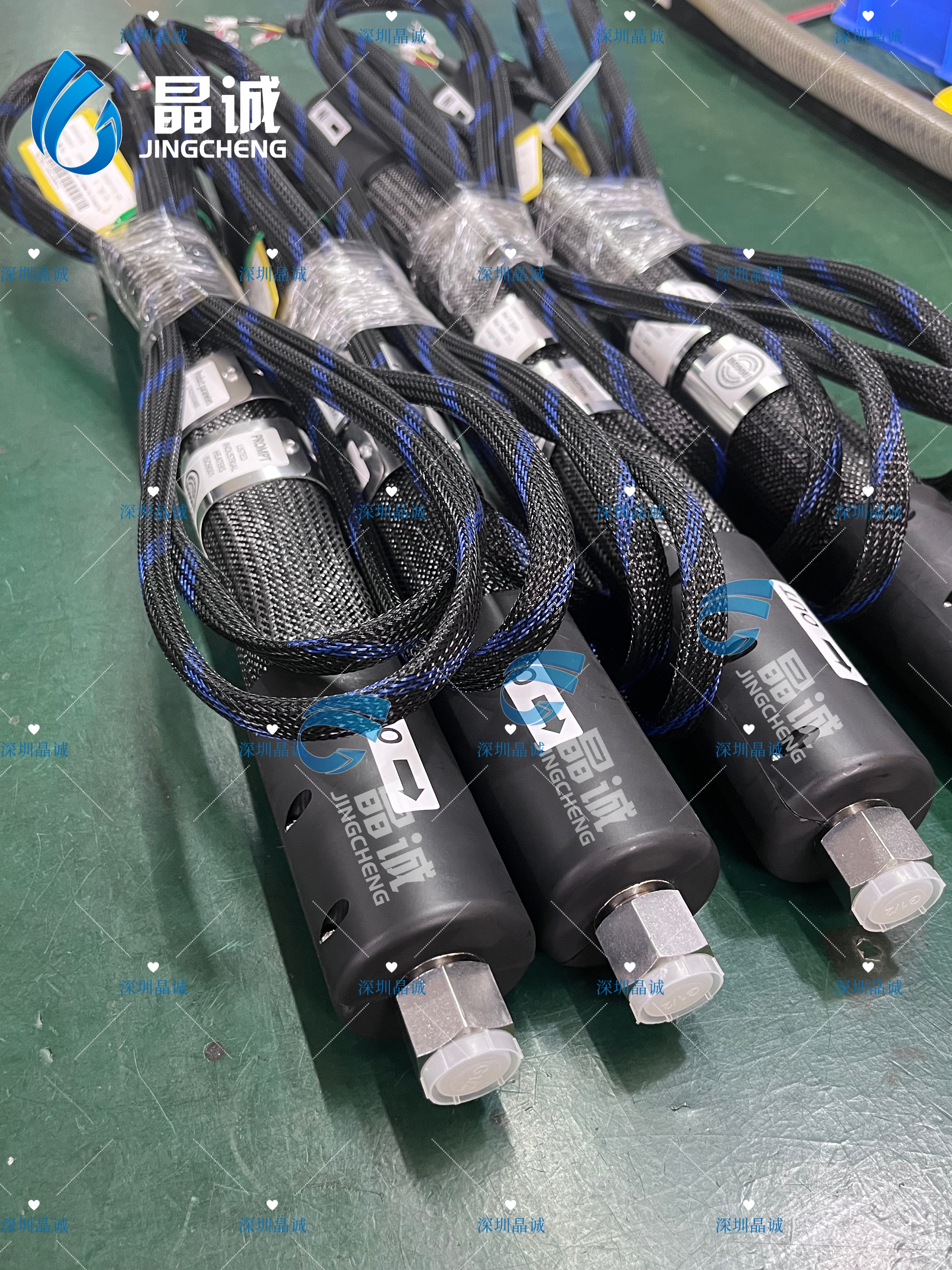

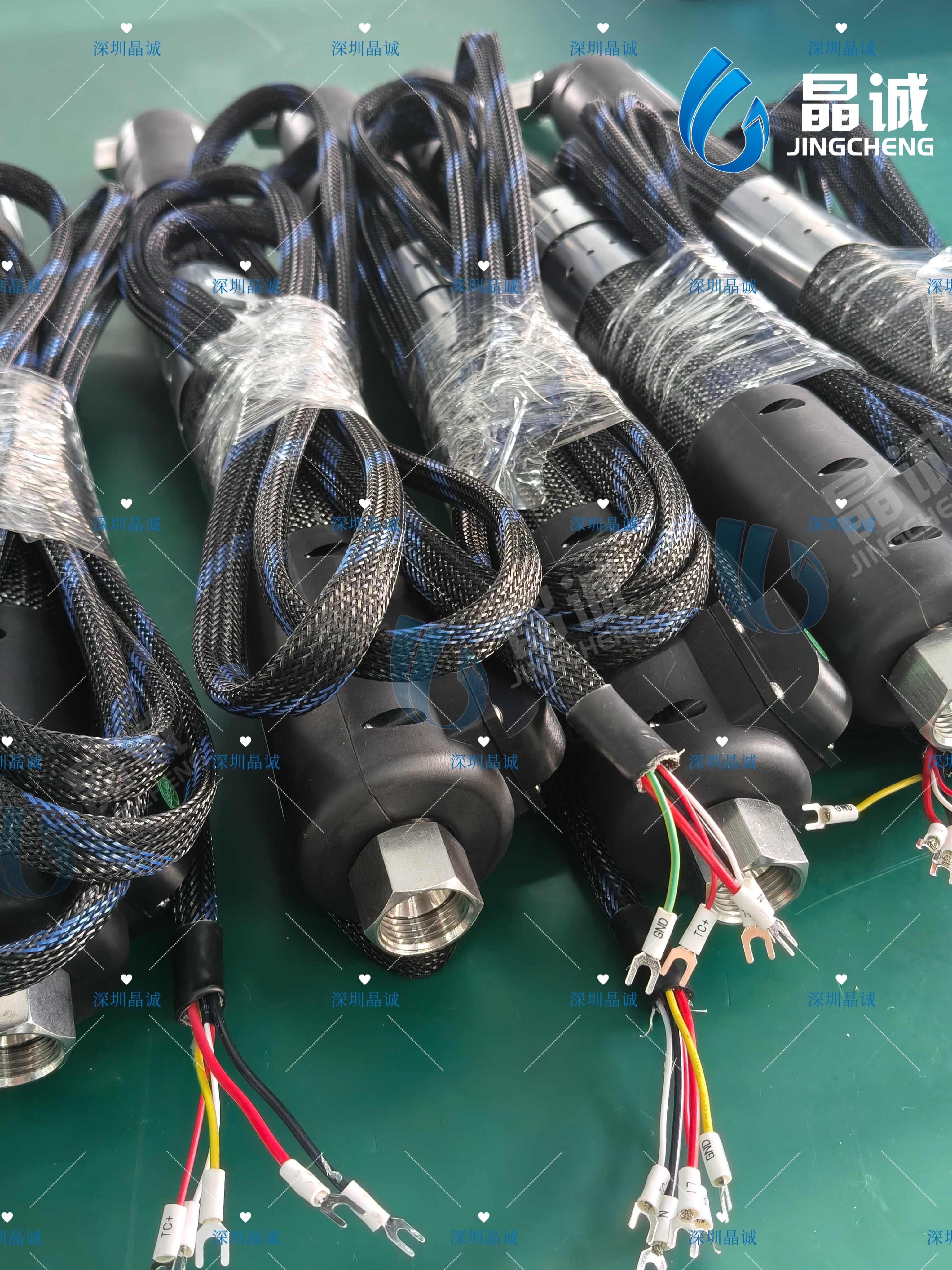

Extruder accessories, high temperature and high pressure pipes Injection molding machine extruded tube

Suitable for material soft connections of various types of extrusion equipment, extruders, and marking machines on the market. The maximum operating temperature can reach 250 ° C and the maximum pressure resistance can withstand a pressure of 35MPA at 250 ° C. At present, we have established long-term and stable cooperation with several well-known extruder manufacturers in China.

Availability:

Quantity:



Inquire Add to Basket

Model:
007-0121
Brand:
JC
Code:
3904610000

Product Description

Color: customized

Inner diameter: 8MM-19MM

Outer diameter: 10.3mm

Braided Outer diameter:12.5mm

Working pressure: 1957.5psi / 13.5mpa

Burst pressure: 7830psi/ 54mpa

Min. bending radius: 0.59inch / 15mm

Remark:

1) Can customize according to request specification

2) Can add adaptor with extra cost (option)

3) Heat resistance temperature: up to 250 ℃ (* If you need to customize higher temperatures, please consult us)

4) Capable of insulation and heating. The heating layer is composed of uniformly woven heating elements, thereby minimizing the difference in temperature distribution on the inner wall.

5) Suitable for various imported and domestic models
