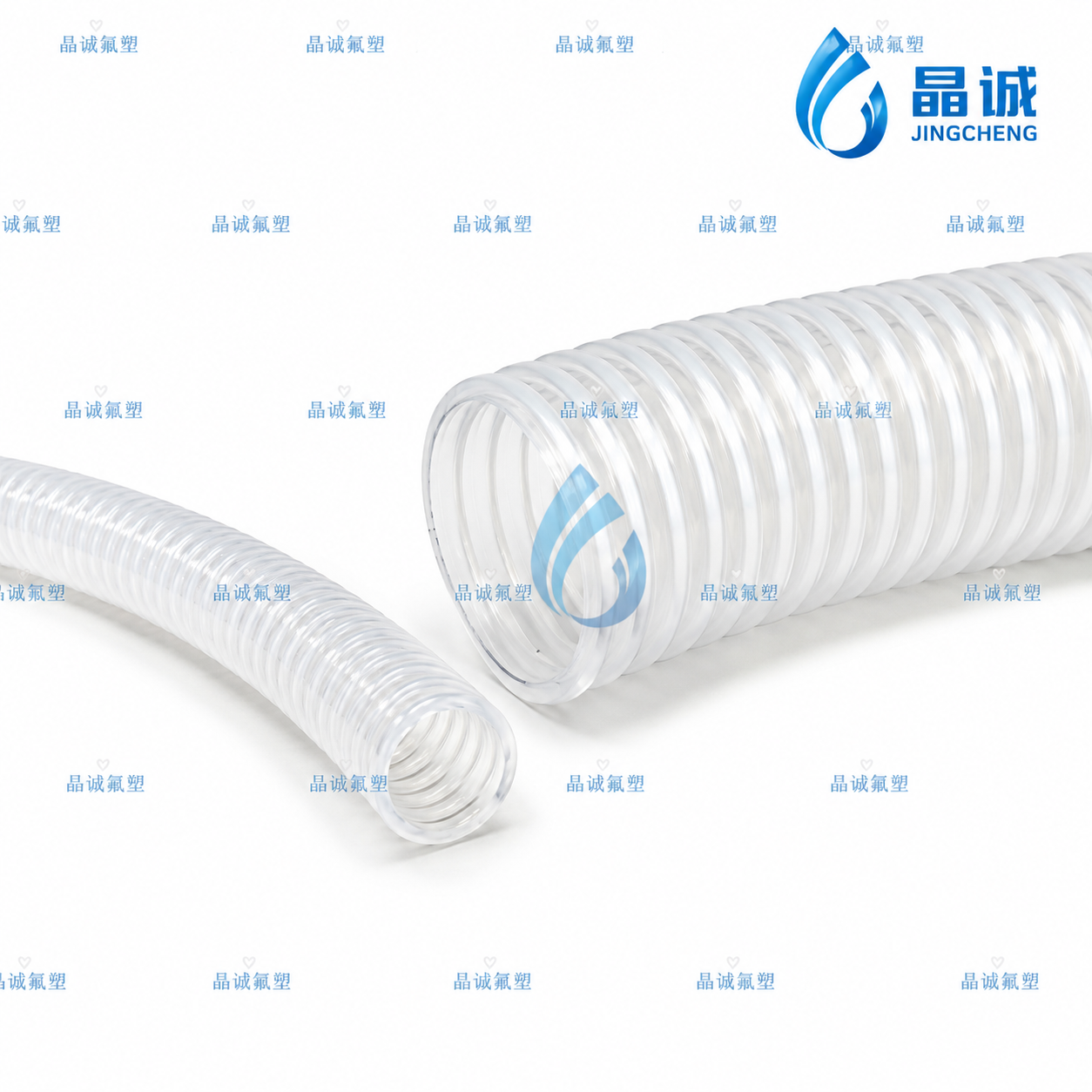

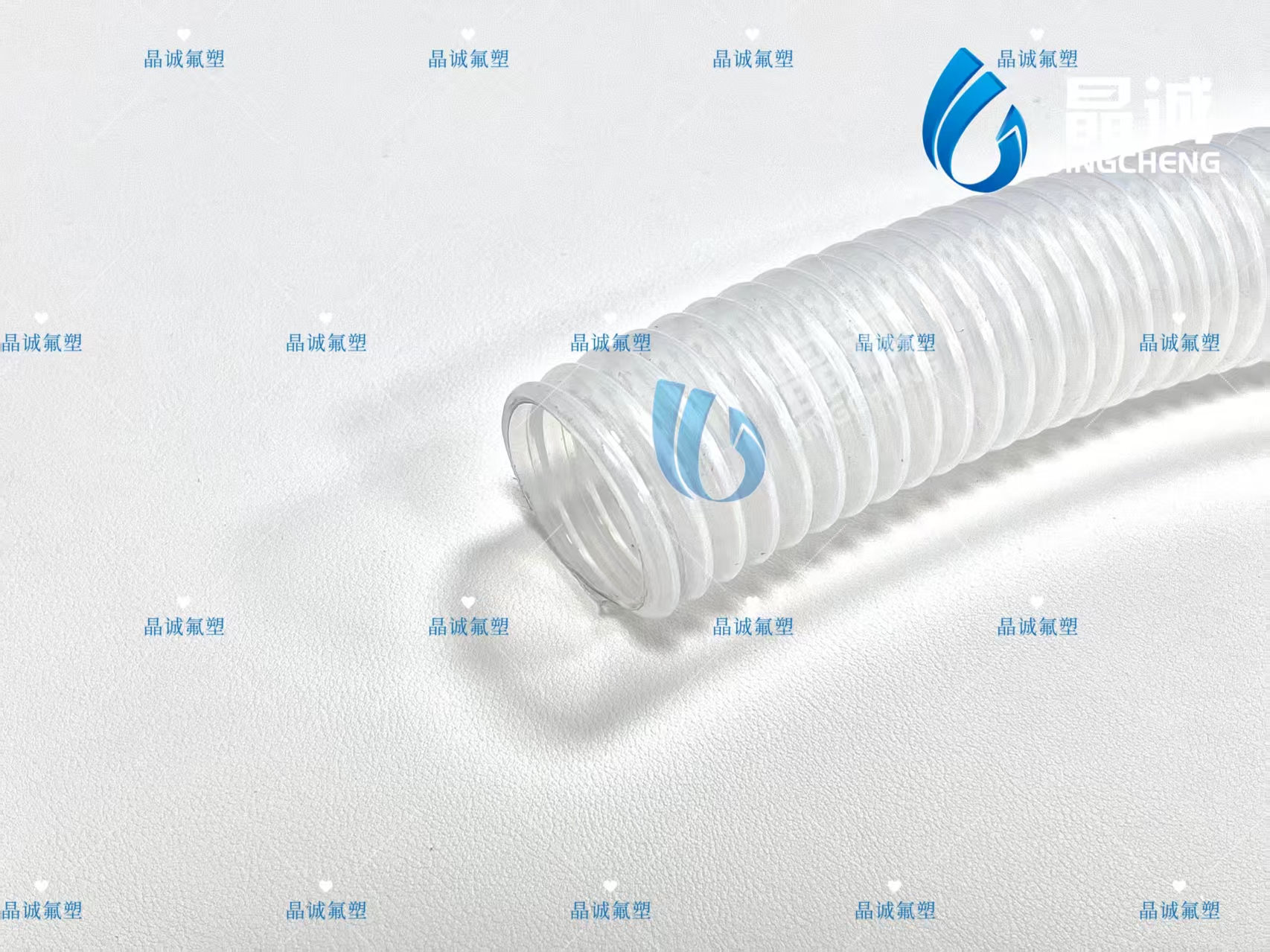

A flexible convoluted PTFE hose is designed for fluid transfer systems that require strong chemical resistance and a small bending radius.
Unlike conventional smooth PTFE tubing, the inner and outer surfaces of this hose have a corrugated or convoluted structure. This structure significantly improves flexibility and allows the hose to follow complex equipment layouts.
The JCC-10000-PTFE series is suitable for pharmaceutical, food, chemical and industrial fluid transfer applications.
Smooth PTFE tubing provides clean flow but may require a relatively large bending radius.
In compact equipment, the installation route may include:
Tight corners
Limited space
Moving connection points
Equipment vibration
Misaligned pipe sections
Frequent hose positioning
A convoluted PTFE hose offers improved flexibility while retaining the chemical and temperature resistance of PTFE.
The corrugated structure allows the hose to bend more easily than conventional smooth-wall PTFE tubing.
Selected sizes have a minimum bending radius as low as 20 mm.
PTFE is compatible with many acids, alkalis, solvents and corrosive process fluids.
The catalog temperature range is -70°C to +260°C.
The product can be used in pharmaceutical, food and chemical equipment when the final hose configuration matches the application requirements.
Diameter, length, fittings and hose assembly options can be customized.
Pharmaceutical processing equipment
Food conveying systems
Chemical transfer
Laboratory equipment
Dosing and filling machinery
Corrosive liquid transfer
Compact process equipment
Flexible equipment connections
High- and low-temperature fluid systems
Industrial chemical pipelines
Item | Specification |
|---|---|
Product Name | Flexible Convoluted PTFE Hose |
Model Series | JCC-10000-PTFE |
Material | PTFE |
Structure | Corrugated inner and outer walls |
Temperature Range | -70°C to +260°C |
Inner Diameter Range | 1/4” to 2” |
Main Advantage | Strong flexibility and small bending radius |
Industries | Pharmaceutical, food and chemical |
Customization | Available |
Catalog Standard Reference | ISO9001:2015 / US FDA 21 CFR 177.1550 / SGS |
Model | Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | Minimum Bending Radius |
JCC-10004-PTFE | 1/4” / 6.5 mm | 10.6 mm | 60 psi / 0.4 MPa | 210 psi / 1.4 MPa | 20 mm |
JCC-10008-PTFE | 5/16” / 8 mm | 12.3 mm | 60 psi / 0.4 MPa | 210 psi / 1.4 MPa | 22 mm |
JCC-10010-PTFE | 3/8” / 10 mm | 15 mm | 60 psi / 0.4 MPa | 210 psi / 1.4 MPa | 26 mm |
JCC-10013-PTFE | 1/2” / 13 mm | 17.9 mm | 60 psi / 0.4 MPa | 210 psi / 1.4 MPa | 26 mm |
JCC-10016-PTFE | 5/8” / 16 mm | 21.9 mm | 45 psi / 0.3 MPa | 180 psi / 1.2 MPa | 32 mm |
JCC-10019-PTFE | 3/4” / 19 mm | 26.4 mm | 45 psi / 0.3 MPa | 180 psi / 1.2 MPa | 55 mm |
JCC-10025-PTFE | 1” / 25 mm | 35 mm | 45 psi / 0.3 MPa | 150 psi / 1.0 MPa | 80 mm |
JCC-10032-PTFE | 1-1/4” / 32 mm | 39 mm | 38 psi / 0.3 MPa | 135 psi / 0.9 MPa | 100 mm |
JCC-10038-PTFE | 1-1/2” / 38 mm | 45 mm | 38 psi / 0.3 MPa | 135 psi / 0.9 MPa | 100 mm |
JCC-10050-PTFE | 2” / 50 mm | 59.5 mm | 30 psi / 0.2 MPa | 120 psi / 0.8 MPa | 125 mm |
Final working pressure must be confirmed according to temperature, hose dimensions and fittings.
A convoluted PTFE hose can help:
Simplify installation in restricted spaces
Reduce stress at equipment connections
Improve routing around machinery
Accommodate vibration and movement
Resist corrosive fluids
Support high- and low-temperature applications
Reduce the need for multiple rigid elbows
Improve replacement hose compatibility
Please provide:
Working medium
Working temperature
Working pressure
Hose length
Inner diameter
Required bending radius
Equipment movement
Connection type
Cleaning requirements
Drawing or sample
