A gas sampling heated hose is designed for flue gas pretreatment systems, online monitoring equipment, infrared analyzers, ultraviolet sampling analyzers and laboratory testing equipment. In gas analysis systems, sample gas temperature must often be maintained during transfer to prevent condensation, measurement instability and sample loss.
Shenzhen Jingcheng High-tech manufactures customized gas sampling heated hoses for environmental monitoring, analytical instruments and laboratory systems. The hose provides stable heating, good insulation and flexible installation for different gas sampling applications.

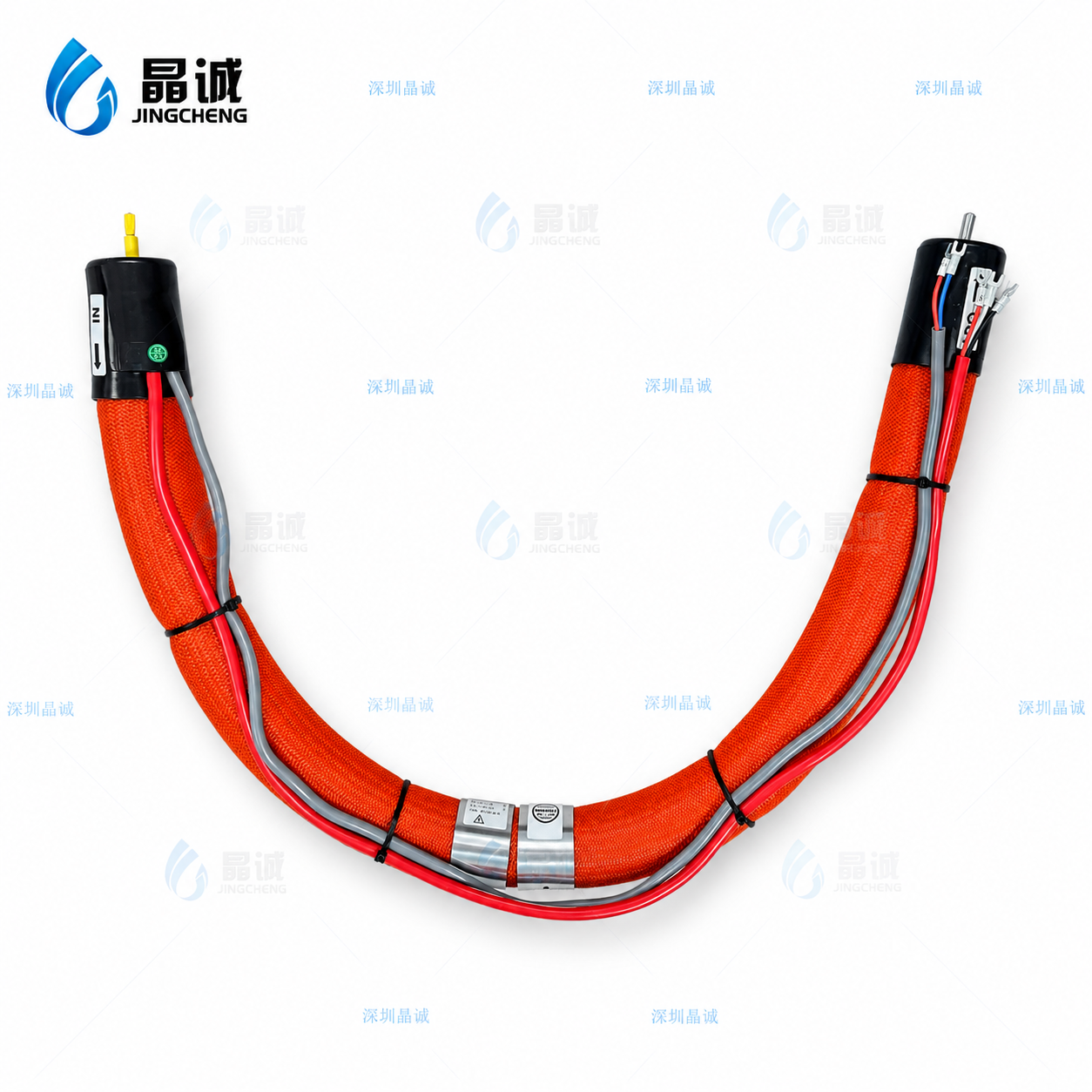

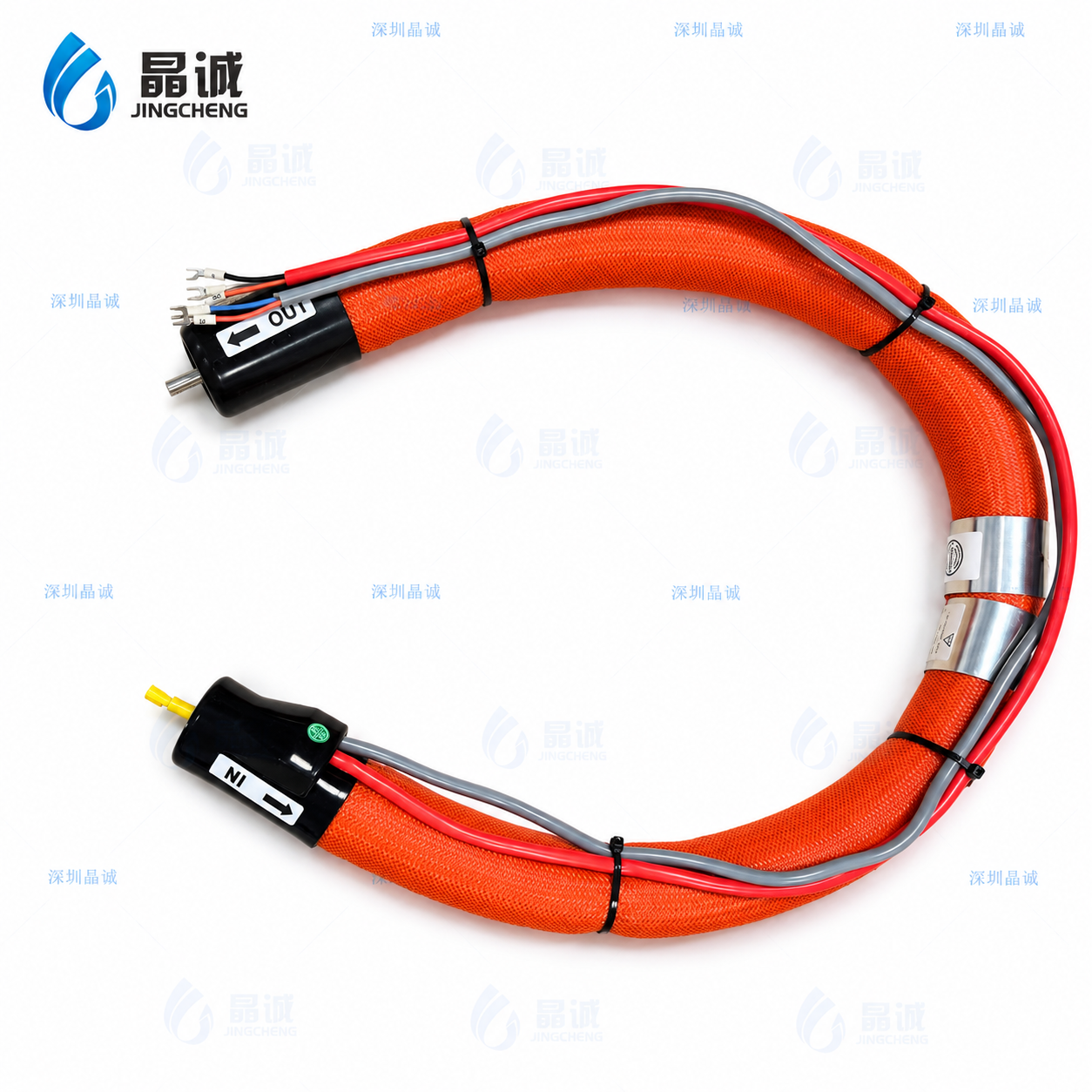

A gas sampling heated hose is a heated sample line used to transfer gas samples from the sampling point to the analyzer while maintaining a stable temperature. It usually includes an inner sample tube, heating layer, insulation layer, temperature sensor and electrical connection.
This hose is widely used in emission monitoring and analytical systems where sample gas temperature stability is important.
In gas monitoring systems, if the sample gas cools down during transfer, moisture or certain components may condense inside the hose. This can affect measurement accuracy, block the sample line or reduce system stability.
A heated gas sampling hose helps maintain temperature during transfer and supports more reliable gas analysis results.
This hose is suitable for flue gas pretreatment equipment, online monitoring systems, infrared analyzers, ultraviolet analyzers and laboratory testing equipment.
The hose supports working temperatures up to 230°C, helping maintain sample gas temperature during transfer.
High-efficiency insulation materials help reduce heat loss and improve temperature stability.
The hose is designed with good bending resistance and flexibility, making it suitable for installation around monitoring systems and analytical equipment.
Uniformly braided heating elements help reduce temperature differences along the hose and support stable sample transfer.
Hose length, inner tube material, inner diameter, voltage, power, sensor type, connector type and electrical interface can be customized according to equipment requirements.
Our gas sampling heated hose can be used in:
Flue gas pretreatment equipment
CEMS online monitoring systems
Infrared sampling analyzers
Ultraviolet sampling analyzers
Laboratory testing equipment
Environmental monitoring systems
Industrial emission monitoring
Gas analysis systems
Heated sample transfer lines
Analytical instrument connection systems
Item | Available Options |
|---|---|
Product Name | Gas Sampling Heated Hose |
Product Type | Heated sample line |
Application | CEMS, flue gas pretreatment, analyzers, laboratory testing |
Temperature | Up to 230°C |
Heating Structure | Uniformly braided heating element |
Voltage | 220V / 110V / 380V / 12V DC / Custom |
Sensor Type | PT100, PT1000, J type, K type, NI120 or custom |
Connector Standard | Custom according to equipment |
Customization | Available |
Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | Minimum Bending Radius |
3/16” | 7.6 mm | 203 bar / 2936 psi | 810 bar / 11745 psi | 30 mm |
1/4” | 9 mm | 173 bar / 2501 psi | 690 bar / 10005 psi | 30 mm |
5/16” | 11 mm | 158 bar / 2284 psi | 630 bar / 3915 psi | 40 mm |
Shenzhen Jingcheng High-tech Co., Ltd. is a professional manufacturer of PTFE hoses, PA hoses, PTFE high-pressure hoses and electric heated hoses. We provide customized heated hose solutions for gas sampling equipment, online monitoring systems, laboratory instruments, flue gas analysis, hot melt adhesive systems, extrusion equipment and industrial transfer applications.
For analytical equipment manufacturers, environmental monitoring companies and industrial users, we provide factory-direct heated sample line solutions with stable quality, flexible customization, short lead time and sample support.
We manufacture gas sampling heated hoses directly in China, helping customers reduce sourcing cost and shorten the supply chain.
The heating and insulation structure helps maintain sample gas temperature and reduce condensation risk.
We can customize hose length, inner tube material, voltage, power, sensor type and connector type according to your analyzer or monitoring equipment.
The hose is suitable for CEMS systems, flue gas pretreatment equipment and various gas analysis instruments.
We support replacement hoses, project-based orders and sample testing before bulk production.
